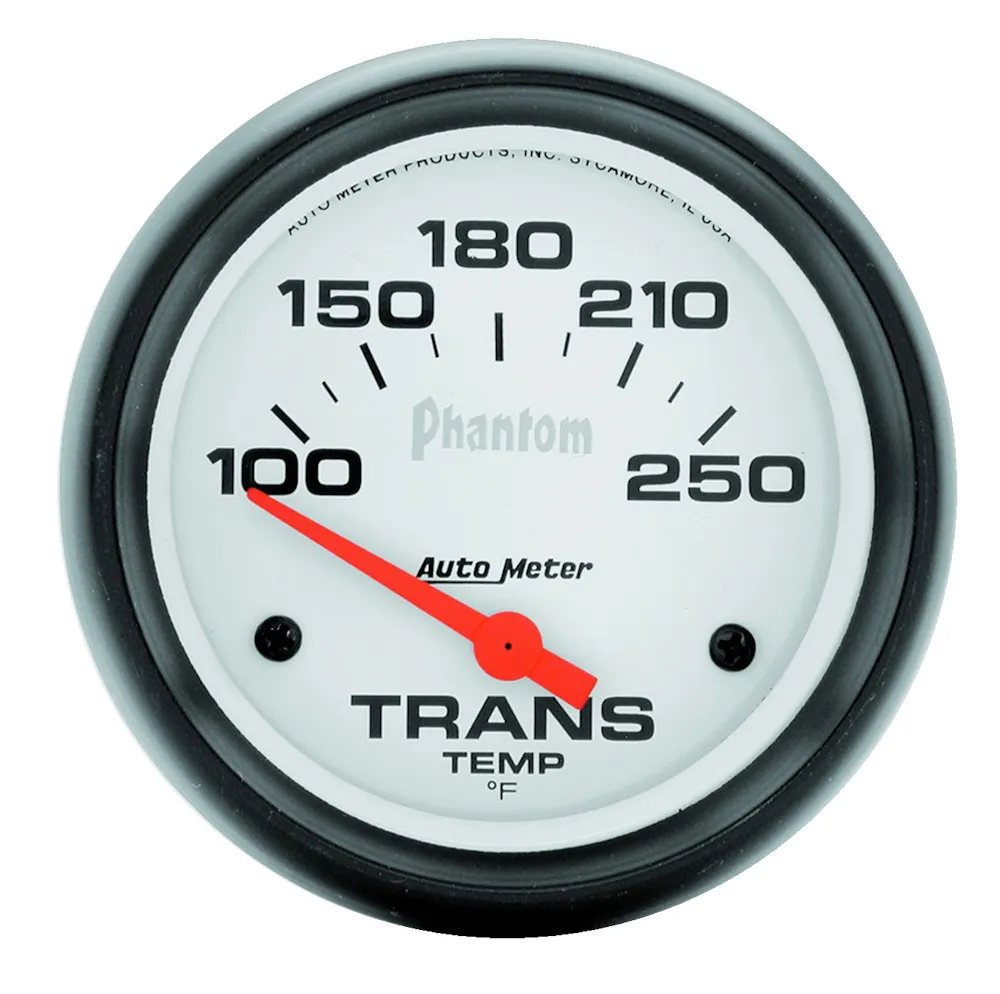

AutoMeter Products / 5857
Part #: 5857
UPC: 046074058578
Loading...
Notify me when this item is in stock.
Description: GAUGE; TRANSMISSION TEMP; 2 5/8in.; 100-250deg.F; ELECTRIC; PHANTOM; 2-5/8in. TRANSMISSION TEMPERATURE; 100-250 deg.F; PHANTOM
Description:
Description
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8 in. NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.
Features & benefits
- Incandescent Lighting Illuminates Around Perimeter Of Dial
- 12 And 16V Compatible
- Incl. 1/8 in. NPT Temp Sender
- Incl. 3/8 And 1/2 in. NPT Adapters
- Incl. Bulb And Socket Assembly; Red/Green Bulb Covers
- Incl. Mounting Hardware/Instructions
- Air-Core Electric Instruments Provide Quick And Accurate Readings
Specifications
- GTIN
- 00046074058578
- Weight
- 0.85 lb
- Height
- 4.5 in
- Length
- 4.5 in
- Width
- 4.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- AAM Standard Pack
- 24
- Adapters Included
- Yes
- Add-On Part
- N/A
- Analog Or Digital
- Analog
- Anti-Glare Enclosure Included
- No
- Bezel Color
- Black
- Bezel Style
- Super Bezel
- Bulb Technology
- Incandescent
- Bulb Type
- Incandescent
- Bulb and Socket Number
- 3220
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Dial (Face Color)
- White
- Electric Or Mechanical
- Electric; Air-Core
- Face Color
- White
- Fitting Type
- 0.375 in. NPT and 0.500 in. NPT
- Fittings Included
- Yes
- Font Color
- Black
- Gauge Size
- 66.7mm
- Gauge Size (mm)
- 66.7
- Gauge Type
- Transmission Temperature
- Hole Size
- 66.7mm
- Lens
- Flat Clear
- Light Covers Number
- 3244/3215
- Lighting Color
- White Incandescent
- Lighting Type
- Incandescent
- Measurement
- US
- Mounting Bracket Number
- 3245
- Movement Type
- Electric Air-Core
- Number Color
- Black
- Outer Bezel Diameter
- 2.875 in.
- Pointer Color
- Fluorescent Red
- Sending Unit Included
- Yes
- Sending Unit Number
- 2258
- Size
- 2.625 in.
- Size (in.)
- 2-5/8
- Sweep
- Short
- Temperature
- 100-250° F
- Title
- 2-5/8" TRANSMISSION TEMPERATURE, 100-250 ?F, PHANTOM
- Type
- Electrical
- Voltage
- 8-18 V
Fitment status
This product is universal and will fit your application.
