AutoMeter Products · 4851
Part #: 4851
UPC: 046074048517
Loading...
Notify me when this item is in stock.

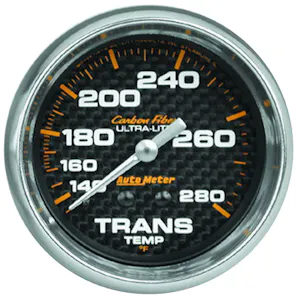

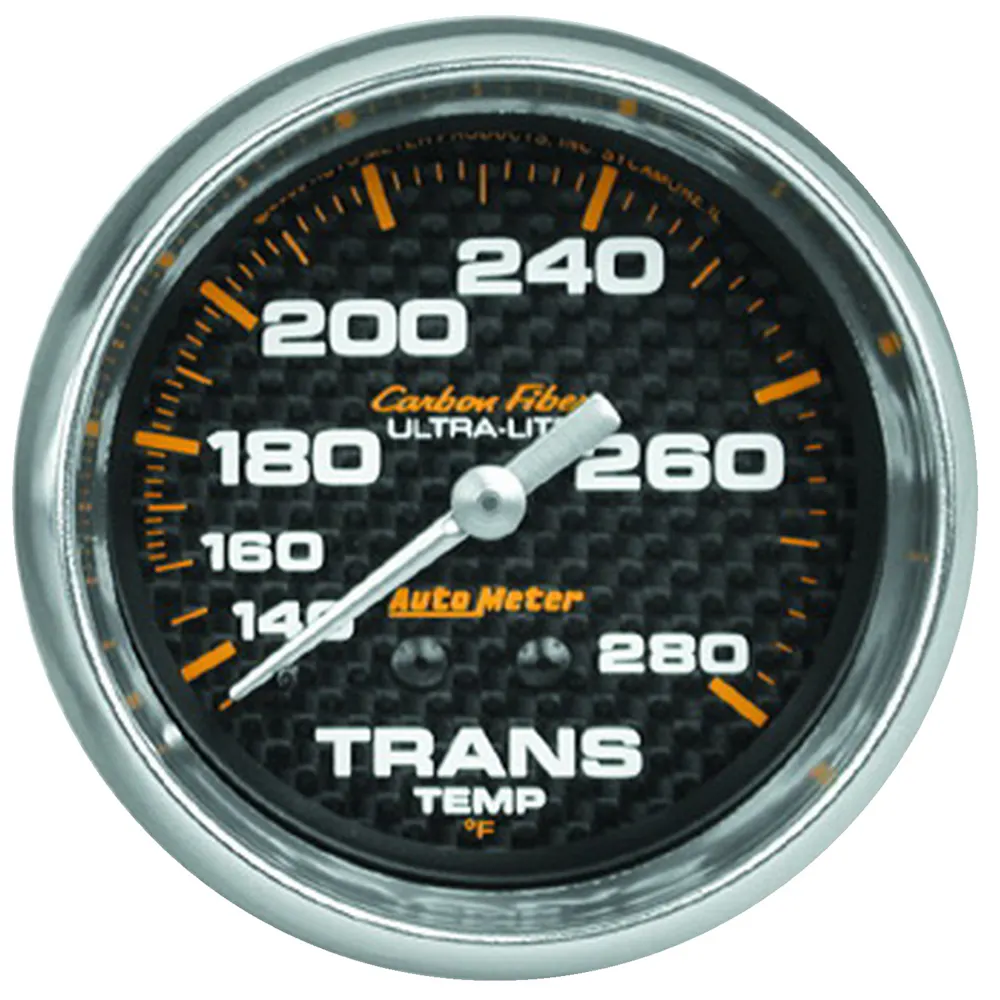

Description: GAUGE; TRANSMISSION TEMP; 2 5/8in.; 140-280deg.F; MECHANICAL; CARBON FIBER; 2-5/8in. TRANSMISSION TEMPERATURE; 140-280 deg.F; CARBON FIBER
Description:
Description
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Mechanical Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. An 8' Capillary Tube with a 1/2 in. NPT mounting nut is included to be installed in your transmission pan. An optional trans cooler line manifold is available for another easy installation option.
Features & benefits
- Advanced Air-Core Movement
- Incl. Bulb; Socket Assembly; Red/Green Bulb Covers
- Incl. Mounting Hardware/Installation Instructions
- Precision Movement And Extreme Accuracy
- Ultimate High Performance Dial Face Look
- 1 Year Limited Warranty
- Traditional Incandescent Lighting Illuminates Perimeter Of Dial
- Mechanical Movement Provides Accuracy And Durability
- No Electrical System Required For Gauge Operation
- Incl. 1/2 in. Knot Adapter
Specifications
- GTIN
- 00046074048517
- Weight
- 1.2 lb
- Height
- 6.25 in
- Length
- 6.25 in
- Width
- 6 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- AAM Standard Pack
- 18
- Adapters Included
- Yes
- Add-On Part
- N/A
- Analog Or Digital
- Analog
- Anti-Glare Enclosure Included
- No
- Bezel Color
- Bright Anodized
- Bezel Style
- Super Bezel
- Bulb Technology
- Incandescent
- Bulb Type
- Incandescent
- Bulb and Socket Number
- 3220
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Capillary Length
- 10.5 ft.
- Capillary Length (ft.)
- 10.5
- Dial (Face Color)
- Carbon Fiber
- Electric Or Mechanical
- Mechanical
- Face Color
- Carbon Fiber
- Fitting Type
- 0.500 in. NPT
- Fittings Included
- Yes
- Font Color
- White
- Gauge Size
- 66.7mm
- Gauge Size (mm)
- 66.7
- Gauge Type
- Transmission Temperature
- Hole Size
- 66.7mm
- Lens
- Flat Clear
- Light Covers Number
- 3244/3215
- Lighting Color
- White Incandescent
- Lighting Type
- Incandescent
- Measurement
- US
- Mounting Bracket Number
- 3245
- Movement Type
- Mechanical
- Number Color
- White
- Outer Bezel Diameter
- 2.875 in.
- Pointer Color
- Red
- Size
- 2.625 in.
- Size (in.)
- 2-5/8
- Sweep
- Full
- Temperature
- 140-280° F
- Title
- 2-5/8" TRANSMISSION TEMPERATURE, 140-280 ?F, CARBON FIBER
- Type
- Mechanical
- Voltage
- 8-18 V
Fitment status
This product is universal and will fit your application.
