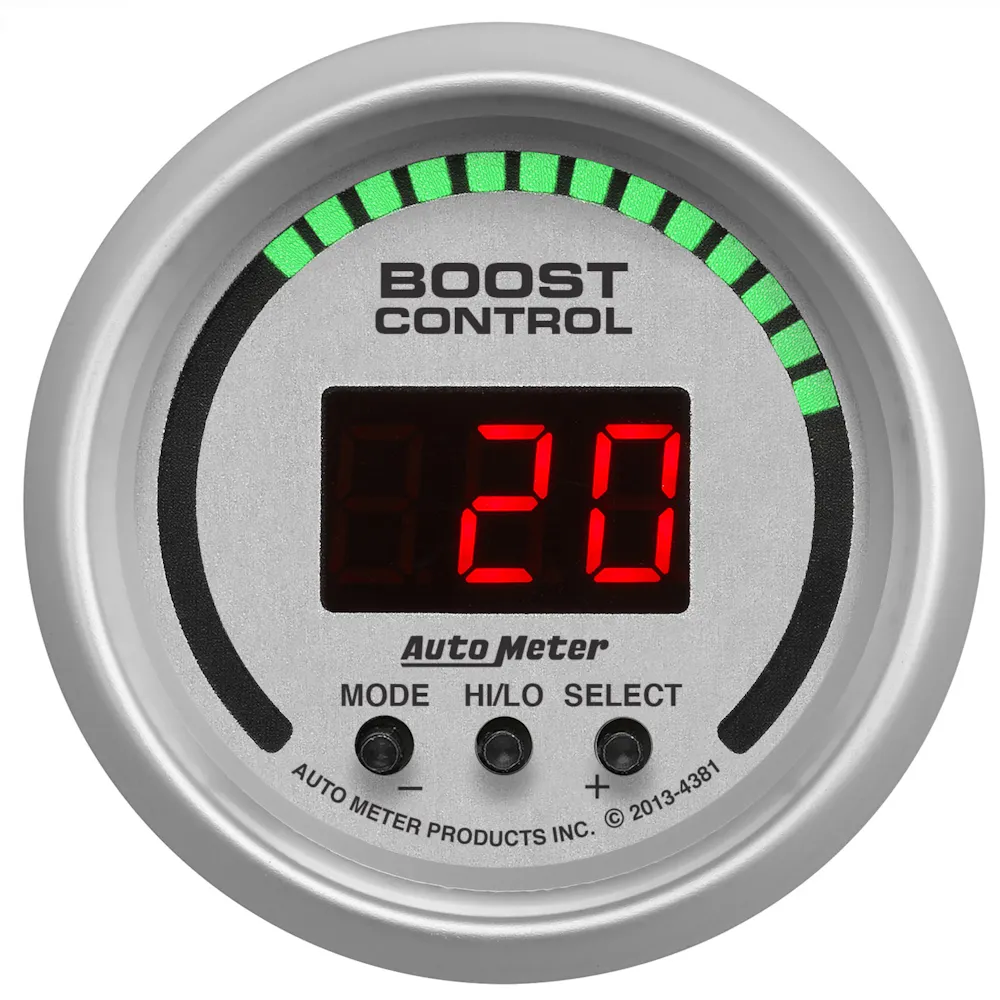

AutoMeter Products / 4381
Part #: 4381
UPC: 046074043819
Loading...
Notify me when this item is in stock.
Description: GAUGE; BOOST CONTROLLER; 2 1/16in.; 30INHG-30PSI; INCL. SOLENOID; DIGITAL; UL; 2-1/16in. BOOST CONTROLLER; 30 IN HG/30 PSI; ULTRA-LITE
Description:
Description
Offering an unparalleled feature set, the AutoMeter Boost Controller redefines what a boost controller should be. In addition to the standard hi/lo mode, boost by RPM and boost by gear give you absolute control of your power delivery. Initial setup is is incredibly simple using an intuitive menu and a revolutionary gear capture process. Configurable warnings with peak recall and boost shutdown are standard safety features designed to protect your engine. A scalable display range allows you to tailor resolution to show only the needed range for your application. AutoMeter's Pro Control output system is equipped to allow electric devices to be controlled at a user defined boost pressure (such as water/meth injection, nitrous, etc.) as well as Pro-Control input to default to waste gate spring pressure should the need arise. Display pressure in PSI, BAR, or kPa and easily data log and display with or without realtime barometric compensation. A direct plug wiring harness is included for ease of installation.
Features & benefits
- Incl. 6 ft. Wiring Harness; MAP Sensor; Boost Control Valve
- Ideal For Single/Twin Turbo Applications
- Not For Diesel Applications Or Wastegate-Less Setups
- Displays In PSI/kappa/BAR
- Programmable High Boost Warning/Shutdown Modes
- User Programmable High/Low Boost; Boost By Gear; Boost By RPM
- EZ On-Controller Programming
- No Need For External Modules
- Exclusive Progressive Overboost Warning System
- Peak Boost Recall
- Configurable Data Logger Output
Specifications
- GTIN
- 00046074043819
- Weight
- 1.3 lb
- Height
- 5.5 in
- Length
- 5.25 in
- Width
- 5.5 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- AAM Standard Pack
- 18
- Add-On Part
- N/A
- Bezel Color
- Brushed Aluminum
- Bezel Style
- Super Bezel
- Boost
- 0 to 30 PSI
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Dial (Face Color)
- Silver
- Face Color
- Silver
- Face Size
- 2.0625 / 2 1/16
- Gauge Size
- 52.4mm
- Gauge Type
- Boost Controller
- Hole Size
- 52.4mm
- Lens
- Flat Clear
- Lighting Color
- Red LCD/Red Yellow Green Segments
- Lighting Type
- Digital LED
- Movement Type
- Digital
- Outer Bezel Diameter
- 2.225 in.
- Pointer Color
- N/A
- Size
- 2.3125 in.
- Size (in.)
- 2-1/16
- Title
- 2-1/16" BOOST CONTROLLER, 30 IN HG/30 PSI, ULTRA-LITE
Fitment status
This product is universal and will fit your application.
