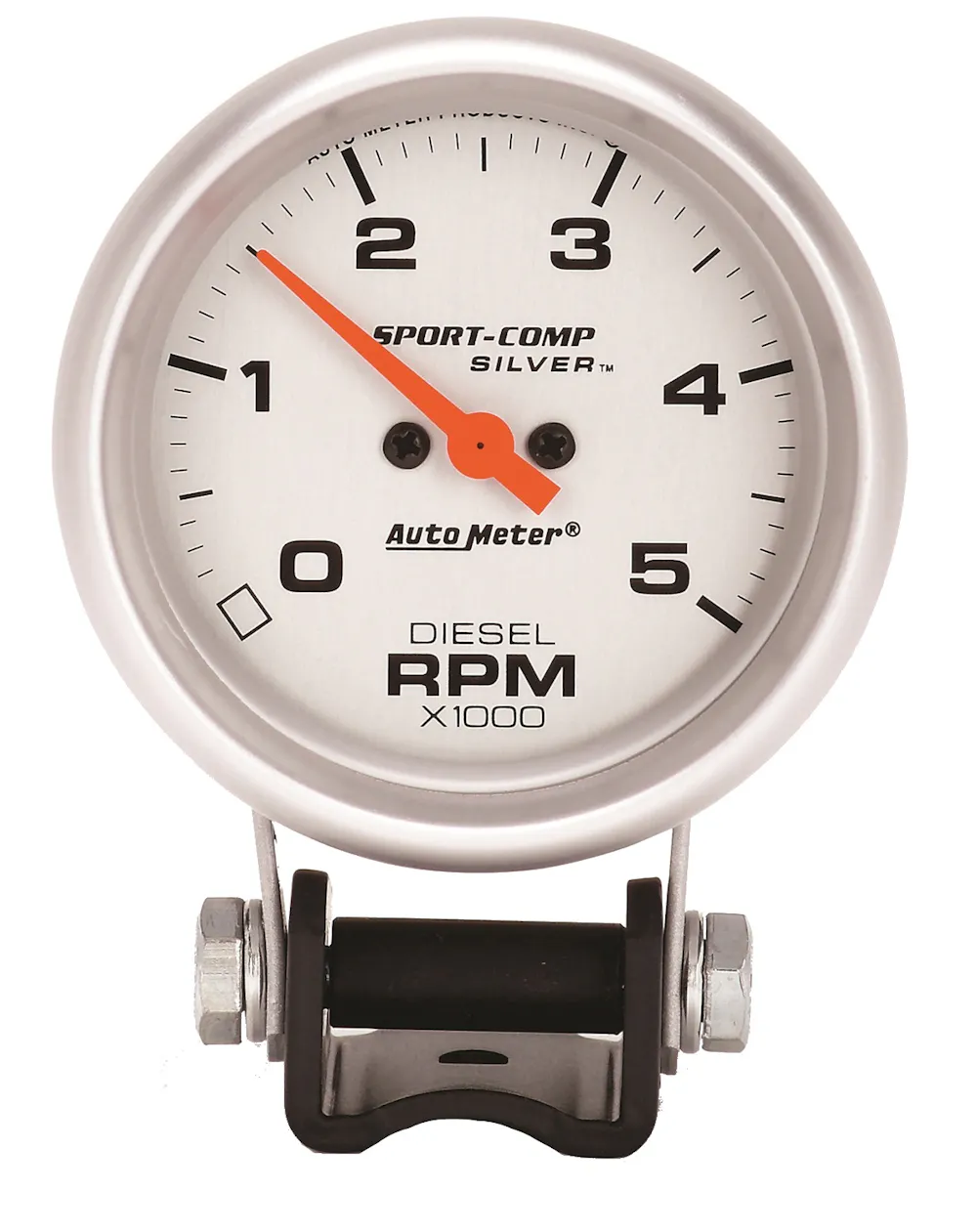

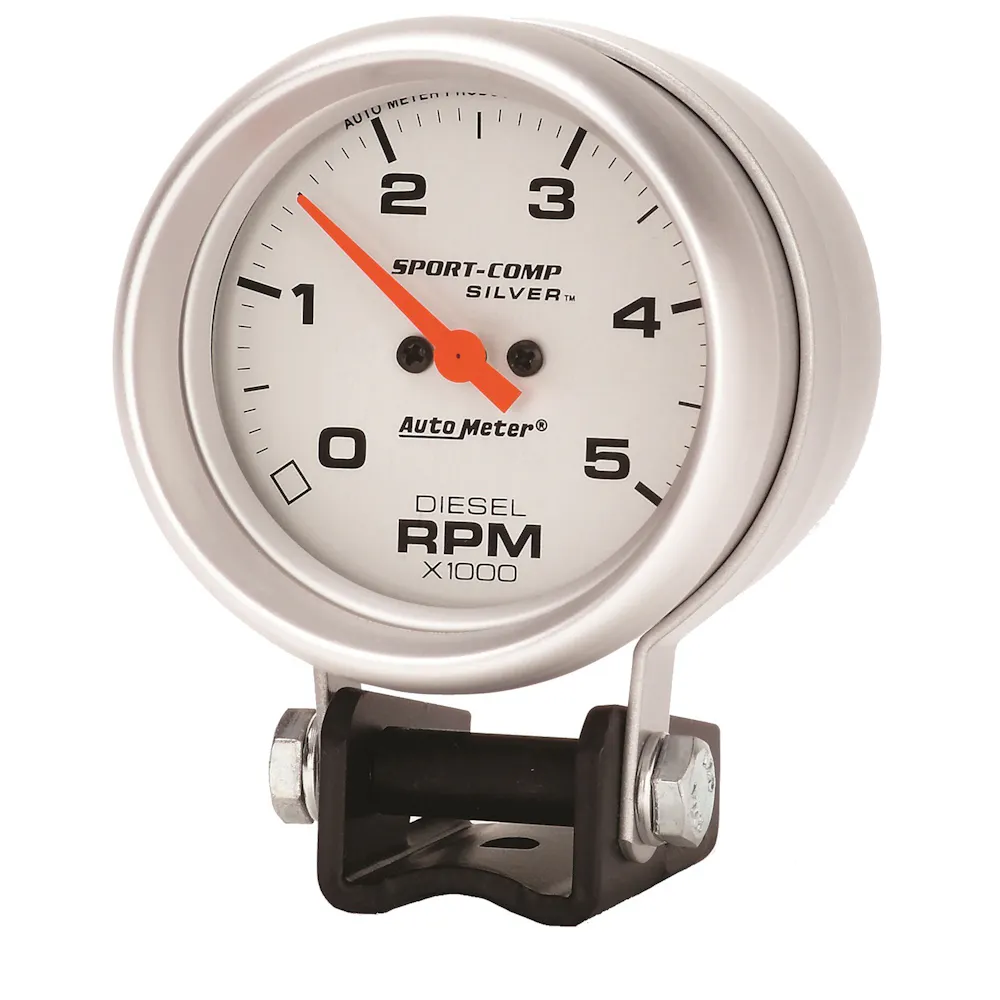

Description: GAUGE; TACHOMETER (DIESEL); 2 5/8in.; 5K RPM; PEDESTAL; ULTRA-LITE; 2-5/8in. PEDESTAL TACHOMETER; 0-5;000 RPM; ULTRA-LITE
Description:
Description
Hooking up a tach on a diesel can be challenging due to the lack of ignition system. Solutions up to this point have been complicated and temperamental. AutoMeter makes the process incredibly easy and affordable with this tachometer that utilizes an inductive pick-up. Simply attach the included pickup to the outside of the alternator and calibrate with a rotary dial on the back of the tach. It will work just about any engine with a crank driven alternator, not limited to only diesel applications.
Features & benefits
- Incandescent Lighting Illuminates Around Perimeter Of Dial
- 12 And 16V Compatible
- Incl. Alternator Pickup
- Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
- Incl. Mounting Hardware/Instructions
- Air-Core Electric Instruments Provide Quick And Accurate Readings
Specifications
- GTIN
- 00046074037887
- Weight
- 1.35 lb
- Height
- 6.25 in
- Length
- 6.25 in
- Width
- 6 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- AAM Standard Pack
- 18
- Add-On Part
- N/A
- Bezel Color
- Brushed Aluminum
- Bezel Style
- Super Bezel
- Bulb Technology
- Incandescent
- Bulb Type
- Incandescent
- Bulb and Socket Number
- 3220
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Dial (Face Color)
- Silver
- Face Color
- Silver
- Gauge Size
- 66.7mm
- Gauge Size (in.)
- 2.0625
- Gauge Size (mm)
- 66.7
- Gauge Type
- Pedestal Tachometer
- Housing Color
- Silver
- Lens
- Flat Clear
- Light Covers Number
- 3244/3246
- Lighting Color
- White Incandescent
- Lighting Type
- Incandescent
- Mounting
- Pillar
- Mounting Bracket Number
- 3245
- Movement Type
- Electric Air-Core
- Number Color
- Black
- Pointer Color
- Fluorescent Red
- RPM Range
- 0-5000
- Sending Unit Included
- No
- Shift Light
- Without Shift Light
- Shift Light Included
- No
- Size
- 2.625 in.
- Size (in.)
- 2-5/8
- Title
- 2-5/8" PEDESTAL TACHOMETER, 0-5,000 RPM, ULTRA-LITE
Fitment status
This product is universal and will fit your application.
