AutoMeter Products / 3451
Part #: 3451
UPC: 046074034510
Loading...
Notify me when this item is in stock.
Description: GAUGE; TRANSMISSION TEMP; 2 5/8in.; 140-280deg.F; MECHANICAL; 8FT.; SPORT-COMP; 2-5/8in. TRANSMISSION TEMPERATURE; 140-280 deg.F; SPORT-COMP
Description:
Description
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Mechanical Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. An 8' Capillary Tube with a 1/2 in. NPT mounting nut is included to be installed in your transmission pan. An optional trans cooler line manifold is available for another easy installation option.
Features & benefits
- Incandescent Lighting Illuminates Around Perimeter Of Dial
- Mechanical Movement Provides Accuracy And Durability
- No Electrical System Required For Gauge Operation
- Incl. 1/2 in. NPT Adapter
- Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
- Incl. Mounting Hardware/Detailed Instructions
Specifications
- GTIN
- 00046074034510
- Weight
- 1.36 lb
- Height
- 6.25 in
- Length
- 6.25 in
- Width
- 6 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- ATM
- Warehouse brand code
- ATM
- AAIA brand code
- BDHZ
Attributes
- AAM Standard Pack
- 18
- Adapters Included
- Yes
- Add-On Part
- N/A
- Analog Or Digital
- Analog
- Anti-Glare Enclosure Included
- No
- Bezel Color
- Brushed Aluminum
- Bezel Style
- Super Bezel
- Bulb Technology
- Incandescent
- Bulb Type
- Incandescent
- Bulb and Socket Number
- 3220
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Capillary Length
- 10.5 ft.
- Capillary Length (ft.)
- 10.5
- Dial (Face Color)
- Black
- Electric Or Mechanical
- Mechanical
- Face Color
- Black
- Fitting Type
- 0.500 in. NPT
- Fittings Included
- Yes
- Font Color
- White
- Gauge Size
- 66.7mm
- Gauge Size (mm)
- 66.7
- Gauge Type
- Transmission Temperature
- Hole Size
- 66.7mm
- Lens
- Flat Clear
- Light Covers Number
- 3244/3215
- Lighting Color
- White Incandescent
- Lighting Type
- Incandescent
- Measurement
- US
- Mounting Bracket Number
- 3245
- Movement Type
- Mechanical
- Number Color
- White
- Outer Bezel Diameter
- 2.875 in.
- Pointer Color
- Fluorescent Red
- Size
- 2.625 in.
- Size (in.)
- 2-5/8
- Sweep
- Full
- Temperature
- 140-280° F
- Title
- 2-5/8" TRANSMISSION TEMPERATURE, 140-280 ?F, SPORT-COMP
- Type
- Mechanical
- Voltage
- 8-18 V
Fitment status
This product is universal and will fit your application.

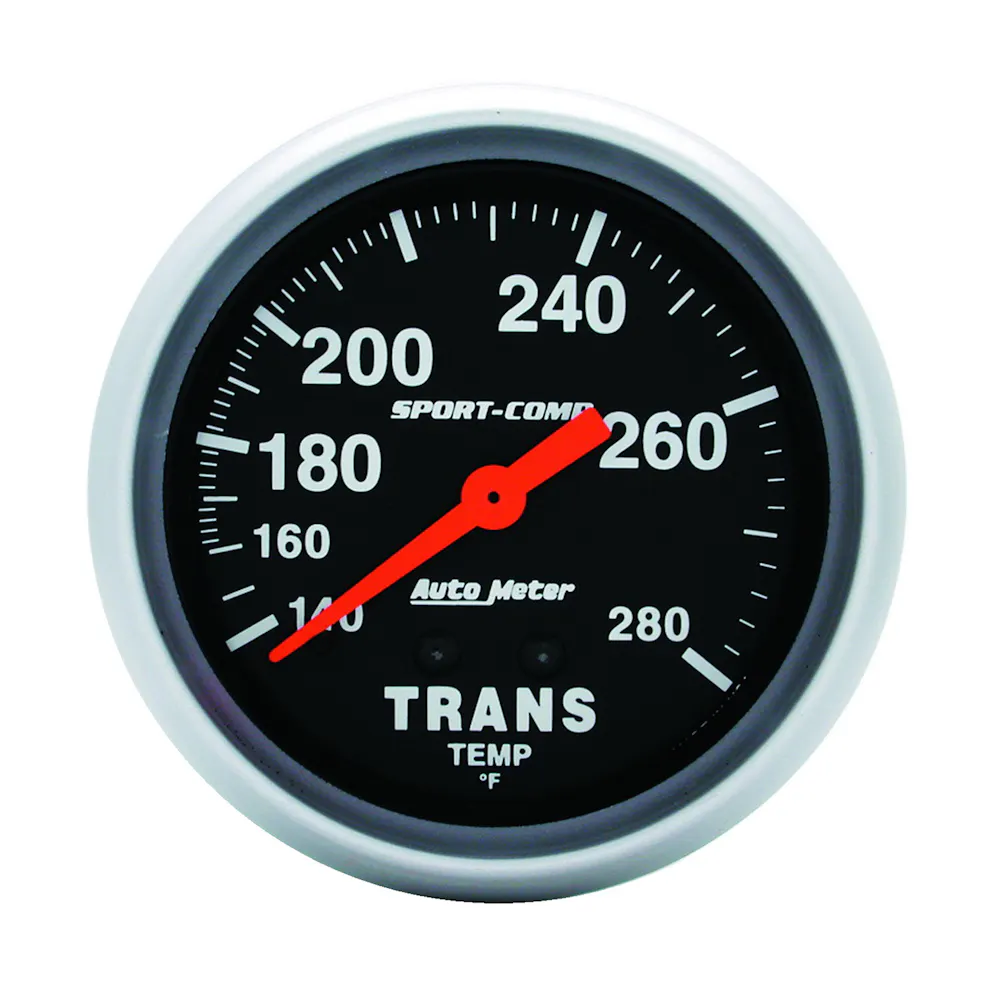

AutoMeter Products 3451
