AutoMeter Products / 200870-33

Part #: 200870-33
UPC: 046074147364

Loading availability... Loading...
Notify me when this item is in stock.

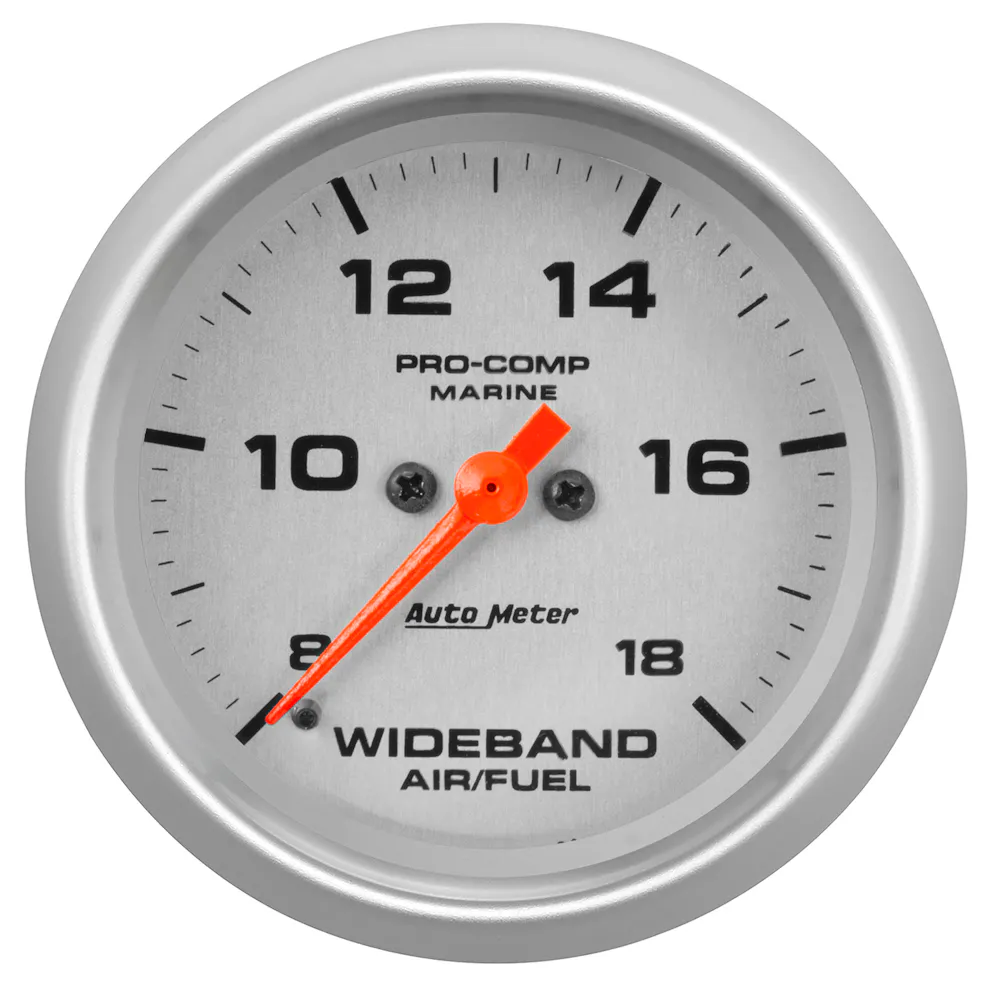

Description: GAUGE; AIR/FUEL RATIO-WIDEBAND; ANALOG; 2 5/8in.; 8:1-18:1; STPR MTR; MARINE SIL; 2-5/8in. WIDEBAND AIR/FUEL RATIO; ANALOG; 8:1-18:1 AFR; MARINE SILVER

Description:

Description

Mirroring the functions of AutoMeter's Street Wideband, the Digital Stepper Motor Wideband provides the most important functions necessary to make sure you're extracting the most power possible, safely. An analog needle display integrates seamlessly with other gauges and easily illustrates rate of change as well as the actual value. Our advanced auto calibration system automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Designed for gasoline applications, this wideband gauge provides the same degree of accuracy and response as the Pro version, but at a reduced cost. Data logging output is included for one wire or two wire systems. Our specially designed O2 sensor and wiring harness are included for ease of installation.

Features & benefits

  • Traditional Incandescent Lighting Illuminates Perimeter Of Dial

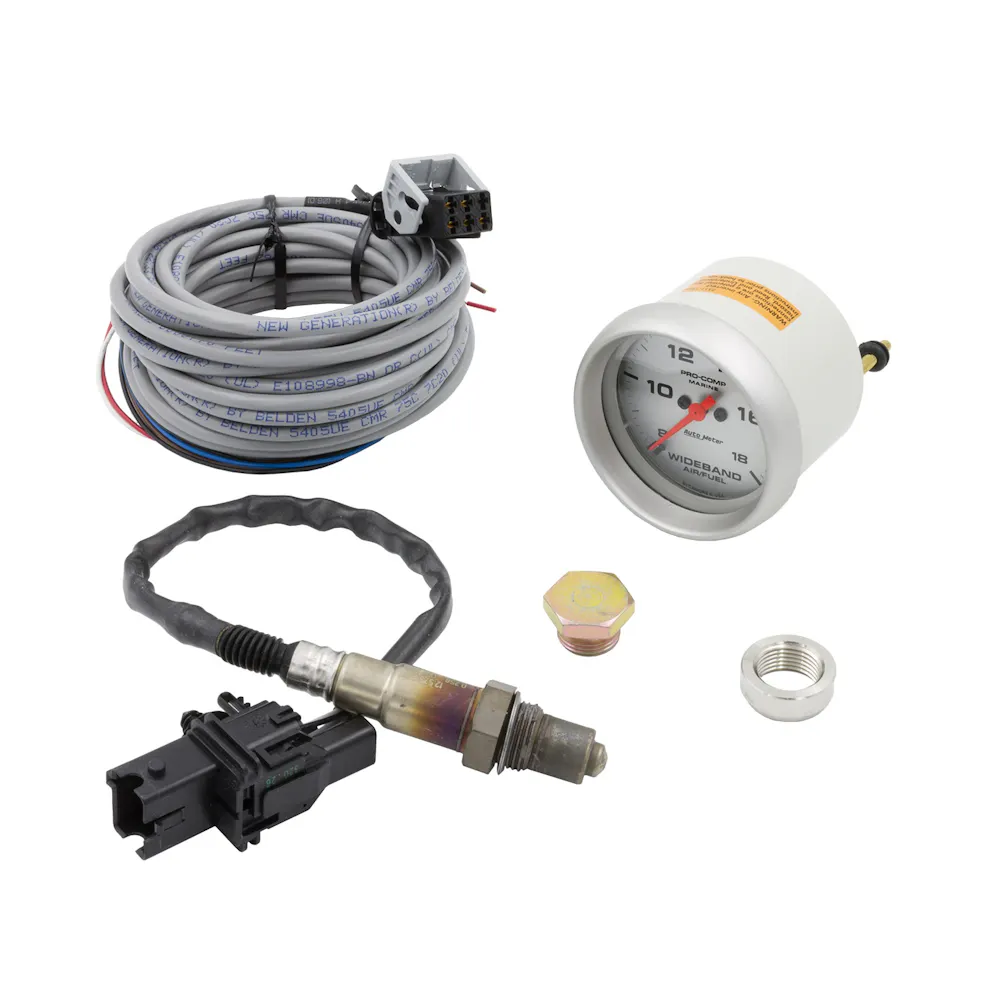

  • Incl. .1 AFR Resolution Bosch LSU4.2 Sensor
  • Incl. 25 ft. Wiring Harness; 304 Stainless Steel Weld-In Bung
  • Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
  • Incl. Mounting Hardware/Instructions
  • Digital Stepper Motor Provides Unmatched Accuracy
  • Suitable For Gas Powered Engines
  • 12 And 16 Volt Compatible

Specifications

GTIN
00046074147364
Weight
2 lb
Height
5.25 in
Length
5.5 in
Width
5 in
EO
Legal US
Life cycle
Available to Order
AAM brand code
ATM
Warehouse brand code
ATM
AAIA brand code
BDHZ

Attributes

AAM Standard Pack
18
Add-On Part
N/A
Bezel Color
Brushed Aluminum
Bezel Style
Super Bezel
California Proposition 65
WARNING: Cancer - www.P65Warnings.ca.gov
Dial (Face Color)
Silver
Face Color
Silver
Gauge Size
66.7mm
Gauge Type
Wideband Air/Fuel Ratio (AFR)
Hole Size
66.7mm
Lens
Flat Clear
Lighting Color
White Incandescent
Lighting Type
Incandescent
Movement Type
Electric Digital Stepper Motor
Outer Bezel Diameter
2.875 in.
Pointer Color
Fluorescent Red
Size (in.)
2-5/8
Title
2-5/8" WIDEBAND AIR/FUEL RATIO, ANALOG, 8:1-18:1 AFR, MARINE SILVER

Fitment status

This product is universal and will fit your application.
