AutoMeter Products · 1249

AutoMeter Products 1249

Part #: 1249
UPC: 046074012495

Loading availability... Loading...

Notify me when this item is in stock.

Brand: AutoMeter Products Series: American Muscle Transmission Temperature Gauges

Log in to order

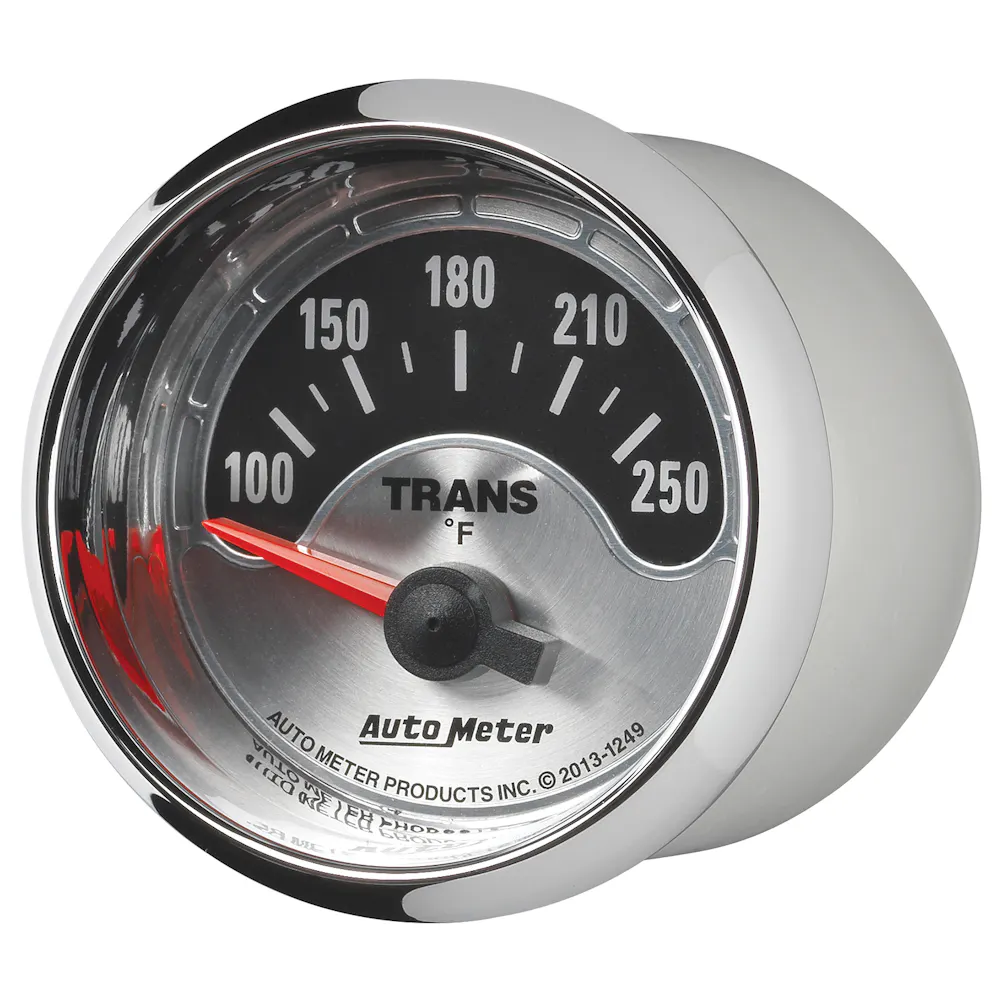

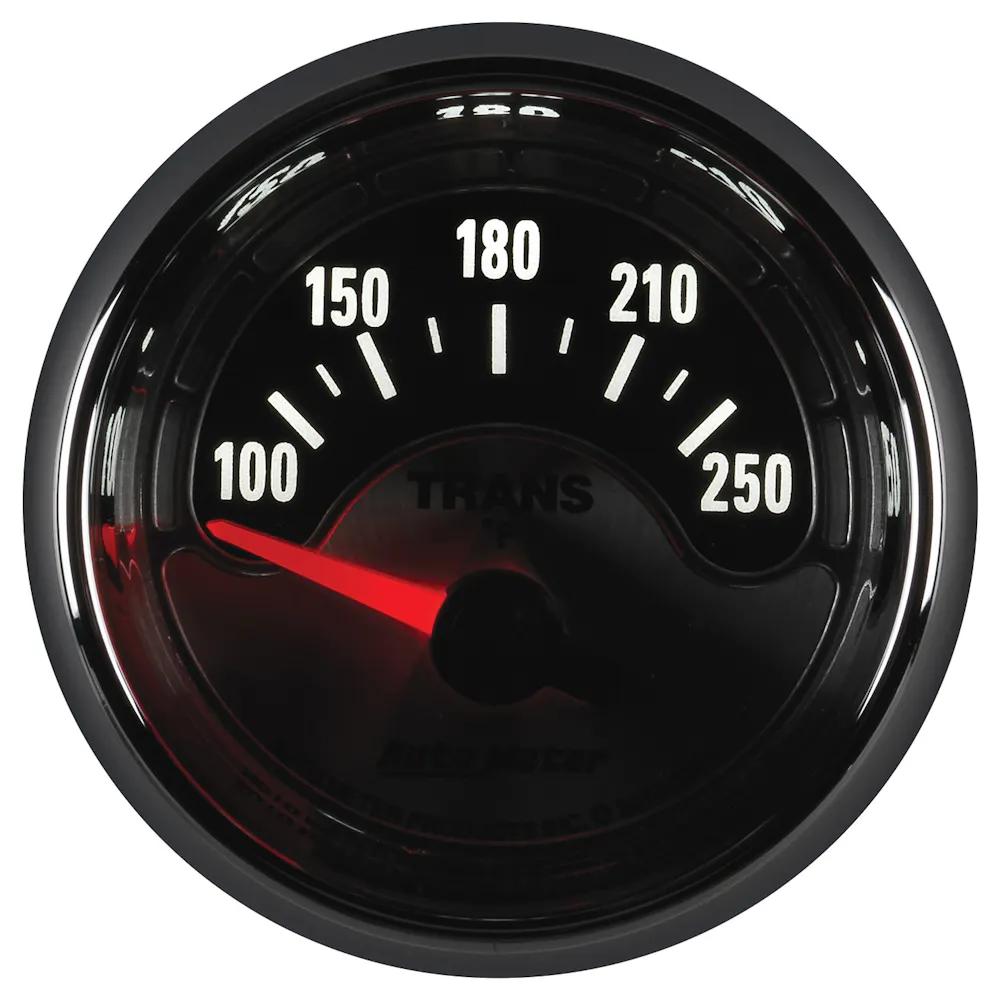

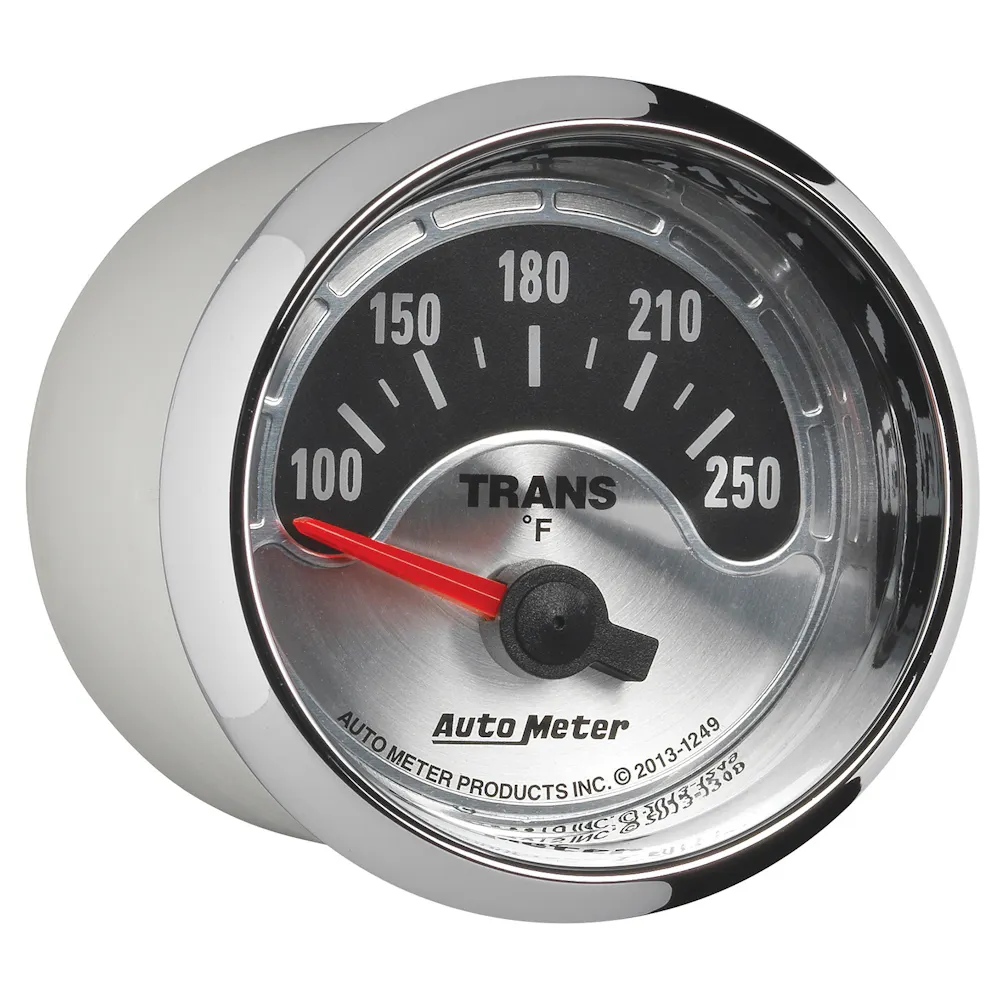

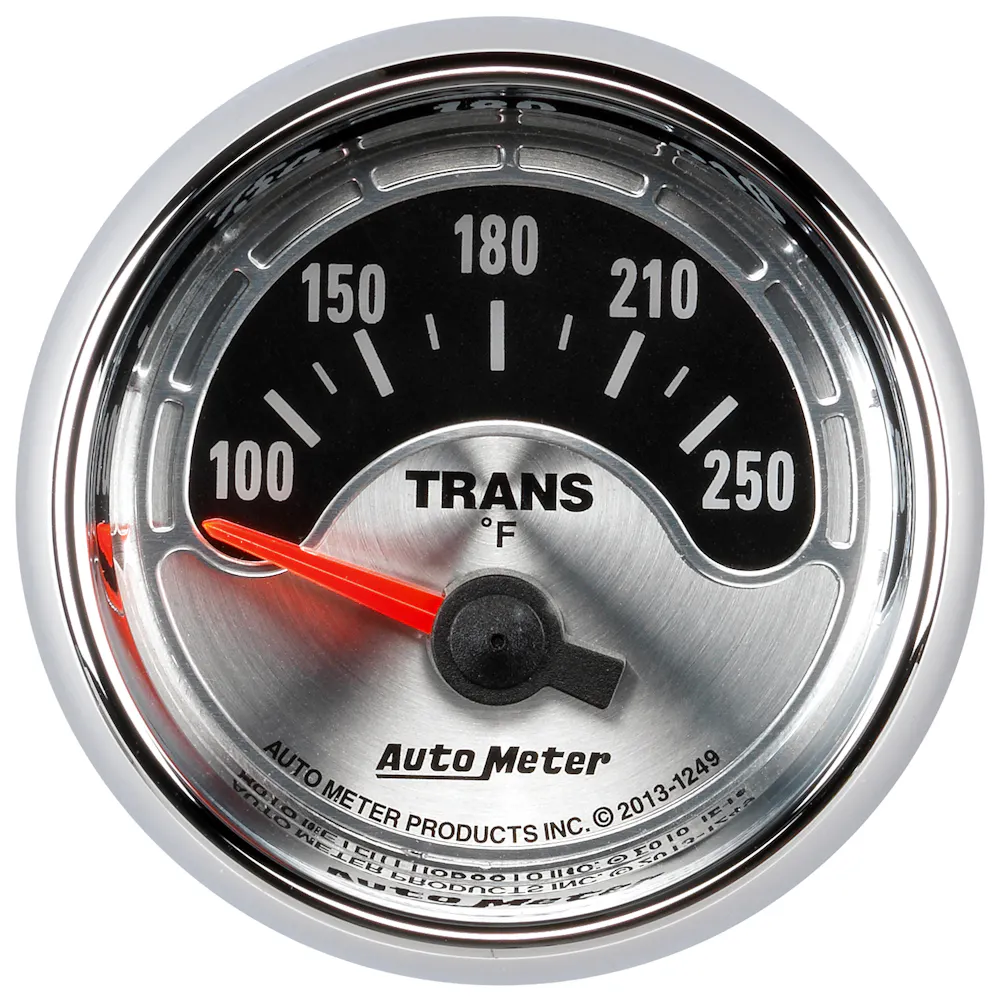

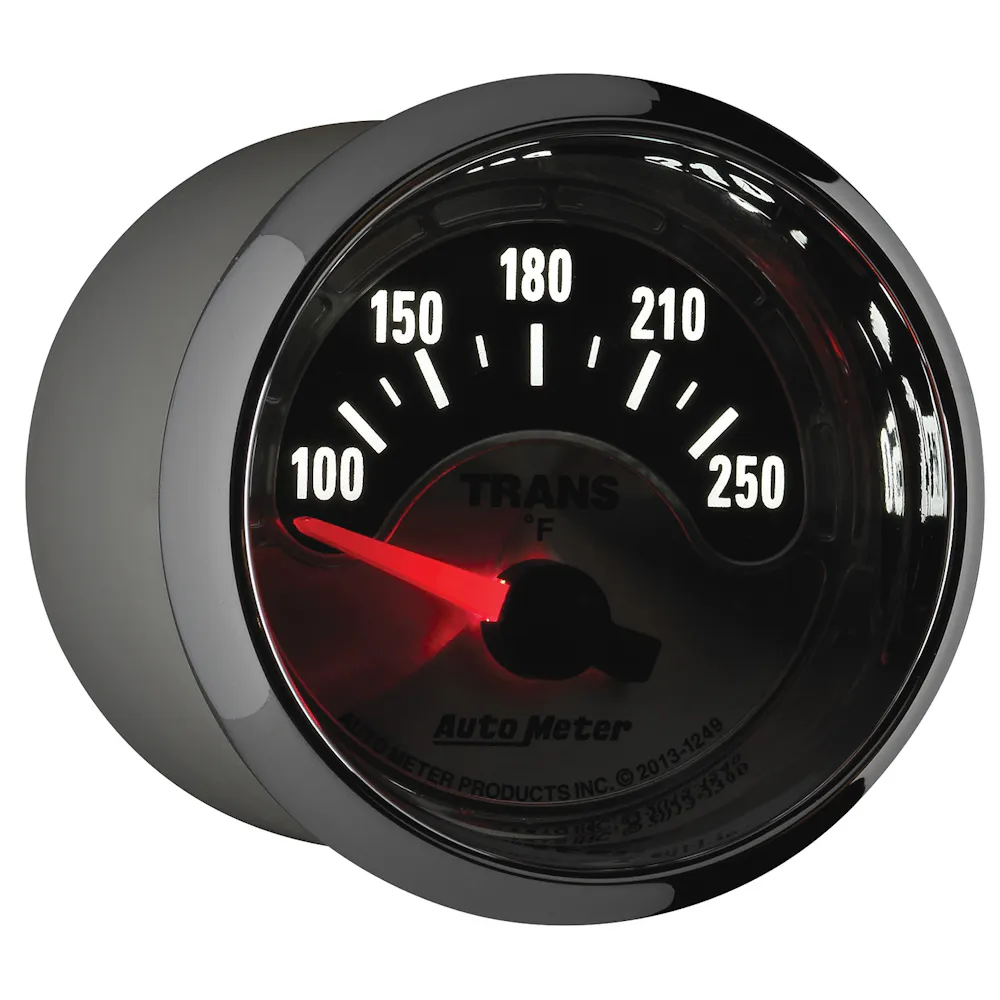

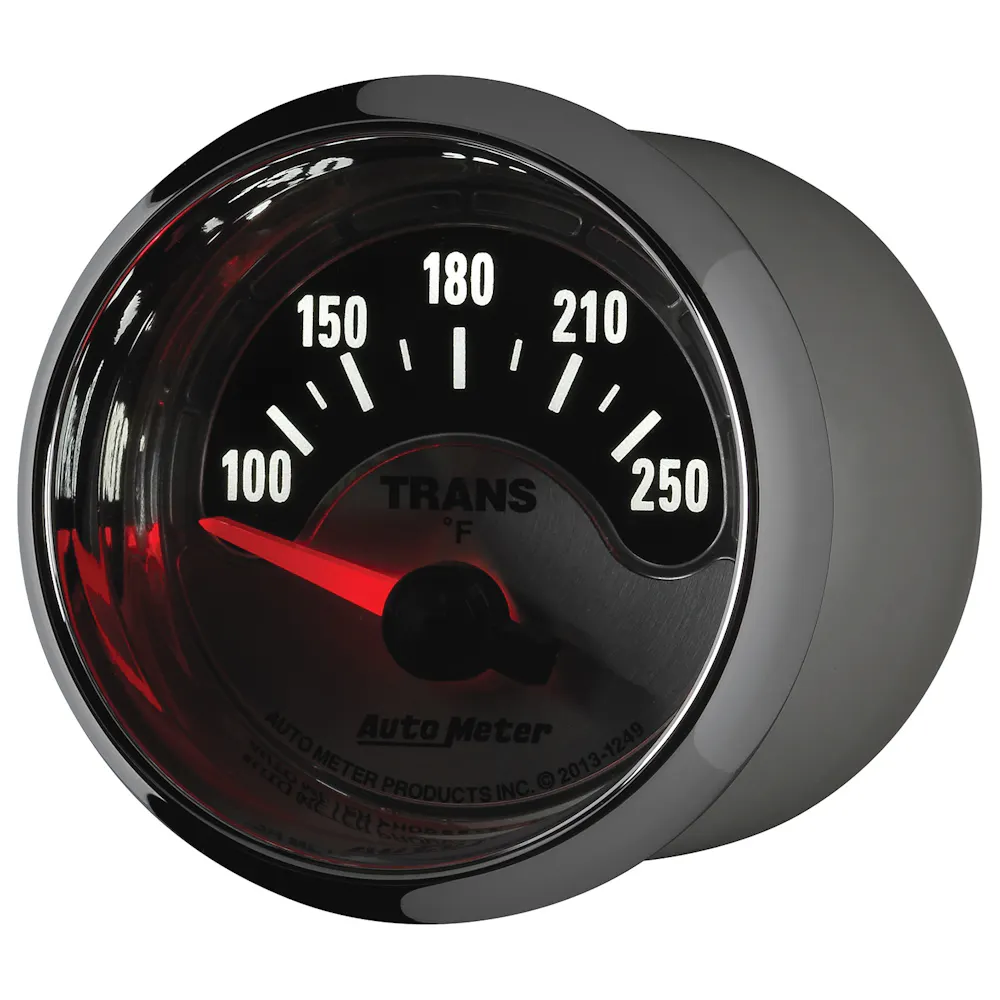

Description: GAUGE; TRANS TEMP; 2 1/16in.; 250deg.F; ELEC; AMERICAN MUSCLE; 2-1/16in. TRANSMISSION TEMPERATURE; 100-250 deg.F; AMERICAN MUSCLE

Proposition 65 Warning

Cancer - www.P65Warnings.ca.gov

Description

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8 in. NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.

Features & benefits

Artic White™ 5 Gauge Set MPH/OilP/Water/Volt/Fuel
Incl. 1/8 NPT Sender
Incl. 3/8 and 1/2 in. NPT Adapter Fitting
Incl. Mounting Hardware and Installation Instructions

Specifications

GTIN: 00046074012495
Weight: 0.6 lb
Height: 4.5 in
Length: 4.75 in
Width: 4.5 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: ATM
Warehouse brand code: ATM
AAIA brand code: BDHZ

Attributes

AAM Standard Pack: 24
Adapters Included: Yes
Add-On Part: N/A
Analog Or Digital: Analog
Anti-Glare Enclosure Included: No
Bezel Color: Chrome
Bezel Style: Super Bezel
Bulb Technology: LED
Bulb Type: LED
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Dial (Face Color): Silver
Electric Or Mechanical: Electric; Air-Core
Face Color: Silver
Fitting Type: 0.375 in. NPT and 0.500 in. NPT
Fittings Included: Yes
Font Color: Black
Gauge Size: 52.4mm
Gauge Size (mm): 52.4
Gauge Type: Transmission Temperature
Lens: Flat Clear
Lighting Color: White
Lighting Type: LED
Measurement: US
Mounting Bracket Number: 2230
Movement Type: Air-Core
Number Color: Black
Pointer Color: Fluorescent Red
Sending Unit Included: Yes
Sending Unit Number: 2258
Size: 2.3125 in.
Size (in.): 2-1/16
Sweep: Short
Temperature: 100-250° F
Title: 2-1/16" TRANSMISSION TEMPERATURE, 100-250 ?F, AMERICAN MUSCLE
Type: Electrical
Voltage: 8-18 V

Fitment status

This product is universal and will fit your application.
