ARIES · 2157001
Part #: 2157001
UPC: 849055013814
Log in for inventory
Notify me when this item is in stock.
Description: TrailCrusher Jeep Wrangler TJ Steel Rear Bumper; 9.5K; ARIES 2157001 TrailCrusher Black Steel Jeep Wrangler TJ Rear Bumper; 9;500 lbs Shackle Rating
Description:
Description

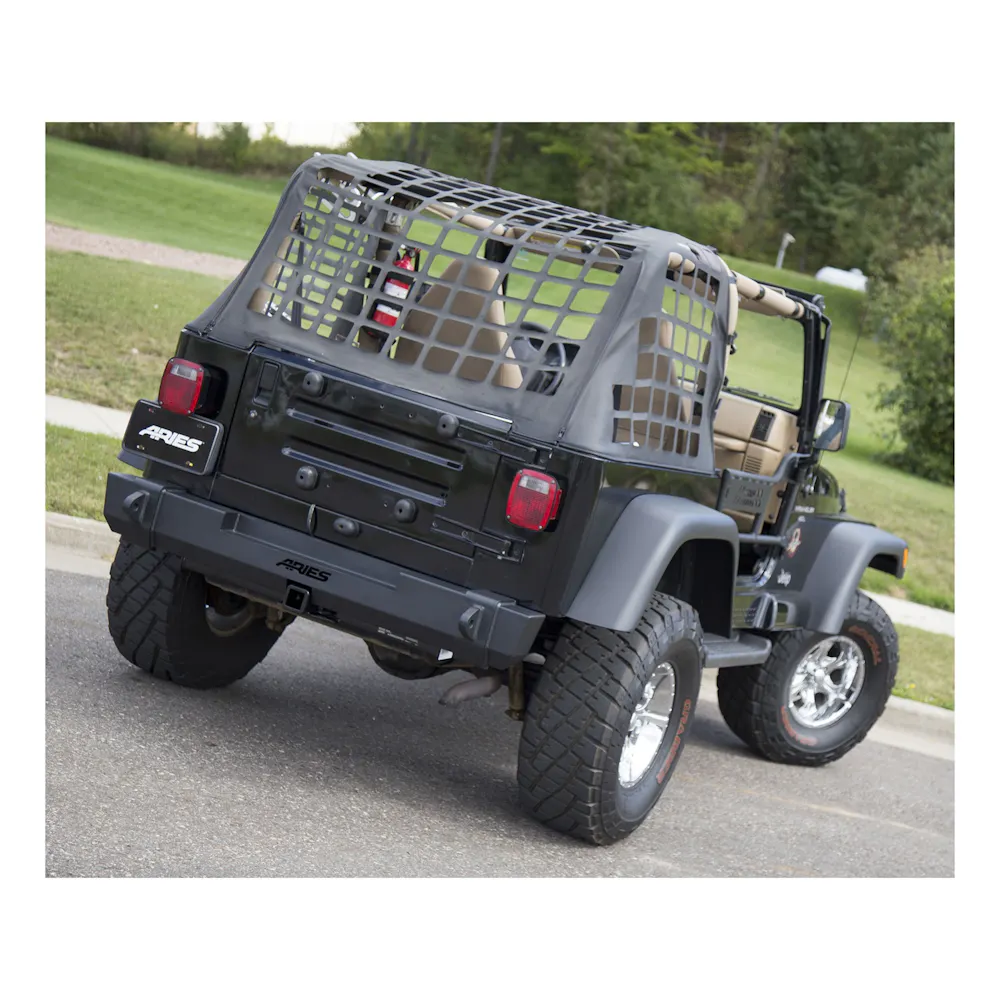

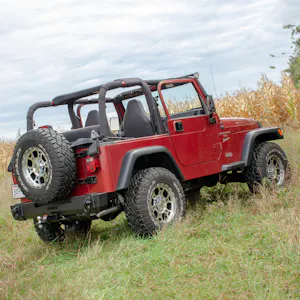

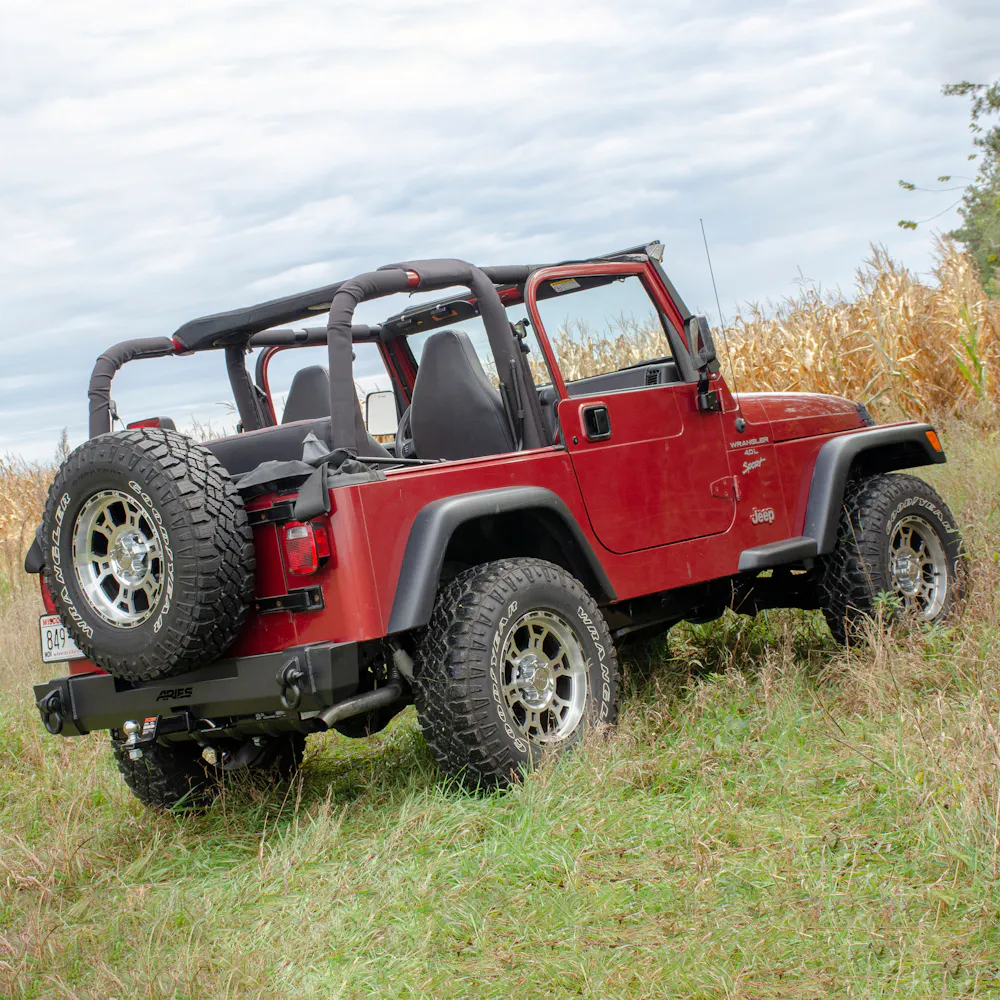

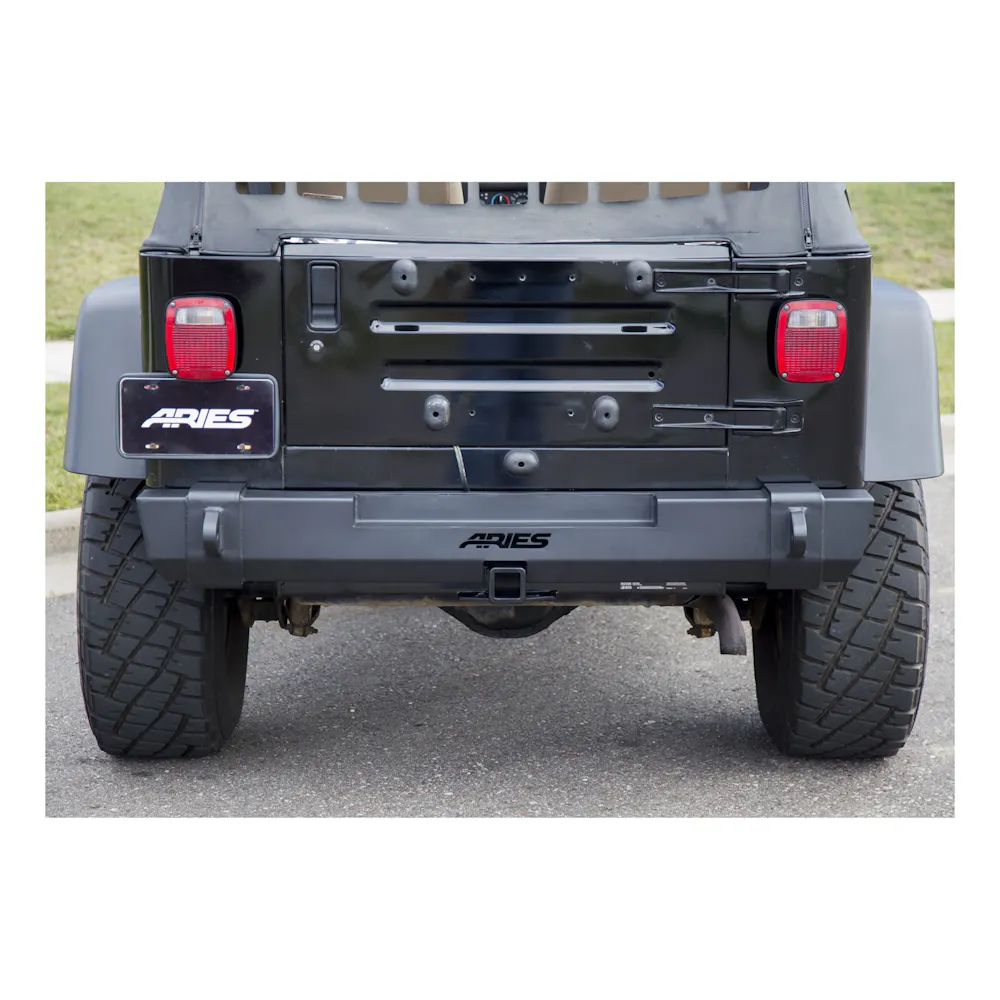

The ARIES TrailCrusher Jeep TJ bumper is constructed to outmatch every other bumper in its class. With heavy-duty, welded steel construction, it is a highly functional companion on the trail, featuring a shackle rating of 9,500 lbs. The TrailCrusher bumper is available for the front and rear, and it installs with no drilling required. Everything about the TrailCrusher Jeep bumper is designed to maximize its strength and utility. It is built with 3/16 in. thick all-steel plates, welded together in a stout, high-strength configuration. It also features 1/4 in. thick welded shoulder sleeves that add even more strength, particularly to the shackle mounts. Not only does the TrailCrusher bumper provide a 9,500-lb. winch-and-shackle rating, but it also offers excellent versatility. The shackle mounts accept any pin up to 7/8 in. in diameter. ARIES forged steel shackles #2166071 offer a perfect fit and a work load limit to match. The TrailCrusher bumper is fast and easy to install, integrating with the Jeep Wrangler TJ like a stock bumper. It uses pre-existing holes in the vehicle frame to eliminate drilling from the install process, and it mounts with 3/8 in. steel brackets for added strength. To be ready for whatever the trail has in store, both the front and rear ARIES one-piece bumpers come with an E-coat and carbide black powder-coated finish, maximizing rust and scratch resistance. Each comes with all necessary mounting hardware for a complete installation and is covered by a three-year warranty.
Features & benefits
- Shackle Rating Of 9500 lbs. For Ultimate Off-Road Functionality
- One-Piece Construction With 3/16 in. Thick/All-Steel Plates For Maximum Strength
- Narrow Width And High Ground Clearance For An Improved Off-Road-Style Design
- Highly Durable Carbide Black Powder Coat With Rust-Resistant E-Coat Finish
- Center Cutout For Rear Mount Trailer Hitch Receiver Tube
- Includes Mounting Hardware And 3/8 in. Thick Brackets For Solid Installation
- Limited Lifetime Warranty [Three-Year Finish/One-Year Parts]
- Welded Shackle Mounts And 1/4 in. Thick Sleeves Provide Reliable Anchoring Points
- Shackle Mounts Accept Pins Up To 7/8 in. In Diameter
- Shackle Mounts Accept Pins Up To 7/8 in. In Diameter PN[2166071] Recommended
- No-Drill Install Uses Factory Mounting Points With No Pump Relocation Required
Application summary
| Year | Make / model |
|---|---|
| 1997-2006 | Jeep TJ |
| 1997-2006 | Jeep Wrangler |
Specifications
- GTIN
- 00849055013814
- Weight
- 69 lb
- Height
- 12 in
- Length
- 64 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- AOR
- Warehouse brand code
- AOR
- AAIA brand code
- BBDR
Attributes
- TrailCrusher Jeep TJ Rear Bumper
- Bumper Location
- Rear
- Bumper Style
- Modular
- California Proposition 65
- No
- Color
- Black Powdercoat
- Finish
- Carbide Black Powder Coat
- Finish - XA
- CARBIDE BLACK POWDER COAT
- Item Class - XA
- ACEX
- Item Height - XA
- 0.000
- Item Length - XA
- 0.000
- Item Width - XA
- 0.000
- Location
- Rear
- Material
- Steel
- Material - XA
- Steel
- Parcel Allowed - XA
- Yes
- Rate Class - XA
- 92.5
- Retail Height - XA
- 12.000
- Retail Length - XA
- 64.000
- Retail Width - XA
- 14.000
- Shipping Weight - XA
- 69.000
- Tariff 301 - XA
- Yes
- Title
- TrailCrusher Jeep Wrangler TJ Steel Rear Bumper, 9.5K
- Warranty
- Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1997-2006 Jeep TJ; 1997-2006 Jeep Wrangler
