ARC Lighting / BB8KB04
Part #: BB8KB04
UPC: 691835538594
Loading...
Notify me when this item is in stock.

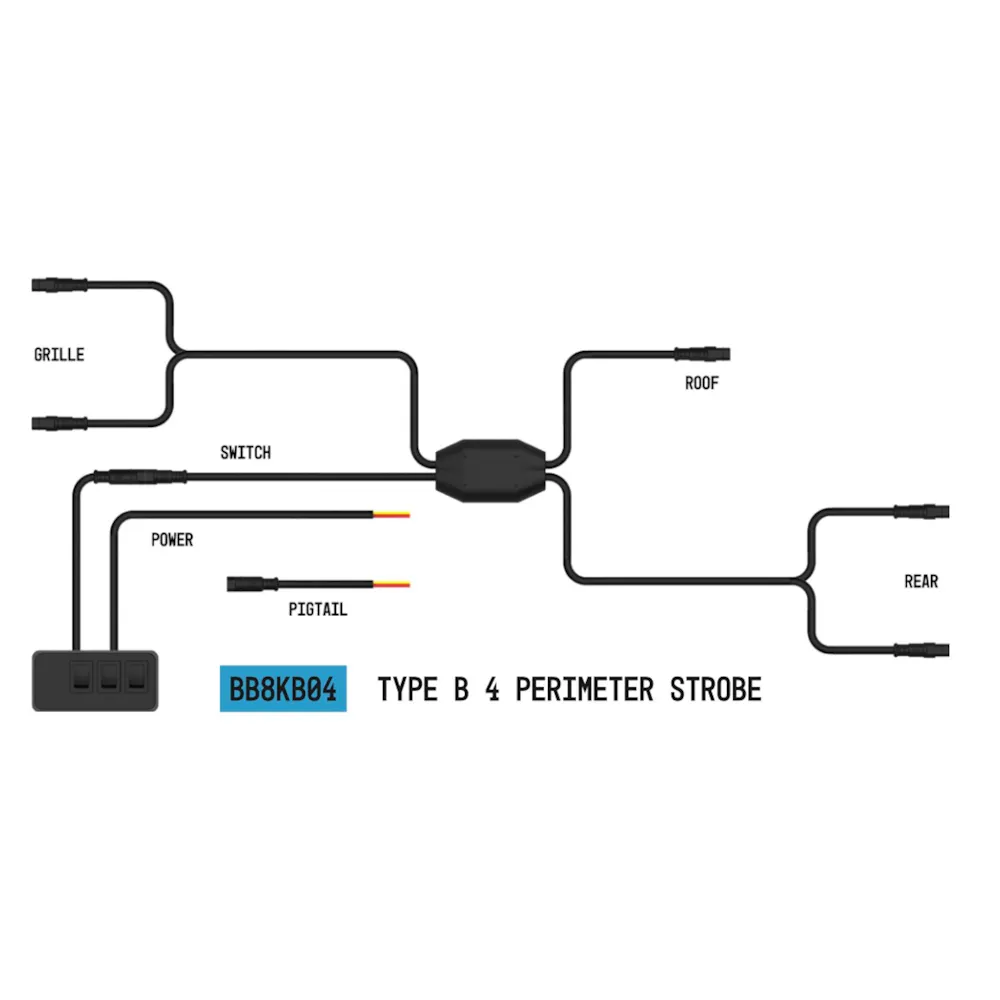

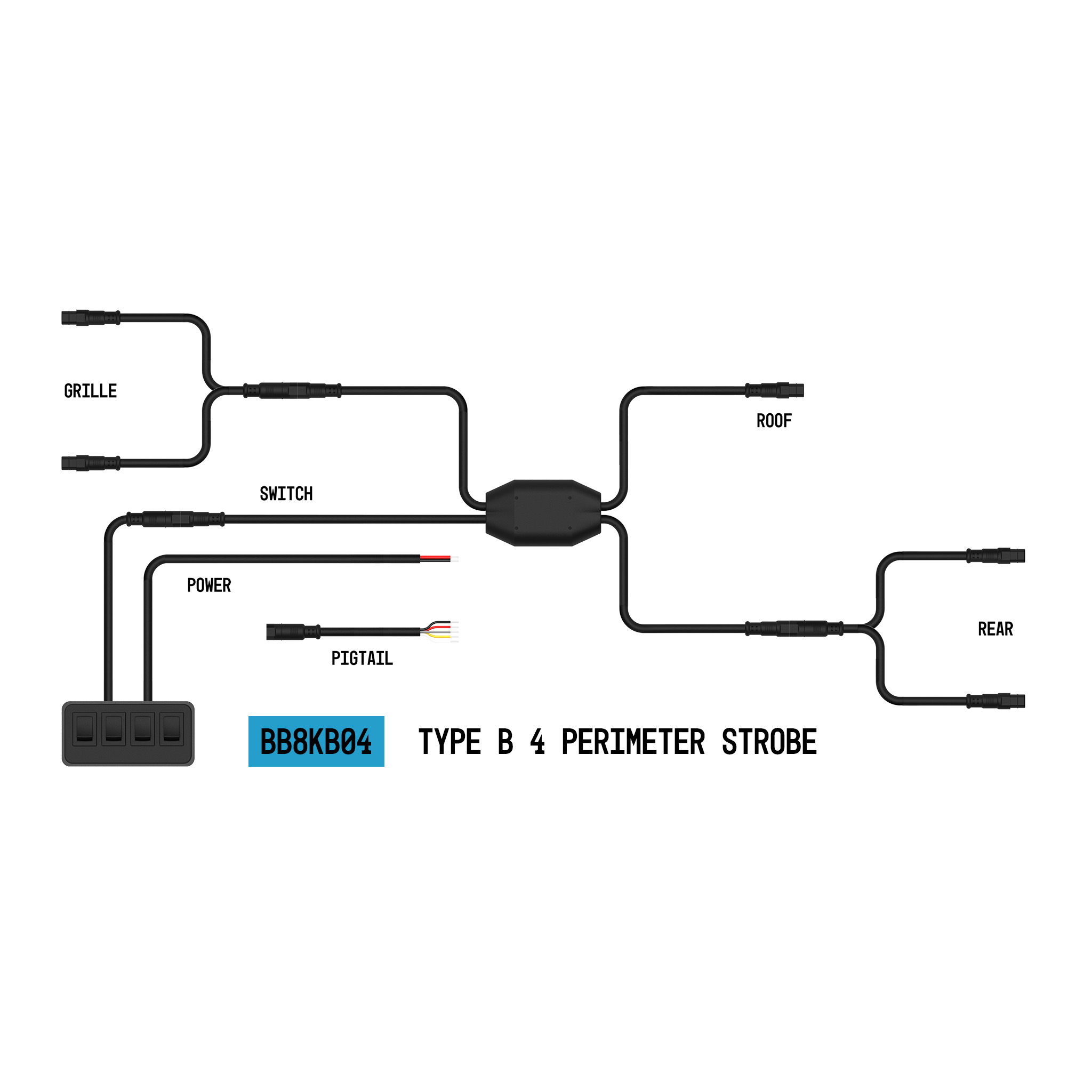

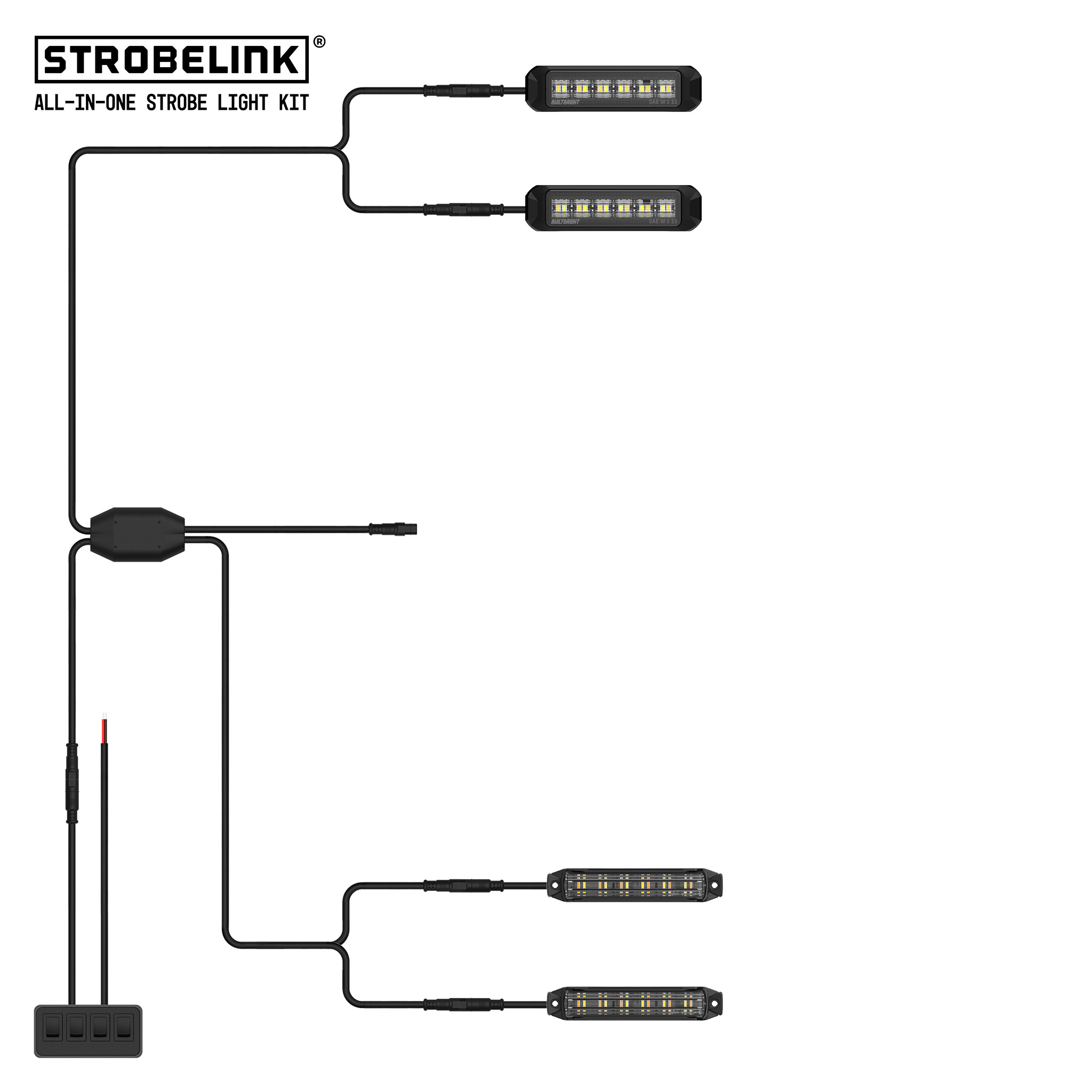

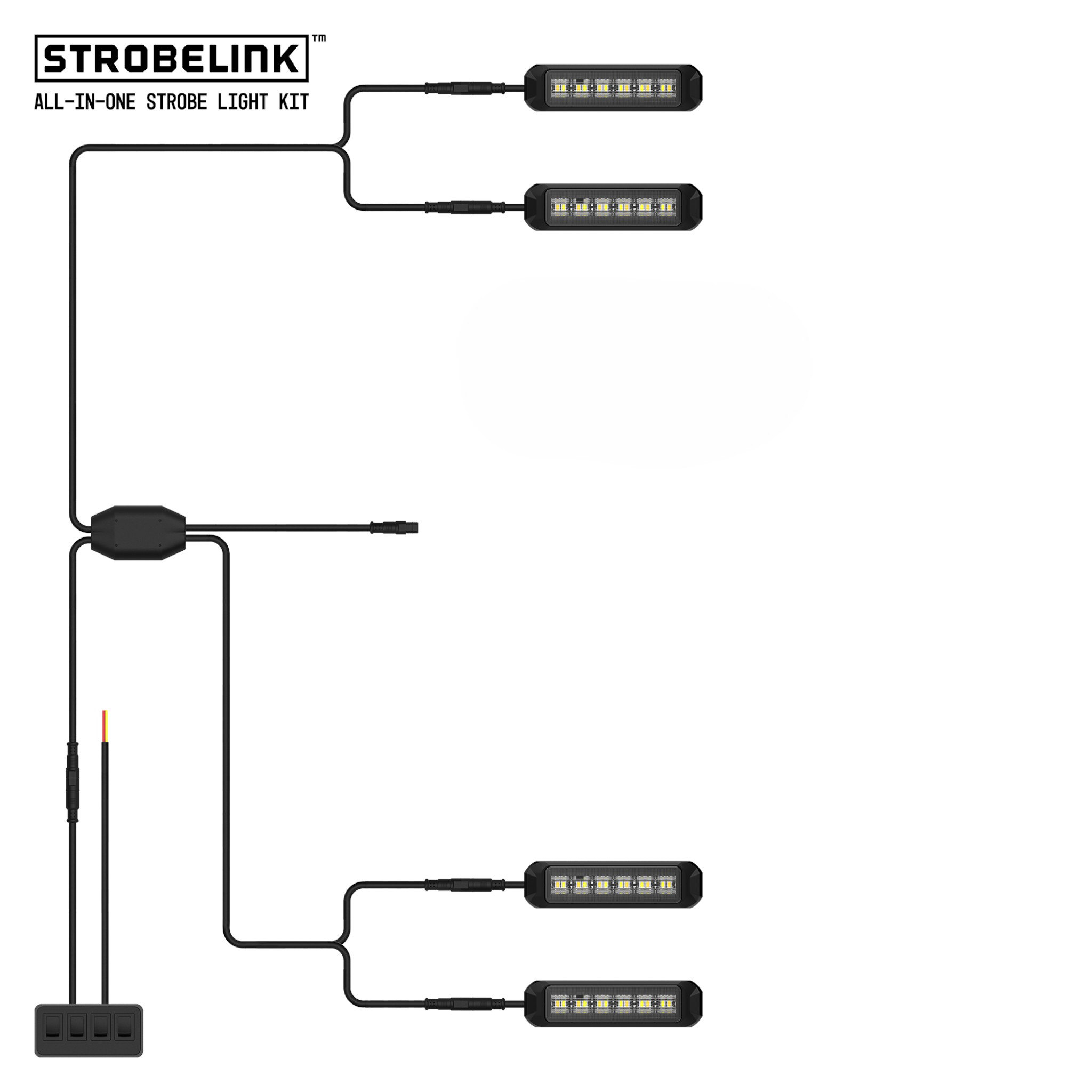

Description: StrobeLink® Harness Type B, For 4 Lights (1 EA); StrobeLink® Harness Type B — patented plug-and-play wiring system for BUILTBRIGHT perimeter strobe lights supporting up to 4 lights. Eliminates cutting, splicing, and prefabrication.
Description:
pro mess
Description
Lights and brackets are sold separately.
Features & benefits
- • StrobeLink® Foundation - Enables compatible BUILTBRIGHT® lights, brackets, and accessories to be upfitted
- • Plug-and-Play Installation - Supports up to four perimeter strobe lights
- • No Cutting or Splicing Required - Pre-configured design simplifies vehicle upfitting
- • Expandable Platform - Plug-and-play connections make expansions, extensions, and replacements simple
- • Premium OFC Wiring - Oxygen-free copper conductors ensure reliable power delivery
- • PVC-Sheathed Cables - Durable harness construction built for demanding environments
- • IP69K Weather-Resistant Connections - Designed to withstand harsh weather and jobsite conditions
- • Secure Connector Retainers - Helps keep every connection firmly locked in place
- • UL, cUL, and RoHS Compliant - Engineered to meet strict safety and quality standard
Specifications
- GTIN
- 00691835538594
- Weight
- 4 lb
- Height
- 4 in
- Length
- 12 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- ARC
- Warehouse brand code
- ARC
- AAIA brand code
- HWXP
Attributes
- Adapter Harness Included
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Compliance
- UL2517, UL VW-1 & CUL FT1, ROHS
- IP Rating
- IP69K
- Maximum Amperage
- 15A
- Maximum Temperature
- 105? / 221?
- Mini Bar Connection Quantity
- 0
- Operating Voltage
- 12V DC
- Perimeter Strobe Connection Quantity
- 4
- Switch Included
- Yes
- Swtch Quantity
- 4
- Terminal Type
- 5 pin circular waterproof connectors
- Title
- BUILTBRIGHT BB8KB04 StrobeLink Harness Type B, 4 Lights
- Voltage
- 12-24 DC Voltage
- Warranty
- 5-Year Warranty
- Wire Colors
- Black, Red, White, Grey, Yellow
- Wire Material
- PVC Insulation to UL2517, Tinned Copper Strands
- Wire Quantity
- 2
Fitment status
This product is universal and will fit your application.
