ARC Lighting / BB84044
Part #: BB84044
UPC: 793888989085
Loading...
Notify me when this item is in stock.
Description: WorkLink™ Harness, For 4 Dual-Color Work Lights, Plug and Play (1 EA); WorkLink™ plug-and-play harness for 4 dual-color work lights. Compatible with BB44042 only. Includes switch, power connection, fuse and extensions; enables strobe functionality with compatible lights.
Description:
pro mess
Description

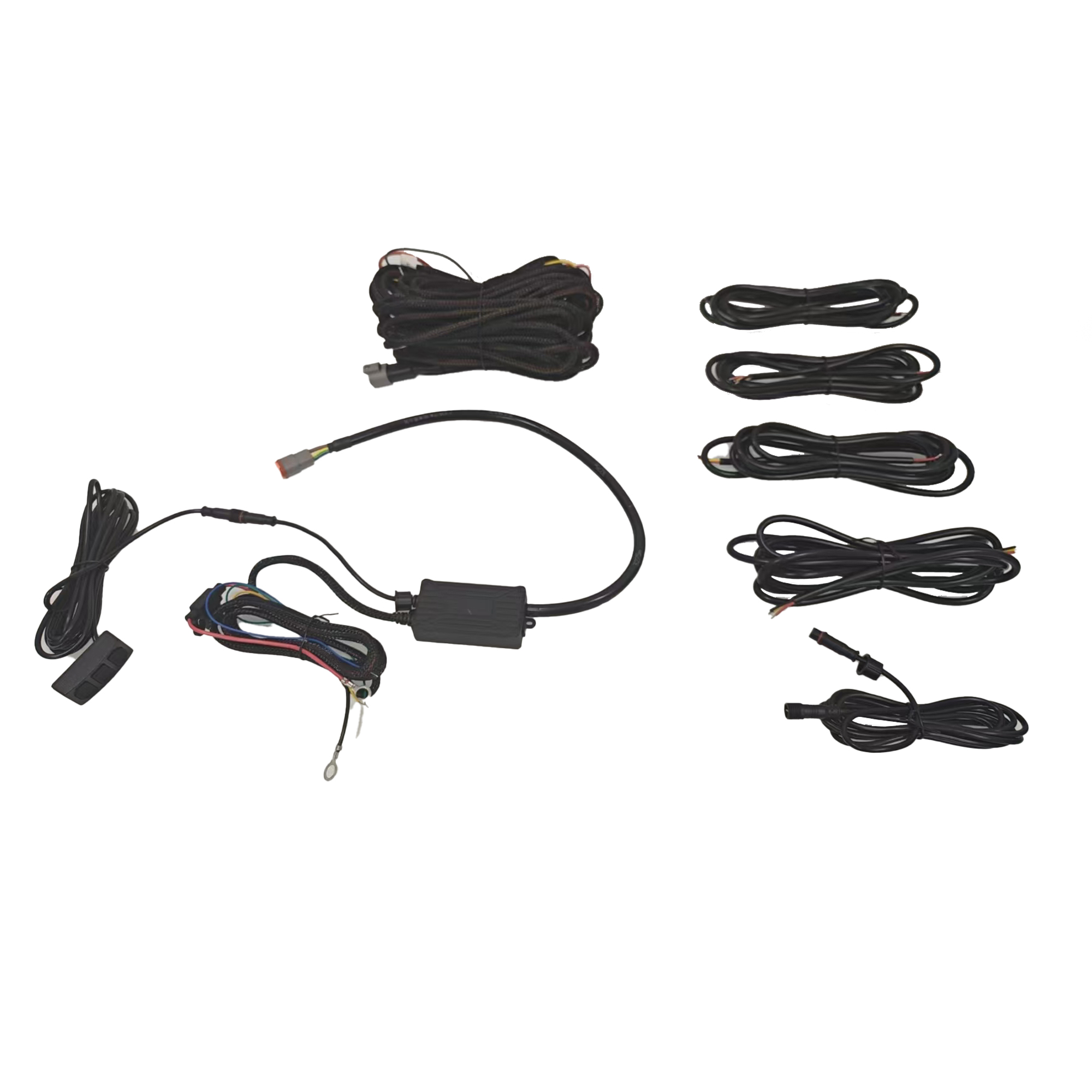

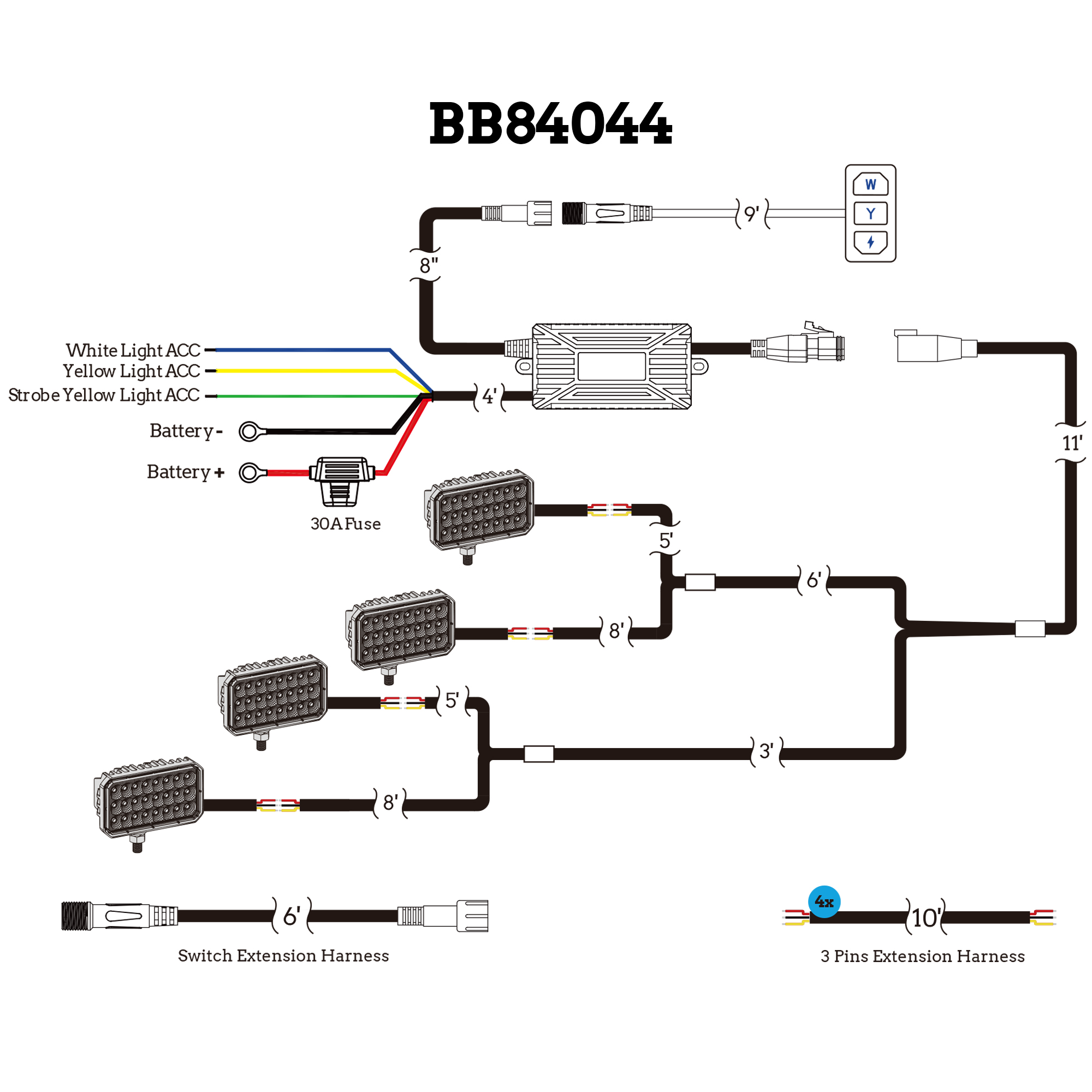

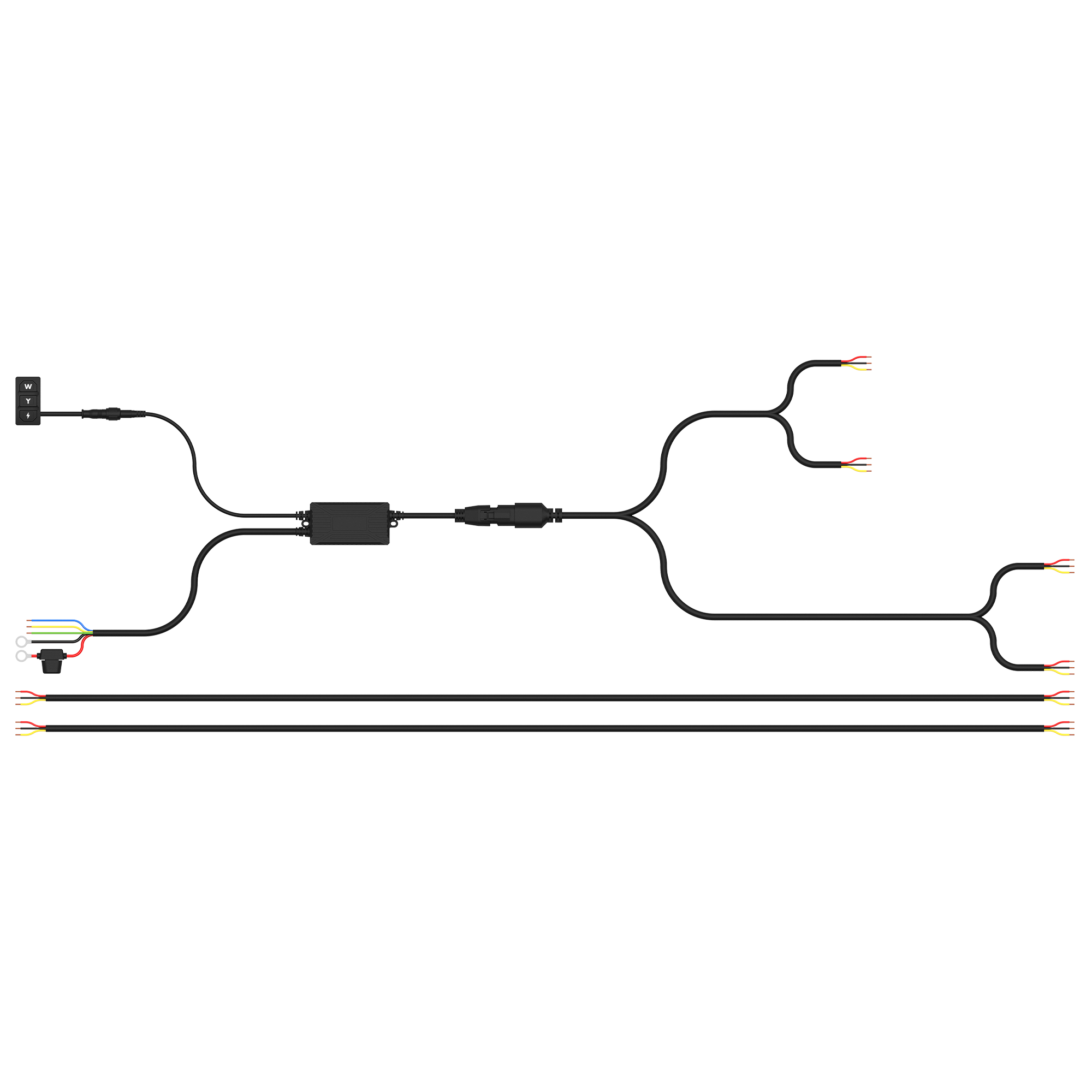

Simply route the harness underneath the vehicle, connect your lights, hook up to power, program your patterns, and you're ready to go. WorkLink™ harnesses include a switch, power connection, fuse, and extension harnesses.
Features & benefits
- • Fast, Clean Installation - Simplifies vehicle upfitting with a pre-built wiring system
- • Enables Strobe Functionality - 5 flash patterns available when paired with a compatible work light

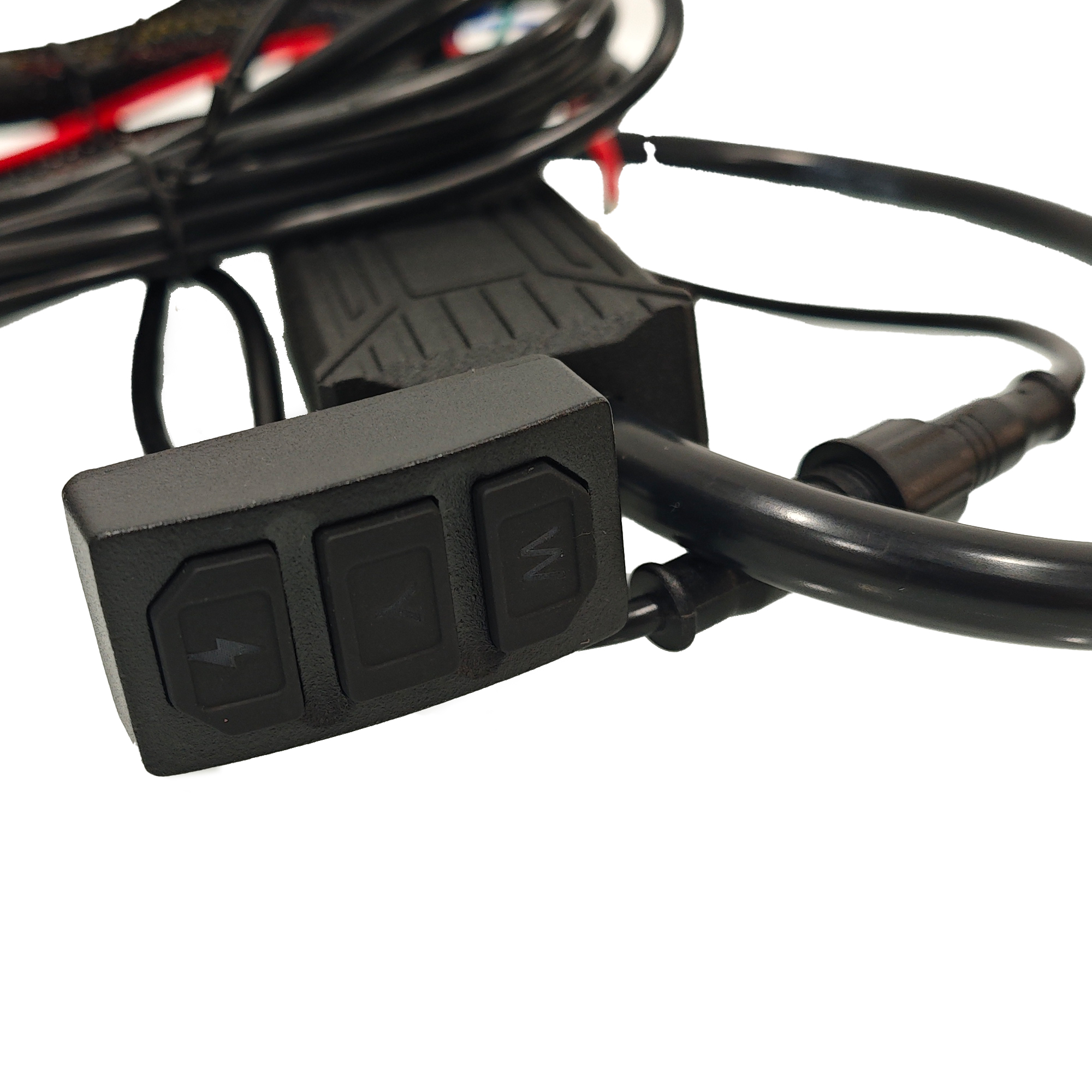

- • Complete Solution - Includes a switch, power connection, fuse, and extension harnesses
- • Built for WorkLink™ - Integrates seamlessly with BUILTBRIGHT® work lights (BB44042 only)
- • Backed by a 2-Year Warranty - Built to last with confidence from BUILTBRIGHT®
Specifications
- GTIN
- 00793888989085
- Weight
- 5 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 12 in
- Life cycle
- Available to Order
- AAM brand code
- ARC
- Warehouse brand code
- ARC
- AAIA brand code
- HWXP
Attributes
- Add-On
- N/A
- Amp Draw per Bulb
- 13A @ 12V DC
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Compliance
- UL2517, UL VW-1 & CUL FT1, ROHS
- Harness Type
- 4 lamp harness with dual color control
- IP Rating
- IP69K
- Maximum Amperage
- 30
- Maximum Temperature
- 221
- Maximum Wattage per outlet
- 80
- Operating Voltage
- 9-30V DC
- Patterns
- 5
- Power Consumption
- 160W
- Terminal Type
- Circular connectors with pig tail
- Title
- BUILTBRIGHT BB84044 WorkLink™ Harness - For 4 Dual-Color Work Lights (1 EA)
- Voltage
- 12 to 24
- Warranty
- 2-Year Warranty
- Wire Material
- PVC Insulation to UL2517, Tinned Copper Strands
- Wire Quantity
- 3
Fitment status
This product is universal and will fit your application.
