ARC Lighting / BB6110A
Part #: BB6110A
UPC: 793888980280
Loading...
Notify me when this item is in stock.
Description: Work Bar Strobe 4 Slim, 4" LED Perimeter Strobe, Amber, SAE Certified (1 EA); BUILTBRIGHT Work Bar Strobe 4 Slim, 4" SAE-certified low-profile LED perimeter strobe with high-intensity Amber LEDs, cast aluminum body, Makrolon polycarbonate lens. StrobeLink ready. (1 EA)
Description:
pro mess
Description
Work Bar Strobe 4 Slim also pairs perfectly with StrobeLink® stainless steel mounting brackets. For the front, BUILTBRIGHT® offers a comprehensive lineup of grille brackets for most work vehicles in use today. These brackets enable BUILTBRIGHT® strobe lights to mount with a clean, integrated look in the grille without drilling a single hole. For the rear, a universal StrobeLink® license plate bracket supports up to four perimeter strobe lights (BB6010 lights only) for a complete, no-drill solution.
Features & benefits
- • SAE-Certified Visibility - Road-ready perimeter strobe light built to meet industry standards
- • Built for StrobeLink® - Waterproof connector plugs directly into the StrobeLink® system
- • Backed by a 5-Year Warranty - Built to last with confidence from BUILTBRIGHT®
- • Compact, Low-Profile Design - Small footprint fits cleanly in a wide range of mounting locations
- • High-Intensity Output - Six amber LEDs deliver attention-commanding visibility
- • 22 Flash Patterns - Multiple strobe modes provide flexible warning and signaling options
- • Durable Cast Aluminum Construction - Rugged housing built for long-term reliability
- • Makrolon® Polycarbonate Lens - UV-stabilized for lasting optical clarity and yellowing resistance
- • Protective Polycarbonate Bezel - Added defense against impacts and harsh environments
- • No-Drill Mounting Solutions - Compatible with vehicle-specific grille brackets and surface-mounting
Specifications
- GTIN
- 00793888980280
- Weight
- 1 lb
- Height
- 2 in
- Length
- 6 in
- Width
- 3 in
- Life cycle
- Available to Order
- AAM brand code
- ARC
- Warehouse brand code
- ARC
- AAIA brand code
- HWXP
Attributes
- Add-On
- N/A
- Amp Draw per Bulb
- 0.9 Amps @ 12V DC
- Average Current Draw@12VDC
- 0.25
- Average Wattage
- 3.5
- Bezel Included
- Yes
- Bezel Material
- PC (Polycarbonate)
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- Amber
- Color Temperature
- 1700
- Compliance
- SAE J595 Class 1, California Title 13, ECE R65, R10
- Depth
- 0.5
- Dimension
- 1.24" H x 4.85" L x 0.5" D
- Flash Pattern
- 23
- Hardware Material
- 304 Stainless Steel
- Height
- 1.24
- Housing Material
- Cast Aluminum
- IP Rating
- IP69K
- LED Color
- Amber
- LED Count
- 6
- Length
- 4.85
- Lens Color
- Clear
- Lens Material
- PC (Polycarbonate)
- Maximum Amperage
- 0.9
- Maximum Current Draw@12VDC
- 0.6
- Maximum Wattage
- 9
- Mounting Hardware Included
- Yes
- Mounting Hardware Material
- 304 Stainless Steel
- Operating Temperature
- -40 to 149
- Operating Voltage
- 12-24V DC
- Patterns
- 22
- Power Consumption
- 9W
- Terminal Type
- Circular connectors with pig tail
- Title
- BUILTBRIGHT BB6110A Work Bar Strobe 4 Slim - 4" Low-Profile LED Strobe Light, Amber (1 EA)
- Universal Or Specific Fit
- Universal
- User-programmable Modes
- 3
- VHB Tape Included
- Yes
- Voltage
- 12 to 24
- Warranty
- 5-Year Warranty
- What's Included
- Mounting hardware
- Width
- 1.22
- Wire Length
- 28
- Wire Quantity
- 5
Fitment status
This product is universal and will fit your application.

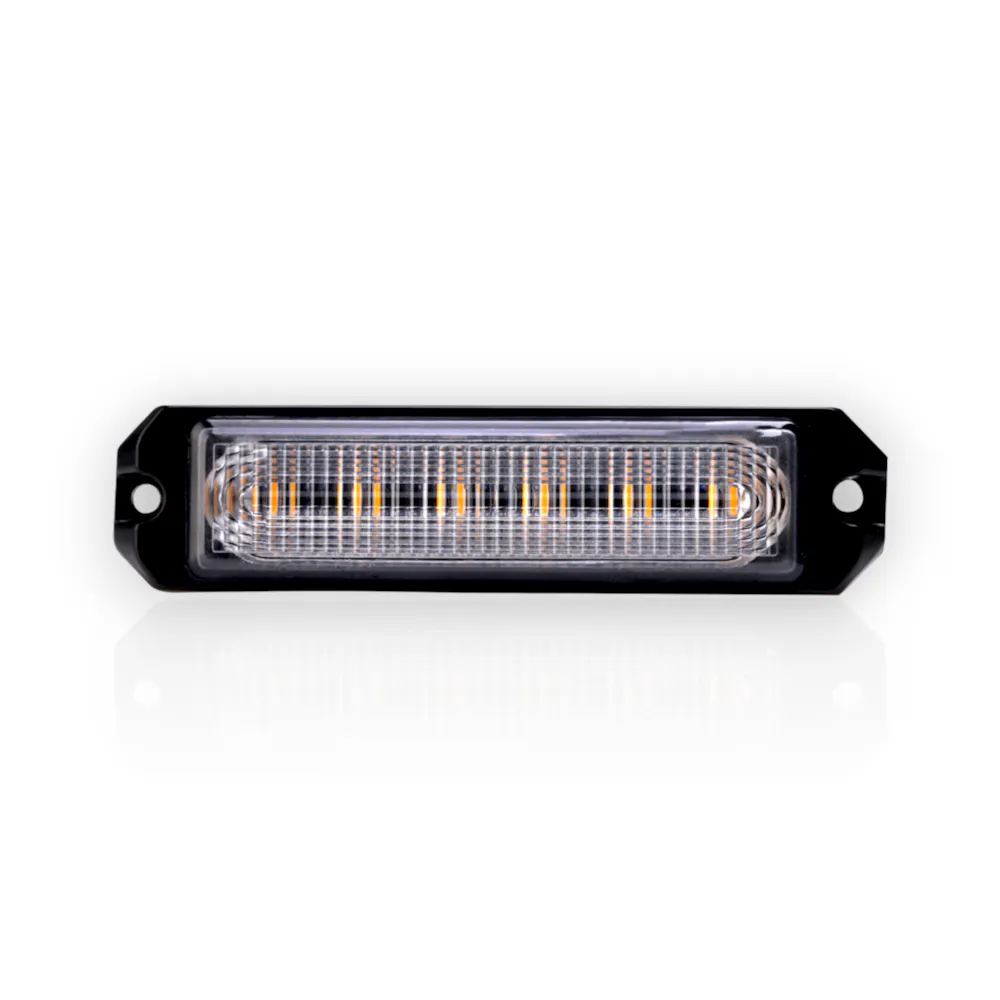

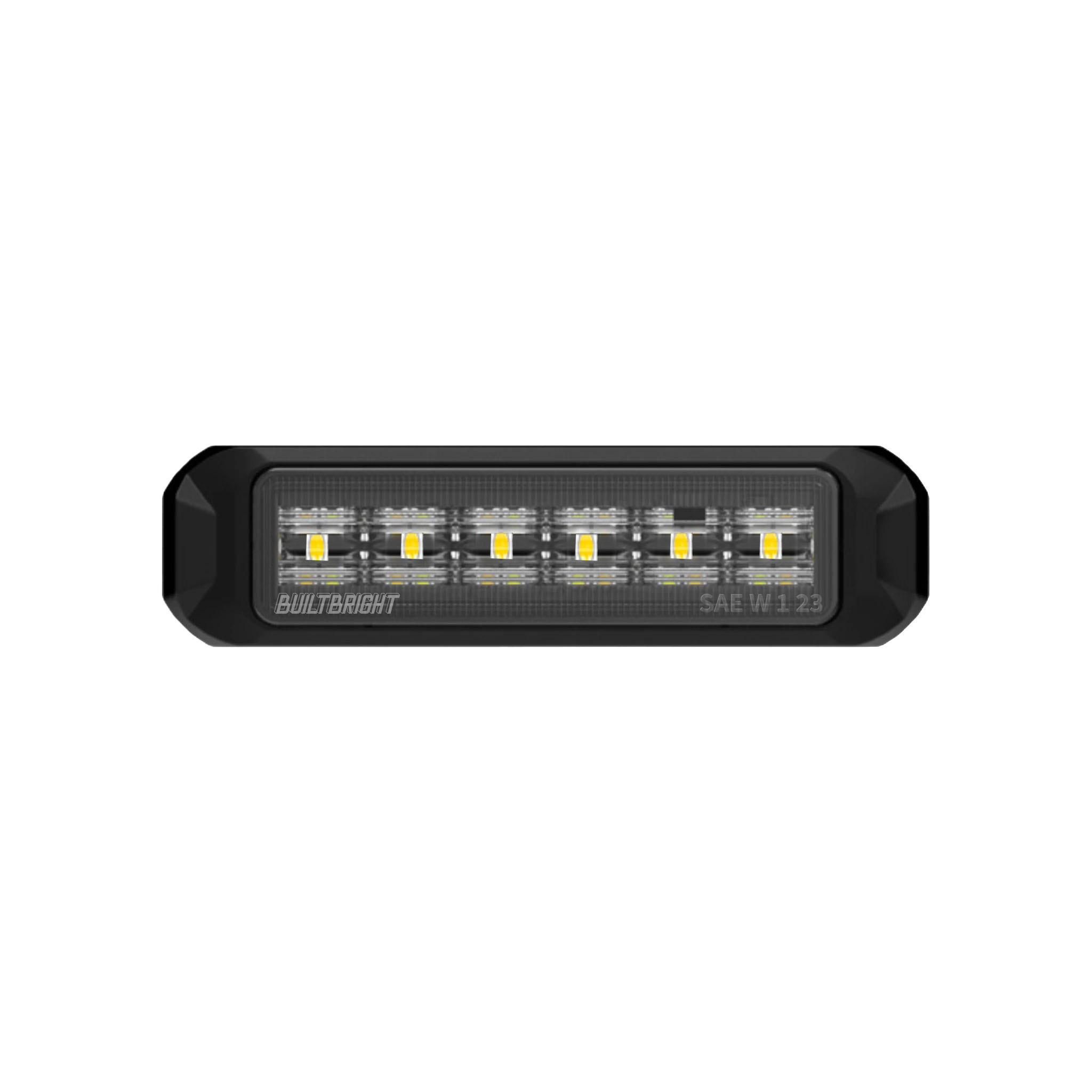

ARC Lighting BB6110A
