Description: Work Bar Strobe 12, Mini Light Bar 12 Inch, Amber/White, all in one package (1EA)
Description:
Description

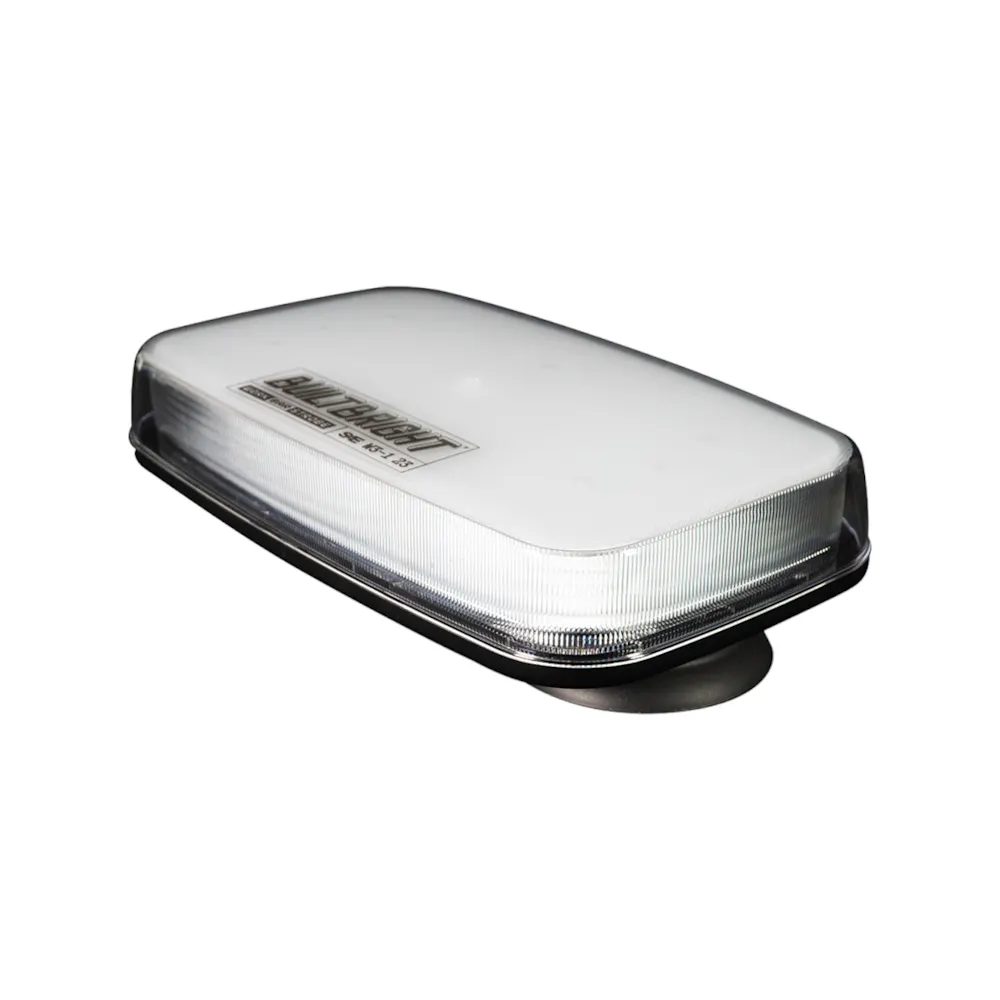

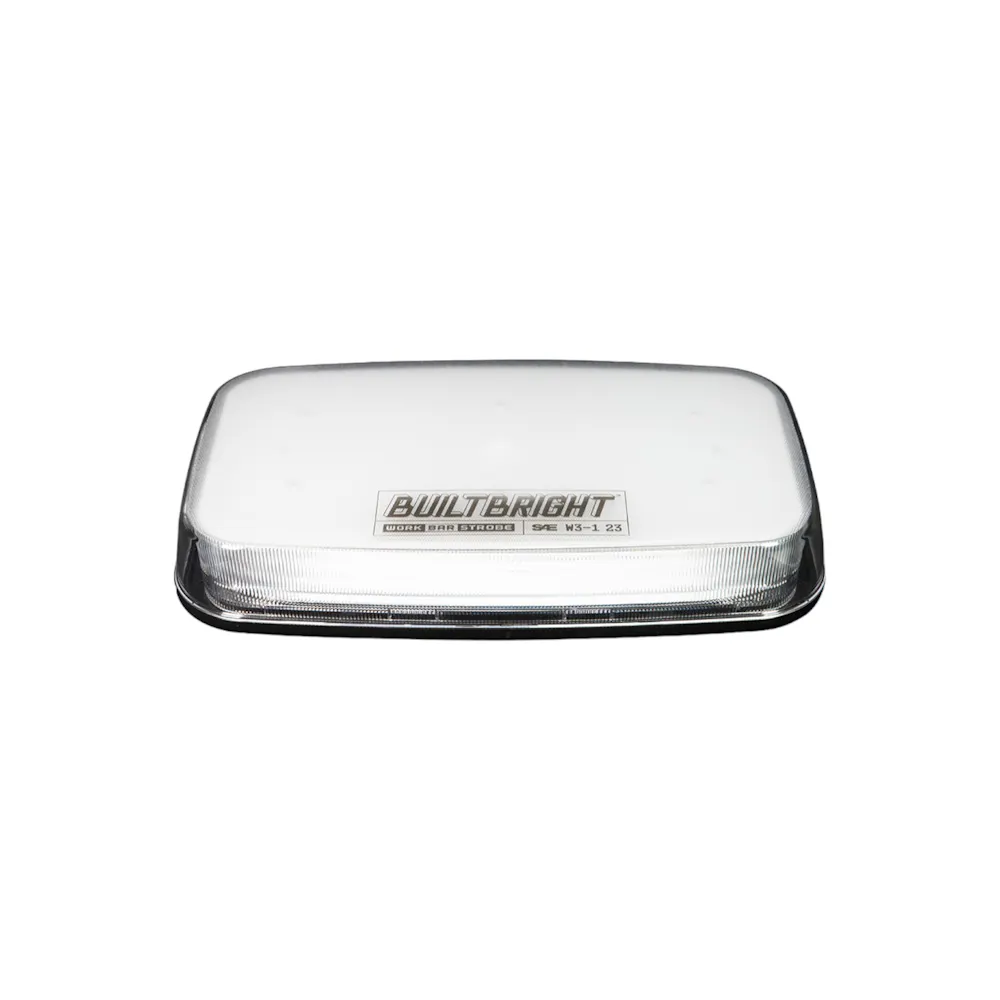

BUILTBRIGHT Work Bar Strobe 12 is a designed to incorporate a compact sleek design with the ultimate light output to meet SAE CLASS I standard. This product also boasts major industry requirements such as IP69K, EMC R10 approvals and comes as standard with 78 flash patterns including flood strobe split and full flood pattern. It features ultra-bright latest generation LEDs under an all new wide defused lens with dual color options. The Work Bar Strobe 12 is available in a variety of mount options whether you require a permanent or temporary magnetic mount. It also comes with Cig plug switch and Permanent Dash Mount Switches, making it the one stop solution for emergency services, amber safety and commercial vehicles. The Work Bar Strobe 12 is designed tough enough for a fit-and-forget purpose and has a 3-year warranty.
Features & benefits
- Meets SAE J845 CLASS I, EMC R10 Requirements
- 12 and 24 V DC compatible
- Sleek modern low profile design with 360o diffused lens
- 360 strobe in white, amber and dual color
- 78 selectable flash patterns
- Integrated Cruise and Flood Mode
- Integrated steady burn and Strobe split mode
- Comes with dash mount switch and plug with on/off switch and flash pattern toggle
- Quick disconnect waterproof connectors allows for easy switching between temporary and permanent switch.
- Rugged Magnetic Mount and Permanent Stud Mount Bracket included
- Weatherproof IP69K rated
Information
1x Dash Mount Switch
Specifications
- GTIN
- 00793888981683
- Weight
- 3.3 lb
- Height
- 3.2 in
- Length
- 13.4 in
- Width
- 7.1 in
- EO
- Legal US
- Life cycle
- Available Only While Supplies Last
- AAM brand code
- ARC
- Warehouse brand code
- ARC
- AAIA brand code
- HWXP
Attributes
- Average Current Draw@12VDC
- 2
- Average Wattage
- 24
- California Proposition 65
- No
- Cig. Plug Included
- Yes
- Color Temperature
- 6000
- Compliance
- SAE J845 CLASS 1, ECE R65, R10
- Depth
- 1.93
- Flash Pattern
- 78
- Height
- 2
- Housing Material
- Cast Aluminum
- IP Rating
- IP69K
- LED Color
- Amber/White
- LED Count
- 120
- Length
- 11
- Lens Color
- Clear
- Lens Material
- PC (Polycarbonate)
- Magnetic Feet Included
- Yes
- Maximum Amperage
- 4
- Maximum Current Draw@12VDC
- 4
- Maximum Wattage
- 54
- Mounting Hardware Included
- Yes
- Mounting Hardware Material
- 304 Stainless Steel
- Operating Temperature
- -40 to 149
- Permanent Mount Bracket
- Yes
- Permanent Switch Included
- Yes
- Terminal Type
- Circular Waterproof Connector
- Universal Or Specific Fit
- Universal
- Voltage
- 12 to 24
- Width
- 6.5
- Wire Length
- 13
- Wire Quantity
- 3
Fitment status
This product is universal and will fit your application.

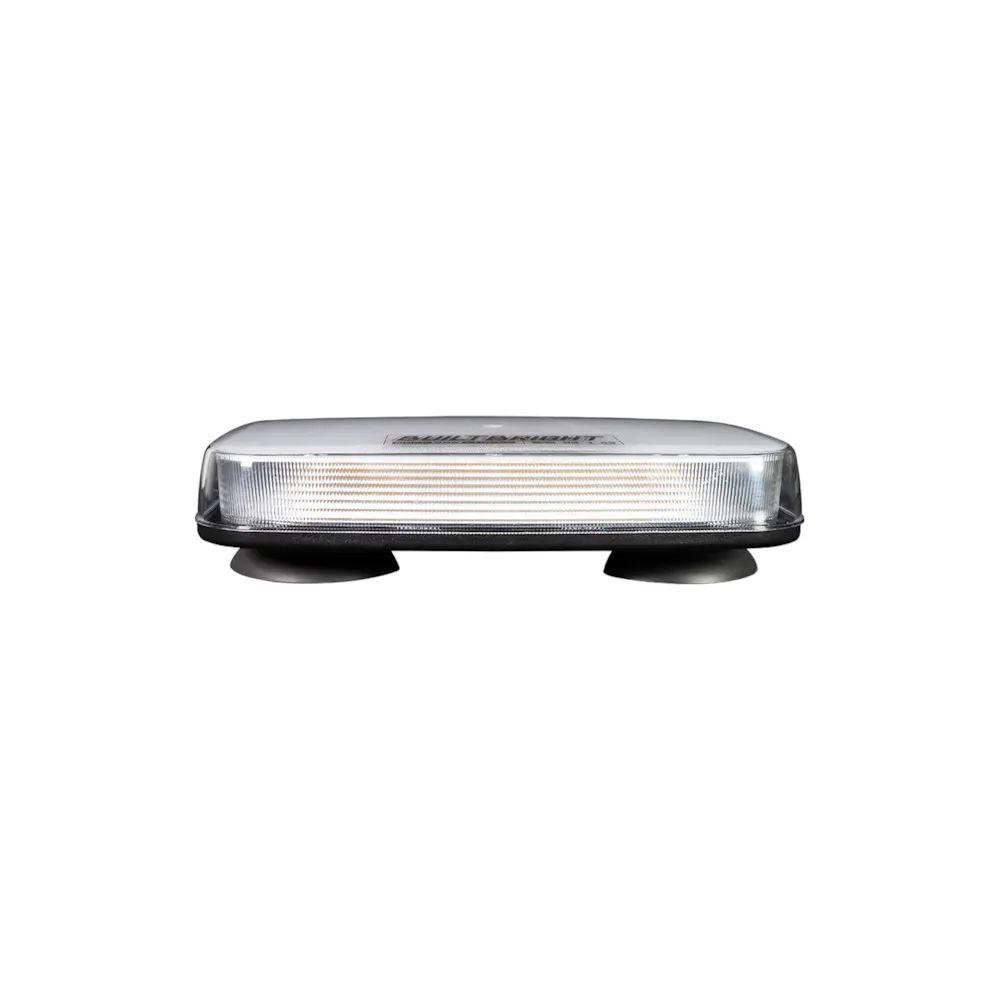

ARC Lighting BB6001A
