ARC Lighting · 6402D
Part #: 6402D
UPC: 793888974081
Loading...
Notify me when this item is in stock.
pro mess

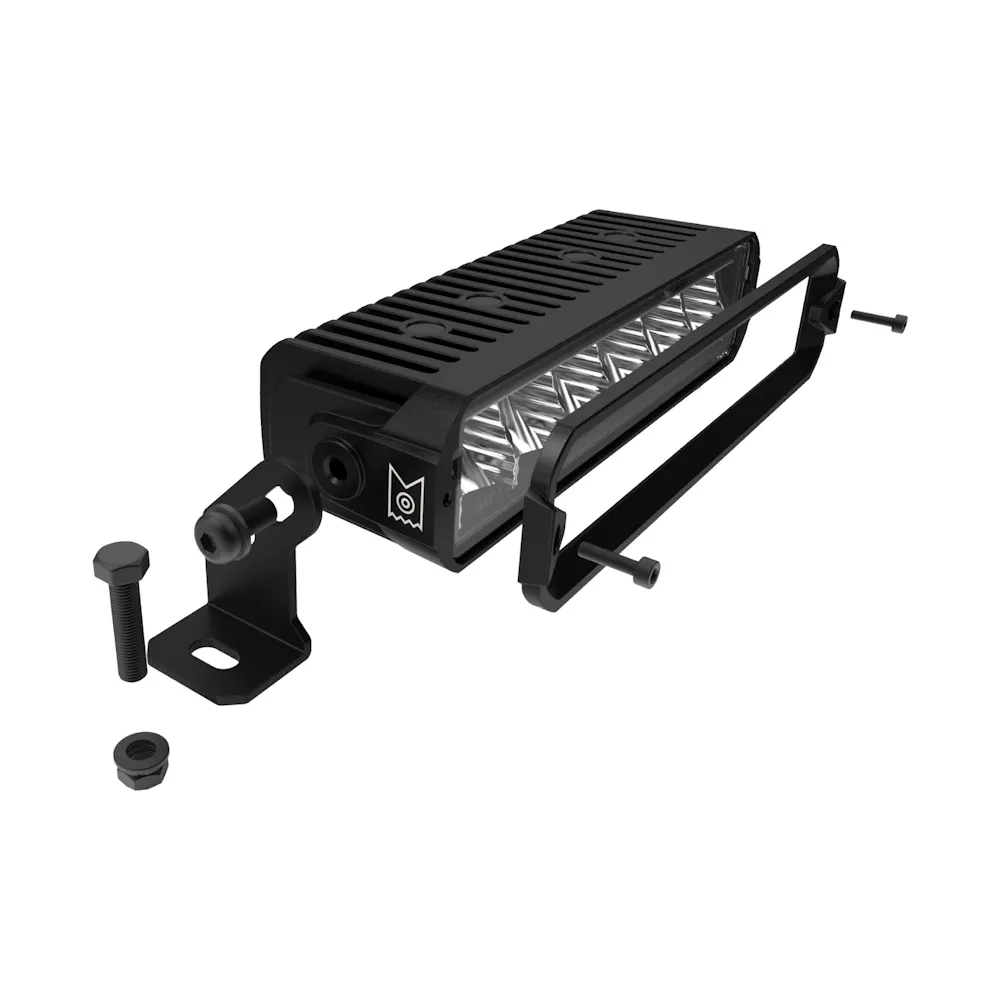

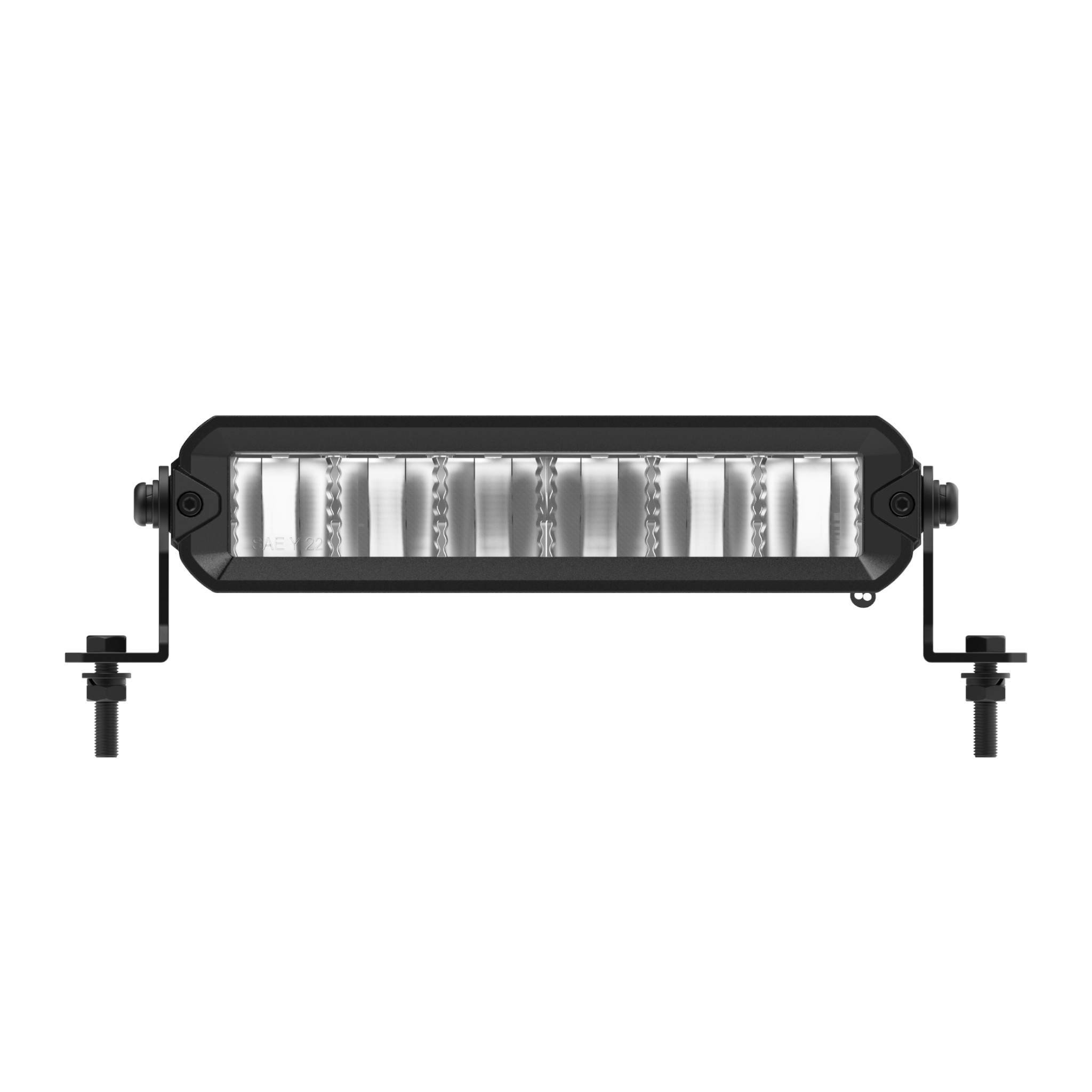

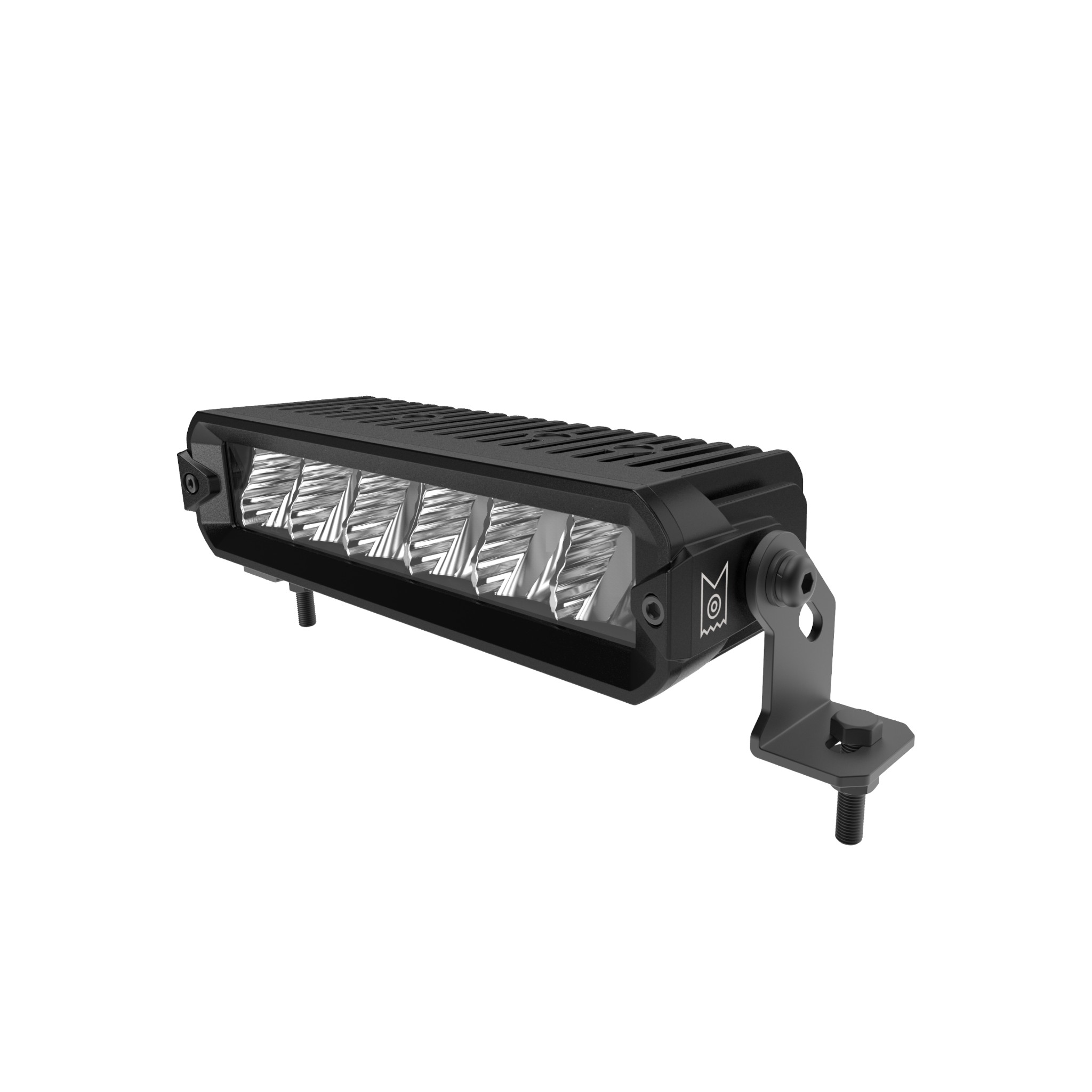

Description: Xtreme Bar 8", Driving Light Bar, Driving Beam, White (2 EA); Xtreme Bar 8" Driving Light Bar in White delivers powerful auxiliary lighting with precision driving beam optics. Compact form factor with versatile U-bracket and side mounting options for off-road and work vehicle applications.
Description:
Description
Offered in both single-color and dual-color configurations, select models allow you to switch between crisp white for driving and yellow or amber for fog, with strobe mode available for added visibility. Compact in size, extreme in output—engineered for seamless factory integration.
Features & benefits
- A kit of two (2) high performance street legal driving light bars
- Wiring harness (SKU:84024) sold separately
- Vehicle specific brackets in Tiny Monster Grille kits to achieve factory-style integration with grilles and bumpers for seamless OEM fit
- Eight inch (8") compact size
- Compliant with SAE J581 driving light standards
- 3,400 lumens of street legal driving beam
- Crisp white driving beam for maximum visibility
- Compatible with 12V, 24V and 48V DC power systems
- Weatherproof IP69K rating ensures protection against harsh environmental conditions
- Side mount bracket included
Specifications
- GTIN
- 00793888974081
- Weight
- 4 lb
- Height
- 7 in
- Length
- 8 in
- Width
- 6 in
- Life cycle
- Available to Order
- AAM brand code
- ARC
- Warehouse brand code
- ARC
- AAIA brand code
- HWXP
Attributes
- Add-On
- N/A
- Amp Draw per Bulb
- 5 Amps @ 12V DC
- Beam Pattern
- Driving Beam
- Bracket & Hardware Material
- 304 Stainless Steel
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- White
- Color Temperature
- 6,000K
- Color Temperature (White LED)
- 6,000
- Compliance
- SAE J581
- Depth (Per Light Bar)
- 2.62
- Dimension
- 7.8" L x 1.68" H x 2.62" D (per module)
- Hardware Material
- 304 Stainless Steel
- IP Rating
- IP69K
- LED Color
- White
- LED Count (Per Light Bar)
- 6
- LED Emitter Type
- AFL3 modular chip
- Length (Per Light Bar)
- 7.8
- Lens Material
- PC (Polycarbonate)
- Light Beam Pattern
- Driving Light
- Light Output
- 6,800 LM (3,400 LM per module)
- Light Output (Per Light Bar)
- 4300
- Operating Voltage
- 10-48V
- Operating temperature
- -40 to 185
- Power Consumption
- 90 Watts (45 Watts per module)
- Terminal Type
- DT
- Title
- Tiny Monster 6402D Xtreme Bar, 8" Driving Light Bar, Driving Beam, Side Mount (2 EA)
- Voltage
- 12~48
- Warranty
- Five (5) Year Warranty
- Wattage (Per Light Bar)
- 45
- What's Included
- 2 x DT Pigtail
- Width (Per Light Bar)
- 1.68
- Wire Length
- 11
- Wire Quantity
- 2
Fitment status
This product is universal and will fit your application.
