ARC Lighting / 6401F
Part #: 6401F
UPC: 793888973886
Loading...
Notify me when this item is in stock.
Description: Xtreme Bar 4", Fog Light Bar, Fog Beam, Dual W/A (2 EA); Xtreme Bar 4" Fog Light Bar in Dual W/A delivers powerful auxiliary lighting with precision fog beam optics. Compact form factor with versatile U-bracket and side mounting options for off-road and work vehicle applications.
Description:
pro mess
Description
Offered in both single-color and dual-color configurations, select models allow you to switch between crisp white for driving and yellow or amber for fog, with strobe mode available for added visibility. Compact in size, extreme in output—engineered for seamless factory integration.
Features & benefits
- A kit of two (2) high-performance street legal fog light bar
- Four inch (4") compact size
- Compliant with SAE J583 fog light standards
- Dual color white and amber light beam suitable for all weather driving conditions
- Compatible with 12V, 24V and 48V DC power systems
- Weatherproof IP69K rating ensures protection against harsh environmental conditions

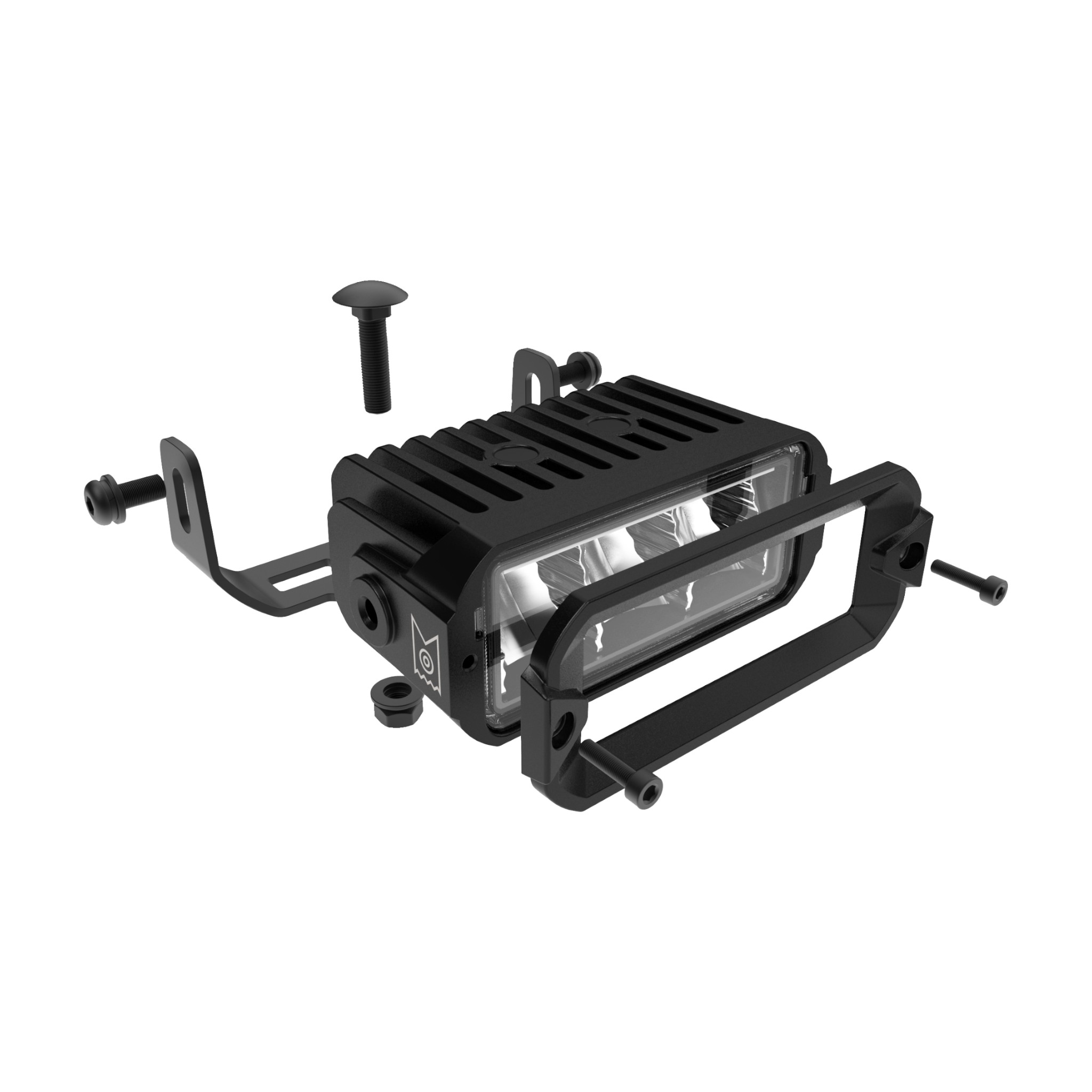

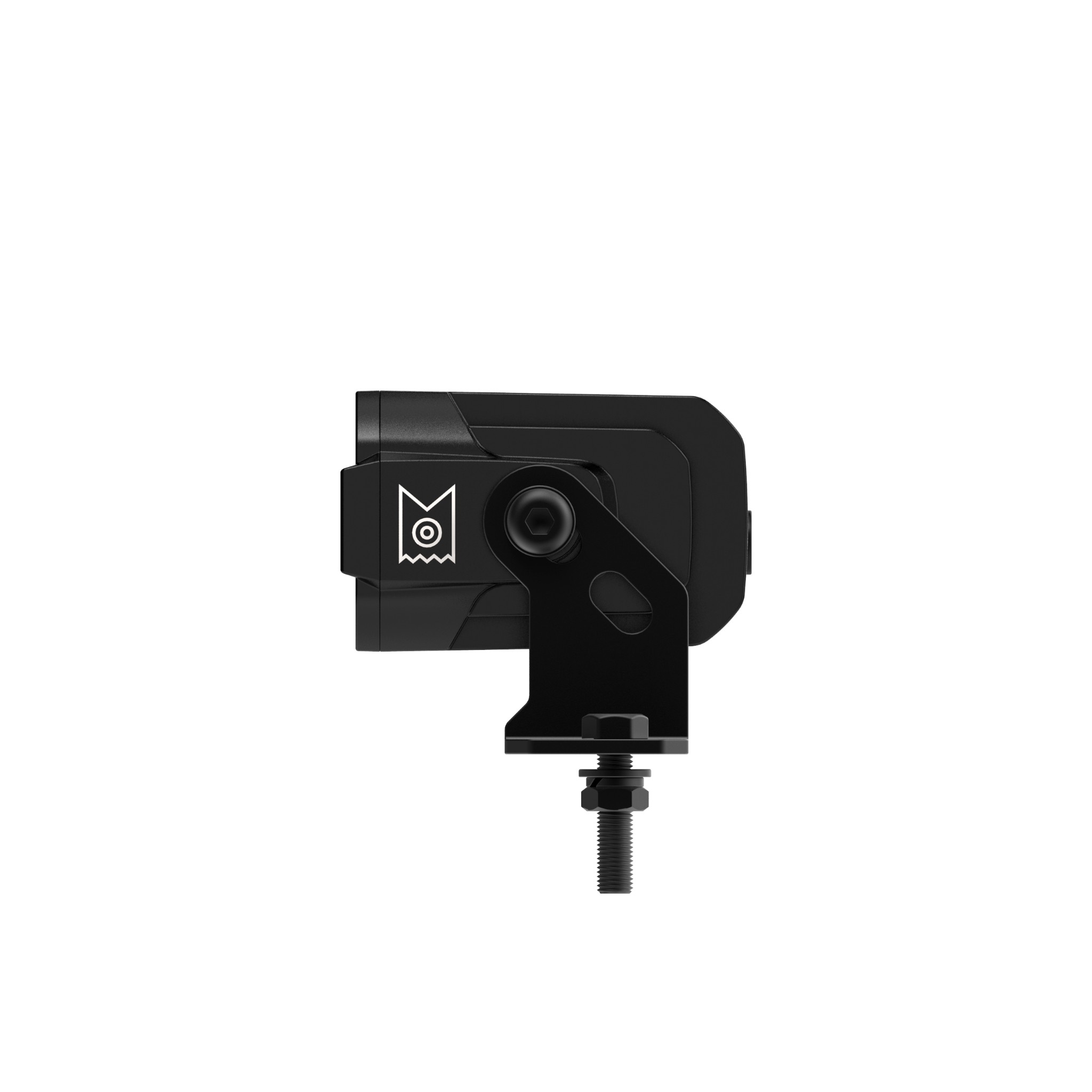

- Side mount bracket included
- Vehicle specific brackets in Tiny Monster Grille kits to achieve factory-style integration with grilles and bumpers for seamless OEM fit
Specifications
- GTIN
- 00793888973886
- Weight
- 4 lb
- Height
- 7 in
- Length
- 6 in
- Width
- 6 in
- Life cycle
- Available to Order
- AAM brand code
- ARC
- Warehouse brand code
- ARC
- AAIA brand code
- HWXP
Attributes
- Add-On
- N/A
- Amp Draw per Bulb
- 1.5 Amps @ 12V DC
- Beam Pattern
- Fog Light
- Bracket & Hardware Material
- 304 Stainless Steel
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- White, Amber
- Color Temperature
- 6,000K, 2,600K
- Color Temperature (Amber LED)
- 2600
- Color Temperature (White LED)
- 6,000
- Compliance
- SAE J583
- Depth (Per Light Bar)
- 2.62
- Dimension
- 4.8" L x 1.68" H x 2.62" D (per module)
- Hardware Material
- 304 Stainless Steel
- Height (Per Light Bar)
- 1.68
- IP Rating
- IP69K
- LED Color
- White/Amber
- LED Count (Per Light Bar)
- 6
- LED Emitter Type
- LUMILEDS ZES
- Length (Per Light Bar)
- 4.8
- Lens Color
- Clear
- Light Beam Pattern
- Fog Light
- Light Output
- White: 2,400 LM (1,200 LM per module);
- Light Output (Per Light Bar)
- 650
- Operating Voltage
- 10-48V
- Operating temperature
- -40 to 185
- Power Consumption
- 40 Watts (20 Watts per module)
- Terminal Type
- DT
- Title
- Tiny Monster 6401F Xtreme Bar, 4" Fog Light Bar, Dual Color White/Amber, Fog Beam, U Bracket Mount, Side Mount (2 EA)
- Voltage
- 12~48
- Warranty
- Five (5) Year Warranty
- Wattage (Per Light Bar)
- 20
- What's Included
- 2 x DT Pigtail
- Wire Length
- 11
Fitment status
This product is universal and will fit your application.
