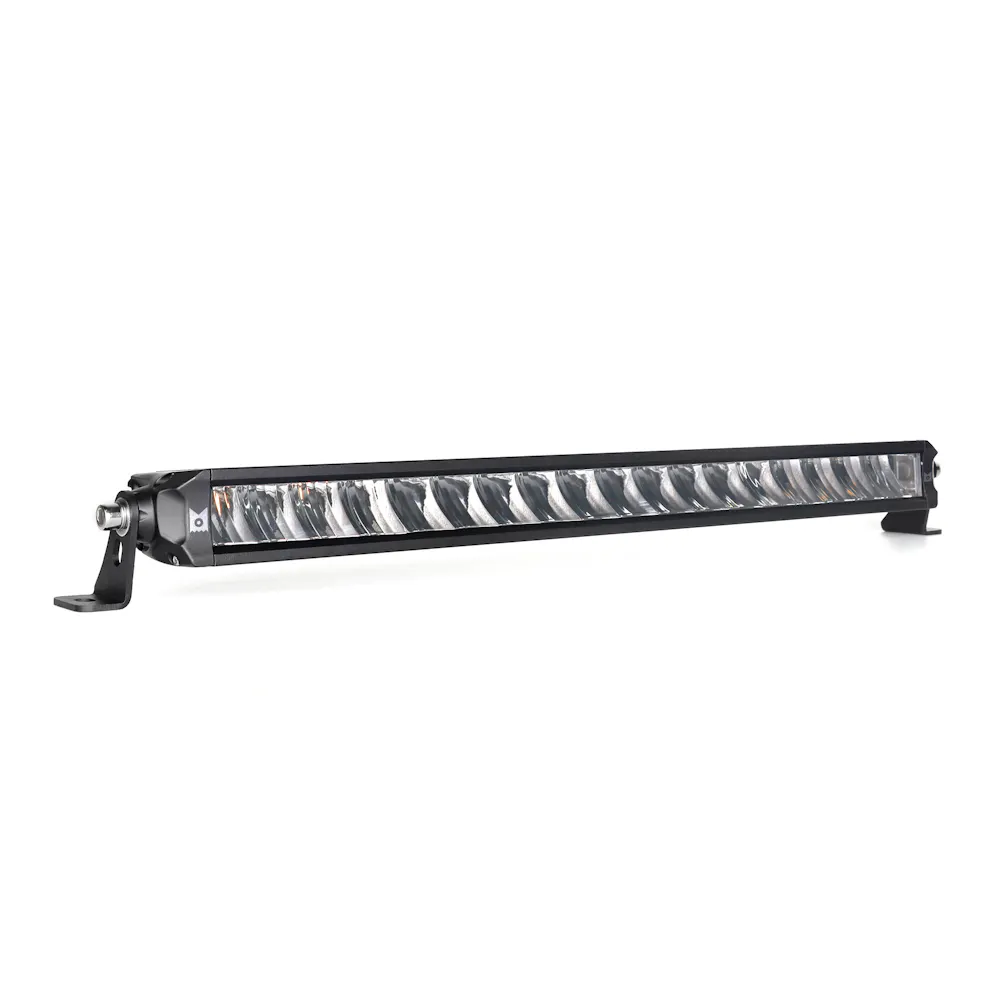

ARC Lighting / 61033
Part #: 61033
UPC: 787790541110
Loading...
Notify me when this item is in stock.
Description: Xtreme Bar, 20 Driving Light Bar, Dual Color White/Selected Yellow w/Yellow Str; Xtreme Series Bar, 20 Street Legal Light Bar, Driving (SAE J581) + Fog Light (SAE J583)+ Amber Strobe All in One, 7300 Lumens, Harness and Switch Panel Included, (1 EA)
Description:
pro mess
Description
With the introduction of our Xtreme Bar street-legal light bars, we are redefining the auxiliary driving light category. Our new street legal light bars epitomize our commitment to maximizing light output and road safety with an innovative approach. The all new optical design not only produces a SAE-compliant beam pattern but also surpasses the power of the most off-road light bars. The versatility of combining driving, fog and emergency strobe beams together is a true innovation to give the best lighting you need on and off road.
Features & benefits
- MULTIFUNCTIONAL: Combination of multiple beam patterns (high beam, fog, and amber strobe light) in one lamp. Versatile mounting options for easy installation.
- STREET LEGAL: SAE certified for use on any roadway in the USA
- INNOVATIVE DESIGN: Patented optics, low profile chassis and integrated wiring harness.
- HIGH PERFORMANCE: Designed for high performance illumination in different driving conditions, surpassing performance of off road light bars.
Information
Universal Fitment
Application summary
| Year | Make / model |
|---|---|
| 1997-1999 | Acura CL |
| 2001-2003 | Acura CL |
| 1986-2001 | Acura Integra |
| 1986-1995 | Acura Legend |
| 2001-2003 | Acura MDX |
| 1991-2003 | Acura NSX |
| 1996-2003 | Acura RL |
| 2002-2003 | Acura RSX |
| 1997-1999 | Acura SLX |
| 1995-2003 | Acura TL |
| 1992-1994 | Acura Vigor |
| 1991-1995 | Alfa Romeo 164 |
| 1990-1994 | Alfa Romeo Spider |
| 1992-2001 | AM General Hummer |
| 1990-1994 | Audi 100 |
| 1990-1994 | Audi 100 Quattro |
| 1990-1991 | Audi 200 |
| 1990 | Audi 200 Quattro |
| 1990-1992 | Audi 80 |
| 1990-1992 | Audi 80 Quattro |
| 1990-1991 | Audi 90 |
| 1993-1995 | Audi 90 |
| 1993-1995 | Audi 90 Quattro |
| 1996-2003 | Audi A4 |
| 1996-2003 | Audi A4 Quattro |
| 1996-2003 | Audi A6 |
| 1995-2003 | Audi A6 Quattro |
| 1997-1999 | Audi A8 |
| 1997-2003 | Audi A8 Quattro |
| 2001-2003 | Audi Allroad Quattro |
| 1994-1998 | Audi Cabriolet |
| 2003 | Audi RS6 |
| 2000-2002 | Audi S4 |
| 1995 | Audi S6 |
| 2002-2003 | Audi S6 |
| 2001-2003 | Audi S8 |
| 2000-2003 | Audi TT |
| 2000-2003 | Audi TT Quattro |
| 1991-1998 | BMW 318i |
| 1991-1997 | BMW 318is |
| 2000 | BMW 323Ci |
| 1998-2000 | BMW 323i |
| 1998-1999 | BMW 323is |
| 2001-2003 | BMW 325Ci |
| 1990-1995 | BMW 325i |
| 2001-2003 | BMW 325i |
| 1990-1995 | BMW 325is |
| 1990-1991 | BMW 325iX |
| 2001-2003 | BMW 325xi |
| 2000 | BMW 328Ci |
| 1996-2000 | BMW 328i |
| 1996-1999 | BMW 328is |
| 2001-2003 | BMW 330Ci |
| 2001-2003 | BMW 330i |
| 2001-2003 | BMW 330xi |
| 1990-1995 | BMW 525i |
| 2001-2003 | BMW 525i |
| 1997-2000 | BMW 528i |
| 1994-1995 | BMW 530i |
| 2001-2003 | BMW 530i |
| 1990-1993 | BMW 535i |
| 1994-1995 | BMW 540i |
| 1997-2003 | BMW 540i |
| 1990-1992 | BMW 735i |
| 1990-1992 | BMW 735iL |
| 1993-1995 | BMW 740i |
| 1997-2001 | BMW 740i |
| 1993-2001 | BMW 740iL |
| 2002-2003 | BMW 745i |
| 2002-2003 | BMW 745Li |
| 1990-2001 | BMW 750iL |
| 2003 | BMW 760Li |
| 1995-1997 | BMW 840Ci |
| 1993-1997 | BMW 850Ci |
| 1994-1995 | BMW 850CSi |
| 1991-1992 | BMW 850i |
| 1990-1991 | BMW M3 |
| 1995-1999 | BMW M3 |
| 2001-2003 | BMW M3 |
| 1991-1993 | BMW M5 |
| 2000-2003 | BMW M5 |
| 2000-2003 | BMW X5 |
| 1996-2002 | BMW Z3 |
| 2003 | BMW Z4 |
| 2000-2002 | BMW Z8 |
| 1980-1981 | Buick Century |
| 1989-2003 | Buick Century |
| 1990 | Buick Electra |
| 1990-2003 | Buick LeSabre |
| 1991 | Buick Park Avenue |
| 1993-2003 | Buick Park Avenue |
| 1990-1991 | Buick Reatta |
| 1990-2003 | Buick Regal |
| 2002-2003 | Buick Rendezvous |
Specifications
- GTIN
- 00787790541110
- Weight
- 5.3 lb
- Height
- 5 in
- Length
- 21 in
- Width
- 4 in
- EO
- Legal US
- Life cycle
- Available Only While Supplies Last
- AAM brand code
- ARC
- Warehouse brand code
- ARC
- AAIA brand code
- HWXP
Attributes
- Add-On
- N/A
- Amp Draw per Bulb
- 10.6 Amps @ 13V DC
- Amperage Rating
- 10.6 Amps @ 13V DC
- Beam Pattern
- High Beam + Fog + Strobe
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color Temperature
- 6,500 Kelvin
- Compliance
- SAE J581 + SAE J583
- Dimension
- 1.6"x 20.1" x 2.3"
- IP Rating
- IP67
- Light Beam Pattern
- Strobe
- Light Output
- 7,300 Lumen
- Operating Voltage
- 10-36 DC Voltage
- Power Consumption
- 144 Watt
- Title
- Tiny Monster 61033 Xtreme Series Bar, 20" Street Legal Single Row Light Bar, Driving Beam + Fog Light
- Voltage
- 10-36
- Warranty
- 3 Years
- What's Included

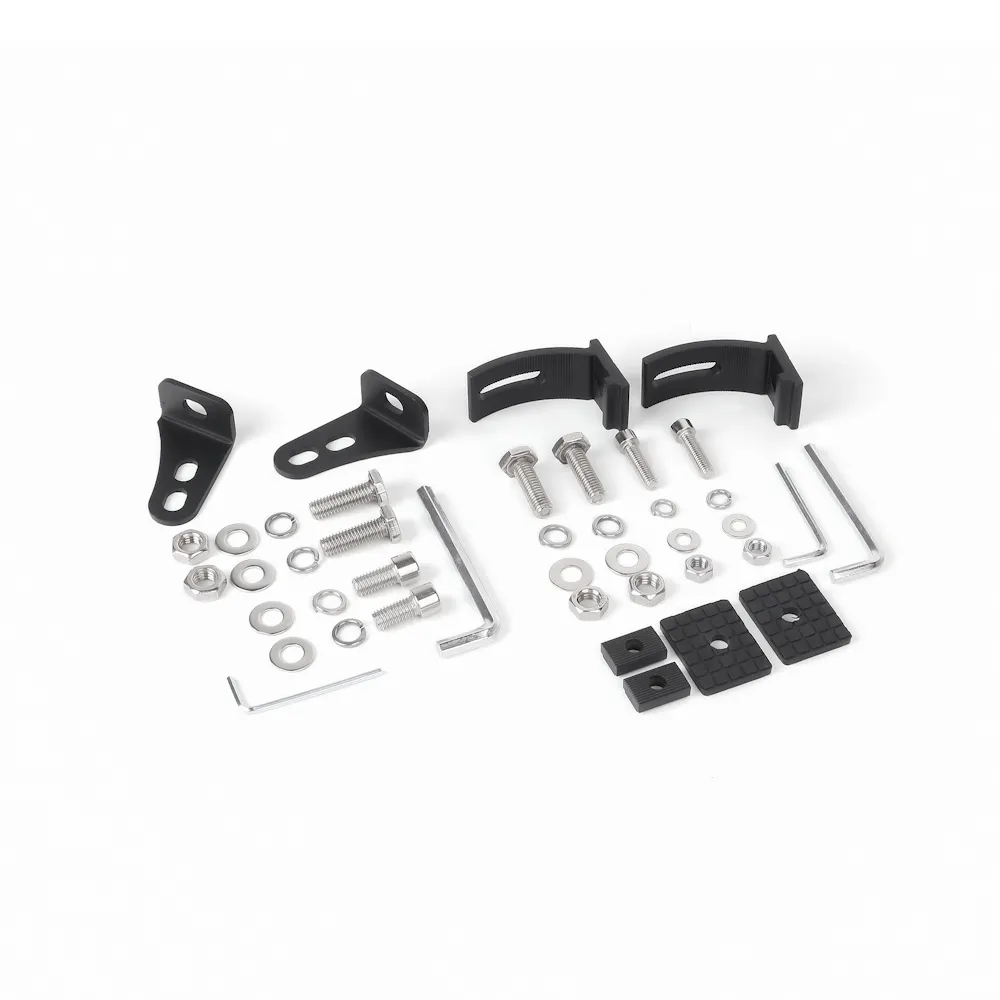

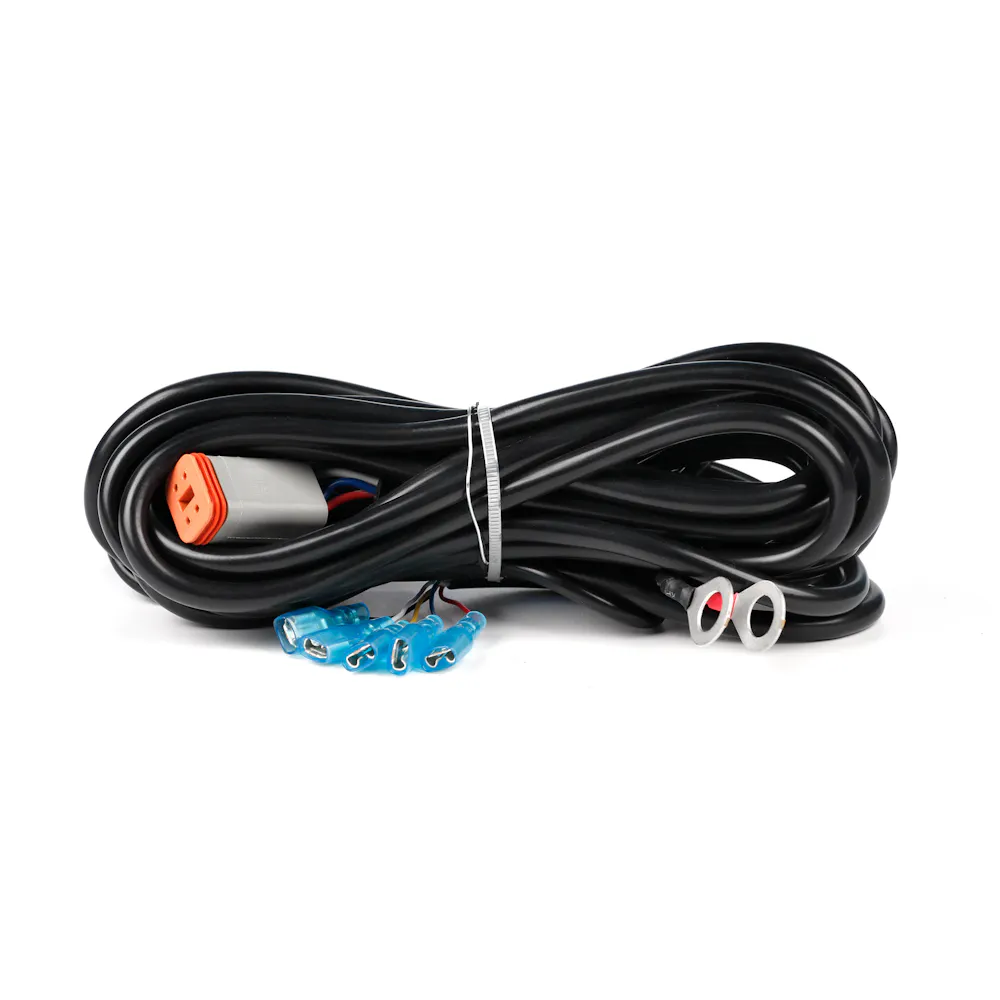

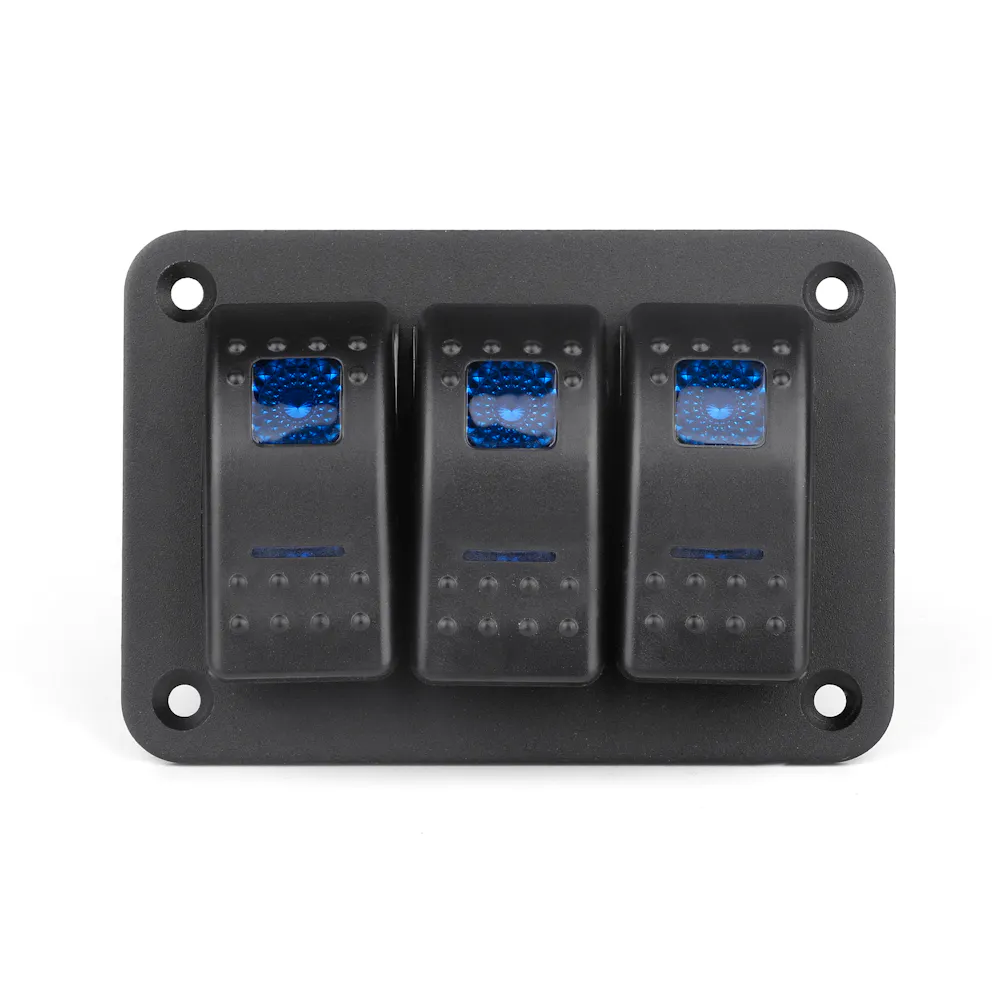

- 1 x LED Light BarSide and Bottom Mounting Bracketsand Hardware1 x Wiring Harness1 x Switch Panel
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1997-1999 Acura CL; 2001-2003 Acura CL; 1986-2001 Acura Integra; 1986-1995 Acura Legend; 2001-2003 Acura MDX; 1991-2003 Acura NSX; 1996-2003 Acura RL; 2002-2003 Acura RSX; 1997-1999 Acura SLX; 1995-2003 Acura TL; 1992-1994 Acura Vigor; 1991-1995 Alfa Romeo 164; 1990-1994 Alfa Romeo Spider; 1992-2001 AM General Hummer; 1990-1994 Audi 100; 1990-1994 Audi 100 Quattro; 1990-1991 Audi 200; 1990 Audi 200 Quattro; 1990-1992 Audi 80; 1990-1992 Audi 80 Quattro; 1990-1991 Audi 90; 1993-1995 Audi 90; 1993-1995 Audi 90 Quattro; 1996-2003 Audi A4; 1996-2003 Audi A4 Quattro; 1996-2003 Audi A6; 1995-2003 Audi A6 Quattro; 1997-1999 Audi A8; 1997-2003 Audi A8 Quattro; 2001-2003 Audi Allroad Quattro; 1994-1998 Audi Cabriolet; 2003 Audi RS6; 2000-2002 Audi S4; 1995 Audi S6; 2002-2003 Audi S6; 2001-2003 Audi S8; 2000-2003 Audi TT; 2000-2003 Audi TT Quattro; 1991-1998 BMW 318i; 1991-1997 BMW 318is; 2000 BMW 323Ci; 1998-2000 BMW 323i; 1998-1999 BMW 323is; 2001-2003 BMW 325Ci; 1990-1995 BMW 325i; 2001-2003 BMW 325i; 1990-1995 BMW 325is; 1990-1991 BMW 325iX; 2001-2003 BMW 325xi; 2000 BMW 328Ci; 1996-2000 BMW 328i; 1996-1999 BMW 328is; 2001-2003 BMW 330Ci; 2001-2003 BMW 330i; 2001-2003 BMW 330xi; 1990-1995 BMW 525i; 2001-2003 BMW 525i; 1997-2000 BMW 528i; 1994-1995 BMW 530i; 2001-2003 BMW 530i; 1990-1993 BMW 535i; 1994-1995 BMW 540i; 1997-2003 BMW 540i; 1990-1992 BMW 735i; 1990-1992 BMW 735iL; 1993-1995 BMW 740i; 1997-2001 BMW 740i; 1993-2001 BMW 740iL; 2002-2003 BMW 745i; 2002-2003 BMW 745Li; 1990-2001 BMW 750iL; 2003 BMW 760Li; 1995-1997 BMW 840Ci; 1993-1997 BMW 850Ci; 1994-1995 BMW 850CSi; 1991-1992 BMW 850i; 1990-1991 BMW M3; 1995-1999 BMW M3; 2001-2003 BMW M3; 1991-1993 BMW M5; 2000-2003 BMW M5; 2000-2003 BMW X5; 1996-2002 BMW Z3; 2003 BMW Z4; 2000-2002 BMW Z8; 1980-1981 Buick Century; 1989-2003 Buick Century; 1990 Buick Electra; 1990-2003 Buick LeSabre; 1991 Buick Park Avenue; 1993-2003 Buick Park Avenue; 1990-1991 Buick Reatta; 1990-2003 Buick Regal; 2002-2003 Buick Rendezvous; ...
