ARC Lighting / 41013
Part #: 41013
UPC: 787790540113
Loading...
Notify me when this item is in stock.

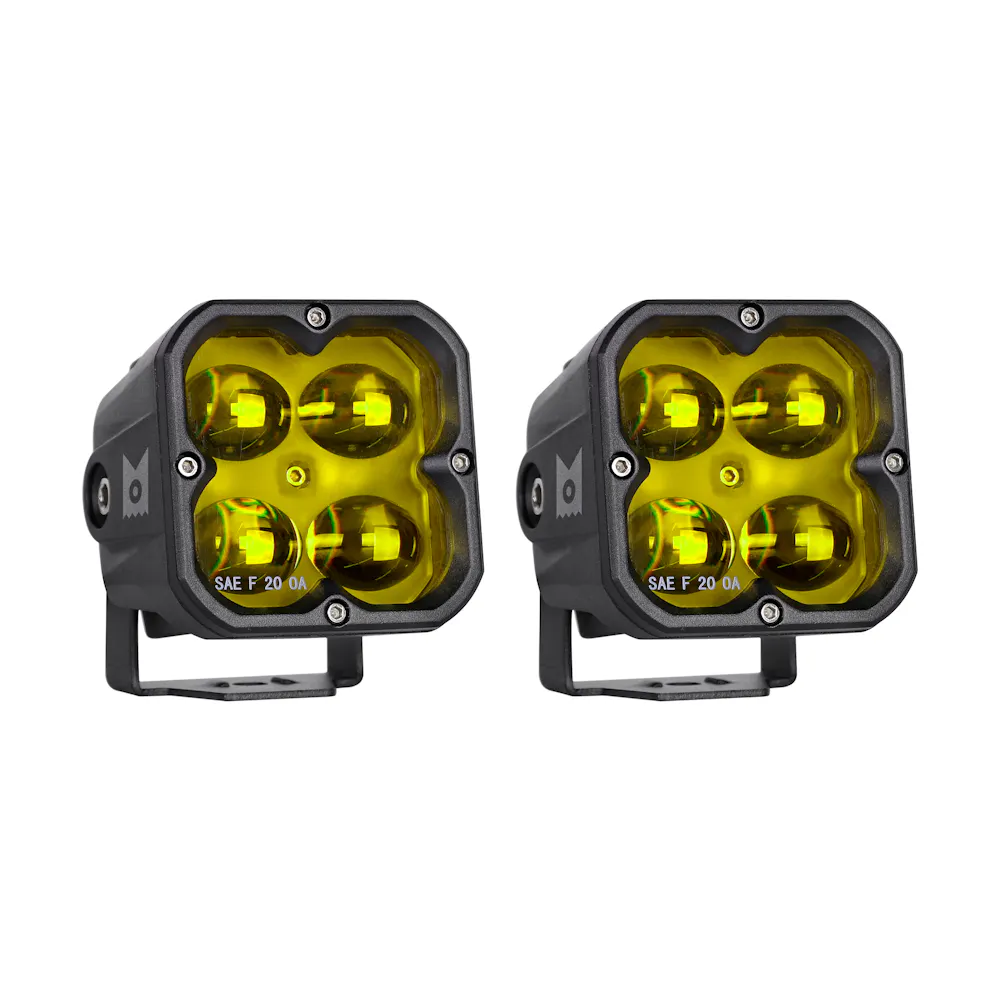

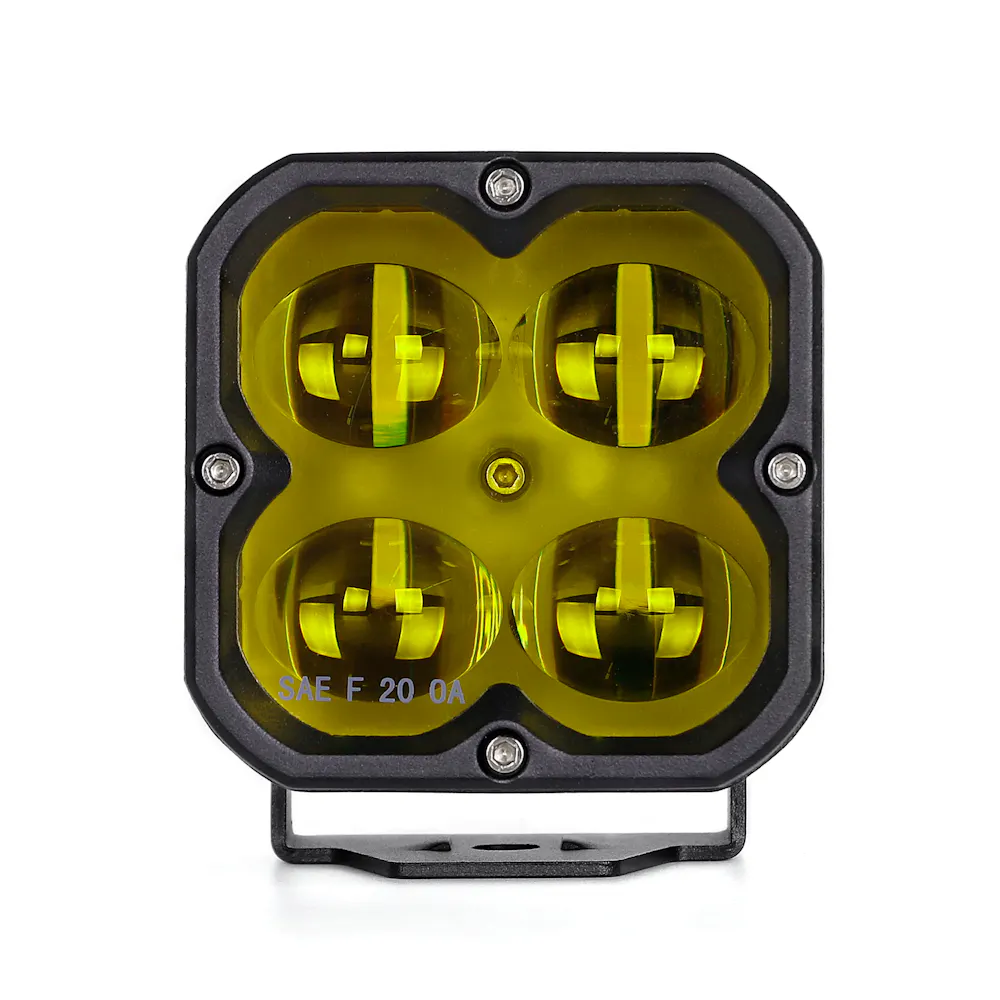

Description: 3" Cube LED Pod Lights, Fog Light, Pedestal Mount, Yellow Lens (2 EA); Concept Pods are equipped with automotive-grade Osram OSLON LEDs and TIR projector lenses. All Concept Pods are SAE certified for use on any roadway in the USA.
Description:
pro mess
Description
Cutting edge performance starts with cutting edge technology. To achieve precision beams that meet demanding SAE standards, our new street-legal Concept Pods are equipped with automotive-grade Osram OSLON LEDs and TIR projector lenses. These LED performance light pods are designed to be as compact as possible so that they can be installed anywhere on a vehicle for improved visibility and safety on the road. All Concept Pods are SAE certified for use on any roadway in the USA.
Features & benefits
- PRECISION OPTICS: Projector optics with Osram automotive-grade OSLON LEDs. Beam Patterns Available: Fog Light, Flood Light, Driving Light, and Spot Light.
- STREET LEGAL: SAE certified for use on any roadway in the USA. Compliance: SAE J581(Driving), J583 (Fog), J593 (Reverse).
- IMPROVED VISIBILITY: Designed for high performance in different driving conditions to improve visibility and and off road.
- COMPACT + VERSATILE: Compact size with various mounting options
Information
Universal Fitment
Application summary
| Year | Make / model |
|---|---|
| 1997-1999 | Acura CL |
| 2001-2003 | Acura CL |
| 1986-2001 | Acura Integra |
| 1986-1995 | Acura Legend |
| 2001-2003 | Acura MDX |
| 1991-2003 | Acura NSX |
| 1996-2003 | Acura RL |
| 2002-2003 | Acura RSX |
| 1997-1999 | Acura SLX |
| 1995-2003 | Acura TL |
| 1992-1994 | Acura Vigor |
| 1991-1995 | Alfa Romeo 164 |
| 1990-1994 | Alfa Romeo Spider |
| 1992-2001 | AM General Hummer |
| 1990-1994 | Audi 100 |
| 1990-1994 | Audi 100 Quattro |
| 1990-1991 | Audi 200 |
| 1990 | Audi 200 Quattro |
| 1990-1992 | Audi 80 |
| 1990-1992 | Audi 80 Quattro |
| 1990-1991 | Audi 90 |
| 1993-1995 | Audi 90 |
| 1993-1995 | Audi 90 Quattro |
| 1996-1997 | Audi A4 |
| 1996-1997 | Audi A4 Quattro |
| 1996-1997 | Audi A6 |
| 1995-1997 | Audi A6 Quattro |
| 1997 | Audi A8 |
| 1997 | Audi A8 Quattro |
| 1994-1997 | Audi Cabriolet |
| 1995 | Audi S6 |
| 1991-1998 | BMW 318i |
| 1991-1997 | BMW 318is |
| 2000 | BMW 323Ci |
| 1998-2000 | BMW 323i |
| 1998-1999 | BMW 323is |
| 2001-2003 | BMW 325Ci |
| 1990-1995 | BMW 325i |
| 2001-2003 | BMW 325i |
| 1990-1995 | BMW 325is |
| 1990-1991 | BMW 325iX |
| 2001-2003 | BMW 325xi |
| 2000 | BMW 328Ci |
| 1996-2000 | BMW 328i |
| 1996-1999 | BMW 328is |
| 2001-2003 | BMW 330Ci |
| 2001-2003 | BMW 330i |
| 2001-2003 | BMW 330xi |
| 1990-1995 | BMW 525i |
| 2001-2003 | BMW 525i |
| 1997-2000 | BMW 528i |
| 1994-1995 | BMW 530i |
| 2001-2003 | BMW 530i |
| 1990-1993 | BMW 535i |
| 1994-1995 | BMW 540i |
| 1997-2003 | BMW 540i |
| 1990-1992 | BMW 735i |
| 1990-1992 | BMW 735iL |
| 1993-1995 | BMW 740i |
| 1997-2001 | BMW 740i |
| 1993-2001 | BMW 740iL |
| 2002-2003 | BMW 745i |
| 2002-2003 | BMW 745Li |
| 1990-2001 | BMW 750iL |
| 2003 | BMW 760Li |
| 1995-1997 | BMW 840Ci |
| 1993-1997 | BMW 850Ci |
| 1994-1995 | BMW 850CSi |
| 1991-1992 | BMW 850i |
| 1990-1991 | BMW M3 |
| 1995-1999 | BMW M3 |
| 2001-2003 | BMW M3 |
| 1991-1993 | BMW M5 |
| 2000-2003 | BMW M5 |
| 2000-2003 | BMW X5 |
| 1996-2002 | BMW Z3 |
| 2003 | BMW Z4 |
| 2000-2002 | BMW Z8 |
| 1980-1981 | Buick Century |
| 1989-2003 | Buick Century |
| 1990 | Buick Electra |
| 1990-2003 | Buick LeSabre |
| 1991 | Buick Park Avenue |
| 1993-2003 | Buick Park Avenue |
| 1990-1991 | Buick Reatta |
| 1990-2003 | Buick Regal |
| 2002-2003 | Buick Rendezvous |
| 1990-1993 | Buick Riviera |
| 1995-1999 | Buick Riviera |
| 1991-1996 | Buick Roadmaster |
| 1990-1998 | Buick Skylark |
| 1993 | Cadillac 60 Special |
| 1990-1993 | Cadillac Allante |
Specifications
- GTIN
- 00787790540113
- Weight
- 2.3 lb
- Height
- 4 in
- Length
- 10 in
- Width
- 5 in
- Life cycle
- Discontinued
- AAM brand code
- ARC
- Warehouse brand code
- ARC
- AAIA brand code
- HWXP
Attributes
- Add-On
- N/A
- Amp Draw per Bulb
- 1.5 Amps @ 13.6 V DC
- Amperage Rating
- 1.5 Amps @ 13.6 V DC
- Beam Pattern
- Fog Light
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color Temperature
- 6,500 Kelvin
- Compliance
- SAE J583
- Consumer Features and Benefits
- Warranty: 3 years
- Consumer Marketing Description
- Cut through the fog with a pair of Concept Series LED fog light pods from ARC Lighting. These street-legal lights feature automotive-grade Osram OSLON LEDs, TIR projector lenses, and a compact 3” shell slim enough to install just about anywhere for improved safety and visibility. Each Concept Series fog light pod emits 1,500 lumens though a yellow lens designed to shred fog and mist. IP67 certification means the pods are completely protected from dust and other solid matter, with terrific water protection under nearly any condition or pressure. SAE-certified (J583) for any roadway in the U.S. ARC Lighting includes two U-mount brackets and mounting hardware for an easy installation. Backed by a 3-year warranty.
- Dimension
- 3.0" x 3.0" x 2.6"
- IP Rating
- IP67
- Lens Color
- Yellow
- Light Output
- 1,500 Lumens (Per Light)
- Operating Voltage
- 10-36 DC Voltage
- Power Consumption
- 20 Watt
- Title
- Tiny Monster 41013 Concept Series Pod, 3" Cube Led Pod Lights, Fog Light, U Mount,Yellow Lens
- Warranty
- 3 Years
- What's Included

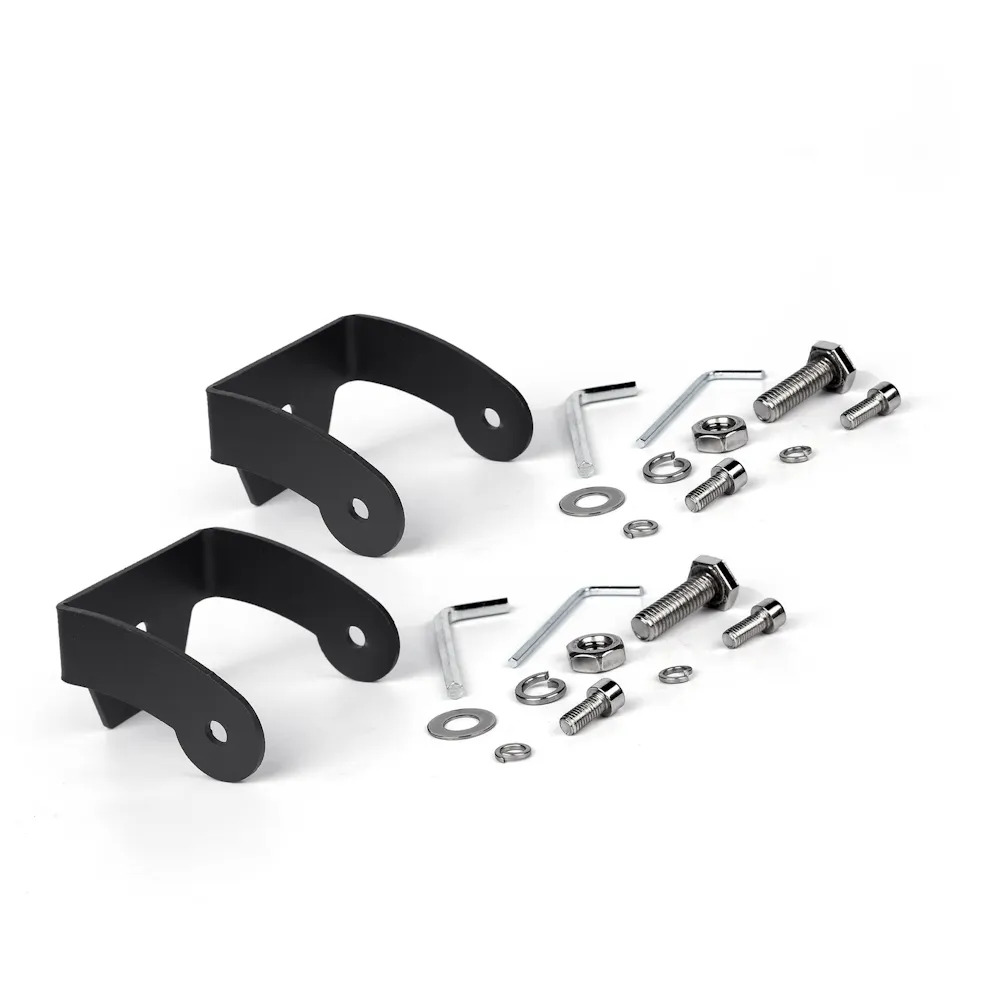

- 2 x Cube LED Pods 2 x U Mount BracketsMounting Hardware
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1997-1999 Acura CL; 2001-2003 Acura CL; 1986-2001 Acura Integra; 1986-1995 Acura Legend; 2001-2003 Acura MDX; 1991-2003 Acura NSX; 1996-2003 Acura RL; 2002-2003 Acura RSX; 1997-1999 Acura SLX; 1995-2003 Acura TL; 1992-1994 Acura Vigor; 1991-1995 Alfa Romeo 164; 1990-1994 Alfa Romeo Spider; 1992-2001 AM General Hummer; 1990-1994 Audi 100; 1990-1994 Audi 100 Quattro; 1990-1991 Audi 200; 1990 Audi 200 Quattro; 1990-1992 Audi 80; 1990-1992 Audi 80 Quattro; 1990-1991 Audi 90; 1993-1995 Audi 90; 1993-1995 Audi 90 Quattro; 1996-1997 Audi A4; 1996-1997 Audi A4 Quattro; 1996-1997 Audi A6; 1995-1997 Audi A6 Quattro; 1997 Audi A8; 1997 Audi A8 Quattro; 1994-1997 Audi Cabriolet; 1995 Audi S6; 1991-1998 BMW 318i; 1991-1997 BMW 318is; 2000 BMW 323Ci; 1998-2000 BMW 323i; 1998-1999 BMW 323is; 2001-2003 BMW 325Ci; 1990-1995 BMW 325i; 2001-2003 BMW 325i; 1990-1995 BMW 325is; 1990-1991 BMW 325iX; 2001-2003 BMW 325xi; 2000 BMW 328Ci; 1996-2000 BMW 328i; 1996-1999 BMW 328is; 2001-2003 BMW 330Ci; 2001-2003 BMW 330i; 2001-2003 BMW 330xi; 1990-1995 BMW 525i; 2001-2003 BMW 525i; 1997-2000 BMW 528i; 1994-1995 BMW 530i; 2001-2003 BMW 530i; 1990-1993 BMW 535i; 1994-1995 BMW 540i; 1997-2003 BMW 540i; 1990-1992 BMW 735i; 1990-1992 BMW 735iL; 1993-1995 BMW 740i; 1997-2001 BMW 740i; 1993-2001 BMW 740iL; 2002-2003 BMW 745i; 2002-2003 BMW 745Li; 1990-2001 BMW 750iL; 2003 BMW 760Li; 1995-1997 BMW 840Ci; 1993-1997 BMW 850Ci; 1994-1995 BMW 850CSi; 1991-1992 BMW 850i; 1990-1991 BMW M3; 1995-1999 BMW M3; 2001-2003 BMW M3; 1991-1993 BMW M5; 2000-2003 BMW M5; 2000-2003 BMW X5; 1996-2002 BMW Z3; 2003 BMW Z4; 2000-2002 BMW Z8; 1980-1981 Buick Century; 1989-2003 Buick Century; 1990 Buick Electra; 1990-2003 Buick LeSabre; 1991 Buick Park Avenue; 1993-2003 Buick Park Avenue; 1990-1991 Buick Reatta; 1990-2003 Buick Regal; 2002-2003 Buick Rendezvous; 1990-1993 Buick Riviera; 1995-1999 Buick Riviera; 1991-1996 Buick Roadmaster; 1990-1998 Buick Skylark; 1993 Cadillac 60 Special; 1990-1993 Cadillac Allante; ...
