ARC Lighting / 22041
Part #: 22041
UPC: 752830165861
Loading...
Notify me when this item is in stock.

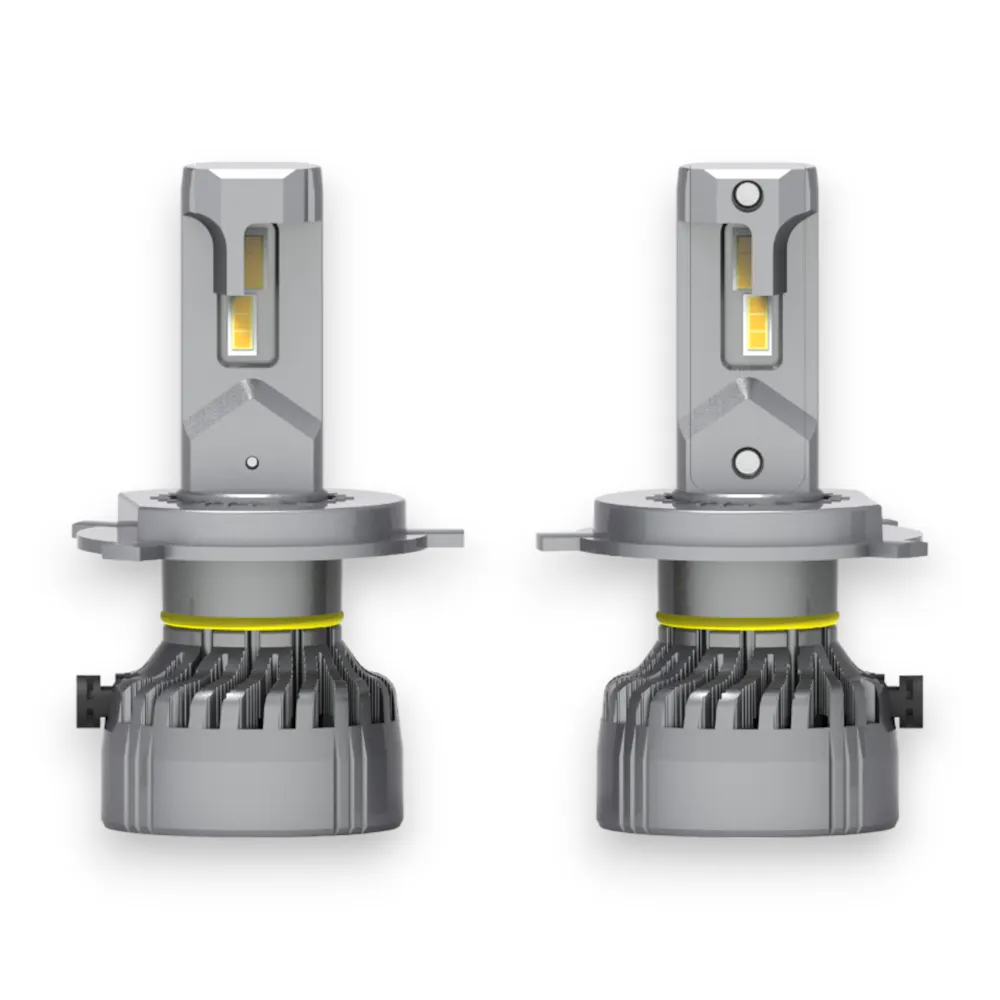

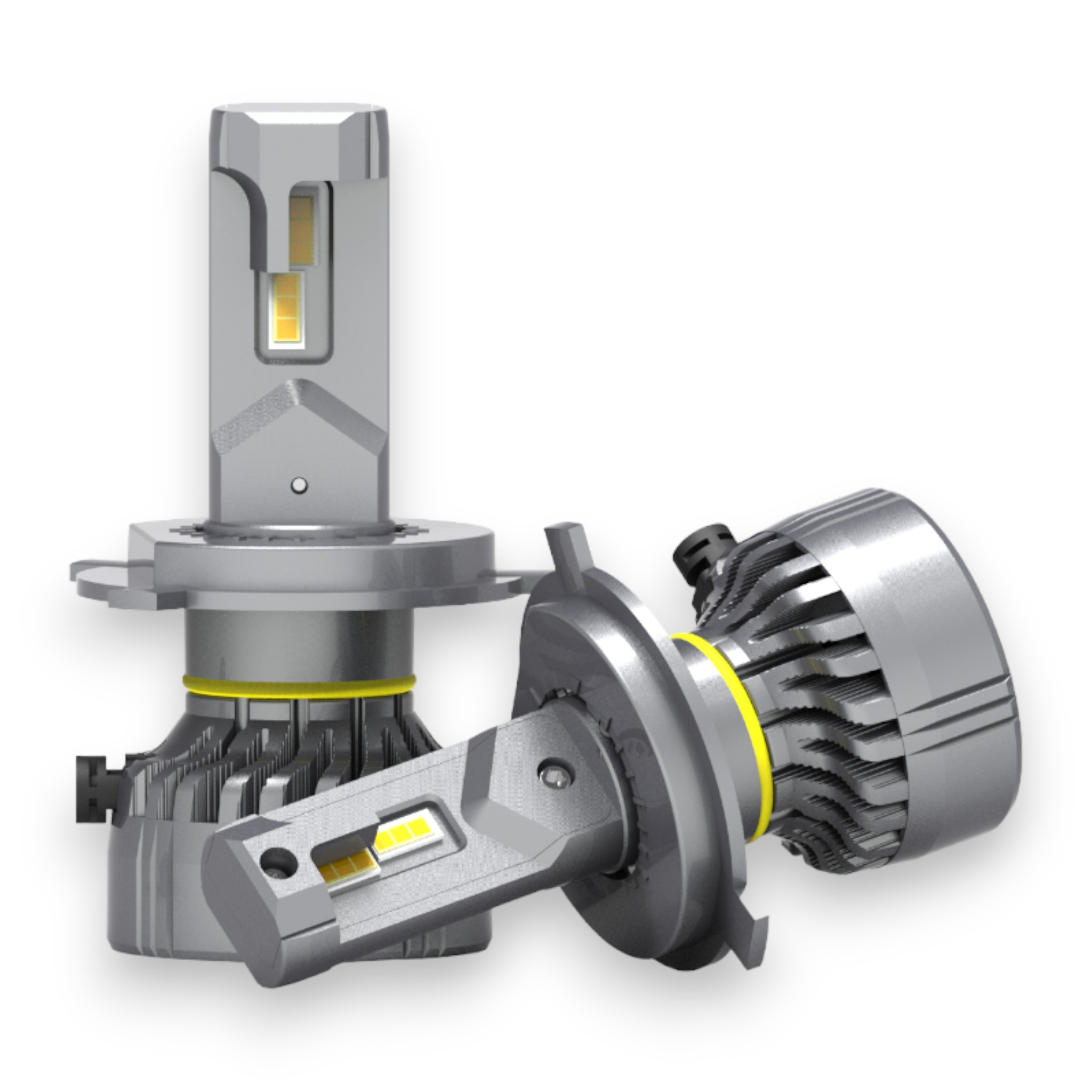

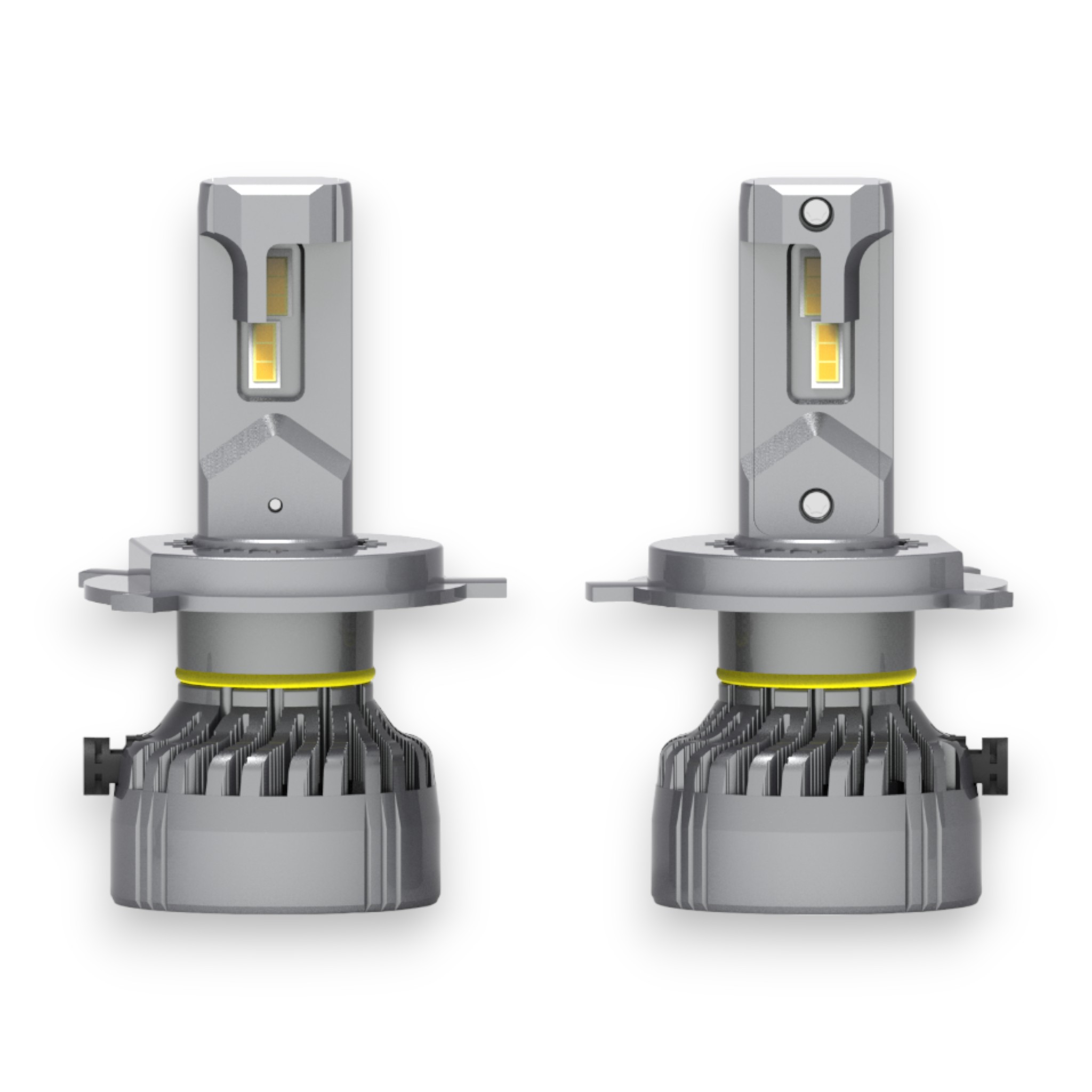

Description: Xtreme series H4 LED Headlight Bulb Kit, Premium Output, Plug and Play (2 EA); Xtreme series H4 LED bulb kit is our flagship headlight upgrade — maximum lumen output, premium automotive-grade LEDs, advanced cooling, and a precision beam pattern engineered to match factory headlight optics.
Description:
pro mess
Description
Xtreme Bulbs are the absolute brightest bulbs we make, and that's saying something as a LED performance lighting brand. Produces a stunning output that's brighter than a 35W HID system and 5x brighter than a stock halogen bulb. We utilize the very latest chips and technology and keep everything humming with smart thermal management. Bulky fan cooling LED bulbs have become history. The Xtreme series is designed to be compact enough to fit in the tightest spaces. Get the Xtreme series and you won't be in the dark again.
Features & benefits
- Extreme Brightness: If you are looking for the brightest monster of all it's our Xtreme series LED headlight bulb. The Xtreme Series bulbs can produce up to 5X the light output of stock halogen bulbs and are brighter than a 35W HID system.
- Fitment: The Xtreme Series are designed to be as compact as the stock bulb to fit even in the tightest spaces! They are compatible with most reflector and projector housings.
- Efficiency: The patented VacPipe™ vacuum heat pipe cooling technology is the core of thermal management. The vacuum liquid heat pipe pulls produced heat from the circuit board 3X more efficiently than a conventional heat sink design.

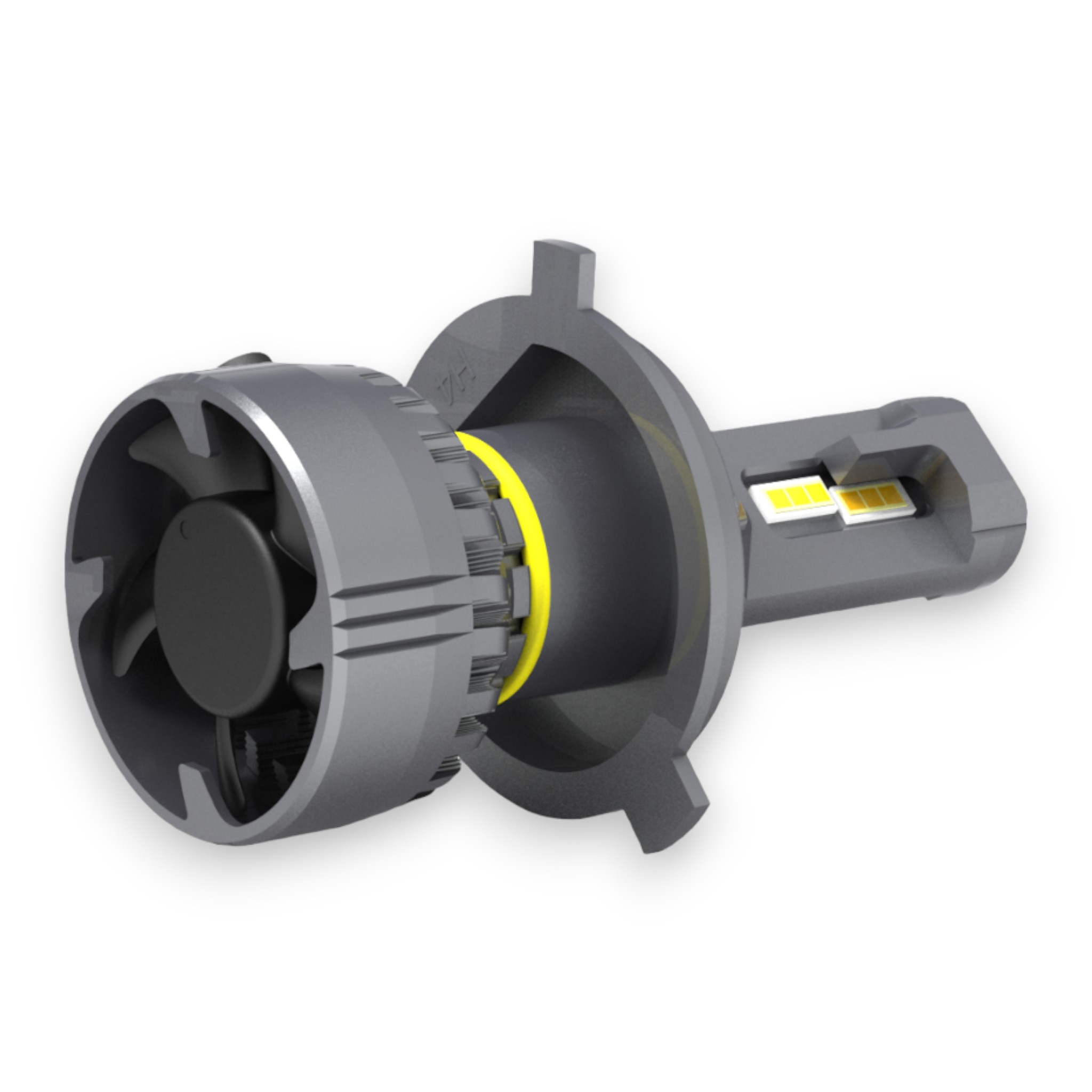

- Reliability: TurboCool™ system is managed by using an enclosed, waterproof, high speed ball bearing turbofan. SmartDrive™ advanced temperature regulation.
Information

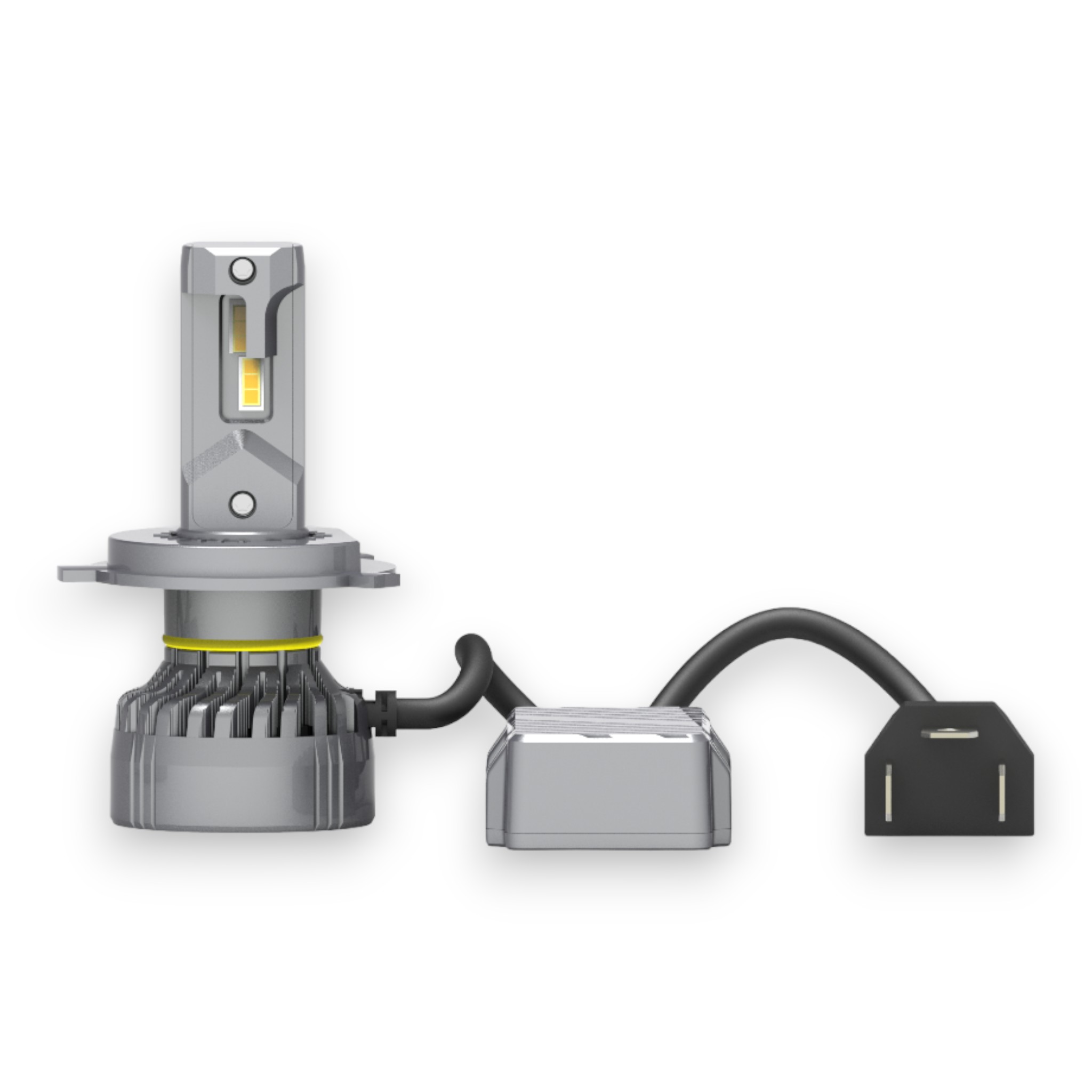

Verify your vehicle uses the H4 bulb socket before installation. Load resistors or decoder harnesses may be required for some vehicles to prevent flickering or dash warnings.
Application summary
| Year | Make / model |
|---|---|
| 1997-2003 | Acura EL |
| 1996-1998 | Acura RL |
| 1995-1998 | Acura TL |
| 2011-2012 | Aprilia Dorsoduro 1200 |
| 2010-2012 | Aprilia Dorsoduro 750 |
| 2013 | Aprilia Dorsoduro 750 ABS |
| 2001-2007 | Aprilia ETV 1000 Caponord |
| 1996-2002 | Aprilia Pegaso 650 |
| 1998-2003 | Aprilia RSV Mille |
| 2000-2003 | Aprilia RSV Mille R |
| 2003 | Aprilia RSV Mille R Haga |
| 2000 | Aprilia RSV Mille SP |
| 2006-2012 | Aprilia RXV 450 |
| 2006-2009 | Aprilia RXV 550 |
| 2012 | Aprilia RXV 550 |
| 2009 | Aprilia SMV 750 Dorsoduro |
| 2006-2009 | Aprilia SXV 450 |
| 2012 | Aprilia SXV 450 |
| 2006-2012 | Aprilia SXV 550 |
| 1996-2000 | Arctic Cat Bearcat 340 |
| 1996-1998 | Arctic Cat Bearcat 440 |
| 1999-2000 | Arctic Cat Bearcat 440 I |
| 1999-2000 | Arctic Cat Bearcat 440 II |
| 1996 | Arctic Cat Bearcat 550 |
| 1996-2002 | Arctic Cat Bearcat Widetrack |
| 1993 | Arctic Cat Cheetah 440 |
| 1994 | Arctic Cat Cheetah 550 |
| 1991-1992 | Arctic Cat Cheetah Touring |
| 1991-1992 | Arctic Cat Cougar |
| 1996-1998 | Arctic Cat Cougar |
| 1991-1992 | Arctic Cat Cougar 2-Up |
| 1996 | Arctic Cat Cougar 2-Up |
| 1998 | Arctic Cat Cougar Deluxe |
| 1996-1998 | Arctic Cat Cougar Mountain Cat |
| 1991 | Arctic Cat El Tigre EXT |
| 1991 | Arctic Cat El Tigre EXT Mountain Cat |
| 1992-1993 | Arctic Cat EXT 550 |
| 1996 | Arctic Cat EXT 580 |
| 1997-1998 | Arctic Cat EXT 580 EFI |
| 1996-1998 | Arctic Cat EXT 580 EFI Deluxe |
| 1997 | Arctic Cat EXT 600 |
| 1998 | Arctic Cat EXT 600 Tour |
| 1998 | Arctic Cat EXT 600 Triple |
| 1996 | Arctic Cat EXT EFI |
| 1993-1996 | Arctic Cat EXT EFI Mountain Cat |
| 1996 | Arctic Cat EXT Powder Special |
| 1991-1992 | Arctic Cat EXT Special |
| 1997 | Arctic Cat Jag |
| 1998 | Arctic Cat Jag 340 |
| 1998-1999 | Arctic Cat Jag 340 Deluxe |
| 1998-1999 | Arctic Cat Jag 440 |
| 1998-1999 | Arctic Cat Jag 440 Deluxe |
| 1997 | Arctic Cat Jag Deluxe |
| 2015 | Arctic Cat M 6000 153 |
| 2014-2015 | Arctic Cat M 6000 Sno Pro 153 |
| 2015 | Arctic Cat M 7000 Sno Pro 153 |
| 2014-2015 | Arctic Cat M 8000 153 |
| 2015 | Arctic Cat M 8000 David McClure SE |
| 2014-2015 | Arctic Cat M 8000 HCR 153 |
| 2014-2015 | Arctic Cat M 8000 Limited 153 |
| 2014-2015 | Arctic Cat M 8000 Limited 162 |
| 2014-2015 | Arctic Cat M 8000 Limited ES 153 |
Specifications
- GTIN
- 00752830165861
- Weight
- 1 lb
- Height
- 2.3 in
- Length
- 5.6 in
- Width
- 5.6 in
- Life cycle
- Available to Order
- AAM brand code
- ARC
- Warehouse brand code
- ARC
- AAIA brand code
- HWXP
Attributes
- Add-On
- 20042
- Amp Draw per Bulb
- 3.3A @ 13V DC per bulb
- Amperage Rating
- 3.0 Amps @ 13V DC
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color Temperature
- 6500K
- IP Rating
- IP 65
- Light Output
- 10,000 lumens (Per Kit)
- Operating Voltage
- 9 - 16V DC
- Power Consumption
- 45W per bulb
- Title
- Tiny Monster 22041 Xtreme series H4 LED Bulb Kit (2 EA)
- Warranty
- Two (2) Year Warranty
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1997-2003 Acura EL; 1996-1998 Acura RL; 1995-1998 Acura TL; 2011-2012 Aprilia Dorsoduro 1200; 2010-2012 Aprilia Dorsoduro 750; 2013 Aprilia Dorsoduro 750 ABS; 2001-2007 Aprilia ETV 1000 Caponord; 1996-2002 Aprilia Pegaso 650; 1998-2003 Aprilia RSV Mille; 2000-2003 Aprilia RSV Mille R; 2003 Aprilia RSV Mille R Haga; 2000 Aprilia RSV Mille SP; 2006-2012 Aprilia RXV 450; 2006-2009 Aprilia RXV 550; 2012 Aprilia RXV 550; 2009 Aprilia SMV 750 Dorsoduro; 2006-2009 Aprilia SXV 450; 2012 Aprilia SXV 450; 2006-2012 Aprilia SXV 550; 1996-2000 Arctic Cat Bearcat 340; 1996-1998 Arctic Cat Bearcat 440; 1999-2000 Arctic Cat Bearcat 440 I; 1999-2000 Arctic Cat Bearcat 440 II; 1996 Arctic Cat Bearcat 550; 1996-2002 Arctic Cat Bearcat Widetrack; 1993 Arctic Cat Cheetah 440; 1994 Arctic Cat Cheetah 550; 1991-1992 Arctic Cat Cheetah Touring; 1991-1992 Arctic Cat Cougar; 1996-1998 Arctic Cat Cougar; 1991-1992 Arctic Cat Cougar 2-Up; 1996 Arctic Cat Cougar 2-Up; 1998 Arctic Cat Cougar Deluxe; 1996-1998 Arctic Cat Cougar Mountain Cat; 1991 Arctic Cat El Tigre EXT; 1991 Arctic Cat El Tigre EXT Mountain Cat; 1992-1993 Arctic Cat EXT 550; 1996 Arctic Cat EXT 580; 1997-1998 Arctic Cat EXT 580 EFI; 1996-1998 Arctic Cat EXT 580 EFI Deluxe; 1997 Arctic Cat EXT 600; 1998 Arctic Cat EXT 600 Tour; 1998 Arctic Cat EXT 600 Triple; 1996 Arctic Cat EXT EFI; 1993-1996 Arctic Cat EXT EFI Mountain Cat; 1996 Arctic Cat EXT Powder Special; 1991-1992 Arctic Cat EXT Special; 1997 Arctic Cat Jag; 1998 Arctic Cat Jag 340; 1998-1999 Arctic Cat Jag 340 Deluxe; 1998-1999 Arctic Cat Jag 440; 1998-1999 Arctic Cat Jag 440 Deluxe; 1997 Arctic Cat Jag Deluxe; 2015 Arctic Cat M 6000 153; 2014-2015 Arctic Cat M 6000 Sno Pro 153; 2015 Arctic Cat M 7000 Sno Pro 153; 2014-2015 Arctic Cat M 8000 153; 2015 Arctic Cat M 8000 David McClure SE; 2014-2015 Arctic Cat M 8000 HCR 153; 2014-2015 Arctic Cat M 8000 Limited 153; 2014-2015 Arctic Cat M 8000 Limited 162; 2014-2015 Arctic Cat M 8000 Limited ES 153; ...
