ARC Lighting / 22011
Part #: 22011
UPC: 752830160965
Loading...
Notify me when this item is in stock.
Description: Xtreme series H1 LED Headlight Bulb Kit, Premium Output, Plug and Play (2 EA); Xtreme series H1 LED bulb kit is our flagship headlight upgrade — maximum lumen output, premium automotive-grade LEDs, advanced cooling, and a precision beam pattern engineered to match factory headlight optics.
Description:
pro mess
Description
Xtreme Bulbs are the absolute brightest bulbs we make, and that's saying something as a LED performance lighting brand. Produces a stunning output that's brighter than a 35W HID system and 5x brighter than a stock halogen bulb. We utilize the very latest chips and technology and keep everything humming with smart thermal management. Bulky fan cooling LED bulbs have become history. The Xtreme series is designed to be compact enough to fit in the tightest spaces. Get the Xtreme series and you won't be in the dark again.
Features & benefits
- Extreme Brightness: If you are looking for the brightest monster of all it's our Xtreme series LED headlight bulb. The Xtreme Series bulbs can produce up to 5X the light output of stock halogen bulbs and are brighter than a 35W HID system.
- Fitment: The Xtreme Series are designed to be as compact as the stock bulb to fit even in the tightest spaces! They are compatible with most reflector and projector housings.
- Efficiency: The patented VacPipe™ vacuum heat pipe cooling technology is the core of thermal management. The vacuum liquid heat pipe pulls produced heat from the circuit board 3X more efficiently than a conventional heat sink design.

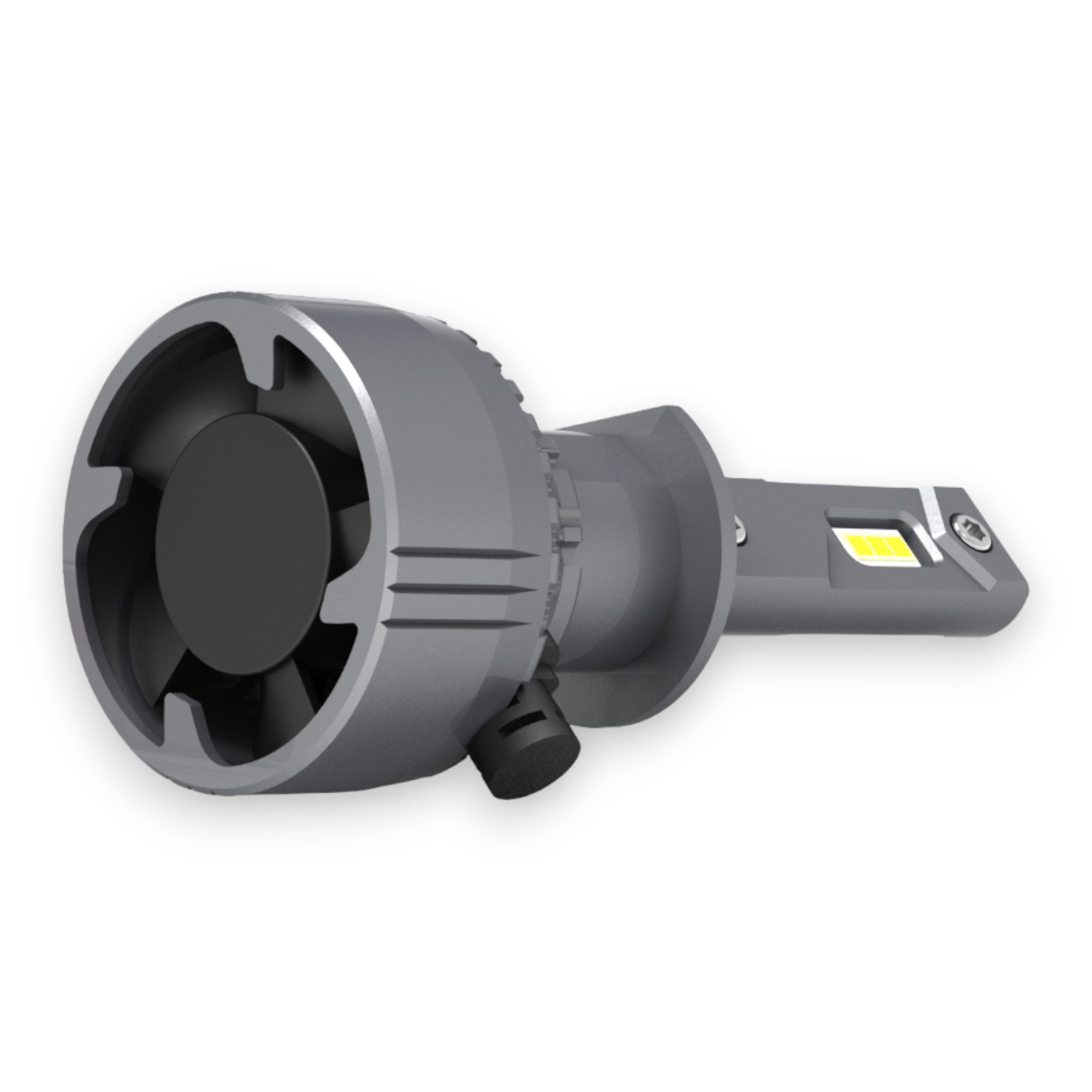

- Reliability: TurboCool™ system is managed by using an enclosed, waterproof, high speed ball bearing turbofan. SmartDrive™ advanced temperature regulation ensures the longevity of the cooling system.
Information

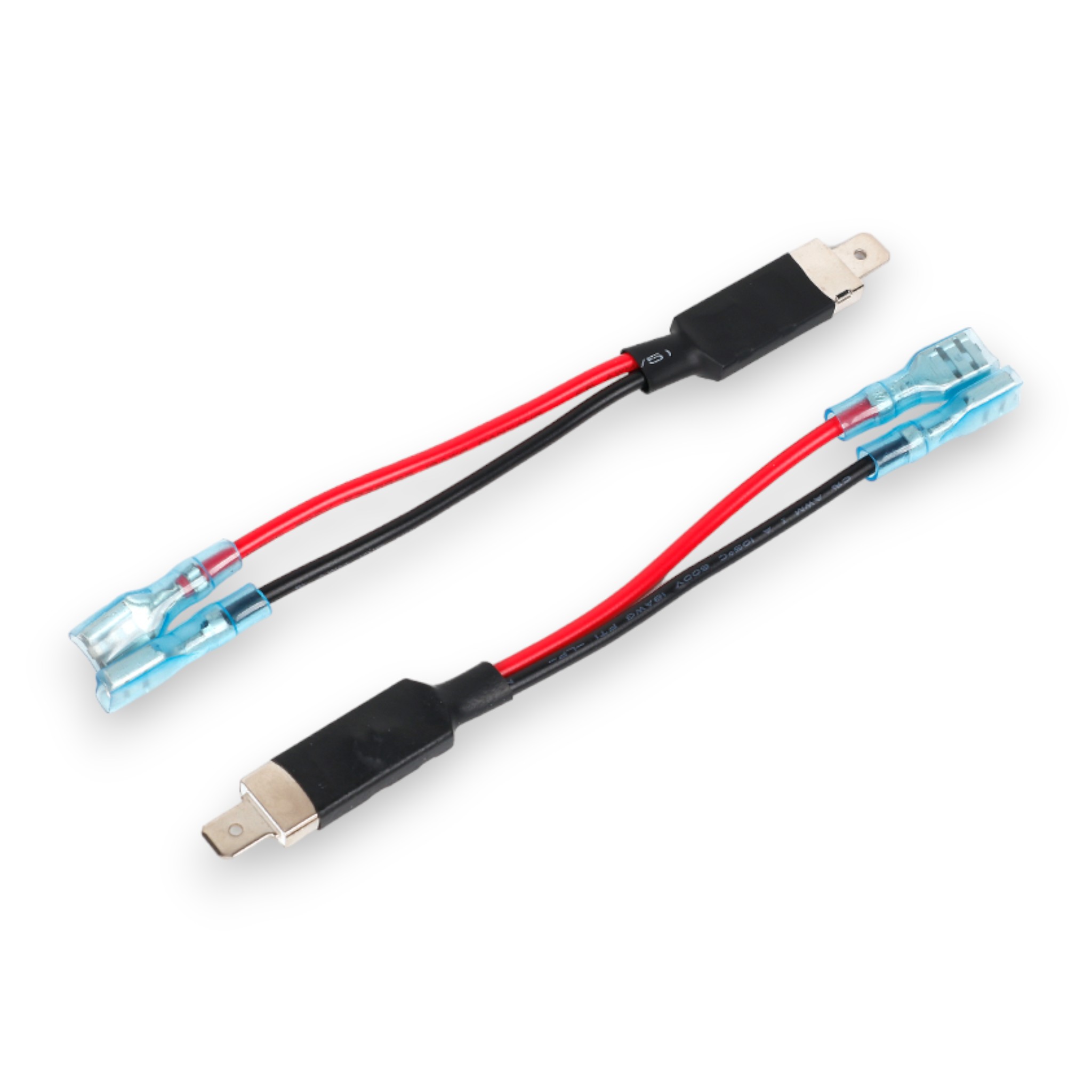

Verify your vehicle uses the H1 bulb socket before installation. Load resistors or decoder harnesses may be required for some vehicles to prevent flickering or dash warnings.
Application summary
| Year | Make / model |
|---|---|
| 1999-2004 | Acura RL |
| 2002-2006 | Acura RSX |
| 2004-2008 | Acura TSX |
| 1996-2002 | Aprilia Pegaso 650 |
| 1997-2002 | Aprilia RS 125 |
| 1996-2002 | Aprilia RS 250 |
| 1996-2004 | Audi A6 |
| 2006-2008 | Audi A6 |
| 1996-2008 | Audi A6 Quattro |
| 1997-2000 | Audi A8 |
| 1997-2003 | Audi A8 Quattro |
| 2001-2005 | Audi Allroad Quattro |
| 2002-2003 | Audi S6 |
| 2007-2008 | Audi S6 |
| 2001-2003 | Audi S8 |
| 2000-2006 | Audi TT |
| 2001-2006 | Audi TT Quattro |
| 1997-1999 | BMW 318is |
| 1995 | BMW 740i |
| 1997-2001 | BMW 740i |
| 1995-2001 | BMW 740iL |
| 1997-2001 | BMW 750iL |
| 2001-2006 | BMW F650CS |
| 2003-2005 | BMW F650CS ABS |
| 1998-2005 | BMW R1100S |
| 1999 | BMW R1100S ABS |
| 2002 | BMW R1100S ABS |
| 2004-2005 | BMW R1100S ABS |
| 2002 | BMW R1100S Boxer Cup |
| 2003-2005 | BMW R1100S Boxer Cup Replica |
| 2000-2001 | BMW R1100SA |
| 1999-2004 | BMW R1150GS |
| 2002-2005 | BMW R1150GS Adventure |
| 2003 | BMW R1150GS Sport |
| 2002-2006 | BMW R1150R Roadster |
| 2004-2005 | BMW R1200C Montauk |
| 2002-2006 | BMW R1200CL |
| 2016 | BMW R1200RT |
| 2005-2013 | BMW X5 |
| 2001 | Cadillac Catera |
| 2004-2006 | Chevrolet Epica |
| 2004-2007 | Chevrolet Optra |
| 1999-2002 | Daewoo Leganza |
| 2003-2006 | Dodge Sprinter 2500 |
| 2003-2006 | Dodge Sprinter 3500 |
| 2000-2002 | Ducati 748 |
| 1997-1999 | Ducati 748 Biposto |
| 2000-2002 | Ducati 748 Monoposto |
| 1997 | Ducati 748 SP |
| 1998-1999 | Ducati 748 SPS |
| 2000-2002 | Ducati 748R |
| 2002 | Ducati 748R Biposto |
| 2000-2002 | Ducati 748S |
| 2000-2002 | Ducati 748S Monoposto |
| 1999-2001 | Ducati 996 Biposto |
| 1999-2001 | Ducati 996 Monoposto |
| 1999-2000 | Ducati 996 SPS |
| 1999 | Ducati 996 SPS Fogarty |
| 2001 | Ducati 996R |
| 2001 | Ducati 996S |
| 2001 | Ducati 996S Monoposto |
| 2002-2003 | Ducati 998 Biposto |
| 2004 | Ducati 998 F Edition Biposto |
| 2004 | Ducati 998 F Edition Monoposto |
| 2004 | Ducati 998 Matrix |
| 2002-2004 | Ducati 998 Monoposto |
| 2002 | Ducati 998R |
| 2002 | Ducati 998S |
| 2002 | Ducati 998S Bayliss |
| 2002 | Ducati 998S Bostrom |
| 2002 | Ducati 998S Monoposto |
| 2011-2013 | Ducati Diavel |
| 2012 | Ducati Diavel AMG |
| 2012-2013 | Ducati Diavel Carbon |
| 2012 | Ducati Diavel Cromo |
| 2013 | Ducati Diavel Dark |
| 2013 | Ducati Diavel Strada |
| 2009-2011 | Ducati Monster 1100 |
| 2012-2013 | Ducati Monster 1100 EVO |
Specifications
- GTIN
- 00752830160965
- Weight
- 1 lb
- Height
- 2.3 in
- Length
- 5.6 in
- Width
- 5.6 in
- Life cycle
- Available to Order
- AAM brand code
- ARC
- Warehouse brand code
- ARC
- AAIA brand code
- HWXP
Attributes
- Add-On
- 20012
- Amp Draw per Bulb
- 3.3A @ 13V DC per bulb
- Amperage Rating
- 3.0 Amps @ 13V DC
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color Temperature
- 6500K
- IP Rating
- IP 65
- Light Output
- 10,000 lumens (Per Kit)
- Operating Voltage
- 9 - 16V DC
- Power Consumption
- 45W per bulb
- Title
- Tiny Monster 22011 Xtreme series H1 LED Bulb Kit (2 EA)
- Warranty
- Two (2) Year Warranty
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1999-2004 Acura RL; 2002-2006 Acura RSX; 2004-2008 Acura TSX; 1996-2002 Aprilia Pegaso 650; 1997-2002 Aprilia RS 125; 1996-2002 Aprilia RS 250; 1996-2004 Audi A6; 2006-2008 Audi A6; 1996-2008 Audi A6 Quattro; 1997-2000 Audi A8; 1997-2003 Audi A8 Quattro; 2001-2005 Audi Allroad Quattro; 2002-2003 Audi S6; 2007-2008 Audi S6; 2001-2003 Audi S8; 2000-2006 Audi TT; 2001-2006 Audi TT Quattro; 1997-1999 BMW 318is; 1995 BMW 740i; 1997-2001 BMW 740i; 1995-2001 BMW 740iL; 1997-2001 BMW 750iL; 2001-2006 BMW F650CS; 2003-2005 BMW F650CS ABS; 1998-2005 BMW R1100S; 1999 BMW R1100S ABS; 2002 BMW R1100S ABS; 2004-2005 BMW R1100S ABS; 2002 BMW R1100S Boxer Cup; 2003-2005 BMW R1100S Boxer Cup Replica; 2000-2001 BMW R1100SA; 1999-2004 BMW R1150GS; 2002-2005 BMW R1150GS Adventure; 2003 BMW R1150GS Sport; 2002-2006 BMW R1150R Roadster; 2004-2005 BMW R1200C Montauk; 2002-2006 BMW R1200CL; 2016 BMW R1200RT; 2005-2013 BMW X5; 2001 Cadillac Catera; 2004-2006 Chevrolet Epica; 2004-2007 Chevrolet Optra; 1999-2002 Daewoo Leganza; 2003-2006 Dodge Sprinter 2500; 2003-2006 Dodge Sprinter 3500; 2000-2002 Ducati 748; 1997-1999 Ducati 748 Biposto; 2000-2002 Ducati 748 Monoposto; 1997 Ducati 748 SP; 1998-1999 Ducati 748 SPS; 2000-2002 Ducati 748R; 2002 Ducati 748R Biposto; 2000-2002 Ducati 748S; 2000-2002 Ducati 748S Monoposto; 1999-2001 Ducati 996 Biposto; 1999-2001 Ducati 996 Monoposto; 1999-2000 Ducati 996 SPS; 1999 Ducati 996 SPS Fogarty; 2001 Ducati 996R; 2001 Ducati 996S; 2001 Ducati 996S Monoposto; 2002-2003 Ducati 998 Biposto; 2004 Ducati 998 F Edition Biposto; 2004 Ducati 998 F Edition Monoposto; 2004 Ducati 998 Matrix; 2002-2004 Ducati 998 Monoposto; 2002 Ducati 998R; 2002 Ducati 998S; 2002 Ducati 998S Bayliss; 2002 Ducati 998S Bostrom; 2002 Ducati 998S Monoposto; 2011-2013 Ducati Diavel; 2012 Ducati Diavel AMG; 2012-2013 Ducati Diavel Carbon; 2012 Ducati Diavel Cromo; 2013 Ducati Diavel Dark; 2013 Ducati Diavel Strada; 2009-2011 Ducati Monster 1100; 2012-2013 Ducati Monster 1100 EVO; ...
