AIRAID / 520-188

Part #: 520-188
UPC: 642046521882

Loading availability... Loading...
Notify me when this item is in stock.

Brand: AIRAID

Description: Performance Air Intake System; AIRAID Air Box Systems are engineered to give your engine larger amounts of cooler air to produce more horsepower and torque. The Cold Air Dam panels act as a heat shield to protect intake air from engine bay heat.

Description:

This is a Test Product Message for AIRAID brand products.

Description

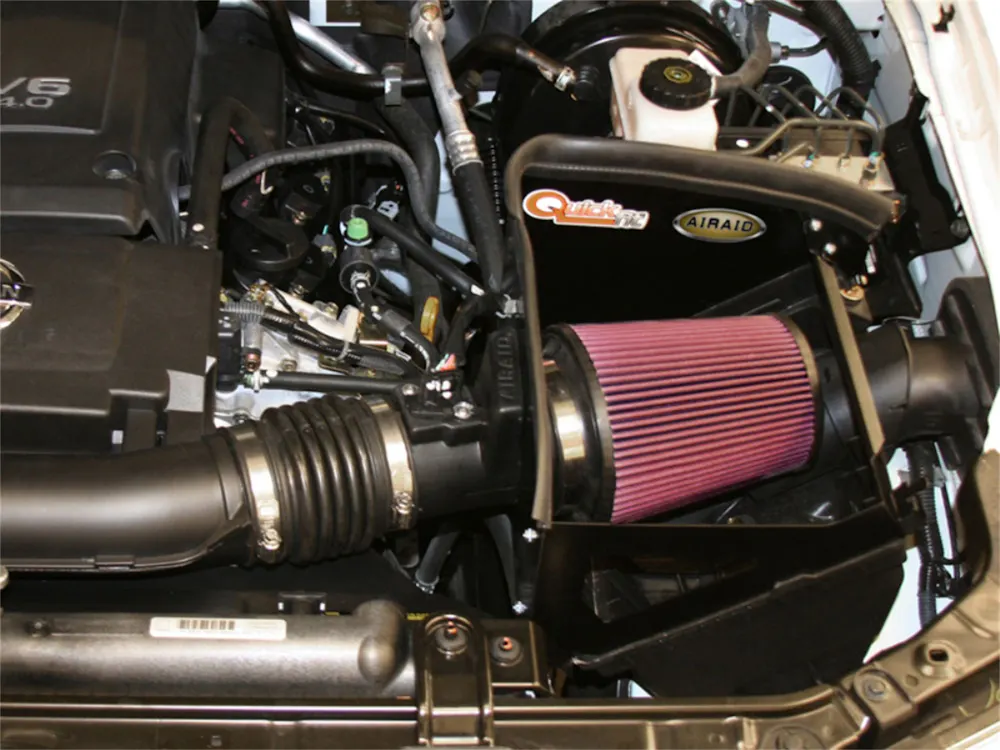

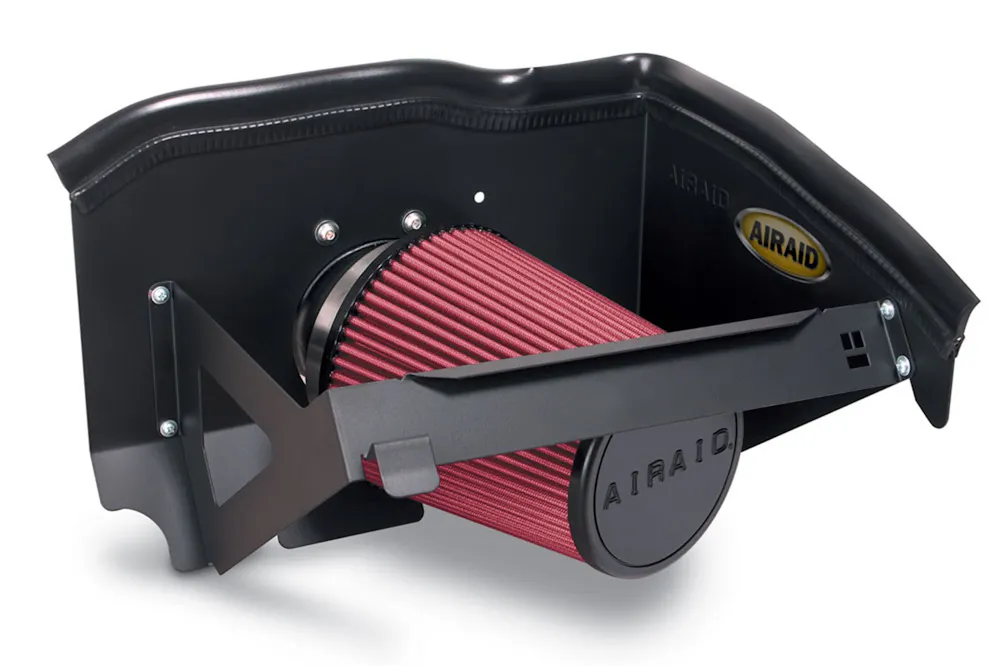

The AIRAID Air Box System is engineered to give your engine larger amounts of cooler air to produce more horsepower and torque. The intake system retains the original location of the air filter but delivers a big boost with the addition of a huge open-element air inlet protected by Cold Air Dam panels that help to provide a steady, free-flowing supply of cooler outside air into your engine. The panels mount in the factory air box location and utilize any factory cold air inlet ducts that are present, while adding additional cold air passages to the filter. The panels also keep the filter isolated from the hot engine compartment air by sealing to the underside of the hood via blade-style weather stripping. This air box system connects to the factory air intake tube. The AIRAID premium air filter is washable and reusable, less restrictive than traditional paper, and assures superior filtration. The AIRAID Air Box System is easy to install with common hand tools. Some AIRAID air box systems are not legal for sale or use in California and other states adopting California emission standards, while others are 50 state legal. View the product's vehicle applications to determine the legal status for each vehicle.

Features & benefits

  • Increases Horsepower And Torque
  • Replaces Stock Air Box/Air Filter/Intake Tubing
  • Cold Air Dam Panels Blocks Out Hot Engine Bay Air
  • Easy To Install Using Commonly Available Tools
  • High Airflow Premium Air Filter
  • Washable And Reusable Air Filter Media
  • Lifetime No Hassle Warranty

Information

Increases Horsepower And Torque; Replaces Stock Air Box; Air Filter And Intake Tubing; Cold Air Dam Panels Blocks Out Hot Engine Bay Air; Easy To Install Using Common Tools; Washable And Reusable Air Filter Media; No Hassle Lifetime Warranty; Lifetime No Hassle Warranty

Application summary

Year Make / model
2005-2019 Nissan Frontier
2005-2012 Nissan Pathfinder
2005-2015 Nissan Xterra
2009-2012 Suzuki Equator

Specifications

GTIN
00642046521882
Weight
7.3 lb
Height
12.5 in
Length
16 in
Width
15.7 in
EO
Legal US
Life cycle
Discontinued
Alt. part number
AIR-520-188
AAM brand code
AIR
Warehouse brand code
ARD
AAIA brand code
BGPQ

Attributes

Air Box Included
Yes
Air Filter Color
Red
Air Filter Element Washable
Yes
Air Filter Material
Cotton Gauze & Non-woven Synthetic
Air Filter Outlet Shape
Round
Air Filter Washable
Yes
Alternate Part Number
AIR-520-188
CARB EO Number
D-609-18
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Clamp Color
Natural
Clamp Color/Finish
Natural
Clamp Material
Stainless Steel
Clamp Quantity
4
Clamp Style
Worm Gear
Clamps Included
4
Coupler Color
Black
Coupler Color/Finish
Black
Couplers Included
2
Filter Color
Red
Filter Material
Cotton Gauze & Non-woven Synthetic
Intake Pipe Color
Black
Intake Pipe Color / Finish
Black
Intake Pipe Material
High-Density Cross-Linked Polyethylene
Item Weight
7.300 lbs. (3.3 kg)
Mass Air Flow Sensor Adapter Included
Mass Air Flow Sensor Adapter Included When Required
Mass Air Flow Sensor Included
Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included
Yes
Oil Included
Filter Is Pre-Oiled
Package Material
Paperboard
Package Type
Box
Product Box Height
12.500 in. (318mm)
Product Box Length
16.000 in. (406mm)
Product Box Width
15.7 in (399 mm)
Product Style
AIRAID Intake Kit
Replacement Filter
700-458
Street Legal
Yes
Street Legal In All US States
See Application Link Above
TUV Approved (Europe)
No
Title
AIRAID AIR-520-188 Performance Air Intake System
Warranty
No-Hassle Lifetime Limited
Weight
7.3 lb (3.3 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2005-2019 Nissan Frontier; 2005-2012 Nissan Pathfinder; 2005-2015 Nissan Xterra; 2009-2012 Suzuki Equator
Retail View

Equivalent Parts
