Air Lift Performance · 27480
Part #: 27480
UPC: 729199274800
Log in for inventory
Notify me when this item is in stock.
Description: ALP4 ¼” line pressure-based air management system; Air Lift Performance’s ALP4 is a pressure-based air management system with preset ride pressures and real-time monitoring, allowing for fine-tuning of your suspension and a user-friendly design, PN 27480.
Description:
Description

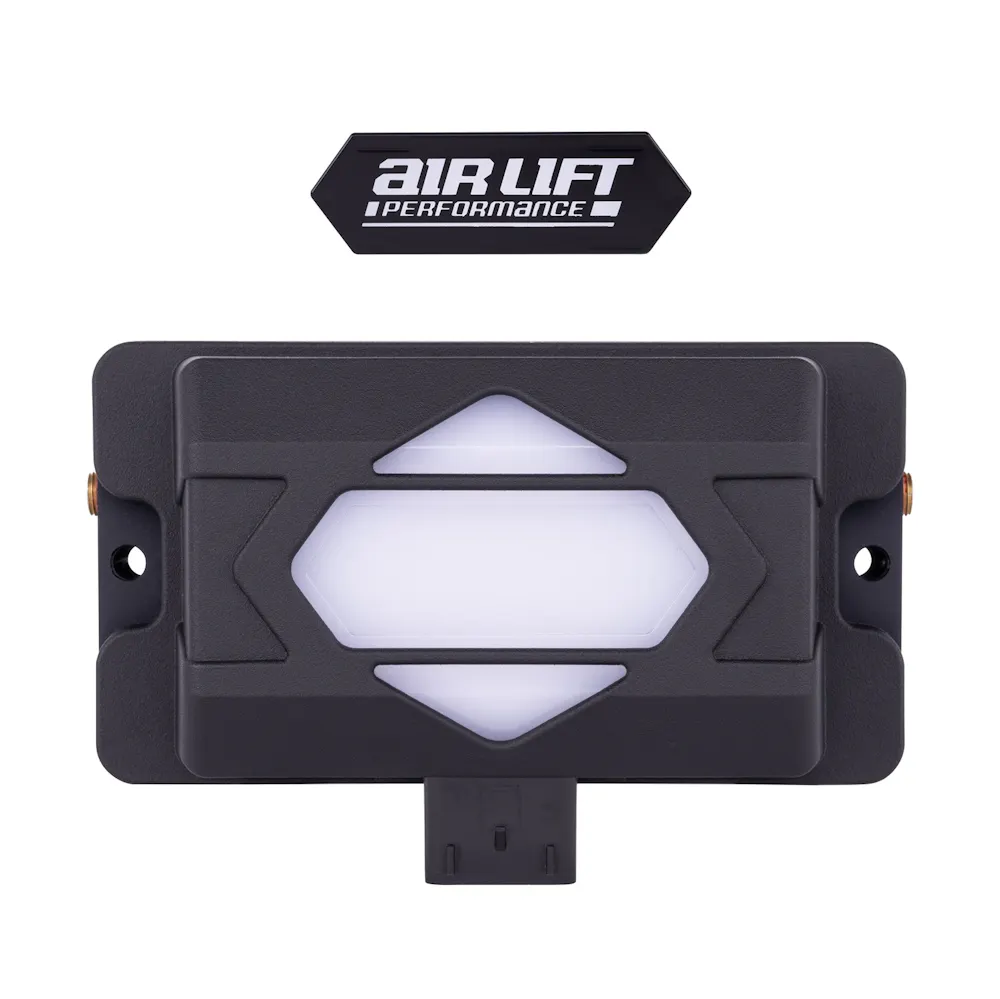

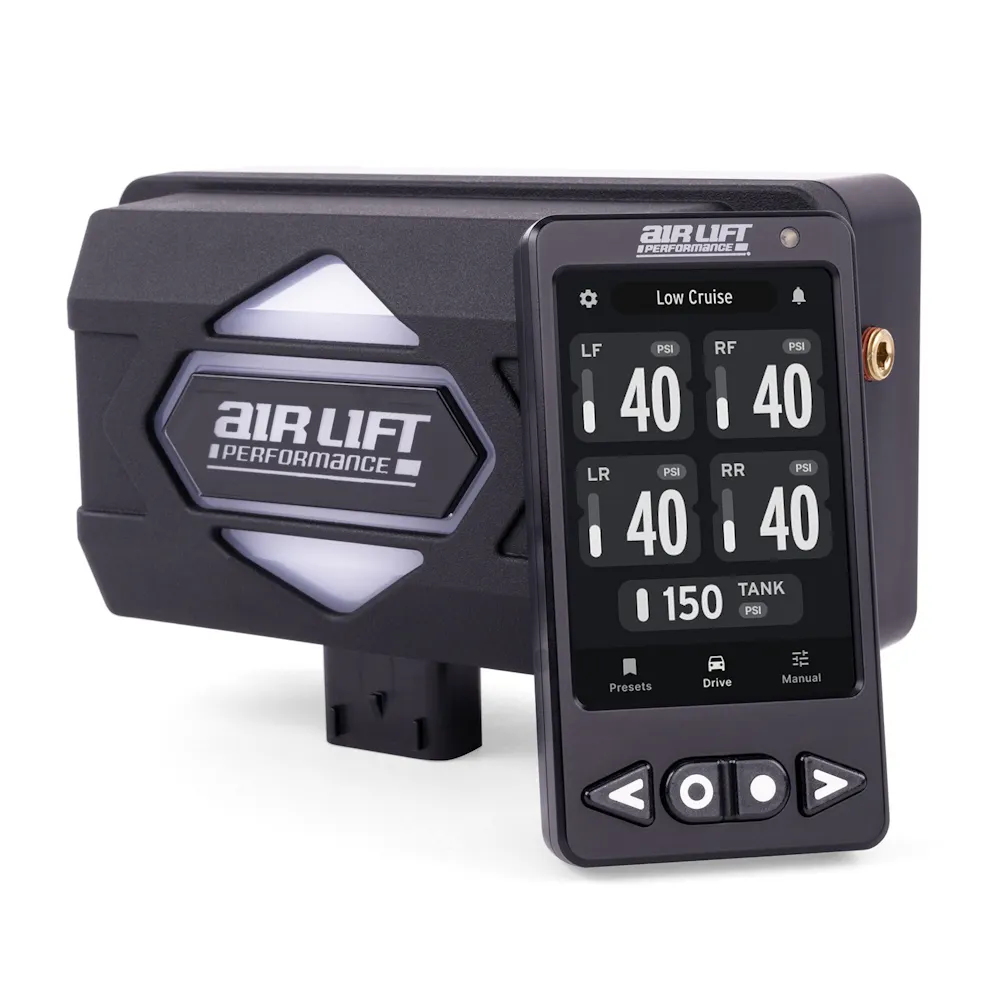

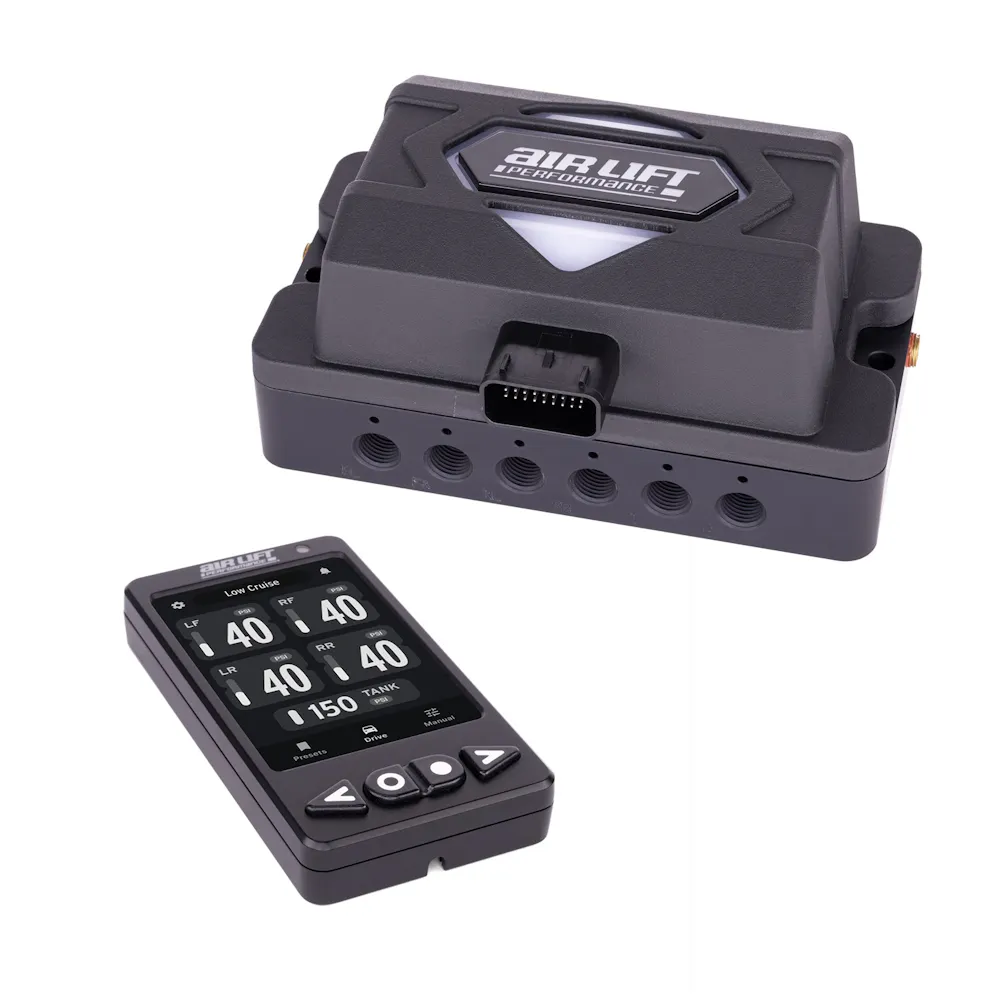

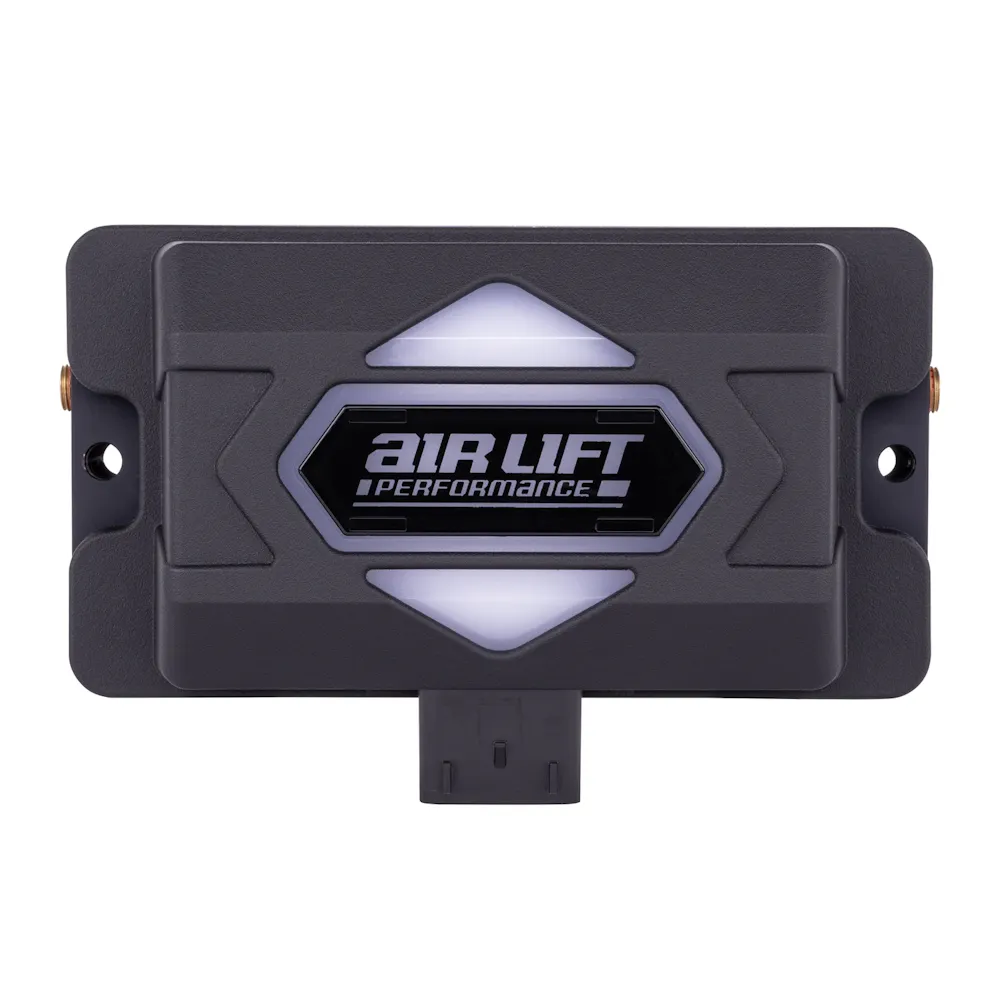

The ALP4 pressure-based air management system redefines what’s possible for air suspension control, combining cutting-edge hardware with smarter, more seamless functionality. This system features a compact, all-in-one manifold, which houses the ECU, solenoids, and pressure sensors, crafted from anodized black billet aluminum for durability and a sleek, show-ready appearance. The manifold’s customizable LED-lit top cover lets builders match their system’s color to their vehicle. ALP4 offers multiple preset ride pressures and full manual control, allowing for instant air-outs and show-ready configurations. Paired with a full-color touchscreen controller framed in anodized aluminum and equipped with four tactile physical buttons, this system offers immediate control for your presets, 4-corner manual control, axle adjustments, or full air-out. With mobile app integration, ALP4 allows you to use and fine-tune your setup from anywhere, ensuring ultimate control. ALP4 can be run as a height-based air management by simply incorporating our Height Upgrade Kit. Designed for plug-and-play installation, the ALP4 harness reduces wiring complexity, requiring only power, ground, and keyed ignition, thereby eliminating the guesswork common in air suspension installations. Plus, built-in diagnostics with user-friendly messaging ensure real-time system feedback, giving drivers the confidence to hit the road or the show floor without surprises.
Features & benefits
- Pressure-based system with an all-in-one manifold with sensors built

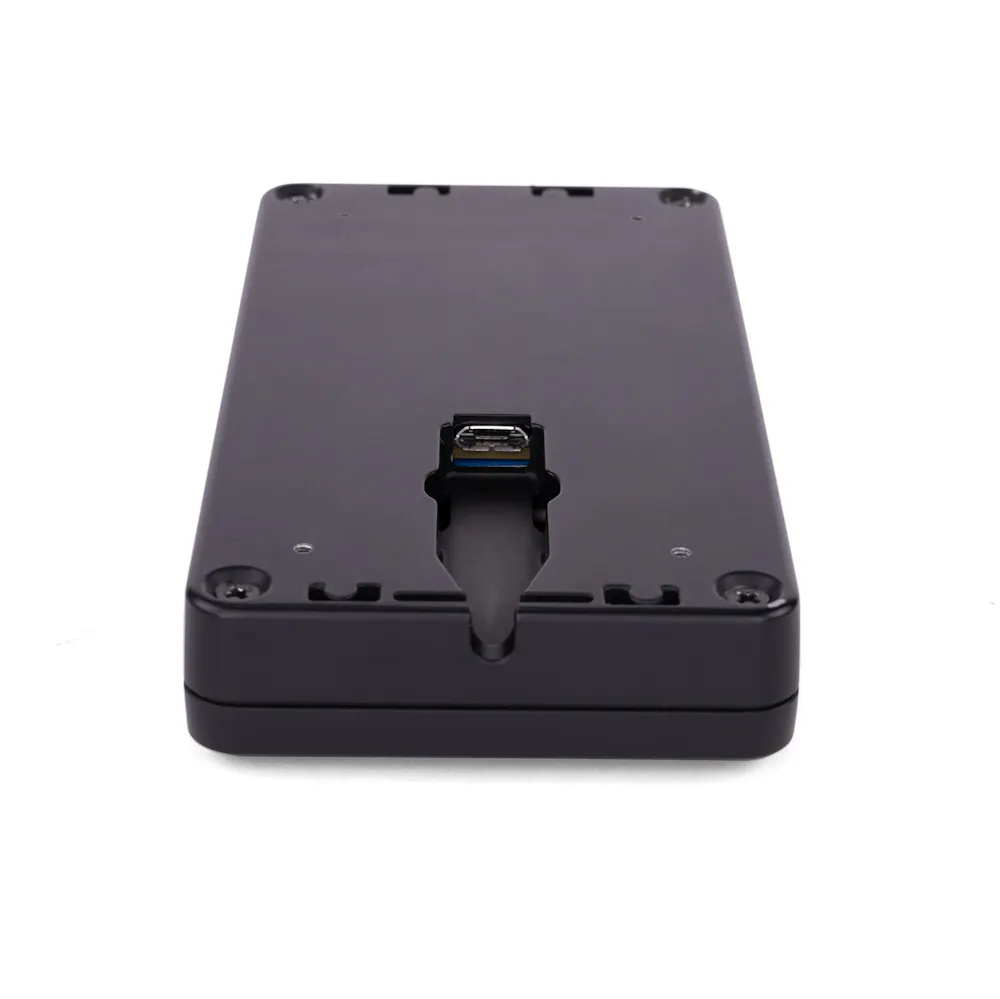

- 3.5-inch full-color touchscreen controller with four physical buttons, and auto-dimming ambient light sensor
- Adjustable LED colors for manifold cover, controller backlight, and buttons

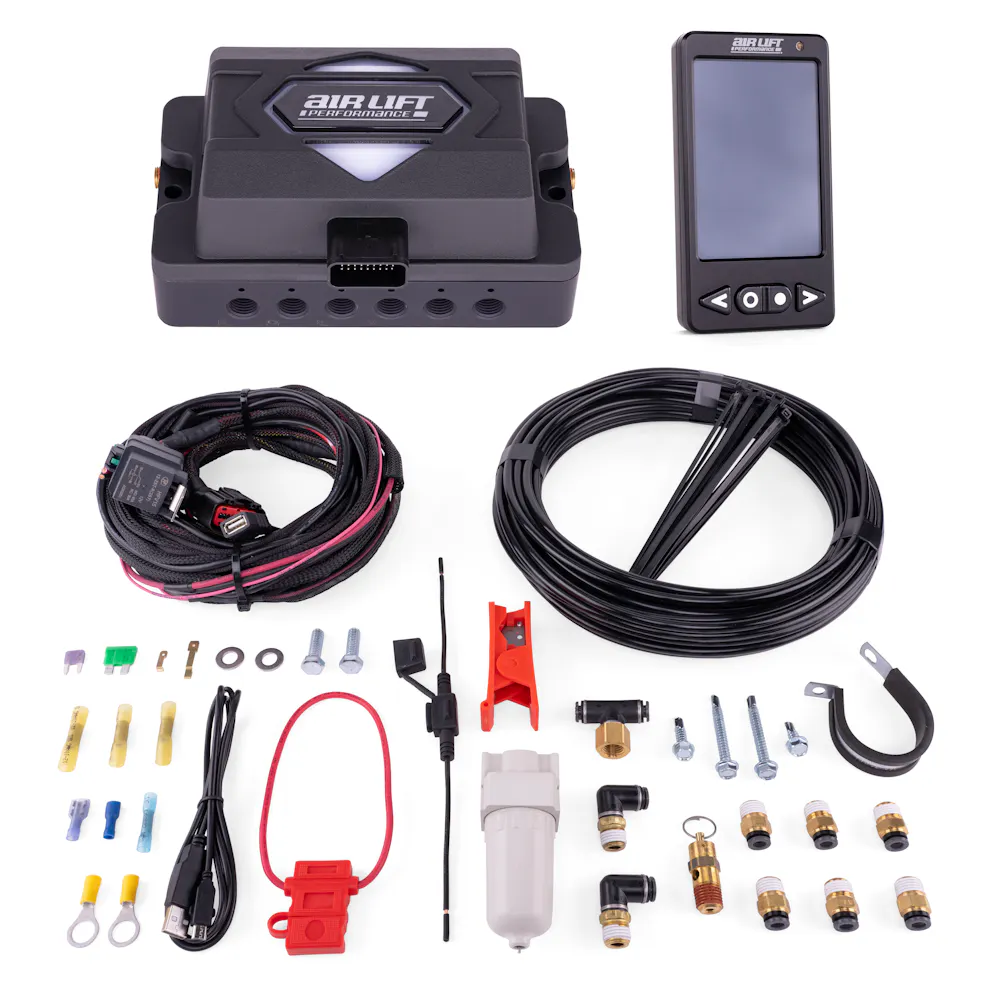

- Plug-and-play harness for easy installation
- Free mobile app with improved connectivity for full system control
- Built-in diagnostics with clear, easy-to-understand system messages
- Compressor performance test and diagnostics to track compressor health
- Adjustable pulse rate for fine-tuning responsiveness
- Valet Mode with customizable lockout settings
- Show Mode which allows full use of the system with the vehicle off
- Standby mode which allows wireless connectivity and use of the system with the vehicle off
- Adjustable preset maintain sensitivity
- Slow Lift/Lower Zone for pulsed movement near minimum ride height to manage ground contact smoothly
- ¼” FNPT manifold ports
- Improved ride adjustment algorithms with learning and road filtering
- Upgradeable to a height-based system by incorporating our Height Upgrade Kit
Specifications
- GTIN
- 00729199274800
- Weight
- 13 lb
- Height
- 12.75 in
- Length
- 13 in
- Width
- 10.5 in
- Life cycle
- Available to Order
- AAM brand code
- ALP
- Warehouse brand code
- ALP
- AAIA brand code
- CFTB
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Maximum Pressure
- 200
- Mounting Hardware Included
- Yes
- Universal Or Specific Fit
- Universal
Fitment status
This product is universal and will fit your application.
