AEM Induction Systems / 22-547B

Part #: 22-547B
UPC: 840879006754

Loading availability... Loading...

Notify me when this item is in stock.

Brand: AEM Induction Systems Series: Short Ram Intake Systems

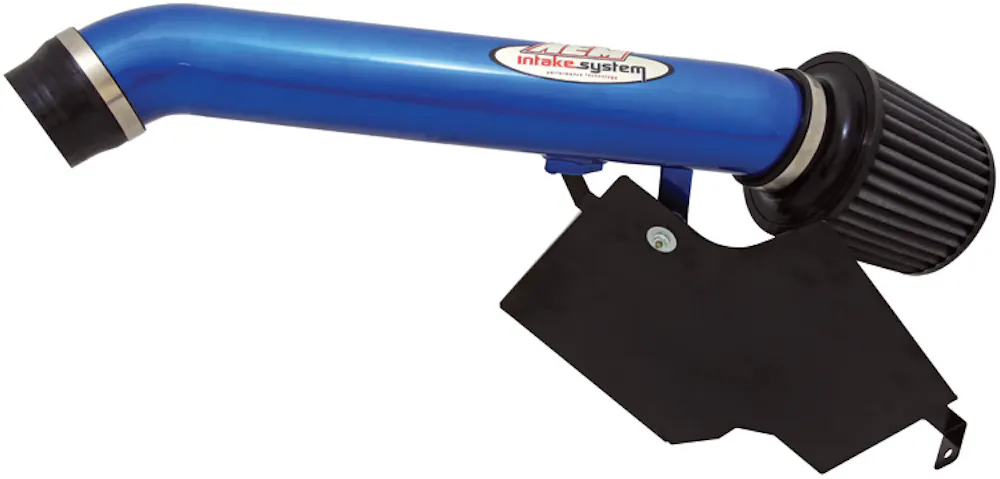

Description: AEM Short Ram Intake System; AEM's Performance Short Ram Air Intake System gives you more power and acceleration by replacing the restrictive factory air filter and air intake assembly. The intake tube has an attractive yet durable powder-coated finish.

This is a Test Product Message for the Air Intakes Category!

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

The AEM 22-547B Performance Short Ram Air Intake System has been engineered to be an affordable and easy way to boost the horsepower and torque of your engine. The restrictive factory air filter and air intake housing are replaced with this intake system, allowing air to enter the system through an oversized AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The sound your engine makes when accelerating is also modified to a fuller, more aggressive resonance allowing you to hear and feel the horsepower upgrade. The air filter is protected by a heat shield which is designed to protect the filter from hot engine air in order to preserve horsepower gains. The intake tubing is constructed from mandrel-bent aluminum featuring a durable blue powder coated finish. This air intake system was developed to accommodate the engine's factory emissions control devices including the mass air flow sensor and breather hose. The tapered cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). The air intake system is easy to install with commonly available tools.

Features & benefits

Precision-tuned and dyno-validated to enhance throttle response, sharpen acceleration, and improve overall engine efficiency, helping maximize horsepower and drivability.
Creates a deeper, more aggressive induction tone that highlights the intake system’s improved airflow.
Features low-restriction intake tubing that increases air velocity and high-volume airflow for maximum performance gains.
Equipped with a long-life, high-capacity air filter capable of up to 100,000 miles before servicing (depending on driving conditions), reducing maintenance while maintaining strong, clean airflow.
Utilizes washable, reusable, oil-free synthetic filter media that preserves airflow efficiency, traps harmful contaminants, and provides long-term value over disposable filters.

Information

Associated products: AEM-1-4000 Air Filter Wrap, AEM-21-2110DK DryFlow Air Filter, AEM-1-1000 Air Filter Cleaner

Application summary

Year	Make / model
2003-2006	Nissan 350Z

Specifications

GTIN: 00840879006754
Weight: 8.5 lb
Height: 14.94 in
Length: 22.2 in
Width: 14.5 in
EO: Legal US
Life cycle: Available to Order
Alt. part number: AEM-22-547B
AAM brand code: AEK
Warehouse brand code: AEK
AAIA brand code: DSHD

Attributes

AAM Standard Pack: 1
Air Box Included: No
Air Filter Color: Red
Air Filter Element Washable: Yes
Air Filter Height: 5.25 in (133 mm)
Air Filter Large End Diameter: 6 in (152 mm)
Air Filter Material: Non-woven Synthetic
Air Filter Oulet Length: 3.250 in. (83mm)
Air Filter Oulet Width: 3.250 in. (83mm)
Air Filter Outlet Length: 3.25 in (83 mm)
Air Filter Outlet Shape: Round
Air Filter Outlet Width: 3.25 in (83 mm)
Air Filter Washable: Yes
Alternate Part Number: AEM-22-547B
CARB EO Number: D-670-15
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Clamp Color: Natural
Clamp Color/Finish: Natural
Clamp Material: Steel
Clamp Quantity: 3
Clamp Style: Regular
Clamps Included: 3
Color: Blue
Coupler Color: Not Applicable
Coupler Color/Finish: Not Applicable
Couplers Included: None
Filter Color: Red
Filter Material: Non-woven Synthetic
Intake Pipe Color: Blue
Intake Pipe Color / Finish: Blue
Intake Pipe Inlet Length: 32 in (813 mm)
Intake Pipe Inlet Shape: Round
Intake Pipe Inlet Width: 3.25 in (83 mm)
Intake Pipe Material: Aluminum
Intake Pipe Outlet Length: 32 in (813 mm)
Intake Pipe Outlet Shape: Round
Intake Pipe Outlet Width: 3.25 in (83 mm)
Intake Pipe Ports: All intake tube ports needed for the specified applications are included
Item Weight: 8.500 lbs. (3.9 kg)
Mass Air Flow Sensor Adapter Included: Yes
Mass Air Flow Sensor Included: Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included: Yes
Oil Included: No Filter Oil Required
Package Material: Paperboard
Package Type: Box
Product Box Height: 14.940 in. (379mm)
Product Box Length: 22.200 in. (564mm)
Product Box Width: 14.500 in. (368mm)
Product Style: AEM Short Ram Intake System
Replacement Filter: 21-2110DK
Street Legal: Yes
Street Legal In All US States: Legal for use in all 50 states.
System Type: Cold Air Induction
TUV Approved (Europe): No
Title: AEM AEM-22-547B AEM Short Ram Intake System
Warranty: Limited Lifetime
Weight: 8.5 lb (3.9 kg)
