AEM Induction Systems · 22-506B

View More

Part #: 22-506B
UPC: 840879002633

Loading availability... Loading...

Notify me when this item is in stock.

Brand: AEM Induction Systems Series: Short Ram Intake Systems

This is a Test Product Message for the Air Intakes Category!

Description: AEM Short Ram Intake System; AEM's Performance Short Ram Air Intake System gives you more power and acceleration by replacing the restrictive factory air filter and air intake assembly. The intake tube has an attractive yet durable powder-coated finish.

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

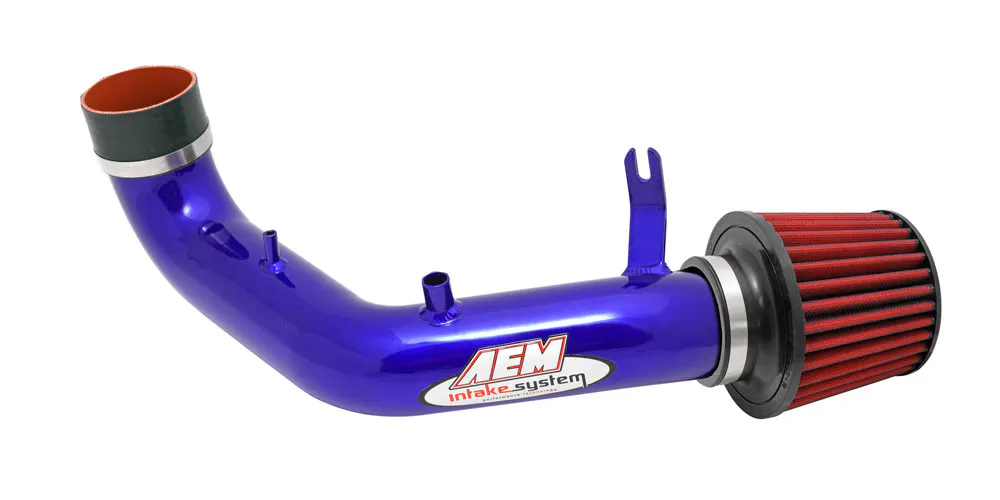

The AEM 22-506B Performance Short Ram Air Intake System has been engineered to be an affordable and easy way to boost the horsepower and torque of your engine. The restrictive factory air filter and air intake housing are replaced with this AEM air intake system which was designed, tuned and dyno-tested to fit specific Acura RSX Type-S models. Air enters the system through an oversized AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The sound your engine makes when accelerating is also modified to a fuller, more aggressive resonance allowing you to hear and feel the horsepower upgrade. The intake tubing is constructed from mandrel-bent aluminum featuring a durable blue powder coated finish. This air intake system was developed to accommodate the engine's factory emissions control devices including the intake air temperature sensor, intake air bypass thermal valve vacuum hose and crankcase breather tube. The tapered cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). The air intake system is easy to install with commonly available tools.

Features & benefits

Precision-tuned and dyno-validated to enhance throttle response, sharpen acceleration, and improve overall engine efficiency, helping maximize horsepower and drivability.
Creates a deeper, more aggressive induction tone that highlights the intake system’s improved airflow.
Features low-restriction intake tubing that increases air velocity and high-volume airflow for maximum performance gains.
Equipped with a long-life, high-capacity air filter capable of up to 100,000 miles before servicing (depending on driving conditions), reducing maintenance while maintaining strong, clean airflow.
Utilizes washable, reusable, oil-free synthetic filter media that preserves airflow efficiency, traps harmful contaminants, and provides long-term value over disposable filters.

Information

Associated products: AEM-1-4000 Air Filter Wrap, AEM-21-203DK AEM DryFlow Air Filter, AEM-1-1000 Air Filter Cleaner

Application summary

Year	Make / model
2002-2006	Acura RSX

Specifications

GTIN: 00840879002633
Weight: 6 lb
Height: 8.5 in
Length: 18.25 in
Width: 14.5 in
EO: Legal US
Life cycle: Available to Order
Alt. part number: AEM-22-506B
AAM brand code: AEK
Warehouse brand code: AEK
AAIA brand code: DSHD

Attributes

AAM Standard Pack: 1
Air Box Included: No
Air Filter Color: Red
Air Filter Element Washable: Yes
Air Filter Height: 5.125 in (130 mm)
Air Filter Large End Diameter: 6 in (152 mm)
Air Filter Material: Non-woven Synthetic
Air Filter Oulet Length: 3.000 in. (76mm)
Air Filter Oulet Width: 3.000 in. (76mm)
Air Filter Outlet Length: 3 in (76 mm)
Air Filter Outlet Shape: Round
Air Filter Outlet Width: 3 in (76 mm)
Air Filter Washable: Yes
Alternate Part Number: AEM-22-506B
CARB EO Number: D-670-15
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Clamp Color: Natural
Clamp Color/Finish: Natural
Clamp Material: Steel
Clamp Quantity: 3
Clamp Style: Regular
Clamps Included: 3
Color: Blue
Coupler Color: Not Applicable
Coupler Color/Finish: Not Applicable
Couplers Included: None
Filter Color: Red
Filter Material: Non-woven Synthetic
Intake Pipe Color: Blue
Intake Pipe Color / Finish: Blue
Intake Pipe Inlet Length: 35 in (889 mm)
Intake Pipe Inlet Shape: Round
Intake Pipe Inlet Width: 3 in (76 mm)
Intake Pipe Material: Aluminum
Intake Pipe Outlet Length: 35 in (889 mm)
Intake Pipe Outlet Shape: Round
Intake Pipe Outlet Width: 3 in (76 mm)
Intake Pipe Ports: All intake tube ports needed for the specified applications are included
Item Weight: 6.000 lbs. (2.7 kg)
Mass Air Flow Sensor Adapter Included: No
Mass Air Flow Sensor Included: Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included: Yes
Oil Included: No Filter Oil Required
Package Material: Paperboard
Package Type: Box
Product Box Height: 8.500 in. (216mm)
Product Box Length: 18.250 in. (464mm)
Product Box Width: 14.500 in. (368mm)
Product Style: AEM Short Ram Intake System
Replacement Filter: 21-203DK
Street Legal: Yes
Street Legal In All US States: Legal for use in all 50 states.
System Type: Cold Air Induction
TUV Approved (Europe): No
Title: AEM AEM-22-506B AEM Short Ram Intake System
Warranty: Limited Lifetime
Weight: 6 lb (2.7 kg)
