AEM Induction Systems / 21-9227DS
Part #: 21-9227DS
UPC: 024844322432
Loading...
Notify me when this item is in stock.
Description: AEM Brute Force HD Intake System; AEM's Performance Cold Air Intake Systems are designed, tuned and dyno-tested to give your engine more power and acceleration by replacing the restrictive factory air filter, air intake tubing and air box assembly.
Description:
This is a Test Product Message for the Air Intakes Category!
Description

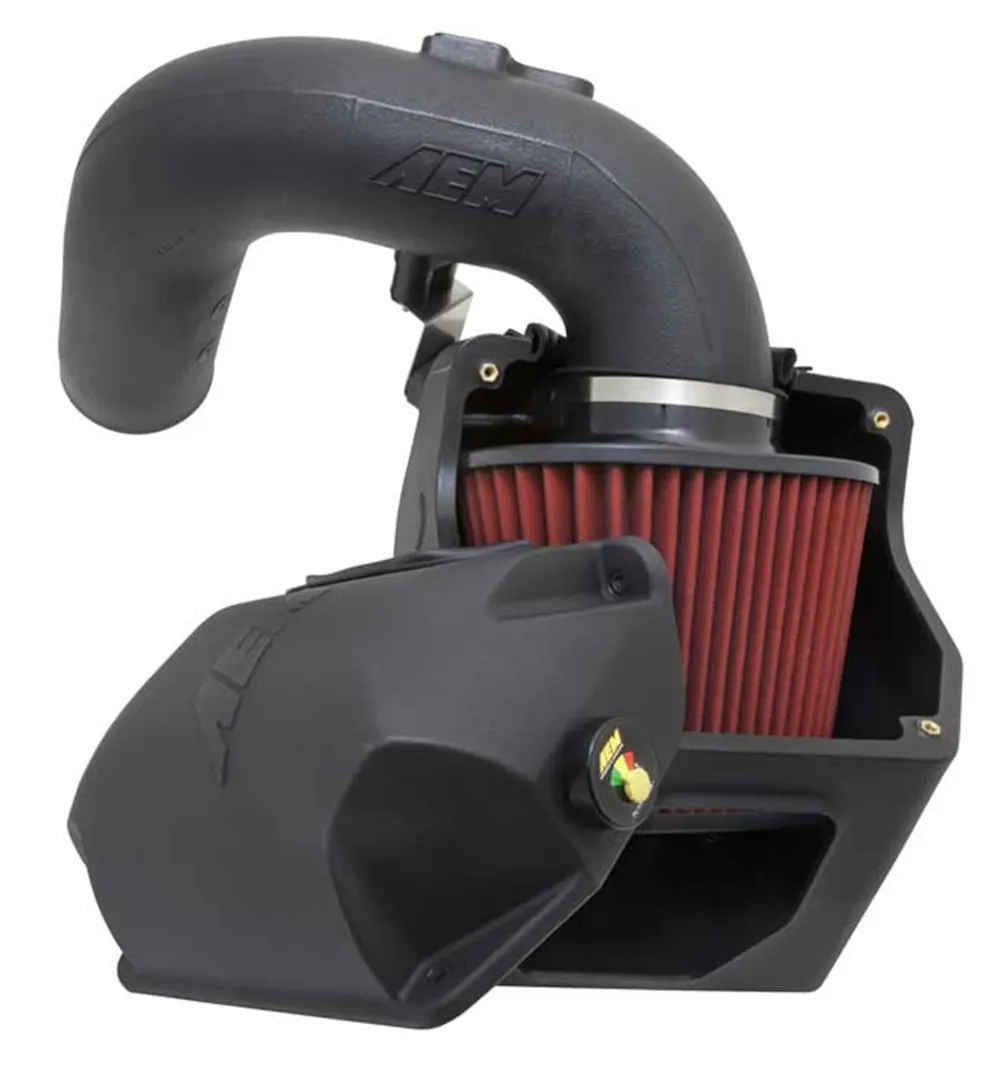

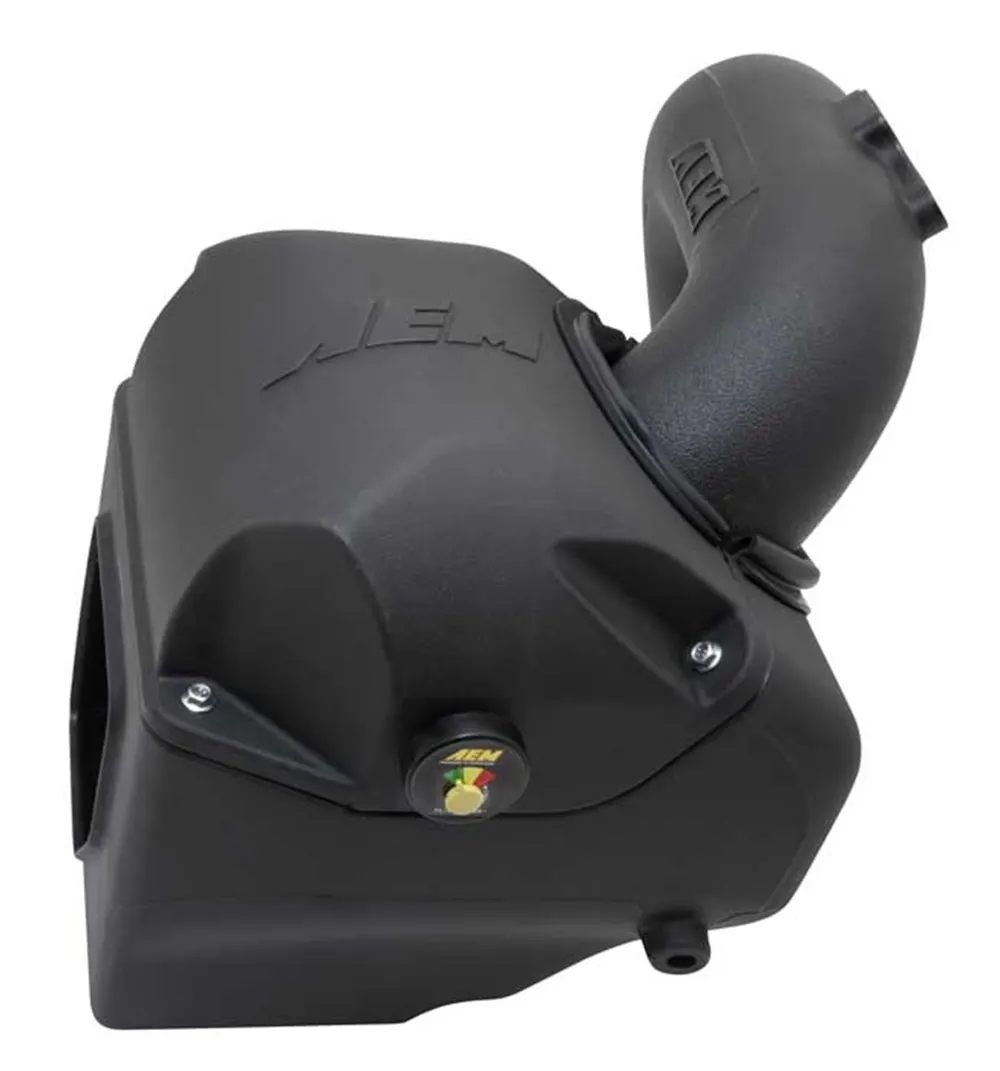

The AEM 21-9227DS Brute Force Air Intake System produces horsepower and torque gains by replacing the vehicle's restrictive factory air filter and air intake housing. This air intake system was designed, tuned and dyno-tested to fit specific Ram 2500/3500 and Dodge Ram 2500/3500 Pickup models. Air enters the system through an extra-large AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The air filter is located in a replacement AEM embossed air box (with an AEM filter minder) which is designed to reduce intake air temperature and increase horsepower. The intake tubing is an aerodynamically engineered and highly durable polyethylene tube. This air intake system was developed to accommodate the engine's factory emissions control devices including the mass air flow sensor and IAT sensor. The oval cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). The air intake system is backed by AEM's Lifetime Limited Warranty. Some AEM air intakes are not legal for sale or use in California and other states adopting California emission standards, while others are 50 state legal. View the 21-9227DS vehicle applications to determine the legal status for each vehicle.
Features & benefits
- Increased Horsepower
- Tuned And DynoTested To Improve Acceleration And Engine Sound
- Low Restriction Aluminum Tubing
- Easy To Install Using Commonly Available Tools
- Air Filter Lasts Up To 100 000 Miles BF Cleaning Is Required
- Washable And Reusable Oil Free Filter Media
- AEM Lifetime Limited Warranty
- Limited Lifetime Warranty
Information
Increased Horsepower; Tuned And DynoTested To Improve Acceleration And Engine Sound; Free Flowing High Density Tube; Easy To Install Using Commonly Available Tools; Air Filter Lasts Up To 100 000 Miles BF Cleaning Is Required; Washable And Reusable Oil Free Filter Media; Will Not Void Vehicles Warranty; Limited Lifetime Warranty
Application summary
| Year | Make / model |
|---|---|
| 2010 | Dodge Ram 2500 |
| 2010 | Dodge Ram 3500 |
| 2011-2012 | Ram 2500 |
| 2011-2012 | Ram 3500 |
Specifications
- GTIN
- 00024844322432
- Weight
- 13.3 lb
- Height
- 16.75 in
- Length
- 24.38 in
- Width
- 18.38 in
- EO
- Legal US
- Life cycle
- Discontinued
- Alt. part number
- AEM-21-9227DS
- AAM brand code
- AEK
- Warehouse brand code
- AEK
- AAIA brand code
- DSHD
Attributes
- AAM Standard Pack
- 1
- Air Box Included
- Yes
- Air Filter Color
- Red
- Air Filter Element Washable
- Yes
- Air Filter Height
- 8 in (203 mm)
- Air Filter Material
- Non-woven Synthetic
- Air Filter Oulet Length
- 1.500 in. (38mm)
- Air Filter Oulet Width
- 4.375 in. (111mm)
- Air Filter Outlet Length
- 1.5 in (38 mm)
- Air Filter Outlet Shape
- Round
- Air Filter Outlet Width
- 4.375 in (111 mm)
- Air Filter Washable
- Yes
- Alternate Part Number
- AEM-21-9227DS
- CARB EO Number
- D-670-14
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Clamp Color
- Natural
- Clamp Color/Finish
- Natural
- Clamp Material
- Stainless Steel
- Clamp Quantity
- 2
- Clamp Style
- Regular
- Clamps Included
- 2
- Coupler Color
- Not Applicable
- Coupler Color/Finish
- Not Applicable
- Couplers Included
- None
- Estimated Horse Power Gain
- 8.5 HP @ 2100 RPM
- Estimated Horsepower Gain
- 8.5 HP @ 2100 RPM
- Filter Color
- Red
- Filter Material
- Non-woven Synthetic
- Horse Power Increase
- 9 HP
- Intake Pipe Color
- Black
- Intake Pipe Color / Finish
- Black
- Intake Pipe Inlet Shape
- Round
- Intake Pipe Material
- High-Density Cross-Linked Polyethylene
- Intake Pipe Outlet Shape
- Round
- Intake Pipe Ports
- All intake tube ports needed for the specified applications are included
- Item Weight
- 13.300 lbs. (6 kg)
- Mass Air Flow Sensor Adapter Included
- Mass Air Flow Sensor Adapter Included When Required
- Mass Air Flow Sensor Included
- Mass Air Flow Sensor Adapter Included When Required
- Mounting Hardware Included
- Yes
- Oil Included
- No Filter Oil Required
- Package Material
- Paperboard
- Package Type
- Box
- Product Box Height
- 16.750 in. (425mm)
- Product Box Length
- 24.380 in. (619mm)
- Product Box Width
- 18.380 in. (467mm)
- Product Style
- AEM Brute Force HD Intake
- RPM
- 2100
- Replacement Filter
- 21-2288DK
- Street Legal In All US States
- See Application Link Above
- System Type
- Cold Air Induction
- TUV Approved (Europe)
- No
- Title
- AEM AEM-21-9227DS Brute Force HD Intake System
- Warranty
- Limited Lifetime
- Weight
- 13.3 lb (6 kg)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2010 Dodge Ram 2500; 2010 Dodge Ram 3500; 2011-2012 Ram 2500; 2011-2012 Ram 3500
