AEM Induction Systems · 21-744C

View More

Part #: 21-744C
UPC: 024844357373

Loading availability... Loading...

Notify me when this item is in stock.

Brand: AEM Induction Systems Series: Cold Air Induction Systems

This is a Test Product Message for the Air Intakes Category!

Description: AEM's Performance Cold Air Intake Systems are designed, tuned and dyno-tested to give your engine more power and acceleration by replacing the restrictive factory air filter, air intake tubing and air box assembly.

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Description

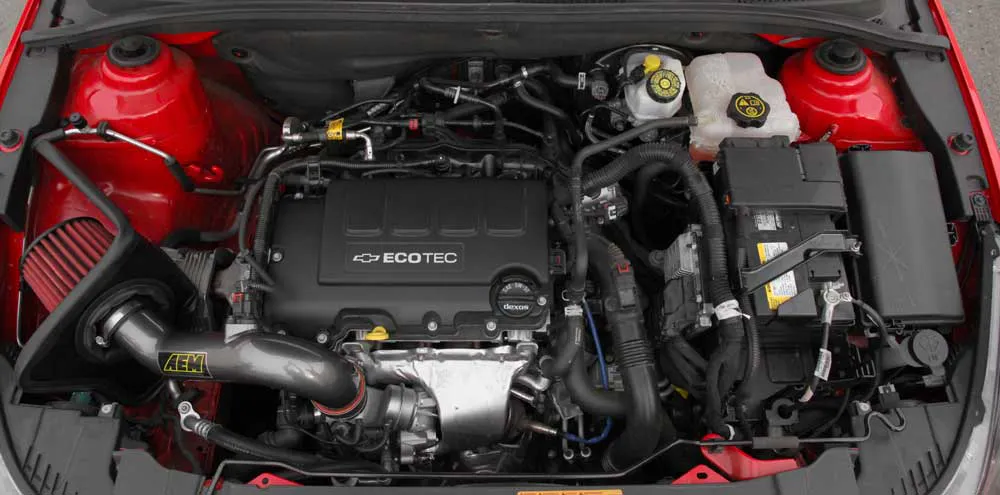

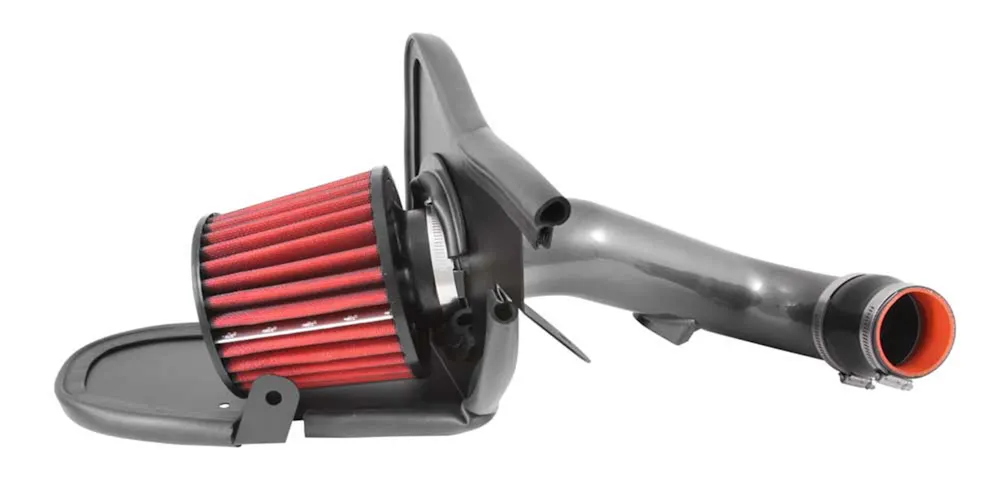

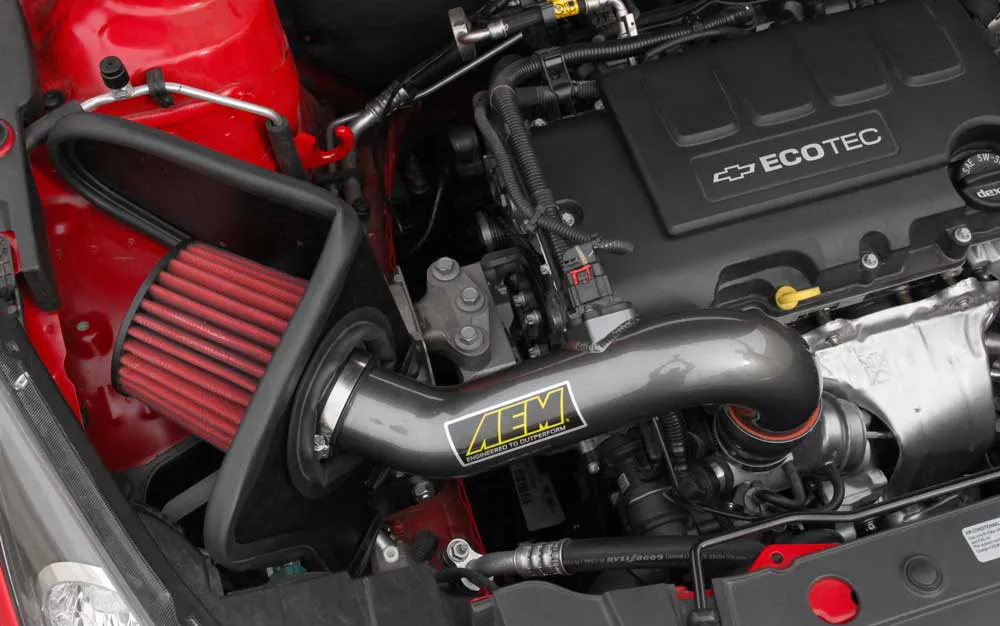

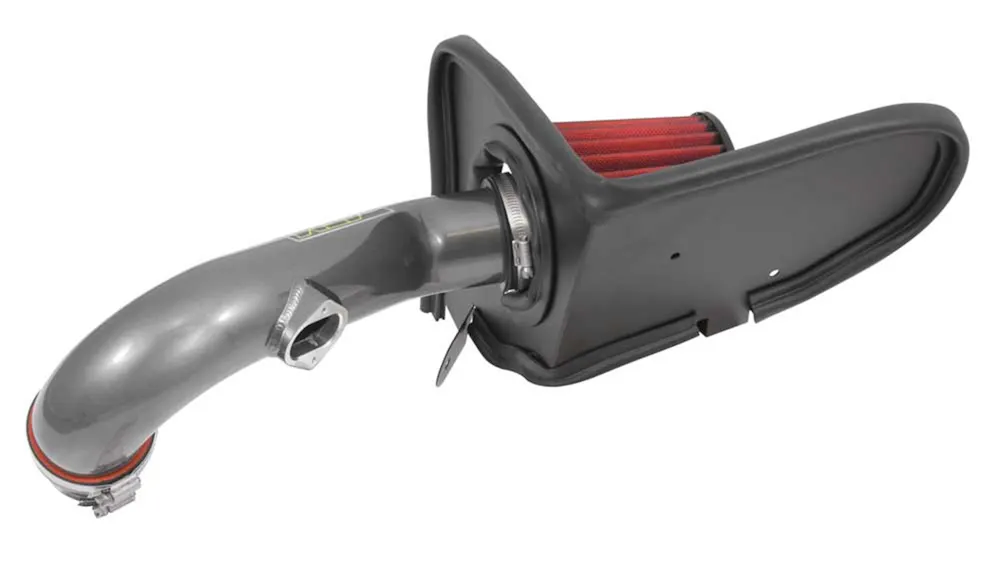

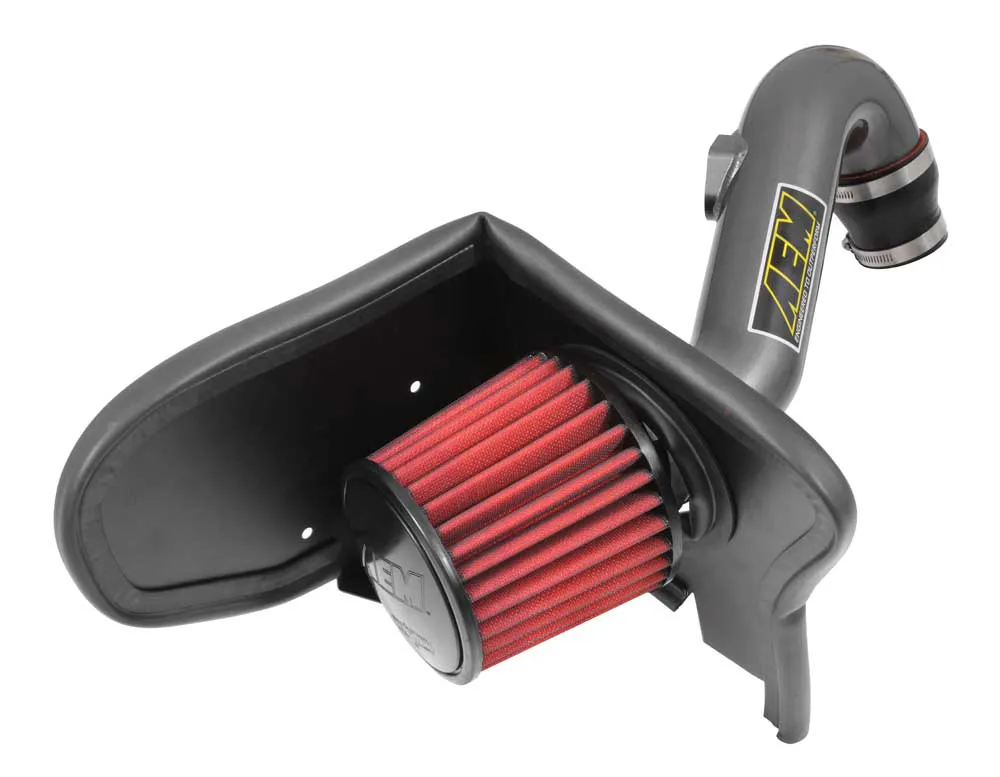

AEM Performance Cold Air Intake Systems produce horsepower and torque gains by replacing your vehicle's restrictive factory air filter and air intake housing. This air intake system was designed, tuned and dyno-tested to fit specific Chevrolet Cruze models. Air enters the system through an oversized AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The air filter is located in the original air box space and is protected by a heat shield which is designed to reduce intake air temperature and increase horsepower. The air intake tubing is constructed from mandrel-bent aluminum featuring a durable gunmetal gray powder coated finish. This air intake system was developed to accommodate the engine's factory emissions control devices including the mass air sensor. The tapered cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). This air intake system is easy to install with commonly available tools.

Features & benefits

Precision-tuned and dyno-validated to enhance throttle response, sharpen acceleration, and improve overall engine efficiency, helping maximize horsepower and drivability.
Creates a deeper, more aggressive induction tone that highlights the intake system’s improved airflow.
Features low-restriction intake tubing that increases air velocity and high-volume airflow for maximum performance gains.
Equipped with a long-life, high-capacity air filter capable of up to 100,000 miles before servicing (depending on driving conditions), reducing maintenance while maintaining strong, clean airflow.
Utilizes washable, reusable, oil-free synthetic filter media that preserves airflow efficiency, traps harmful contaminants, and provides long-term value over disposable filters.

Information

Associated products: AEM-1-4000 Air Filter Wrap, AEM-21-202DK AEM DryFlow Air Filter, AEM-1-1000 Air Filter Cleaner

Application summary

Year	Make / model
2011-2016	Chevrolet Cruze
2016	Chevrolet Cruze Limited
2016	Chevrolet Cruze NG

Specifications

GTIN: 00024844357373
Weight: 8.8 lb
Height: 12.25 in
Length: 20.25 in
Width: 12.25 in
EO: Legal US
Life cycle: Available to Order
Alt. part number: AEM-21-744C
AAM brand code: AEK
Warehouse brand code: AEK
AAIA brand code: DSHD

Attributes

AAM Standard Pack: 1
Air Box Included: No
Air Filter Color: Red
Air Filter Element Washable: Yes
Air Filter Height: 5.25 in (133 mm)
Air Filter Material: Non-woven Synthetic
Air Filter Oulet Length: 1.500 in. (38mm)
Air Filter Oulet Width: 2.750 in. (70mm)
Air Filter Outlet Length: 1.5 in (38 mm)
Air Filter Outlet Shape: Round
Air Filter Outlet Width: 2.75 in (70 mm)
Air Filter Washable: Yes
Alternate Part Number: AEM-21-744C
CARB EO Number: D-670-24
California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Clamp Color: Natural
Clamp Color/Finish: Natural
Clamp Material: Stainless Steel
Clamp Quantity: 3
Clamp Style: Regular
Clamps Included: 3
Coupler Color: Black
Coupler Color/Finish: Black
Couplers Included: 1
Estimated Horse Power Gain: 13 HP @ 3400 RPM
Estimated Horsepower Gain: 13 HP @ 3400 RPM
Filter Color: Red
Filter Material: Non-woven Synthetic
Horse Power Increase: 13 HP
Intake Pipe Color: Gunmetal Gray
Intake Pipe Color / Finish: Gunmetal Gray
Intake Pipe Inlet Length: 16 in (406 mm)
Intake Pipe Inlet Shape: Round
Intake Pipe Inlet Width: 2.75 in (70 mm)
Intake Pipe Material: Aluminum
Intake Pipe Outlet Length: 16 in (406 mm)
Intake Pipe Outlet Shape: Round
Intake Pipe Outlet Width: 2.75 in (70 mm)
Intake Pipe Ports: All intake tube ports needed for the specified applications are included
Item Weight: 8.800 lbs. (4 kg)
Mass Air Flow Sensor Adapter Included: Yes
Mass Air Flow Sensor Included: Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included: Yes
Oil Included: No Filter Oil Required
Package Material: Paperboard
Package Type: Box
Product Box Height: 12.250 in. (311mm)
Product Box Length: 20.250 in. (514mm)
Product Box Width: 12.250 in. (311mm)
Product Style: AEM Cold Air Intake System
RPM: 3400
Replacement Filter: 21-202DK
Street Legal: Yes
Street Legal In All US States: Legal for use in all 50 states.
System Type: Cold Air Induction
TUV Approved (Europe): No
Title: AEM AEM-21-744C Cold Air Intake System
Warranty: Limited Lifetime
Weight: 8.8 lb (4 kg)
