Yukon Gear & Axle · YP C5-GM8.5-KIT
Part #: YP C5-GM8.5-KIT
UPC: 883584323679
Log in for inventory
Notify me when this item is in stock.
Description: Yukon Rear Differential Cover Kit for General Motors 8.6" Rear; 8.6" DIFF COVER KIT 07 & UP GM .
Description:
Description
These Yukon replacement diff covers are a direct bolt-on.
Features & benefits
- Steel cover kit for GM 8.2" and 8.6" rear
- Engineered using state-of-the-art design software
- Units are inspected to ensure precise accuracy and fitment
- Manufactured for reliability and ultimate performance
Information

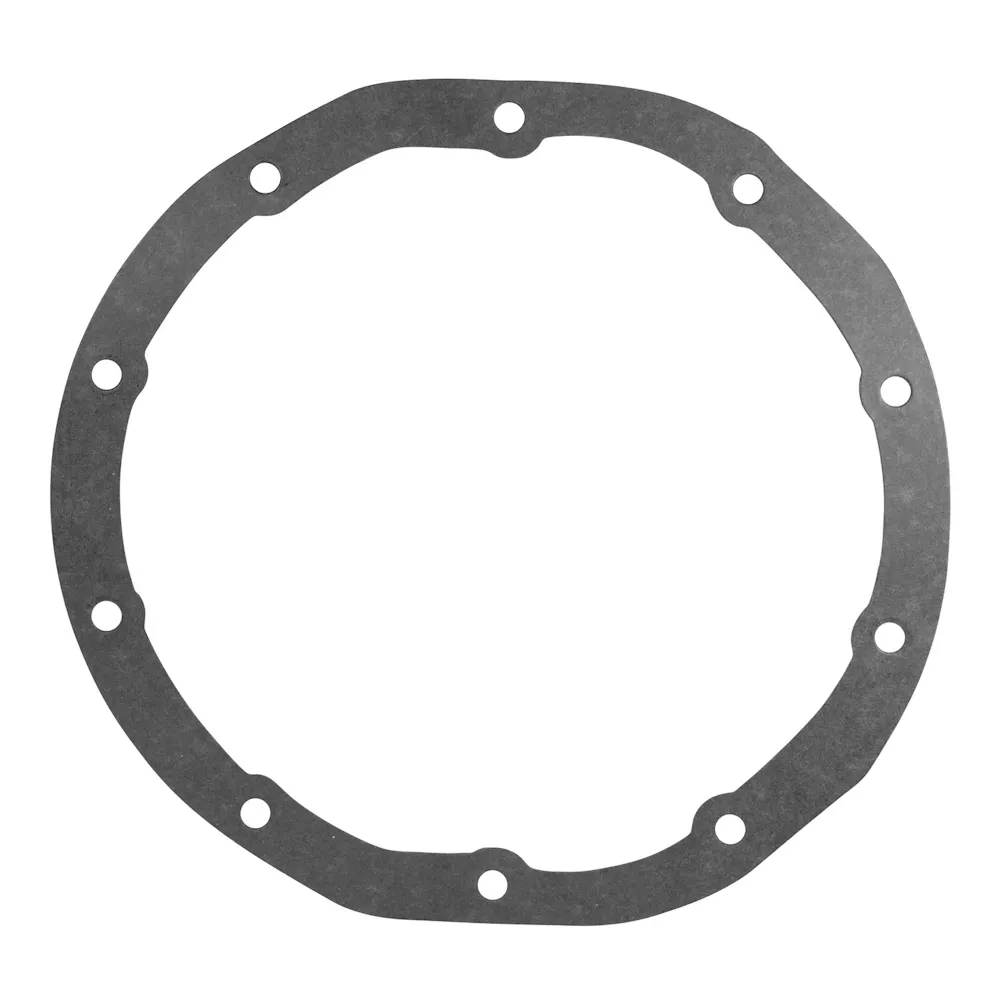

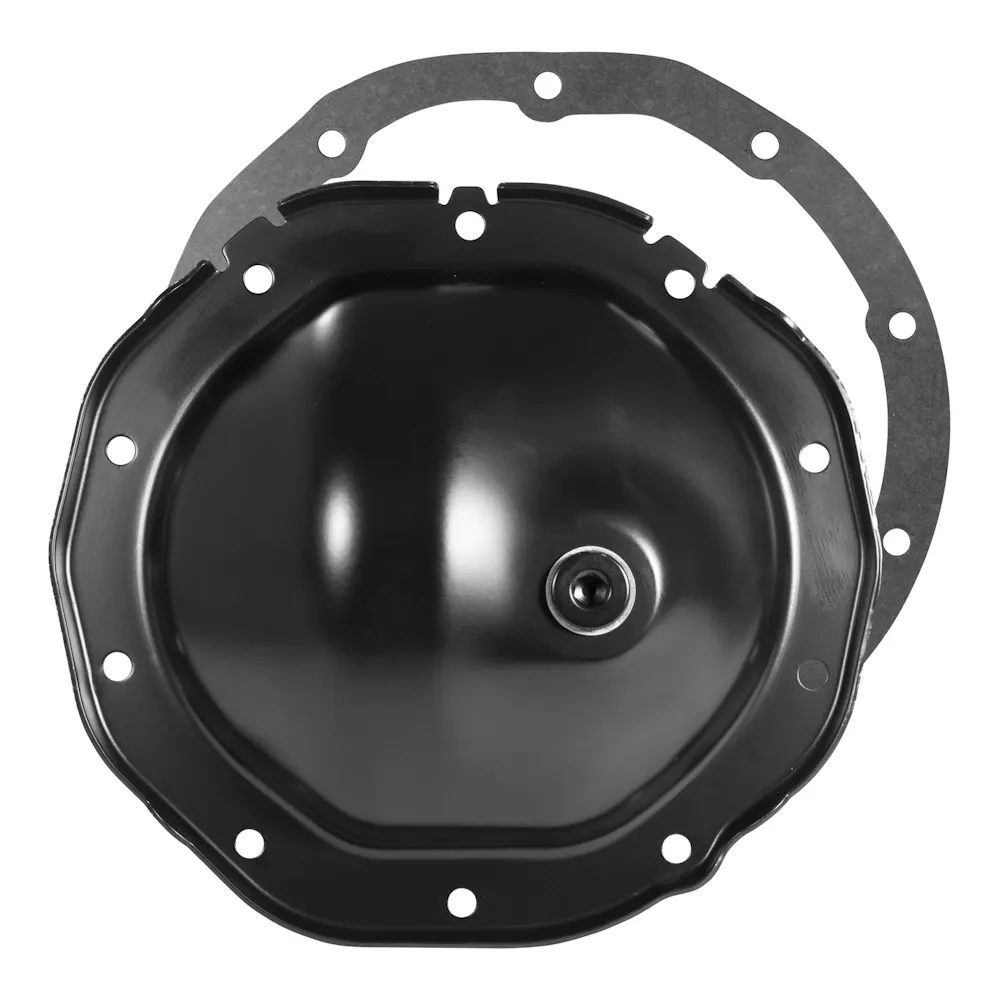

Includes differential cover, fill plug, cover bolts, and gasket. Cover is 9.75 in. wide center to center between the side bolt holes. Not for Trailblazer, Envoy, Rainier, or Bravada that come with a 10.25" wide cover.
Application summary
| Year | Make / model |
|---|---|
| 2000 | Cadillac Escalade |
| 2002-2019 | Cadillac Escalade |
| 2002-2006 | Chevrolet Avalanche 1500 |
| 2000-2014 | Chevrolet Express 1500 |
| 1999-2020 | Chevrolet Silverado 1500 |
| 2007 | Chevrolet Silverado 1500 Classic |
| 2000-2019 | Chevrolet Tahoe |
| 2000-2014 | GMC Savana 1500 |
| 1999-2019 | GMC Sierra 1500 |
| 2007 | GMC Sierra 1500 Classic |
| 2000-2014 | GMC Yukon XL 1500 |
Specifications
- GTIN
- 00883584323679
- Weight
- 4.05 lb
- Height
- 3 in
- Length
- 12 in
- Width
- 13 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- YUK
- Warehouse brand code
- FDHC
- AAIA brand code
- FDHC
Attributes
- AAP Selling Package Quantity UOM
- EA
- AAP_UDA_12
- EA
- AAP_UDA_22
- 1
- Axle Model
- GM 8.5
- Bolt Thread Dimension
- M8x1.25
- California Proposition 65
- Yes
- Carrier Main Cap Support
- no
- Cover Bolt Hole Quantity
- 10
- Drain Plug Included
- NO
- Finish
- UNPAINTED
- Gasket Or Seal Included
- YES
- Hardware Included
- NO
- Location
- REAR
- Material
- STEEL
- Mounting Bolts Included
- YES
- Position
- Rear
- Ring Gear Bolt Quantity
- 10
- Title
- Yukon Rear Differential Cover Kit for General Motors 8.6" Rear
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2000 Cadillac Escalade; 2002-2019 Cadillac Escalade; 2002-2006 Chevrolet Avalanche 1500; 2000-2014 Chevrolet Express 1500; 1999-2020 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic; 2000-2019 Chevrolet Tahoe; 2000-2014 GMC Savana 1500; 1999-2019 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic; 2000-2014 GMC Yukon XL 1500
