WARN · 99388
Part #: 99388
UPC: 012748993889
Log in for inventory
Notify me when this item is in stock.

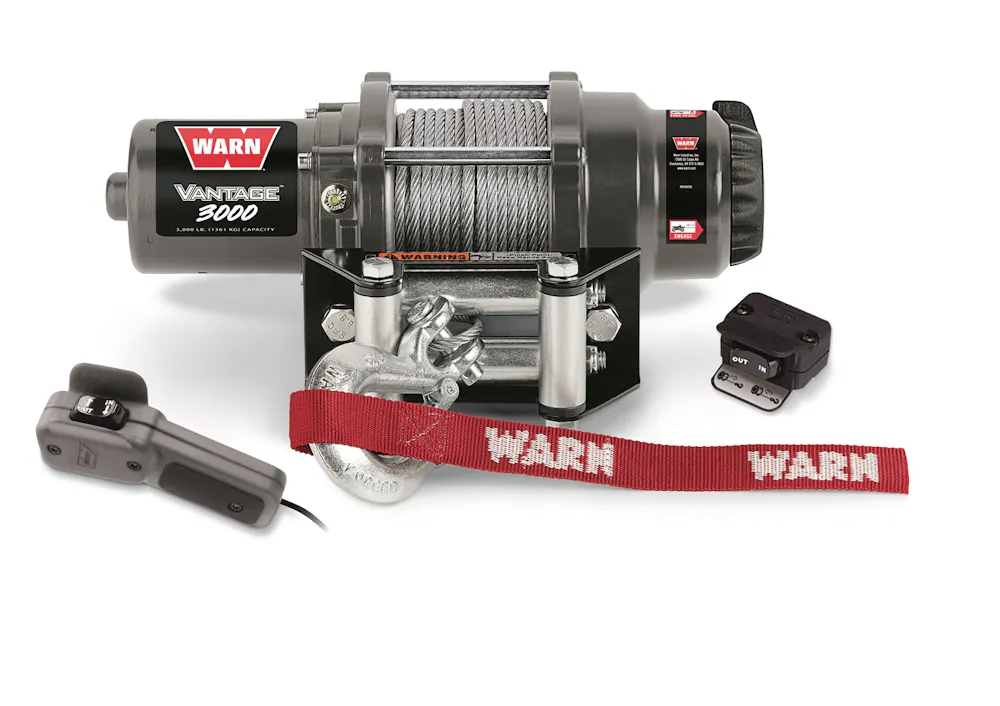

Description: Vantage 3000 Winch; Vehicle Mounted; Large ATVs and Side By Sides; 12 Volt DC Battery; 3000 Pound Line Pull Capacity; 50 Foot Wire Rope; Roller Fairlead; Handle-Bar Mounted Control Switch; Planetary Gear Drive; With Fairlead Mounting Plate
Description:
This part number has been superseded by 101035.
Description
For heavy duty Winching needs, Warn Winch is a champion workhorse. Big torque, power and quick no load retrieval speed is what Warn delivers
Features & benefits
- More pulling power for larger ATVs and Side x SidesWhen you need big power at a premium value,
- Fully Sealed Motor And Drive Train To Keep The Elements Out
- Three-Stage Planetary Gear Train For Smooth, Efficient Operation
- Powerful Permanent Magnet Motor For Best-In-Class Performance
- High Strength Composite End Housing
- Mechanical Spring Brake For Control While Winching
- Limited 5 Year Mechanical Warranty And Limited 1 Year Electrical Warranty
Specifications
- GTIN
- 00012748993889
- Weight
- 26 lb
- Height
- 6 in
- Length
- 15 in
- Width
- 13 in
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Brake Type
- Mechanical Spring
- California Proposition 65
- Yes
- Drive Gear Type
- 3-Stage Planetary
- Electrical Control Type
- Handlebar Mini-Rocker
- Fairlead Type
- Roller
- Free Spooling
- Yes
- Gear Reduction Ratio
- 180:1
- Line Diameter (IN)
- 3/16 Inch
- Line Length (FT)
- 50 Feet
- Max Amp Draw/ Line Pull
- 140 Amp Max Draw/ 3000 Pound
- Max Line Pull/ Line Speed
- 3000 Pound/ 5 Feet Per Minute
- Motor Horsepower
- 1.1 Horsepower
- Motor Type
- Permanent Magnet
- Mount Type
- Vehicle
- Operation Type
- Automatic
- Rated Single Line Pull (lbs.)
- 3000
- Recommended Use
- Large ATVs And Side By Side
- Thermal Shutoff
- No
- Title
- Warn Direct-Fit Mounting Hardware Included Winch
- Type
- Automotive
- Voltage
- 12 Volt
Fitment status
Select a vehicle or engine to see whether this part applies to your application.

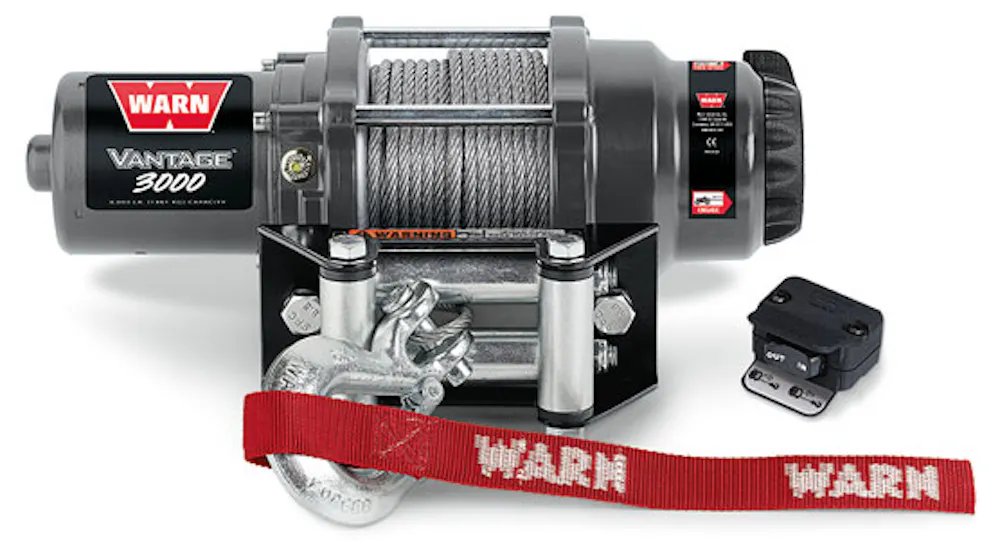

WARN 99388
