WARN · 90450
Part #: 90450
UPC: 012748904502
Log in for inventory
Notify me when this item is in stock.
Description: Premium Series; Vehicle Mounted; Side by Sides; 12 Volt DC Battery; 4500 Pound Line Pull Capacity; 55 Foot Wire Rope; Roller Fairlead; Wired Remote and Handle-Bar Mounted Control Switch; Planetary Gear Drive; With Fairlead Mounting Plate
Description:
This part number has been superseded by 101145.
Description
For heavy duty Winching needs, Warn Winch is a champion workhorse. Big torque, power and quick no load retrieval speed is what Warn delivers
Features & benefits
- When it comes to a winch for your Side x Side, you need extra pulling power, and this market le
- Limited Lifetime Warranty
- Hook, Tie Rods, And Body Feature Attractive, Corrosion Resistant Black Finish
- Three Stage Planetary Gear Train For Smooth, Efficient Operation. 55 Foot Of 7/32 Inch Wire Rop
- Ergonomic Clutch Handle
- Patented Roller Disc Brake For Outstanding Control While Winching
- Fully Sealed Motor And Drive Train To Keep The Elements Out
- All Metal Gear Housing And Gears
Information
55 ft. Of 7/32 in. Wire Rope And Plow Roller Fairlead; Durable Corrosion Resistant Black Finish; Three Stage Planetary Gear Train; Roller Disk Brake For Outstanding Control; Ergonomic Clutch Handle; Fully Sealed To Keep The Elements Out; Illuminated Dash Mounted Control Switch; Includes Corded Remote; Limited Lifetime Mechanical Warranty; 3 Year Electrical Warranty
Specifications
- GTIN
- 00012748904502
- Weight
- 35 lb
- Height
- 6 in
- Length
- 15 in
- Width
- 13 in
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Brake Type
- Roller Disc
- California Proposition 65
- Yes
- Conforms To J706 Standards
- No
- Drive Gear Type
- Planetary
- Fairlead Type
- Roller
- Free Spooling
- Yes
- Gear Reduction Ratio
- 154:1
- Line Diameter (IN)
- 0.219 Inch
- Line Length (FT)
- 55 Feet
- Line Material
- Steel
- Max Amp Draw/ Line Pull
- 318 Amp Draw/ 4500 Pound
- Max Line Pull/ Line Speed
- 4500 Pound/ 2.9 Feet Per Minute
- Motor Horsepower
- 1.9 Horsepower
- Motor Type
- Permanent Magnet
- Mount Type
- Vehicle Mounted
- Operation Type
- Automatic
- Rated Single Line Pull (lbs.)
- 4500
- Recommended Use
- ATV And Side X Side
- Thermal Shutoff
- No
- Title
- Warn For VR8000 Winch Winch
- Type
- Electric
- Voltage
- 12 Volt
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Rebates & offers

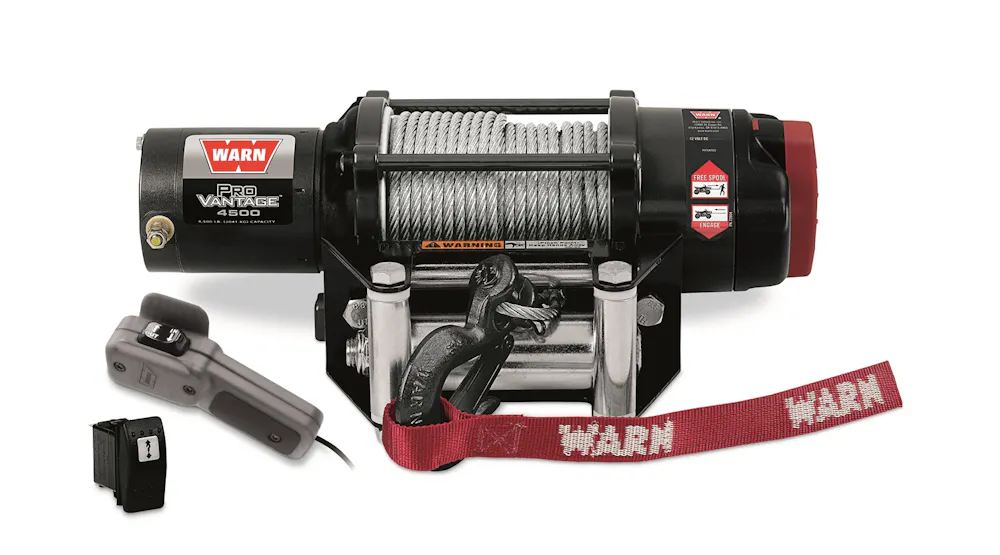

WARN 90450
