WARN · 90351
Part #: 90351
UPC: 012748903512
Log in for inventory
Notify me when this item is in stock.

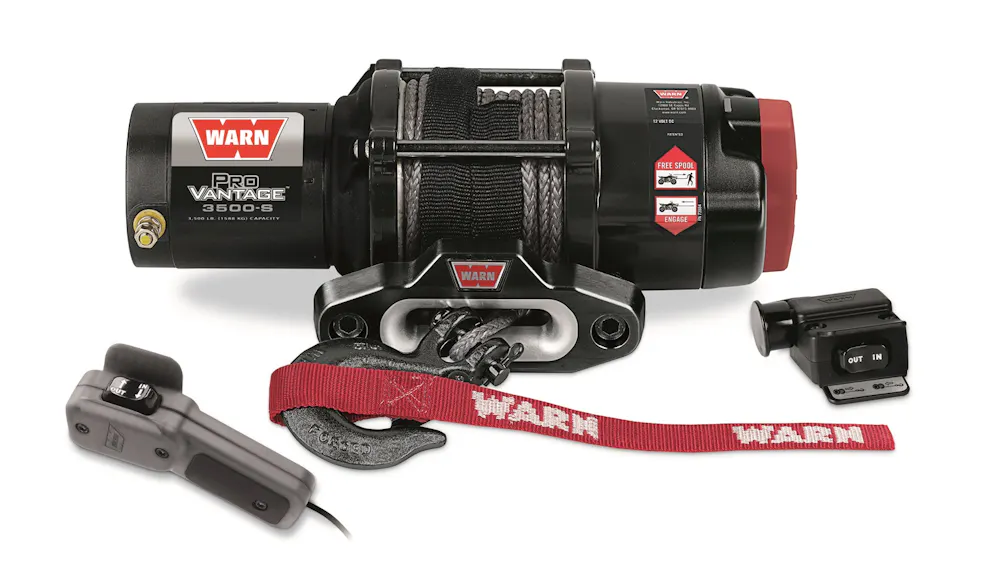

Description: Premium Series; Vehicle Mounted; Large ATVs and Side by Sides; 12 Volt DC Battery; 3500 Pound Line Pull Capacity; 50 Foot Synthetic Rope; Hawse Fairlead; Wired Remote and Handle-Bar Mounted Control Switch; Planetary Gear Drive; With Fairlead Mounting Plate
Description:
This part number has been superseded by 101030.
Description
For heavy duty Winching needs, Warn Winch is a champion workhorse. Big torque, power and quick no load retrieval speed is what Warn delivers
Features & benefits
- With a 3,500 Pounds capacity, this winch is perfect for larger ATVs and Side x Sides. It packs
- Corded Remote And Mini Rocker Control Switch With Integrated Socket. 50 Foot Of 3/16 Inch Synth
- Three Stage Planetary Gear Train For Smooth, Efficient Operation
- Ergonomic Clutch Handle
- Patented Roller Disc Brake For Outstanding Control While Winching
- Fully Sealed Motor And Drive Train To Keep The Elements Out
- All Metal Gear Housing And Gears
- Hook, Tie Rods, And Body Feature Attractive, Corrosion Resistant Black Finish
- Limited Lifetime Warranty
Information
50 ft. Of 3/16 in. Synthetic Rope And Plow Roller Fairlead; Durable Corrosion Resistant Black Finish; Three Stage Planetary Gear Train; Roller Disk Brake For Outstanding Control; Ergonomic Clutch Handle; Fully Sealed To Keep The Elements Out; Corded Remote And Mini Rocker Switch; Limited Lifetime Mechanical Warranty; 3 Year Electrical Warranty
Application summary
| Year | Make / model |
|---|---|
| 2015-2016 | Honda SXS500M2 Pioneer 500 |
Specifications
- GTIN
- 00012748903512
- Weight
- 28 lb
- Height
- 6 in
- Length
- 15 in
- Width
- 13 in
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Brake Type
- Roller Disc
- California Proposition 65
- Yes
- Conforms To J706 Standards
- No
- Drive Gear Type
- Planetary
- Fairlead Type
- Hawse
- Free Spooling
- Yes
- Gear Reduction Ratio
- 154:1
- Line Diameter (IN)
- 3/16 Inch
- Line Length (FT)
- 50 Feet
- Line Material
- Synthetic
- Max Amp Draw/ Line Pull
- 220 Amp Draw/ 3500 Pound
- Max Line Pull/ Line Speed
- 3500 Pound/ 5.8 Feet Per Minute
- Motor Horsepower
- 1.4 Horsepower
- Motor Type
- Permanent Magnet
- Mount Type
- Vehicle Mounted
- Operation Type
- Automatic
- Rated Single Line Pull (lbs.)
- 3500
- Recommended Use
- Large ATV And Side By Side
- Thermal Shutoff
- No
- Title
- Warn Tall Black Without Skid Plate Winch
- Type
- Electric
- Voltage
- 12 Volt
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2015-2016 Honda SXS500M2 Pioneer 500
