WARN · 89040
Part #: 89040
UPC: 012748890409
Log in for inventory
Notify me when this item is in stock.

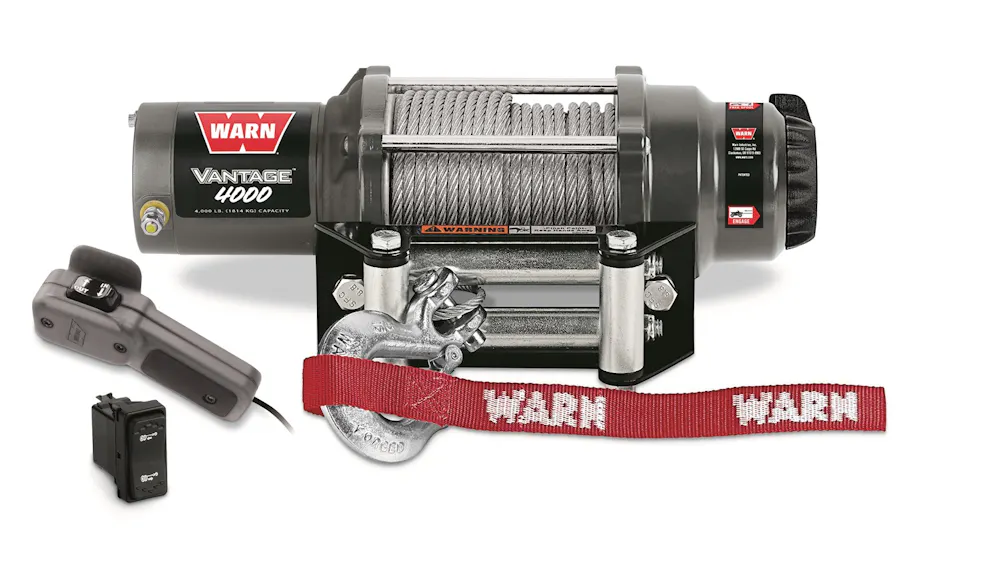

Description: Standard Duty Series; Vehicle Mounted; Large ATVs and Side By Sides; 12 Volt DC Battery; 4000 Pound Line Pull Capacity; 50 Foot Wire Rope; Roller Fairlead; Wired Remote and Dash Mounted Control Switch; Planetary Gear Drive; With Fairlead Mounting Plate
Description:
This part number has been superseded by 101045.
Description
For heavy duty Winching needs, Warn Winch is a champion workhorse. Big torque, power and quick no load retrieval speed is what Warn delivers
Features & benefits
- This is the perfect winch for Side x Side owners who need reliable big pulling power. With a st
- Fully Sealed Motor And Drive Train To Keep The Elements Out
- 3-Stage Planetary Gear Train For Smooth, Efficient Operation
- Mechanical Spring Brake For Control While Winching
- High-Strength Composite Gear Housing And All-Metal Gears
- Best-In-Class Performance
- Perfect Winch For Side X Side Owners Who Need Reliable Big Pulling Power
- Limited 5 Year Mechanical And 1 Year Electrical Warranty
- 1 Year Electrical Warranty
Information
55 ft. Of 7/32 in. Wire Rope And Plow Roller Fairlead; Fully Sealed To Keep The Elements Out; Three Stage Planetary Gear Train; High Strength Composite End Housing; Mechanical Spring Brake For Control While Winching; Includes Dash Mounted Rocker Switch; Includes Corded Remote; 5 Year Mechanical Warranty; 1 Year Electrical Warranty
Specifications
- GTIN
- 00012748890409
- Weight
- 33 lb
- Height
- 6 in
- Length
- 15 in
- Width
- 13 in
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- WAR
- Warehouse brand code
- WAR
- AAIA brand code
- BCSQ
Attributes
- Brake Type
- Spring
- California Proposition 65
- Yes
- Conforms To J706 Standards
- No
- Drive Gear Type
- Planetary
- Electrical Control Type
- Dash Mounted Rocker
- Fairlead Type
- Roller
- Free Spooling
- Yes
- Gear Reduction Ratio
- 180:1
- Line Diameter (IN)
- 0.219 Inch
- Line Length (FT)
- 50 Feet
- Line Material
- Steel
- Max Amp Draw/ Line Pull
- 200.8 Amp Draw/ 4000 Pound
- Max Line Pull/ Line Speed
- 4000 Pound/ 5.3 Feet Per Minute
- Motor Horsepower
- 1.4 Horsepower
- Motor Type
- Permanent Magnet
- Mount Type
- Vehicle Mounted
- Operation Type
- Automatic
- Rated Single Line Pull (lbs.)
- 4000
- Recommended Use
- Large ATV And Side By Side
- Thermal Shutoff
- No
- Title
- Warn For Warn Vantage 3000 and 4000 Winches Winch
- Type
- Electric
- Voltage
- 12 Volt
