Speed Pro · WL-2465F 30
Part #: WL-2465F 30
UPC: 614046695580
Log in for inventory
Notify me when this item is in stock.
Description: POWERFORGED Piston-Individual; Speed Pro WL-2465F 30 Engine Piston
Description:
Description
Speed-Pro(R) delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components.
Features & benefits
- Forged under 3,000 tons of force.
- Fully updated skirt profiles
- Exclusive DUROSHIELD(R) skirt coating. DUROSHIELD(R) provides scuff resistance, reduced bore clearances and enhanced ring sealing.
- SPEED-PRO(R) POWERFORGED(R) pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
- The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006") per set.
- Lightweight POWERFORGED pistons combine strength of forged materials with significant weight savings
Specifications
- GTIN
- 00614046695580
- Weight
- 1.91 lb
- Height
- 5 in
- Length
- 5 in
- Width
- 5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Bore (Inch)
- 4.281
- Compression Distance
- 1.640
- Dome Volume CC
- 25.7
- Groove 1 Qty
- 2
- Groove 1 Width
- 5/64
- Groove 2 Qty
- 1
- Groove 2 Width
- 3/16
- Head Illustration
- 139
- Head Type
- .270 dome; DUROSHIELD skirt coated piston; 30 O/S has .226 dome; 60 O/S has .215 dome
- Lock Ring
- N/R
- Minimum Clearance
- .0040
- Oversize Inch
- .030
- Part Description
- Engine Piston
- Part Material
- POWERFORGED®
- Pin Diameter (Inch)
- 0.990
- Pin Type
- P
- Pin Weight Gram
- 154
- Weight W Pin Gram
- 809
- Weight w/o Pin Gram
- 655
Fitment status
This product is universal and will fit your application.
Application summary
Performance
Resources

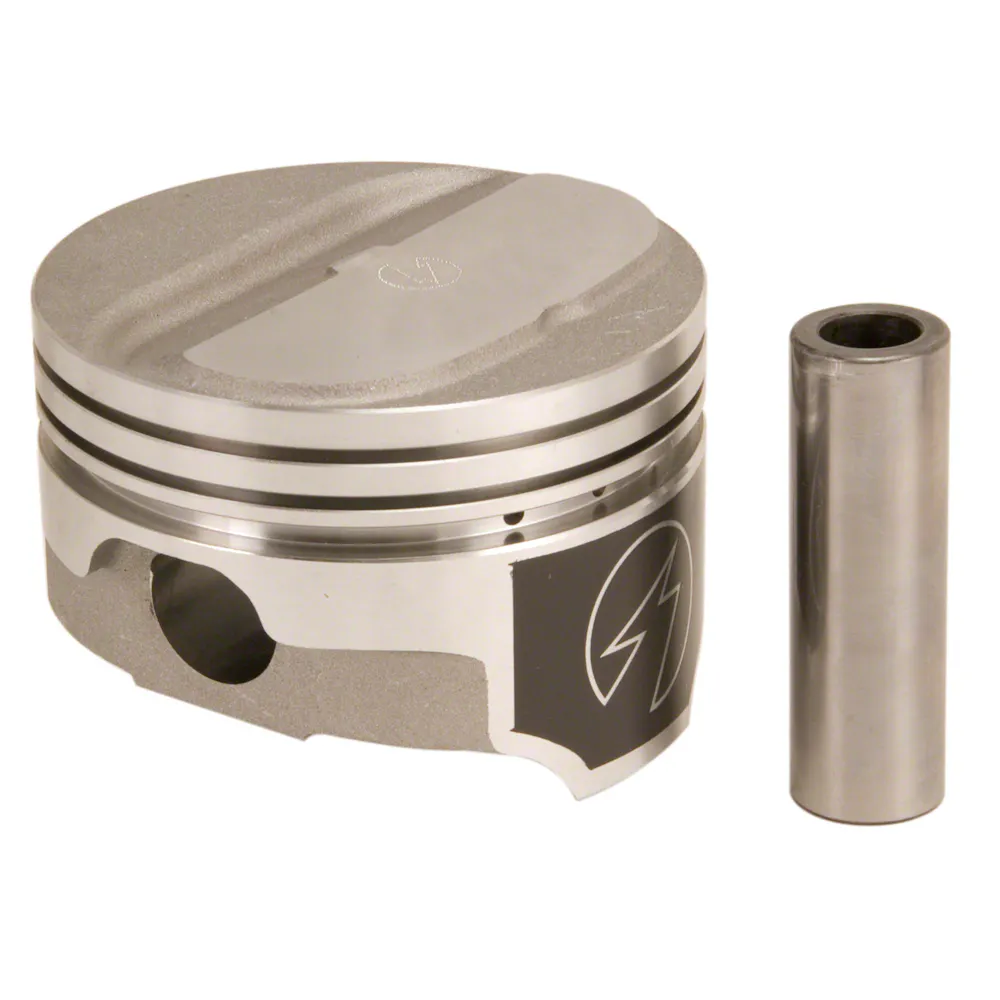

Speed Pro WL-2465F 30
