Speed Pro · R-10626 40
Part #: R-10626 40
UPC: 019826222640
Loading...
Notify me when this item is in stock.

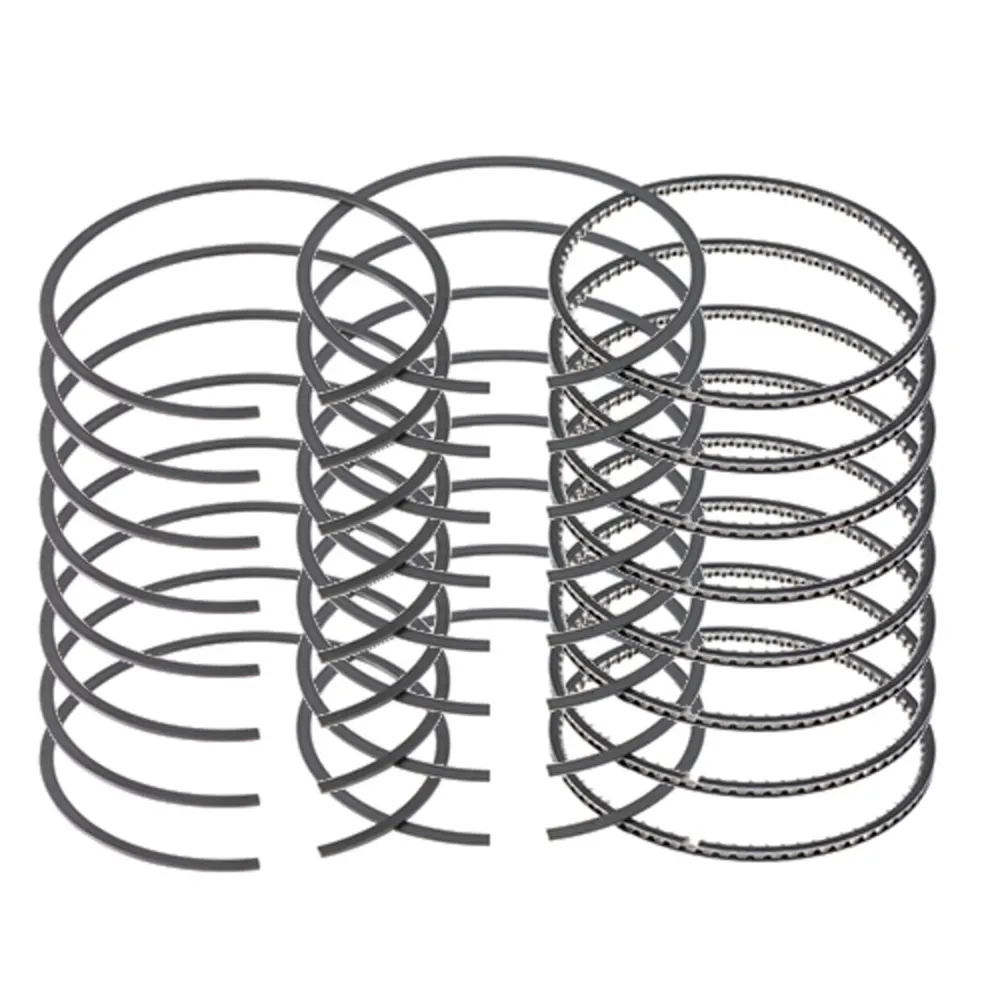

Description: Premium Piston Ring Set; Speed Pro R-10626 40 Engine Piston Ring Set
Description:
Description
Speed-Pro(R) delivers the power you need and the value and quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components
Features & benefits
- Introducing the all new Pro-MetricTM piston ring sets featuring lighter weight top rings, ductile iron second rings with a Napier-style groove and a patented curved vent oil ring for uniform contact pressure and reduced friction

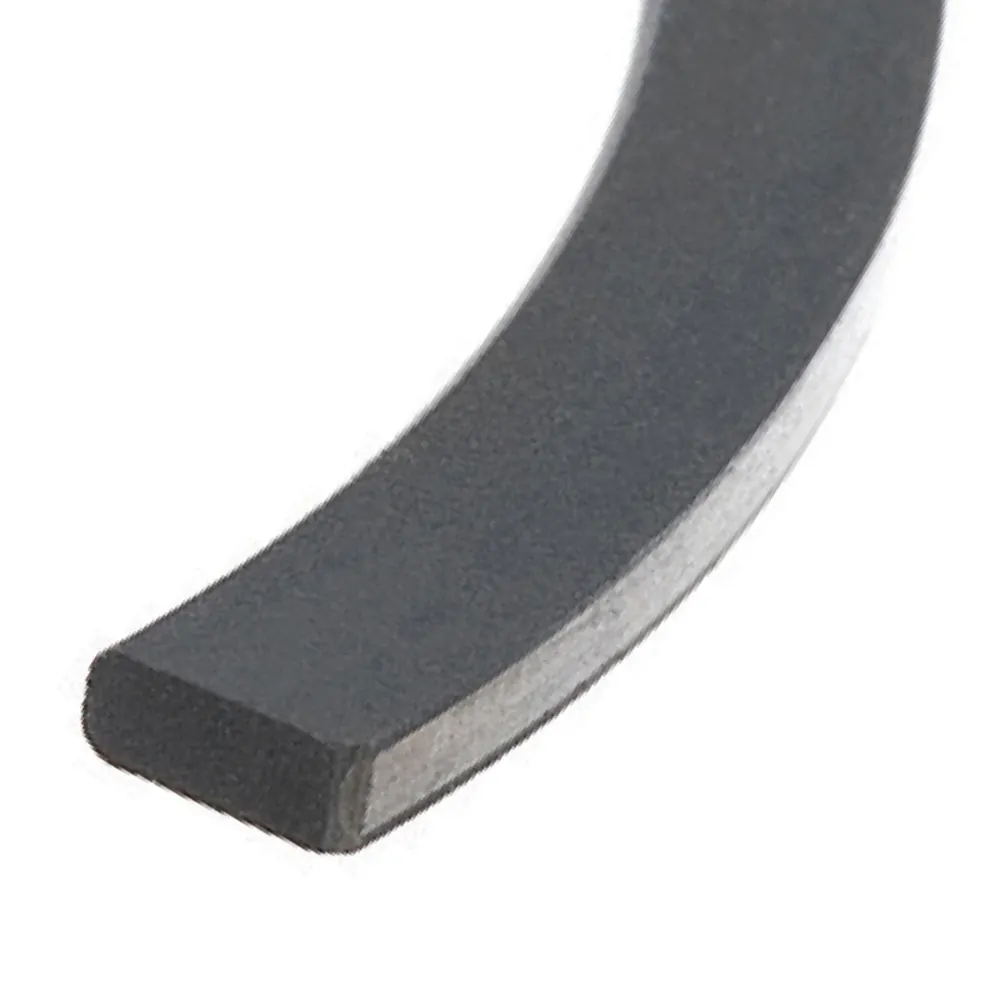

- Top ring contains a steel moly inlaid coating delivering high strength plus excellent wear and scuff resistance while easily being fitted to the latest designs of lighter, reduced deck-height pistons
- Napier-style second ring provides enhanced oil control and is compatible with all bore materials
- Chrome oil rings complete with a stainless curved vent expander ring are coated with a corrosion-resistant surface maintaining consistent pressure and uniform tension
- Application specific design to ensure a perfect fit and correct operation for unsurpassed quality that you can trust
Specifications
- GTIN
- 00019826222640
- Weight
- 1 lb
- Height
- 5 in
- Length
- 10 in
- Width
- 2 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- 2nd Ring Face Design
- Napier
- 2nd Ring Material
- Martensitic Ductile
- 2nd Ring Width (mm)
- 1.50
- Bore Size (in)
- 4.0000
- Cylinder Quantity
- 8
- File Fit (Y/N)
- N
- Oil Ring Design
- Flex
- Oil Ring Tension
- Low
- Oil Ring Width (mm)
- 3.00
- Outside Diameter (in)
- 4.0400
- Oversize (in)
- 0.040
- Part Description
- Engine Piston Ring Set
- Ring Set Groove Widths (mm)
- 1.5 x 1.5 x 3.0
- Top Ring Face Design
- Barrel Face
- Top Ring Material
- Steel Moly
- Top Ring Width (mm)
- 1.50
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
LS 6.0L, LS2 6.0L, LS3 6.2L, LSA 6.2L, LS9 6.2L, Hemi 6.1L, SBC 350, Ford 302, Ford 351, Chrysler 360
