Speed Pro · L-2377F 20
Part #: L-2377F 20
UPC: 087674135436
Log in for inventory
Notify me when this item is in stock.

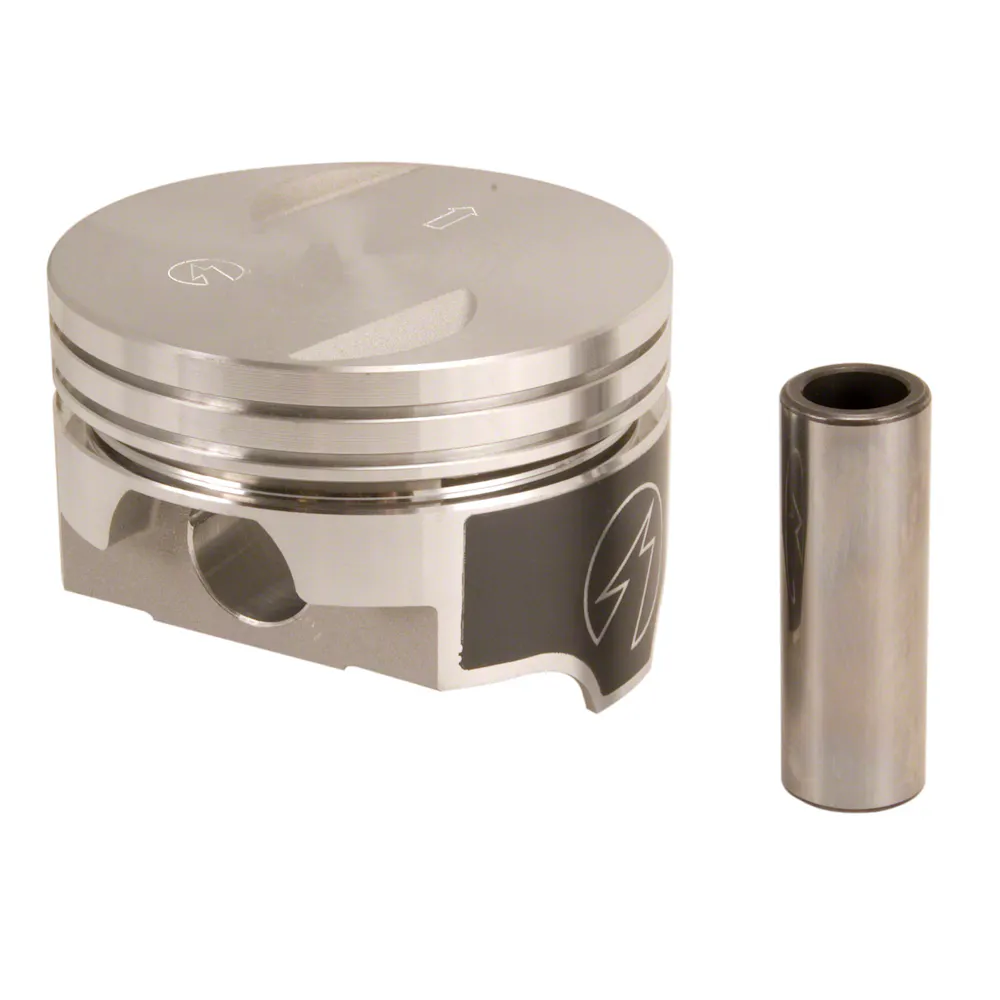

Description: POWERFORGED Piston Set; Speed Pro L-2377F 20 Engine Piston Set
Description:
Description
Speed-Pro(R) delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components.
Features & benefits
- Forged under 3,000 tons of force.
- Fully updated skirt profiles
- Exclusive DUROSHIELD(R) skirt coating. DUROSHIELD(R) provides scuff resistance, reduced bore clearances and enhanced ring sealing.
- SPEED-PRO(R) POWERFORGED(R) pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
- The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006") per set.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
Application summary
| Year | Make / model |
|---|---|
| 1971-1975 | Chevrolet Bel Air |
| 1971-1972 | Chevrolet Biscayne |
| 1973-1974 | Chevrolet Blazer |
| 1971-1972 | Chevrolet Brookwood |
| 1975-1980 | Chevrolet C10 |
| 1973-1974 | Chevrolet C10 Pickup |
| 1973-1980 | Chevrolet C10 Suburban |
| 1990 | Chevrolet C1500 |
| 1975-1986 | Chevrolet C20 |
| 1973-1974 | Chevrolet C20 Pickup |
| 1973-1986 | Chevrolet C20 Suburban |
| 1975-1986 | Chevrolet C30 |
| 1973-1974 | Chevrolet C30 Pickup |
| 1988-1990 | Chevrolet C3500 |
| 1971-1976 | Chevrolet Caprice |
| 1971-1973 | Chevrolet Chevelle |
| 1971-1974 | Chevrolet Corvette |
| 1973-1975 | Chevrolet El Camino |
| 1973-1974 | Chevrolet G10 Van |
| 1976 | Chevrolet G20 |
| 1973-1974 | Chevrolet G20 Van |
| 1975-1976 | Chevrolet G30 |
| 1988-1990 | Chevrolet G30 |
| 1973-1974 | Chevrolet G30 Van |
| 1971-1976 | Chevrolet Impala |
| 1976 | Chevrolet K10 |
| 1980 | Chevrolet K10 |
| 1973-1974 | Chevrolet K10 Pickup |
| 1973-1974 | Chevrolet K10 Suburban |
| 1976-1978 | Chevrolet K20 |
| 1973-1974 | Chevrolet K20 Pickup |
| 1973-1974 | Chevrolet K20 Suburban |
| 1985 | Chevrolet K20 Suburban |
| 1977 | Chevrolet K30 |
| 1980-1986 | Chevrolet K30 |
| 1973-1974 | Chevrolet K30 Pickup |
| 1988-1990 | Chevrolet K3500 |
| 1976-1978 | Chevrolet K5 Blazer |
| 1971-1972 | Chevrolet Kingswood |
| 1971-1975 | Chevrolet Monte Carlo |
| 1971 | Chevrolet Nova |
| 1973 | Chevrolet P10 Van |
| 1976 | Chevrolet P20 |
| 1979 | Chevrolet P20 |
| 1973 | Chevrolet P20 Van |
| 1975-1990 | Chevrolet P30 |
| 1973-1974 | Chevrolet P30 Van |
| 1987-1988 | Chevrolet R20 |
| 1987-1988 | Chevrolet R20 Suburban |
| 1989 | Chevrolet R2500 |
| 1989-1990 | Chevrolet R2500 Suburban |
| 1987-1988 | Chevrolet R30 |
| 1989-1990 | Chevrolet R3500 |
| 1971-1972 | Chevrolet Townsman |
| 1987-1988 | Chevrolet V20 Suburban |
| 1990 | Chevrolet V2500 Suburban |
| 1987-1988 | Chevrolet V30 |
| 1989-1990 | Chevrolet V3500 |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1973-1974 | GMC C15/C1500 Pickup |
| 1973-1974 | GMC C15/C1500 Suburban |
| 1979-1980 | GMC C1500 |
| 1979-1980 | GMC C1500 Suburban |
| 1975-1978 | GMC C25 |
| 1975-1978 | GMC C25 Suburban |
| 1973-1974 | GMC C25/C2500 Pickup |
| 1973-1974 | GMC C25/C2500 Suburban |
| 1979-1986 | GMC C2500 |
| 1979-1986 | GMC C2500 Suburban |
| 1975-1978 | GMC C35 |
| 1973-1974 | GMC C35/C3500 Pickup |
Specifications
- GTIN
- 00087674135436
- Weight
- 16.48 lb
- Height
- 4.92 in
- Length
- 21.37 in
- Width
- 10.26 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Bore (Inch)
- 4.270
- Compression Distance
- 1.640
- Dome Volume CC
- -4.9
- Groove 1 Qty
- 2
- Groove 1 Width
- 5/64
- Groove 2 Qty
- 1
- Groove 2 Width
- 3/16
- Head Illustration
- 67

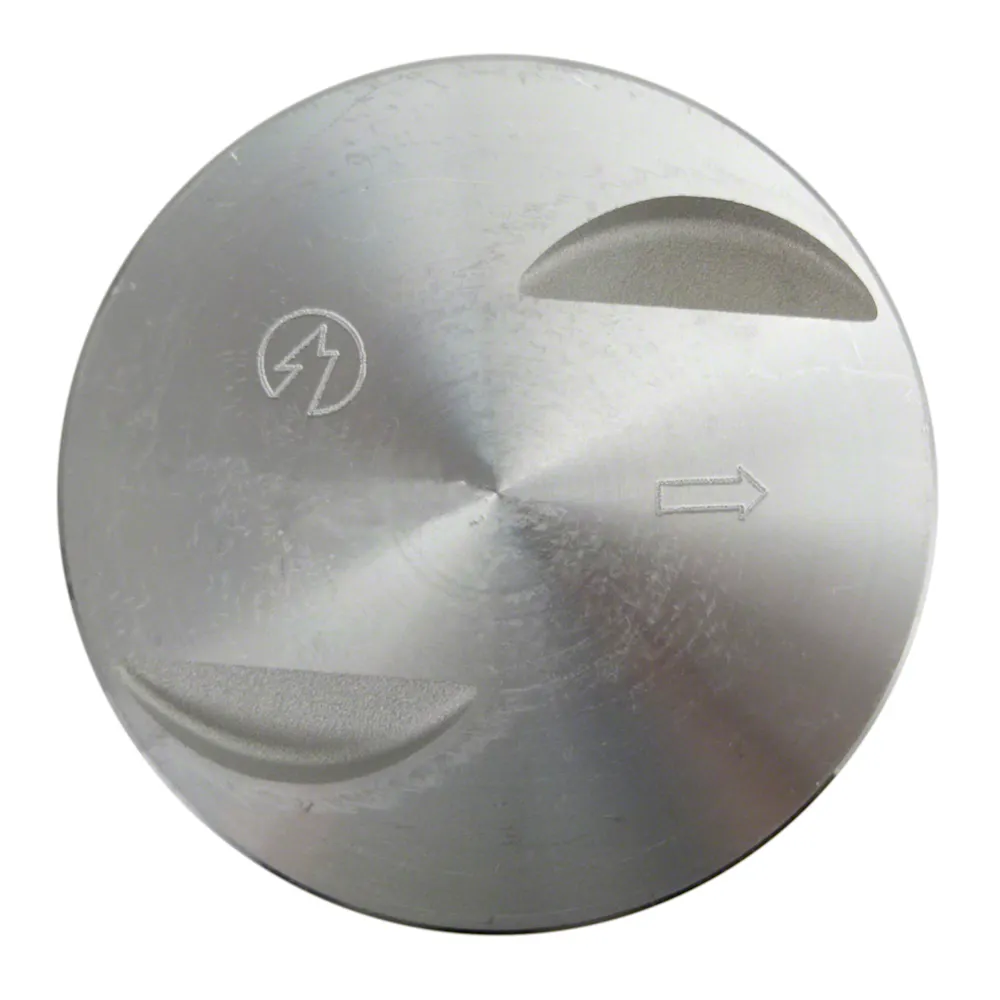

- Head Type
- Flat, 2 reliefs, Chamfer; DUROSHIELD skirt coated piston
- Lock Ring
- N/R
- Minimum Clearance
- .0030
- Oversize Inch
- .020
- Part Description
- Engine Piston
- Part Material
- POWERFORGED®
- Pin Diameter (Inch)
- 0.990
- Pin Type
- P
- Pin Weight Gram
- 154
- Weight W Pin Gram
- 882
- Weight w/o Pin Gram
- 728
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1971-1975 Chevrolet Bel Air; 1971-1972 Chevrolet Biscayne; 1973-1974 Chevrolet Blazer; 1971-1972 Chevrolet Brookwood; 1975-1980 Chevrolet C10; 1973-1974 Chevrolet C10 Pickup; 1973-1980 Chevrolet C10 Suburban; 1990 Chevrolet C1500; 1975-1986 Chevrolet C20; 1973-1974 Chevrolet C20 Pickup; 1973-1986 Chevrolet C20 Suburban; 1975-1986 Chevrolet C30; 1973-1974 Chevrolet C30 Pickup; 1988-1990 Chevrolet C3500; 1971-1976 Chevrolet Caprice; 1971-1973 Chevrolet Chevelle; 1971-1974 Chevrolet Corvette; 1973-1975 Chevrolet El Camino; 1973-1974 Chevrolet G10 Van; 1976 Chevrolet G20; 1973-1974 Chevrolet G20 Van; 1975-1976 Chevrolet G30; 1988-1990 Chevrolet G30; 1973-1974 Chevrolet G30 Van; 1971-1976 Chevrolet Impala; 1976 Chevrolet K10; 1980 Chevrolet K10; 1973-1974 Chevrolet K10 Pickup; 1973-1974 Chevrolet K10 Suburban; 1976-1978 Chevrolet K20; 1973-1974 Chevrolet K20 Pickup; 1973-1974 Chevrolet K20 Suburban; 1985 Chevrolet K20 Suburban; 1977 Chevrolet K30; 1980-1986 Chevrolet K30; 1973-1974 Chevrolet K30 Pickup; 1988-1990 Chevrolet K3500; 1976-1978 Chevrolet K5 Blazer; 1971-1972 Chevrolet Kingswood; 1971-1975 Chevrolet Monte Carlo; 1971 Chevrolet Nova; 1973 Chevrolet P10 Van; 1976 Chevrolet P20; 1979 Chevrolet P20; 1973 Chevrolet P20 Van; 1975-1990 Chevrolet P30; 1973-1974 Chevrolet P30 Van; 1987-1988 Chevrolet R20; 1987-1988 Chevrolet R20 Suburban; 1989 Chevrolet R2500; 1989-1990 Chevrolet R2500 Suburban; 1987-1988 Chevrolet R30; 1989-1990 Chevrolet R3500; 1971-1972 Chevrolet Townsman; 1987-1988 Chevrolet V20 Suburban; 1990 Chevrolet V2500 Suburban; 1987-1988 Chevrolet V30; 1989-1990 Chevrolet V3500; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1973-1974 GMC C15/C1500 Pickup; 1973-1974 GMC C15/C1500 Suburban; 1979-1980 GMC C1500; 1979-1980 GMC C1500 Suburban; 1975-1978 GMC C25; 1975-1978 GMC C25 Suburban; 1973-1974 GMC C25/C2500 Pickup; 1973-1974 GMC C25/C2500 Suburban; 1979-1986 GMC C2500; 1979-1986 GMC C2500 Suburban; 1975-1978 GMC C35; 1973-1974 GMC C35/C3500 Pickup; ...
