Speed Pro · L-2316F 30
Part #: L-2316F 30
UPC: 087674134019
Log in for inventory
Notify me when this item is in stock.

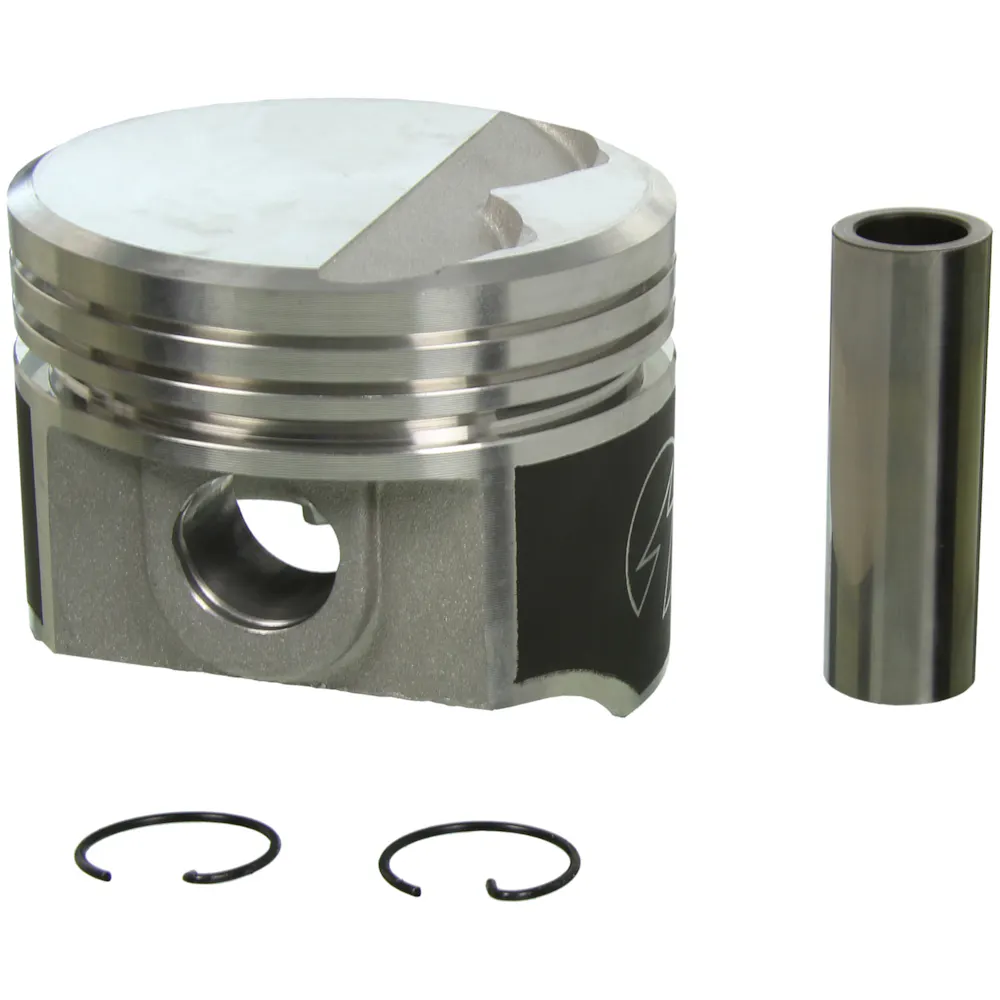

Description: POWERFORGED Piston Set; Speed Pro L-2316F 30 Engine Piston Set
Description:
Description
Speed-Pro(R) delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components.
Features & benefits
- Forged under 3,000 tons of force.
- Fully updated skirt profiles
- Exclusive DUROSHIELD(R) skirt coating. DUROSHIELD(R) provides scuff resistance, reduced bore clearances and enhanced ring sealing.
- SPEED-PRO(R) POWERFORGED(R) pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
- The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006") per set.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
Application summary
| Year | Make / model |
|---|---|
| 1970-1971 | Dodge Challenger |
| 1970-1971 | Dodge Charger |
| 1970-1971 | Dodge Coronet |
| 1968-1971 | Dodge Dart |
| 1968-1971 | Plymouth Barracuda |
| 1971 | Plymouth Belvedere |
| 1970-1971 | Plymouth Cuda |
| 1970-1971 | Plymouth Duster |
| 1968 | Plymouth Road Runner |
| 1971 | Plymouth Road Runner |
| 1968-1971 | Plymouth Satellite |
| 1968-1971 | Plymouth Valiant |
Specifications
- GTIN
- 00087674134019
- Weight
- 16.56 lb
- Height
- 4.54 in
- Length
- 19.42 in
- Width
- 9.31 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Bore (Inch)
- 4.070
- Compression Distance
- 1.840
- Dome Volume CC
- -7.5
- Groove 1 Qty
- 2
- Groove 1 Width
- 5/64
- Groove 2 Qty
- 1
- Groove 2 Width
- 3/16
- Head Illustration
- 25

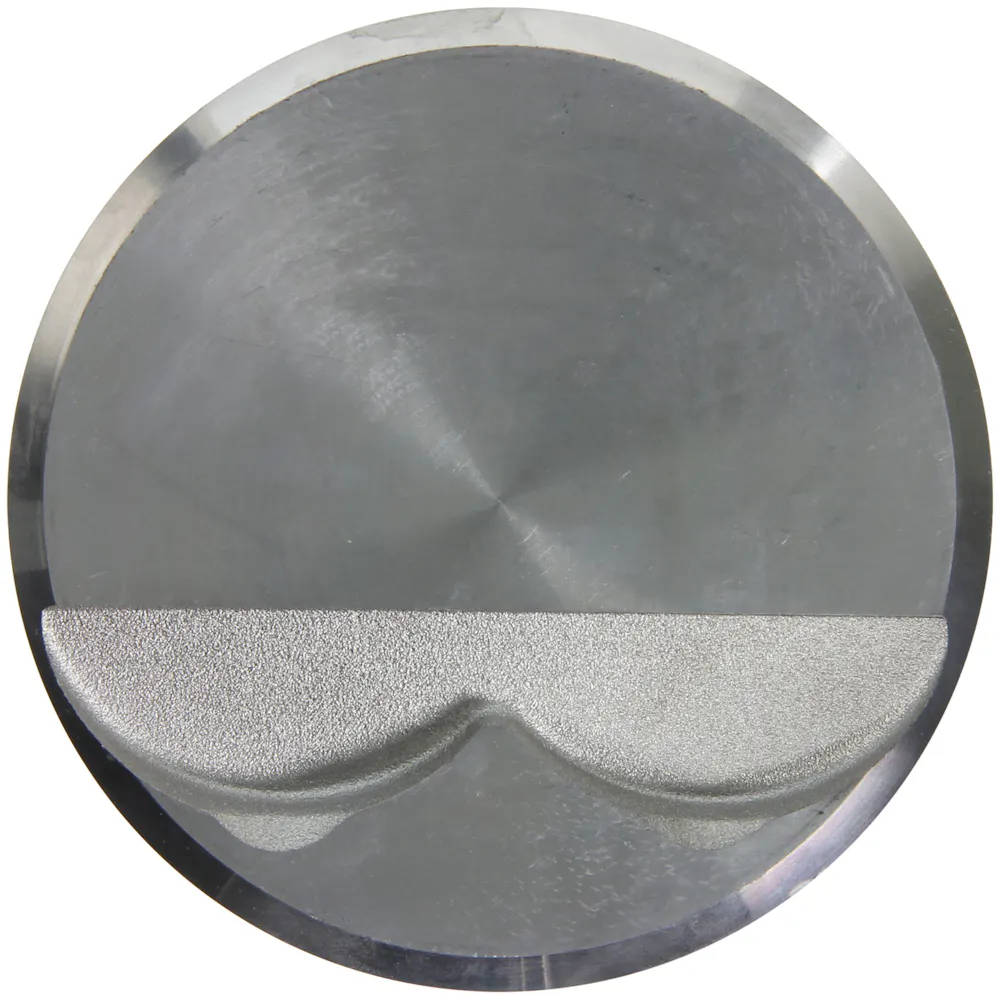

- Head Type
- Flat, 2 reliefs; DUROSHIELD skirt coated piston
- Lock Ring
- Included
- Minimum Clearance
- .0015
- Oversize Inch
- .030
- Part Description
- Engine Piston
- Part Material
- POWERFORGED®
- Pin Diameter (Inch)
- 0.984
- Pin Type
- F
- Pin Weight Gram
- 154
- Weight W Pin Gram
- 883
- Weight w/o Pin Gram
- 729
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1970-1971 Dodge Challenger; 1970-1971 Dodge Charger; 1970-1971 Dodge Coronet; 1968-1971 Dodge Dart; 1968-1971 Plymouth Barracuda; 1971 Plymouth Belvedere; 1970-1971 Plymouth Cuda; 1970-1971 Plymouth Duster; 1968 Plymouth Road Runner; 1971 Plymouth Road Runner; 1968-1971 Plymouth Satellite; 1968-1971 Plymouth Valiant
