Speed Pro / L-2291F 30
Part #: L-2291F 30
UPC: 087674132886
Loading...
Notify me when this item is in stock.

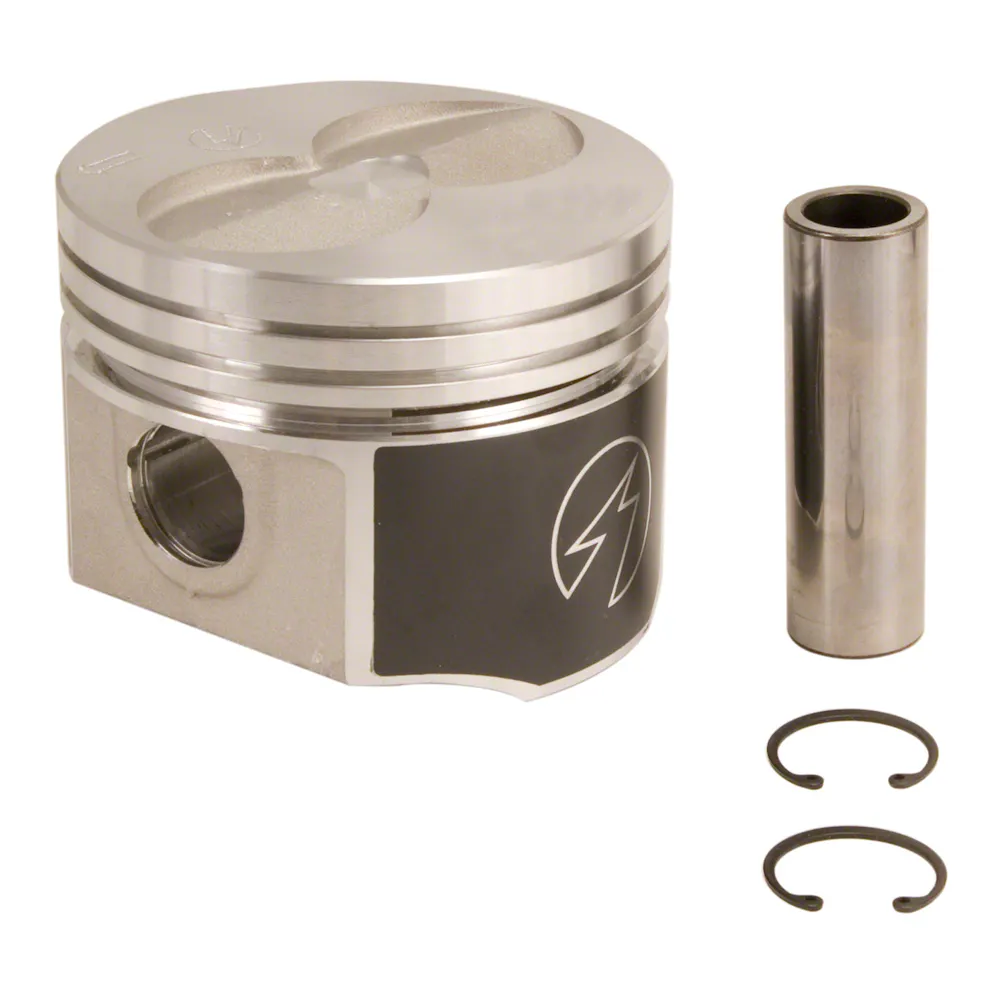

Description: POWERFORGED Piston Set; Speed Pro L-2291F 30 Engine Piston Set
Description:
Description
Speed-Pro(R) delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components.
Features & benefits
- Forged under 3,000 tons of force.
- Fully updated skirt profiles
- Exclusive DUROSHIELD(R) skirt coating. DUROSHIELD(R) provides scuff resistance, reduced bore clearances and enhanced ring sealing.
- SPEED-PRO(R) POWERFORGED(R) pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
- The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006") per set.
- Machined valve reliefs and circlip grooves; incluudes N5400-98 Seger Clip for floated applications
Application summary
| Year | Make / model |
|---|---|
| 1966-1968 | Ford Country Sedan |
| 1966-1968 | Ford Country Squire |
| 1966-1968 | Ford Custom |
| 1968 | Ford Custom 500 |
| 1966-1968 | Ford Fairlane |
| 1966-1967 | Ford Galaxie |
| 1968 | Ford Galaxie 500 |
| 1966-1968 | Ford LTD |
| 1967-1968 | Ford Mustang |
| 1966-1968 | Ford Ranch Wagon |
| 1966-1968 | Ford Thunderbird |
| 1968 | Ford Torino |
| 1967 | Mercury Brougham |
| 1966-1967 | Mercury Caliente |
| 1966-1967 | Mercury Capri |
| 1966-1968 | Mercury Colony Park |
| 1966-1968 | Mercury Comet |
| 1966-1968 | Mercury Commuter |
| 1967-1968 | Mercury Cougar |
| 1966-1968 | Mercury Cyclone |
| 1966 | Mercury Marauder |
| 1967-1968 | Mercury Marquis |
| 1966-1968 | Mercury Montclair |
| 1968 | Mercury Montego |
| 1966-1968 | Mercury Monterey |
| 1966-1968 | Mercury Park Lane |
| 1966-1967 | Mercury Villager |
| 1966-1967 | Mercury Voyager |
Specifications
- GTIN
- 00087674132886
- Weight
- 16 lb
- Height
- 4.54 in
- Length
- 19.42 in
- Width
- 9.31 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Bore (Inch)
- 4.080
- Compression Distance
- 1.776
- Dome Volume CC
- -10.0
- Groove 1 Qty
- 1
- Groove 1 Width
- 5/64
- Groove 2 Qty
- 1
- Groove 2 Width
- 3/32
- Groove 3 Qty
- 1
- Groove 3 Width
- 3/16
- Head Illustration
- 7
- Head Type

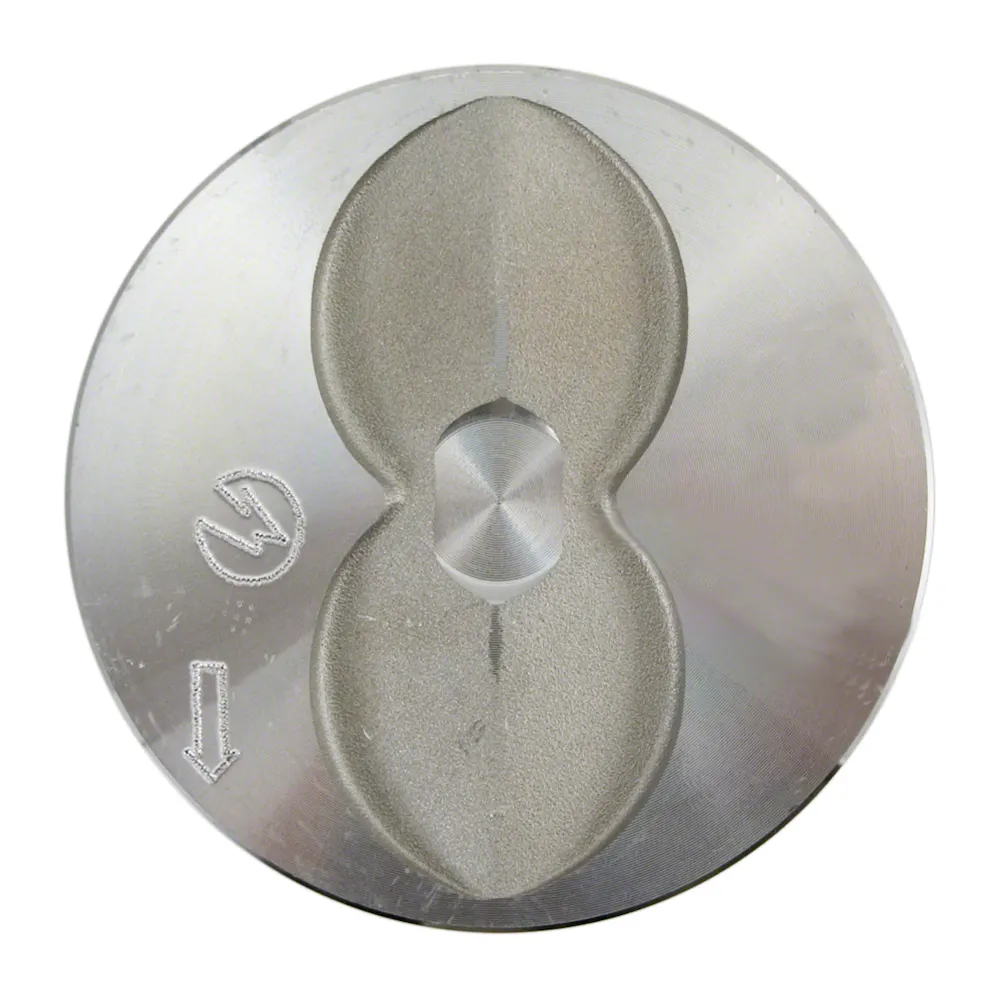

- Flat, 4 reliefs; DUROSHIELD skirt coated piston
- Lock Ring
- Included
- Minimum Clearance
- .0020
- Oversize Inch
- .030
- Part Description
- Engine Piston
- Part Material
- POWERFORGED®
- Pin Diameter (Inch)
- 0.975
- Pin Type
- F
- Pin Weight Gram
- 151
- Weight W Pin Gram
- 801
- Weight w/o Pin Gram
- 650
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1966-1968 Ford Country Sedan; 1966-1968 Ford Country Squire; 1966-1968 Ford Custom; 1968 Ford Custom 500; 1966-1968 Ford Fairlane; 1966-1967 Ford Galaxie; 1968 Ford Galaxie 500; 1966-1968 Ford LTD; 1967-1968 Ford Mustang; 1966-1968 Ford Ranch Wagon; 1966-1968 Ford Thunderbird; 1968 Ford Torino; 1967 Mercury Brougham; 1966-1967 Mercury Caliente; 1966-1967 Mercury Capri; 1966-1968 Mercury Colony Park; 1966-1968 Mercury Comet; 1966-1968 Mercury Commuter; 1967-1968 Mercury Cougar; 1966-1968 Mercury Cyclone; 1966 Mercury Marauder; 1967-1968 Mercury Marquis; 1966-1968 Mercury Montclair; 1968 Mercury Montego; 1966-1968 Mercury Monterey; 1966-1968 Mercury Park Lane; 1966-1967 Mercury Villager; 1966-1967 Mercury Voyager
