Speed Pro / L-2279AF 30
Part #: L-2279AF 30
UPC: 019826219329
Loading...
Notify me when this item is in stock.
Description: POWERFORGED Piston; Speed Pro L-2279AF 30 Engine Piston
Description:
Description
Speed-Pro(R) delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components.
Features & benefits
- Forged under 3,000 tons of force.
- Fully updated skirt profiles
- Exclusive DUROSHIELD(R) skirt coating. DUROSHIELD(R) provides scuff resistance, reduced bore clearances and enhanced ring sealing.
- SPEED-PRO(R) POWERFORGED(R) pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
- The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006") per set.
- In the box: Engine set of weight-matched SPEED-PRO(R) POWERFORGED(R) pistons, pins and lock rings (if required).
Specifications
- GTIN
- 00019826219329
- Weight
- 13.85 lb
- Height
- 4.92 in
- Length
- 21.37 in
- Width
- 10.26 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Bore (Inch)
- 4.151
- Compression Height (in.)
- 1.715
- Dome Volume CC
- 10.0
- Groove 1 Qty
- 2
- Groove 1 Width
- 1/16
- Groove 2 Qty
- 1
- Groove 2 Width
- 1/8
- Head Type
- .225 dome; DUROSHIELD skirt coated piston; 60 O/S has .190 dome
- Lock Ring
- Included
- Minimum Clearance
- .0050
- Oversize Inch
- .030
- Part Description
- Engine Piston
- Pin Diameter (Inch)
- 0.980
- Pin Type
- F
- Pin Weight Gram
- 194
- Weight W Pin Gram
- 783
- Weight w/o Pin Gram
- 589
Fitment status
This product is universal and will fit your application.
Application summary
Performance
Resources

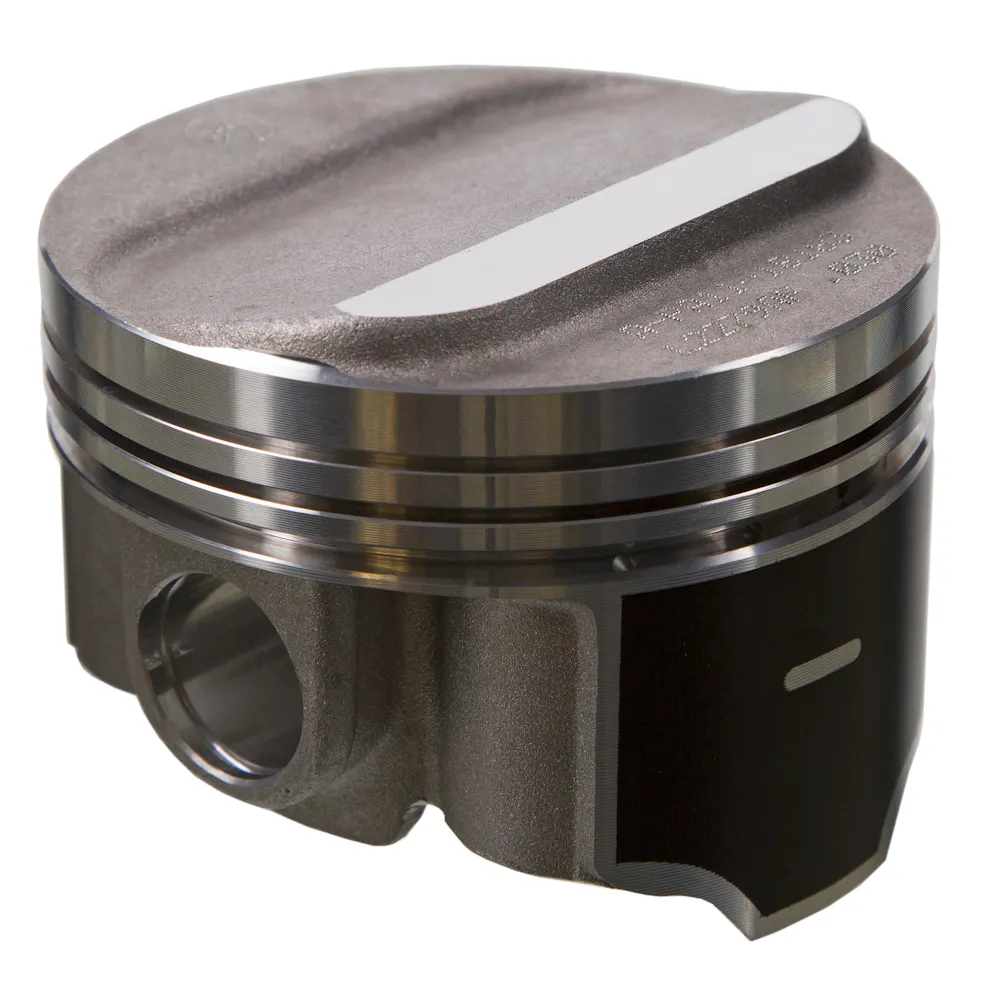

Speed Pro L-2279AF 30
