Speed Pro / L-2268NF 30
Part #: L-2268NF 30
UPC: 019826077608
Loading...
Notify me when this item is in stock.

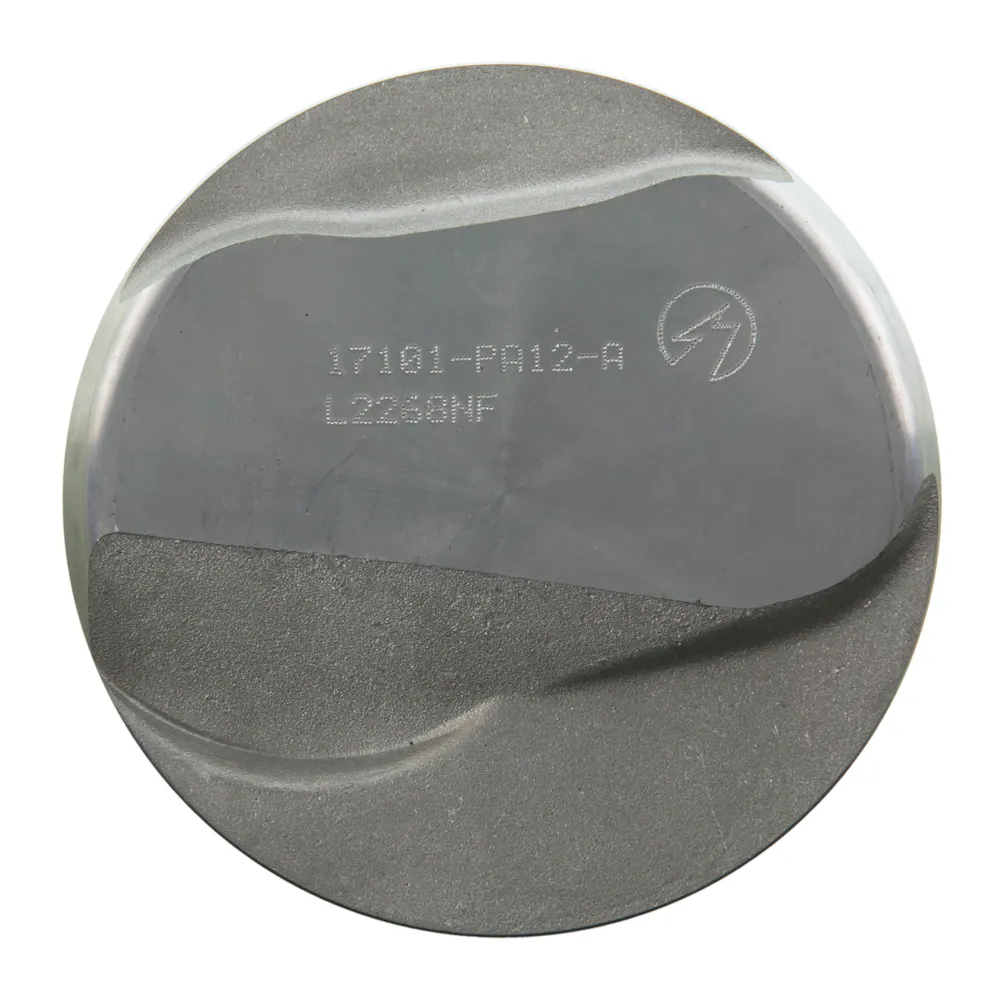

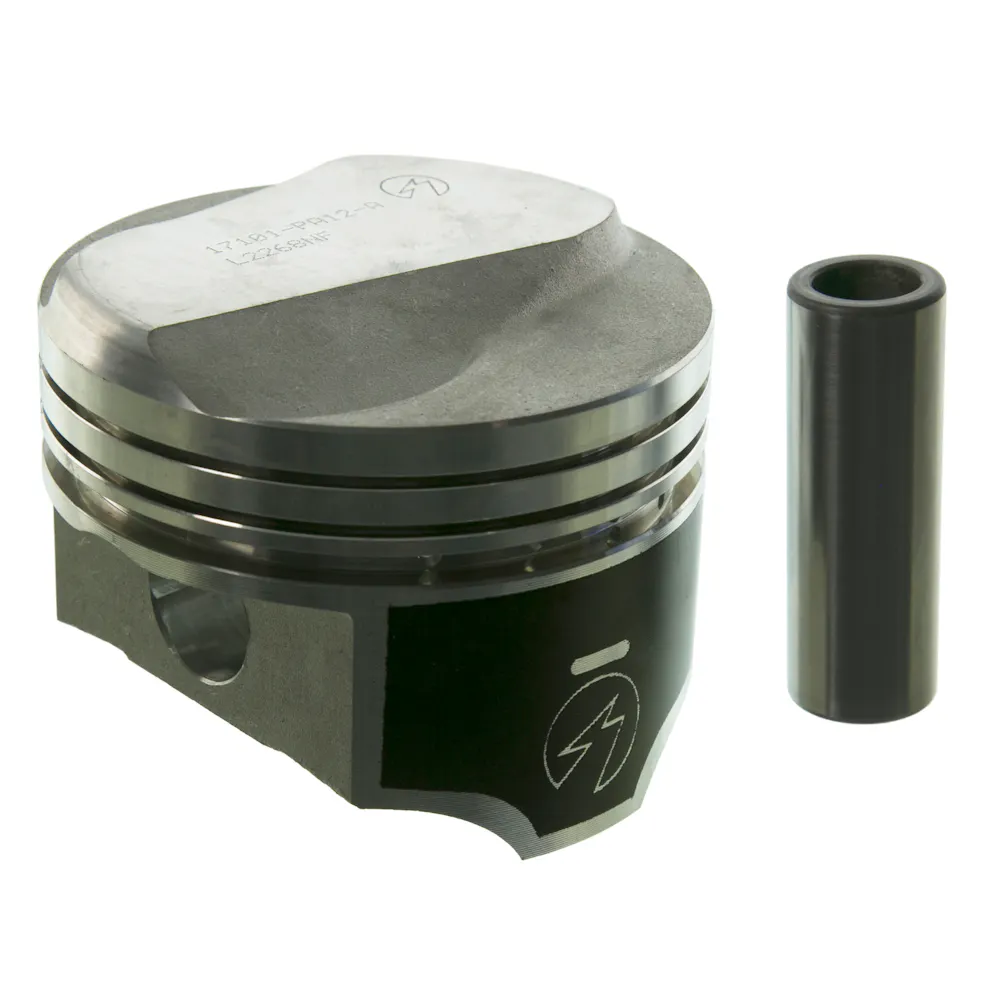

Description: POWERFORGED Piston Set; Speed Pro L-2268NF 30 Engine Piston Set
Description:
Description
Speed-Pro(R) delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components.
Features & benefits
- Forged under 3,000 tons of force.
- Fully updated skirt profiles
- Exclusive DUROSHIELD(R) skirt coating. DUROSHIELD(R) provides scuff resistance, reduced bore clearances and enhanced ring sealing.
- SPEED-PRO(R) POWERFORGED(R) pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
- The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006") per set.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
Application summary
| Year | Make / model |
|---|---|
| 1966-1969 | Chevrolet Bel Air |
| 1966-1969 | Chevrolet Biscayne |
| 1969 | Chevrolet Brookwood |
| 1969 | Chevrolet Camaro |
| 1966-1969 | Chevrolet Caprice |
| 1966-1969 | Chevrolet Corvette |
| 1969 | Chevrolet Estate |
| 1966-1969 | Chevrolet Impala |
| 1969 | Chevrolet Kingswood |
| 1969 | Chevrolet Townsman |
| 1966-1969 | Pontiac Laurentian |
| 1966-1969 | Pontiac Parisienne |
| 1966-1969 | Pontiac Strato-Chief |
Specifications
- GTIN
- 00019826077608
- Weight
- 15.14 lb
- Height
- 4.92 in
- Length
- 21.37 in
- Width
- 10.26 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Bore (Inch)
- 4.280
- Compression Distance
- 1.765
- Dome Volume CC
- 35.5
- Groove 1 Qty
- 2
- Groove 1 Width
- 5/64
- Groove 2 Qty
- 1
- Groove 2 Width
- 3/16
- Head Type
- .266 dome; DUROSHIELD skirt coated piston; 60 O/S has .255 dome
- Lock Ring
- N/R
- Minimum Clearance
- .0035
- Oversize Inch
- .030
- Part Description
- Engine Piston
- Pin Diameter (Inch)
- 0.990
- Pin Type
- P
- Pin Weight Gram
- 154
- Weight W Pin Gram
- 859
- Weight w/o Pin Gram
- 705
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1966-1969 Chevrolet Bel Air; 1966-1969 Chevrolet Biscayne; 1969 Chevrolet Brookwood; 1969 Chevrolet Camaro; 1966-1969 Chevrolet Caprice; 1966-1969 Chevrolet Corvette; 1969 Chevrolet Estate; 1966-1969 Chevrolet Impala; 1969 Chevrolet Kingswood; 1969 Chevrolet Townsman; 1966-1969 Pontiac Laurentian; 1966-1969 Pontiac Parisienne; 1966-1969 Pontiac Strato-Chief
