Speed Pro / L-2262F 20
Part #: L-2262F 20
UPC: 724956394654
Loading...
Notify me when this item is in stock.
Description: POWERFORGED Piston Set; Speed Pro L-2262F 20 Engine Piston Set
Description:
Description
Speed-Pro(R) delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components.
Features & benefits
- Forged under 3,000 tons of force.
- Fully updated skirt profiles
- Exclusive DUROSHIELD(R) skirt coating. DUROSHIELD(R) provides scuff resistance, reduced bore clearances and enhanced ring sealing.
- SPEED-PRO(R) POWERFORGED(R) pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
- The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006") per set.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
Application summary
| Year | Make / model |
|---|---|
| 1967-1974 | Pontiac Bonneville |
| 1967-1974 | Pontiac Catalina |
| 1967-1970 | Pontiac Executive |
| 1967-1974 | Pontiac Firebird |
| 1973-1974 | Pontiac Grand Am |
| 1967-1974 | Pontiac Grand Prix |
| 1971-1974 | Pontiac Grand Safari |
| 1972-1974 | Pontiac Grandville |
| 1967-1973 | Pontiac GTO |
| 1967-1974 | Pontiac Laurentian |
| 1968-1974 | Pontiac LeMans |
| 1967-1974 | Pontiac Parisienne |
| 1968-1970 | Pontiac Tempest |
Specifications
- GTIN
- 00724956394654
- Weight
- 1.97 lb
- Height
- 4.92 in
- Length
- 21.37 in
- Width
- 10.26 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Bore (Inch)
- 4.140
- Compression Distance
- 1.714
- Dome Volume CC
- -6.7
- Groove 1 Qty
- 2
- Groove 1 Width
- 5/64
- Groove 2 Qty
- 1
- Groove 2 Width
- 3/16
- Head Illustration
- 54
- Head Type

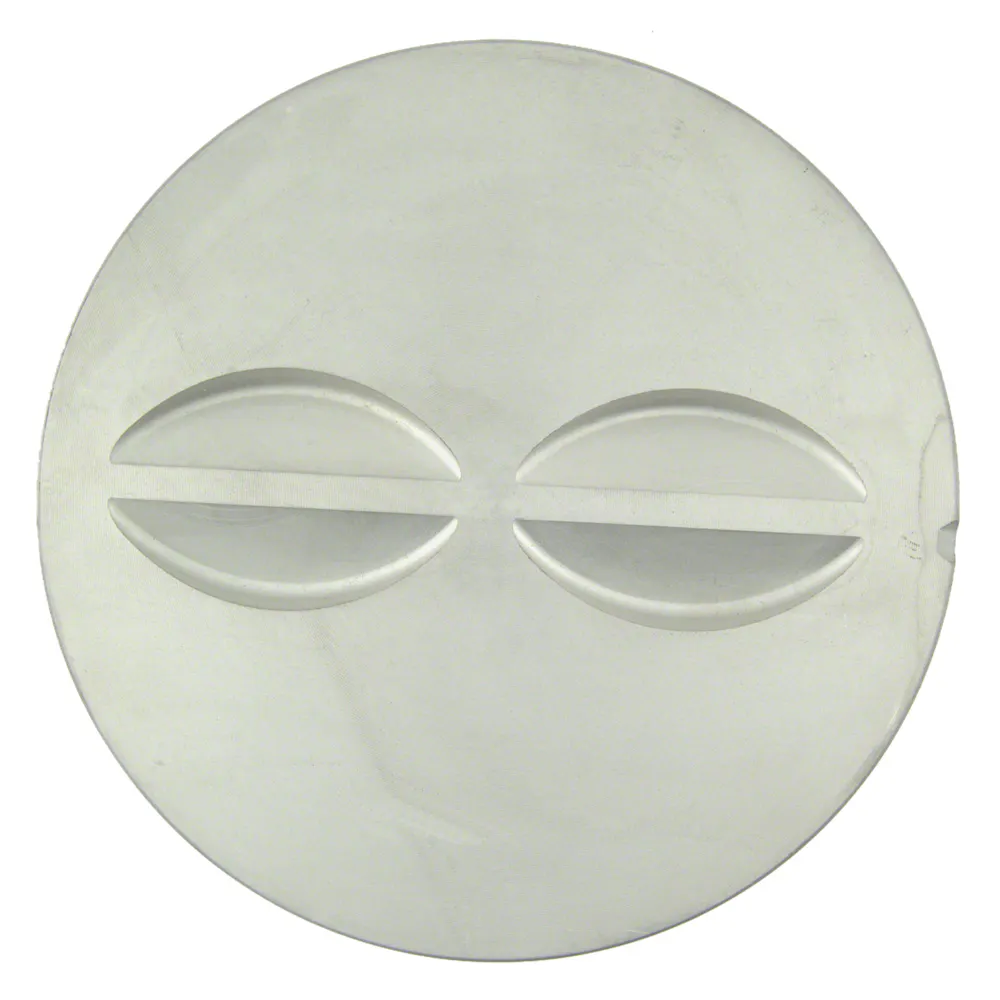

- Flat, 4 reliefs; DUROSHIELD skirt coated piston
- Lock Ring
- N/R
- Minimum Clearance
- .0020
- Oversize Inch
- .020
- Part Description
- Engine Piston
- Part Material
- POWERFORGED®
- Pin Diameter (Inch)
- 0.980
- Pin Type
- P
- Pin Weight Gram
- 194
- Weight W Pin Gram
- 793
- Weight w/o Pin Gram
- 599
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1967-1974 Pontiac Bonneville; 1967-1974 Pontiac Catalina; 1967-1970 Pontiac Executive; 1967-1974 Pontiac Firebird; 1973-1974 Pontiac Grand Am; 1967-1974 Pontiac Grand Prix; 1971-1974 Pontiac Grand Safari; 1972-1974 Pontiac Grandville; 1967-1973 Pontiac GTO; 1967-1974 Pontiac Laurentian; 1968-1974 Pontiac LeMans; 1967-1974 Pontiac Parisienne; 1968-1970 Pontiac Tempest
Resources

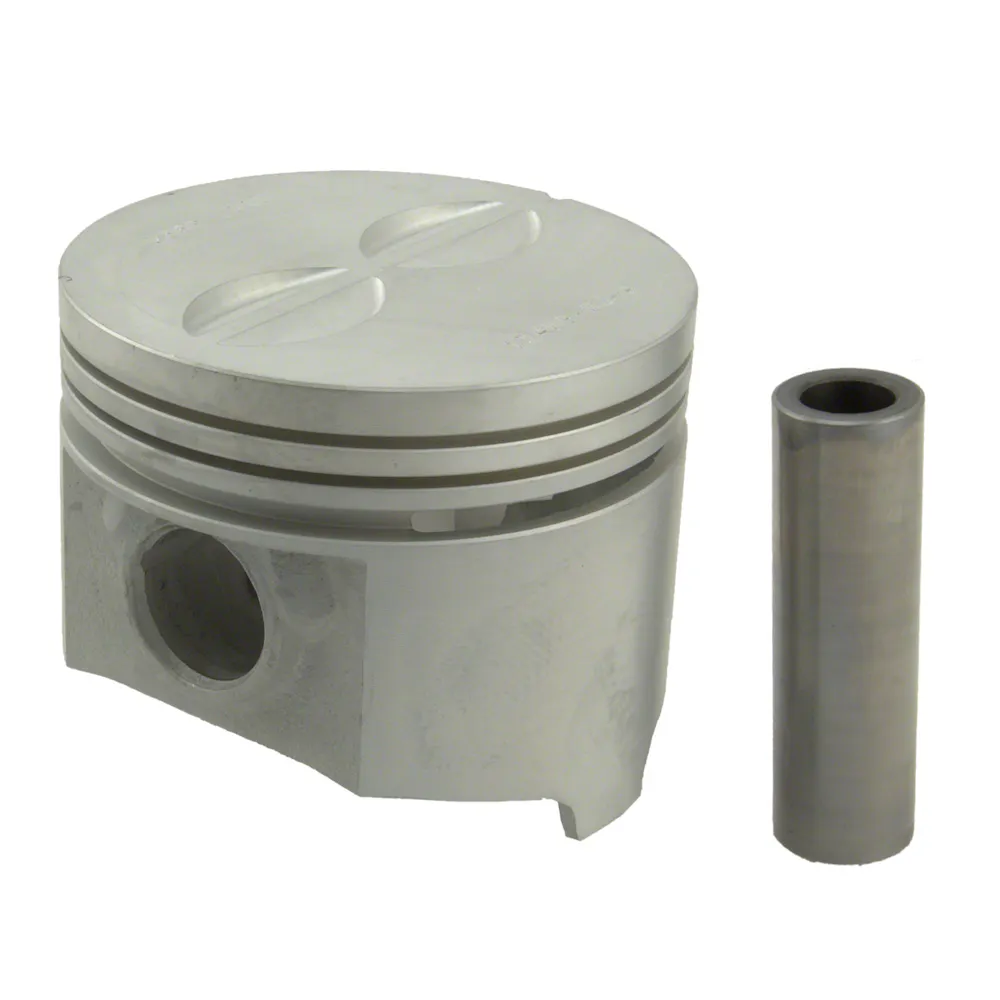

Speed Pro L-2262F 20
