Speed Pro / L-2242NF 30
Part #: L-2242NF 30
UPC: 019826070500
Loading...
Notify me when this item is in stock.
Description: POWERFORGED Piston Set; Speed Pro L-2242NF 30 Engine Piston Set
Description:
Description
Speed-Pro(R) delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components.
Features & benefits
- Forged under 3,000 tons of force.
- Fully updated skirt profiles
- Exclusive DUROSHIELD(R) skirt coating. DUROSHIELD(R) provides scuff resistance, reduced bore clearances and enhanced ring sealing.
- SPEED-PRO(R) POWERFORGED(R) pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
- The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006") per set.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
Application summary
| Year | Make / model |
|---|---|
| 1965-1968 | Chevrolet Bel Air |
| 1965-1968 | Chevrolet Biscayne |
| 1967-1969 | Chevrolet Camaro |
| 1966-1968 | Chevrolet Caprice |
| 1965-1969 | Chevrolet Chevelle |
| 1968 | Chevrolet Chevy II |
| 1965 | Chevrolet Corvette |
| 1965-1968 | Chevrolet Impala |
| 1969 | Chevrolet Nova |
| 1968-1969 | Pontiac Acadian |
| 1965-1969 | Pontiac Beaumont |
| 1966-1968 | Pontiac Laurentian |
| 1966-1968 | Pontiac Parisienne |
| 1965-1968 | Pontiac Strato-Chief |
Specifications
- GTIN
- 00019826070500
- Weight
- 15.04 lb
- Height
- 4.54 in
- Length
- 19.42 in
- Width
- 9.31 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Bore (Inch)
- 4.124
- Compression Distance
- 1.765
- Dome Volume CC
- 38.3
- Groove 1 Qty
- 2
- Groove 1 Width
- 5/64
- Groove 2 Qty
- 1
- Groove 2 Width
- 3/16
- Head Type
- .335 dome; DUROSHIELD skirt coated piston; 40 O/S has .330 dome; 60 O/S has .319 dome
- Lock Ring
- N/R
- Minimum Clearance
- .0020
- Oversize Inch
- .030
- Part Description
- Engine Piston
- Pin Diameter (Inch)
- 0.990
- Pin Type
- P
- Pin Weight Gram
- 154
- Weight W Pin Gram
- 822
- Weight w/o Pin Gram
- 668
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1965-1968 Chevrolet Bel Air; 1965-1968 Chevrolet Biscayne; 1967-1969 Chevrolet Camaro; 1966-1968 Chevrolet Caprice; 1965-1969 Chevrolet Chevelle; 1968 Chevrolet Chevy II; 1965 Chevrolet Corvette; 1965-1968 Chevrolet Impala; 1969 Chevrolet Nova; 1968-1969 Pontiac Acadian; 1965-1969 Pontiac Beaumont; 1966-1968 Pontiac Laurentian; 1966-1968 Pontiac Parisienne; 1965-1968 Pontiac Strato-Chief
Resources

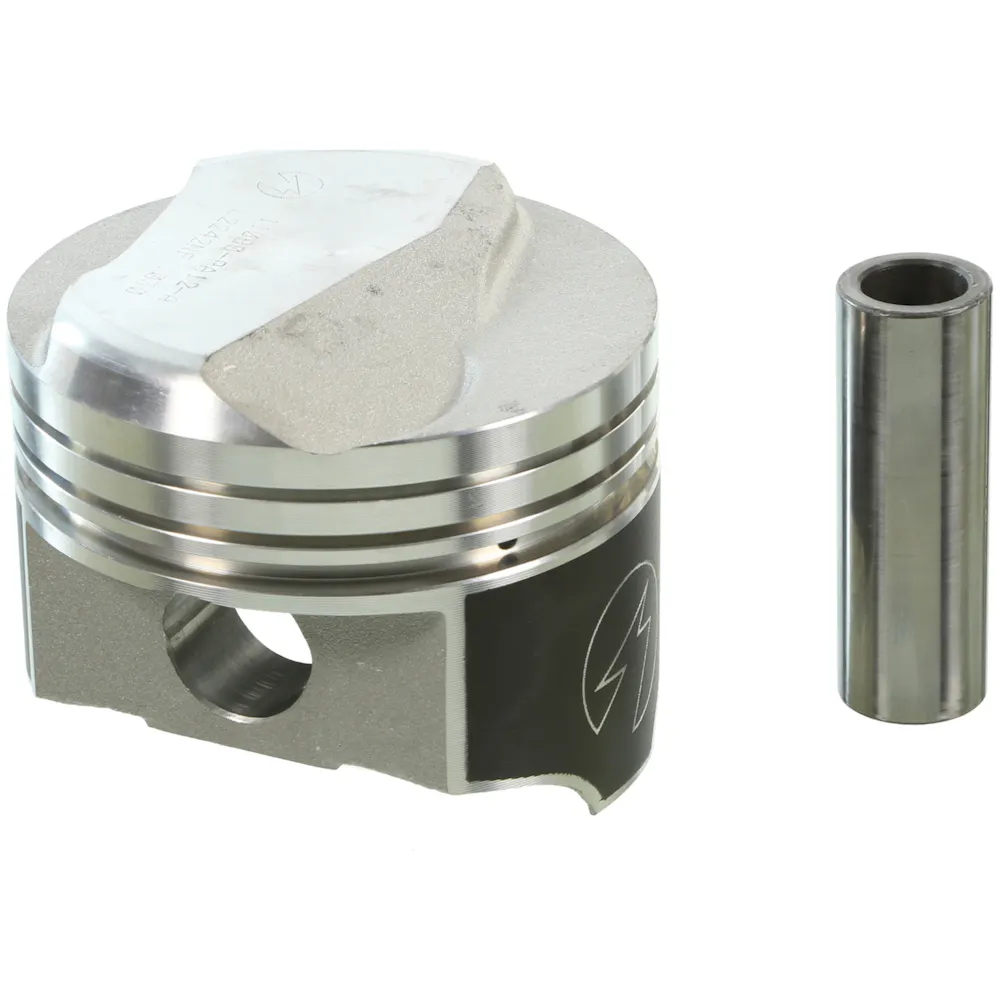

Speed Pro L-2242NF 30
