Speed Pro · H618CP 30

Speed Pro H618CP 30

Part #: H618CP 30
UPC: 614046228481

Log in for inventory
Notify me when this item is in stock.

Brand: Speed Pro Series: Hypereutectic Coated Skirt Pistons
Log in to order

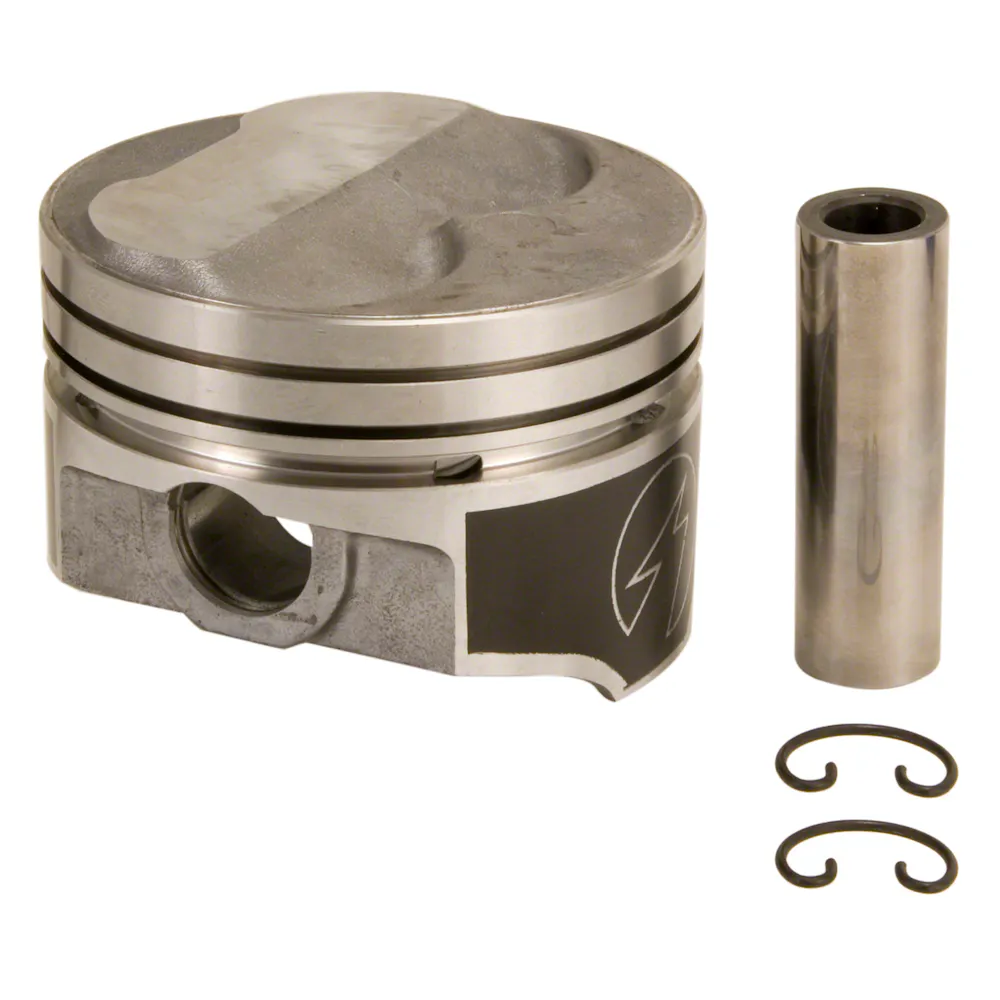

Description: Cast Piston Set; Speed Pro H618CP 30 Engine Piston Set

Description:

Description

Speed-Pro(R) delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components.

Features & benefits

  • Exclusive higher-strength FM-425 alloy with 16.5 percent silicon finely dispersed throughout the material
  • Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
  • Piston skirts protected by next-gen DUROSHIELD(R) coating.
  • TACTM ring groove geometry
  • Weight matched to +/- 2 grams.
  • Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications

Application summary

Year Make / model
1980 Chevrolet C10
1982-1985 Chevrolet C10
1980-1985 Chevrolet C10 Suburban
1980-1985 Chevrolet C20
1980-1985 Chevrolet C20 Suburban
1980-1985 Chevrolet C30
1981 Chevrolet Camaro
1985 Chevrolet Caprice
1981-1982 Chevrolet Corvette
1984-1985 Chevrolet Corvette
1980-1985 Chevrolet G10
1980-1985 Chevrolet G20
1980-1985 Chevrolet G30
1981-1985 Chevrolet Impala
1980-1985 Chevrolet K10
1980-1985 Chevrolet K10 Suburban
1980-1985 Chevrolet K20
1980-1985 Chevrolet K20 Suburban
1980-1985 Chevrolet K30
1980-1985 Chevrolet K5 Blazer
1981 Chevrolet Malibu
1980-1985 Chevrolet P20
1980-1985 Chevrolet P30
1980-1985 GMC C1500
1980-1985 GMC C1500 Suburban
1980-1985 GMC C2500
1980-1985 GMC C2500 Suburban
1980-1985 GMC C3500
1980-1985 GMC G1500
1980-1985 GMC G2500
1980-1985 GMC G3500
1980-1985 GMC Jimmy
1980-1985 GMC K1500
1980-1985 GMC K1500 Suburban
1980-1985 GMC K2500
1980-1985 GMC K2500 Suburban
1980-1985 GMC K3500
1980-1985 GMC P2500
1980-1985 GMC P3500

Specifications

GTIN
00614046228481
Weight
10 lb
Height
4.54 in
Length
19.42 in
Width
9.31 in
EO
Legal US
Life cycle
Available to Order
AAM brand code
SPP
Warehouse brand code
BHVW
AAIA brand code
BHVW

Attributes

Bore (Inch)
4.030
Compression Distance
1.560
Dome Volume CC
3.5
Groove 1 Qty
2
Groove 1 Width
5/64
Groove 2 Qty
1
Groove 2 Width
3/16
Head Illustration
135
Head Type

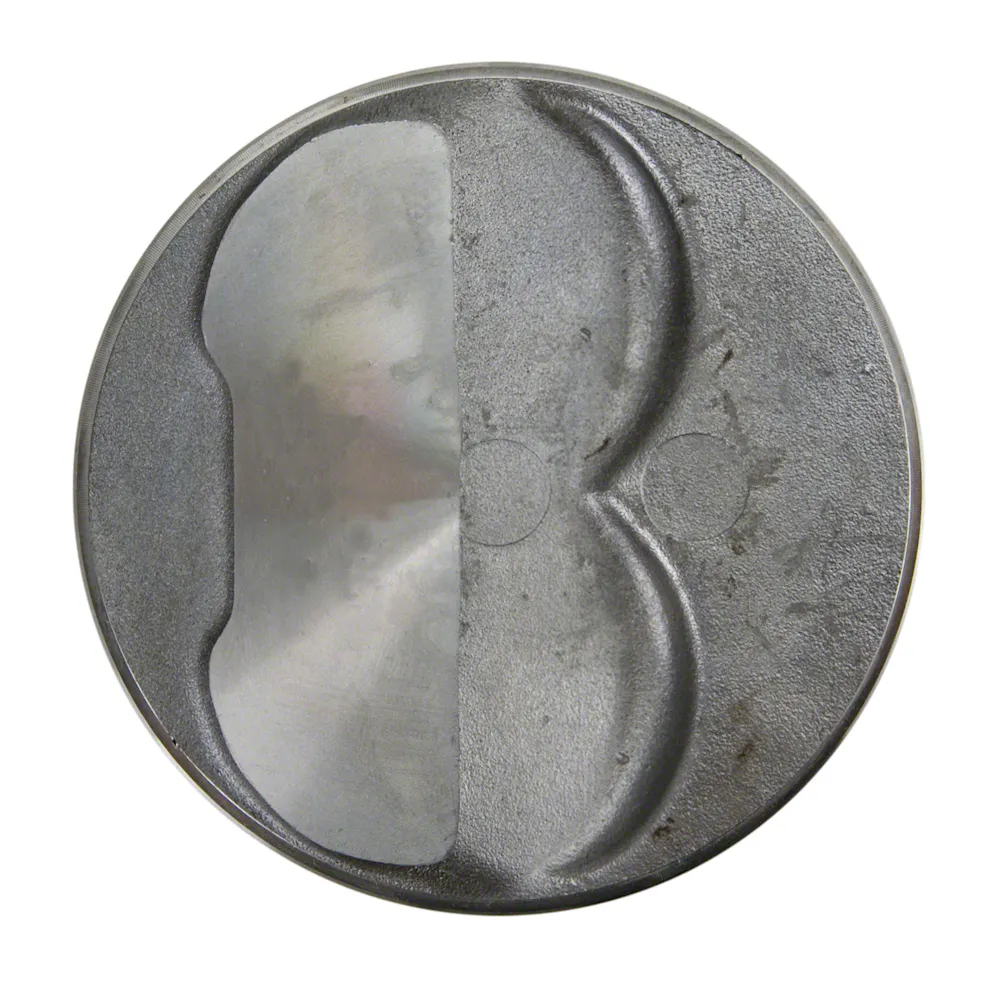

.125 dome, 2 reliefs; DUROSHIELD skirt coated piston
Lock Ring
Included
Minimum Clearance
.0010
Oversize Inch
.030
Part Description
Engine Piston
Part Material
Hypereutectic
Pin Diameter (Inch)
0.927
Pin Type
F
Pin Weight Gram
159
Weight W Pin Gram
755
Weight w/o Pin Gram
596

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1980 Chevrolet C10; 1982-1985 Chevrolet C10; 1980-1985 Chevrolet C10 Suburban; 1980-1985 Chevrolet C20; 1980-1985 Chevrolet C20 Suburban; 1980-1985 Chevrolet C30; 1981 Chevrolet Camaro; 1985 Chevrolet Caprice; 1981-1982 Chevrolet Corvette; 1984-1985 Chevrolet Corvette; 1980-1985 Chevrolet G10; 1980-1985 Chevrolet G20; 1980-1985 Chevrolet G30; 1981-1985 Chevrolet Impala; 1980-1985 Chevrolet K10; 1980-1985 Chevrolet K10 Suburban; 1980-1985 Chevrolet K20; 1980-1985 Chevrolet K20 Suburban; 1980-1985 Chevrolet K30; 1980-1985 Chevrolet K5 Blazer; 1981 Chevrolet Malibu; 1980-1985 Chevrolet P20; 1980-1985 Chevrolet P30; 1980-1985 GMC C1500; 1980-1985 GMC C1500 Suburban; 1980-1985 GMC C2500; 1980-1985 GMC C2500 Suburban; 1980-1985 GMC C3500; 1980-1985 GMC G1500; 1980-1985 GMC G2500; 1980-1985 GMC G3500; 1980-1985 GMC Jimmy; 1980-1985 GMC K1500; 1980-1985 GMC K1500 Suburban; 1980-1985 GMC K2500; 1980-1985 GMC K2500 Suburban; 1980-1985 GMC K3500; 1980-1985 GMC P2500; 1980-1985 GMC P3500
