Speed Pro · H616CP 60
Part #: H616CP 60
UPC: 614046228405
Log in for inventory
Notify me when this item is in stock.
Description: Cast Piston; Speed Pro H616CP 60 Engine Piston
Description:
Description
Speed-Pro(R) delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components.
Features & benefits
- Exclusive higher-strength FM-425 alloy with 16.5 percent silicon finely dispersed throughout the material
- Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
- Piston skirts protected by next-gen DUROSHIELD(R) coating.
- TACTM ring groove geometry
- Weight matched to +/- 2 grams.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
Specifications
- GTIN
- 00614046228405
- Weight
- 13.04 lb
- Height
- 4.92 in
- Length
- 21.37 in
- Width
- 10.26 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Bore (Inch)
- 4.185
- Compression Distance
- 1.425
- Dome Volume CC
- -6.0
- Groove 1 Qty
- 2
- Groove 1 Width
- 5/64
- Groove 2 Qty
- 1
- Groove 2 Width
- 3/16

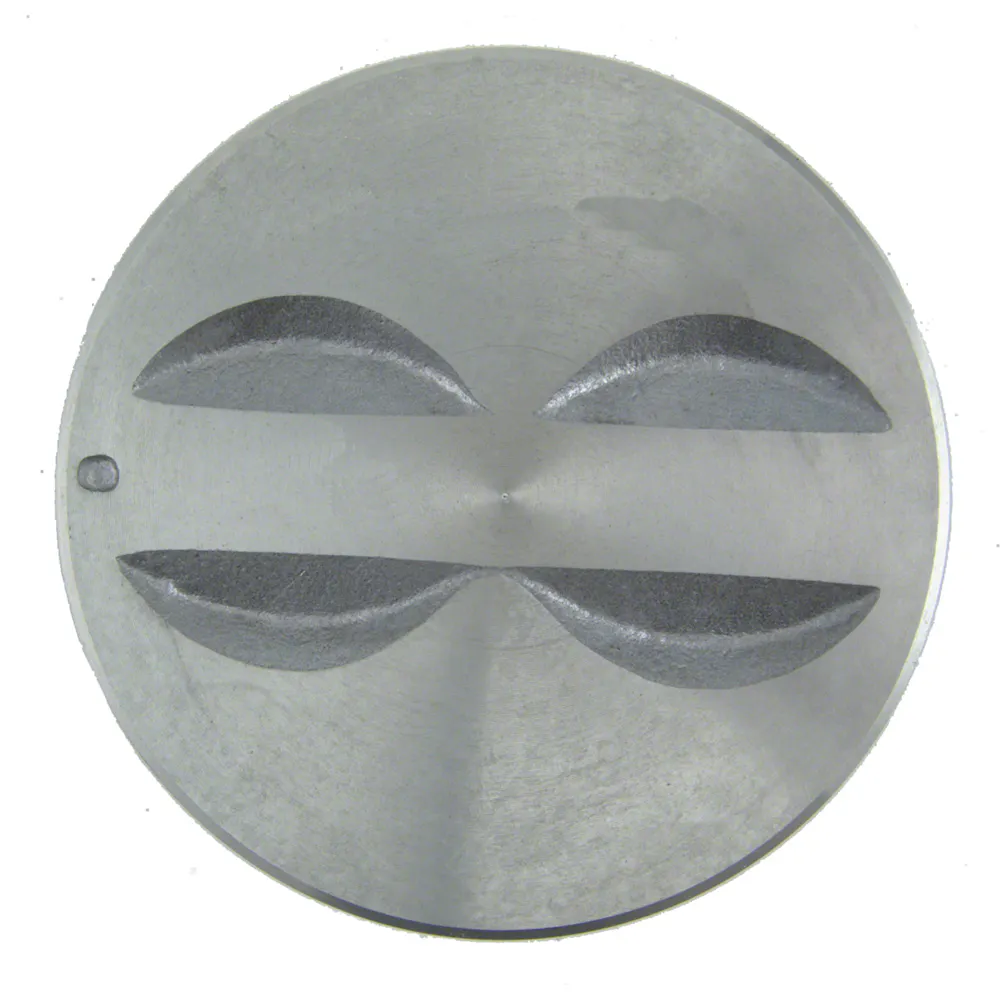

- Head Illustration
- 189
- Head Type
- Flat, 4 reliefs; DUROSHIELD skirt coated piston
- Lock Ring
- Included
- Minimum Clearance
- .0015
- Oversize Inch
- .060
- Part Description
- Engine Piston
- Part Material
- Hypereutectic
- Pin Diameter (Inch)
- 0.927
- Pin Type
- F
- Pin Weight Gram
- 159
- Weight W Pin Gram
- 767
- Weight w/o Pin Gram
- 608
Fitment status
This product is universal and will fit your application.
Application summary
Performance
Resources
Speed Pro H616CP 60
