Speed Pro · H1536CP 30
Part #: H1536CP 30
UPC: 019826226815
Log in for inventory
Notify me when this item is in stock.
Description: Cast Piston; Speed Pro H1536CP 30 Engine Piston
Description:
Description
Speed-Pro(R) delivers the power you need and the value and quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components
Features & benefits
- Speed-Pro(R) combines our proprietary FM425 AXP alloy, sophisticated design and graphite coating in a high value hypereutectic piston
- Blended skirt coat provides reduced engine wear/fatigue, decreased piston slap, increased horsepower and increased fuel efficiency
- Performance & dependability of original equipment pistons

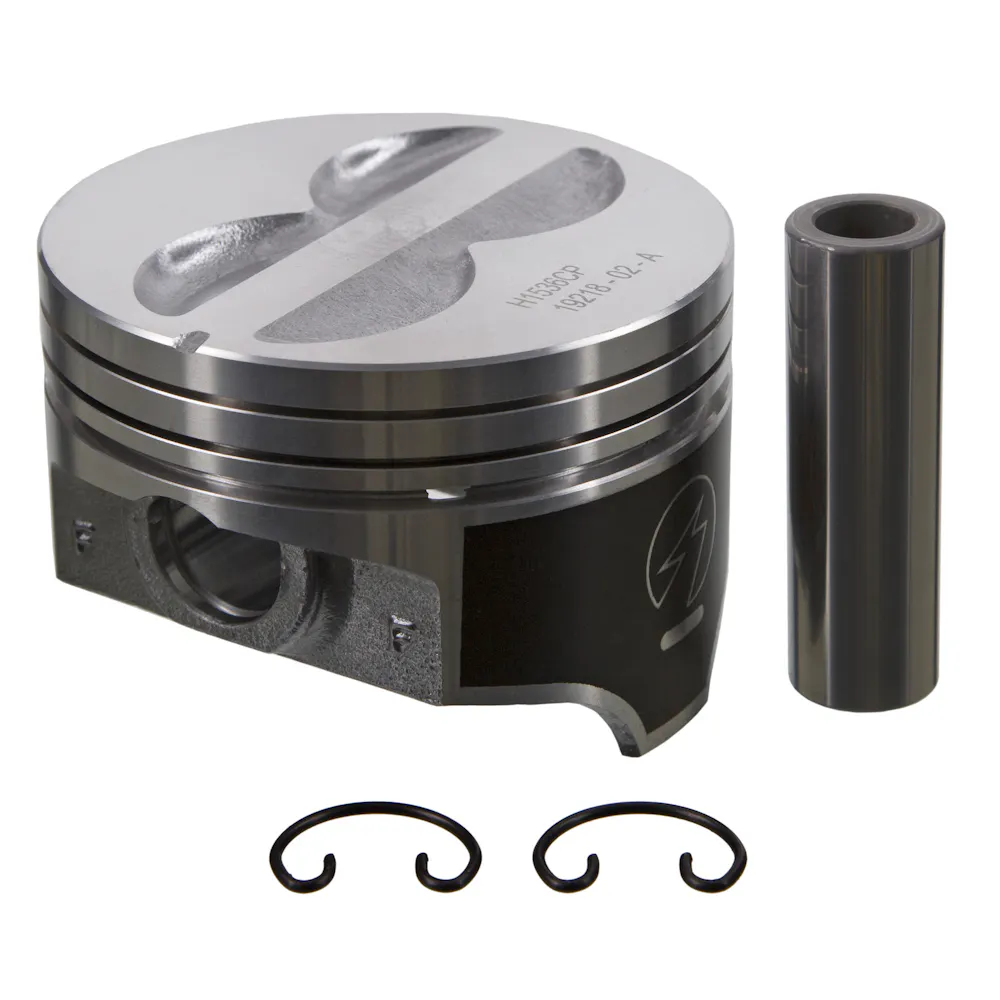

- In the box: cast pistons, pins & clips
Specifications
- GTIN
- 00019826226815
- Weight
- 12.96 lb
- Height
- 5.12 in
- Length
- 20.47 in
- Width
- 10.04 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Bore (Inch)
- 4.155
- Compression Height (in.)
- 1.425
- Dome Volume CC
- -6.0
- Groove 1 Qty
- 1
- Groove 1 Width
- 1.50MM
- Groove 2 Qty
- 1
- Groove 2 Width
- 1.50MM
- Groove 3 Qty
- 1
- Groove 3 Width
- 3.00MM
- Head Type
- Flat, 4 Valve Pockets, Duroshield Coated Skirts
- Lock Ring
- Included
- Minimum Clearance
- .0015
- Oversize Inch
- .030
- Part Description
- Engine Piston
- Part Material
- Hypereutectic
- Pin Diameter (Inch)
- 0.9279
- Pin Offset (Inch)
- 0.03
- Pin Type
- F
- Pin Weight Gram
- 159
- Weight W Pin Gram
- 752
- Weight w/o Pin Gram
- 593
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
GM 400 6.6L
