Speed Pro · H144CP 30
Part #: H144CP 30
UPC: 614046657878
Log in for inventory
Notify me when this item is in stock.
Description: Speed Pro H144CP 30 Engine Piston
Description:
Description
Speed-Pro(R) delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components.
Features & benefits
- Exclusive higher-strength FM-425 alloy with 16.5 percent silicon finely dispersed throughout the material
- Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
- Piston skirts protected by next-gen DUROSHIELD(R) coating.
- TAC? ring groove geometry
- Weight matched to +/- 2 grams.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
Specifications
- GTIN
- 00614046657878
- Weight
- 17 lb
- Height
- 4.92 in
- Length
- 21.37 in
- Width
- 10.26 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Assembly Lubricant Included
- No
- Bore (Inch)
- 4.496
- California Proposition 65
- No
- Compression Distance
- 1.645
- Cylinder Bore Diameter
- 4.496
- Dome Volume CC
- 6.2
- Grade Type
- Performance
- Groove 1 Qty
- 1
- Groove 1 Width
- 2.00mm
- Groove 2 Qty
- 1
- Groove 2 Width
- 1.50mm
- Groove 3 Qty
- 1
- Groove 3 Width
- 4.00mm
- Head Illustration
- 56
- Head Type
- .100 dome, 1 relief; DUROSHIELD skirt coated piston
- Lock Ring
- Included
- Minimum Clearance
- .0015
- Oil Ring Thickness
- 4.00
- Oversize Inch
- .030
- Oversized
- Yes
- Oversized Amount
- .030
- Part Description
- Engine Piston
- Part Material
- Hypereutectic
- Pin Diameter (Inch)
- 0.990
- Pin Type
- F
- Pin Weight Gram
- 175
- Piston Material
- Hypereutectic
- Second Compression Ring Thickness
- 1.50
- Top Compression Ring Thickness
- 2.00
- Weight W Pin Gram
- 948
- Weight w/o Pin Gram
- 773
Fitment status
This product is universal and will fit your application.
Application summary
Performance

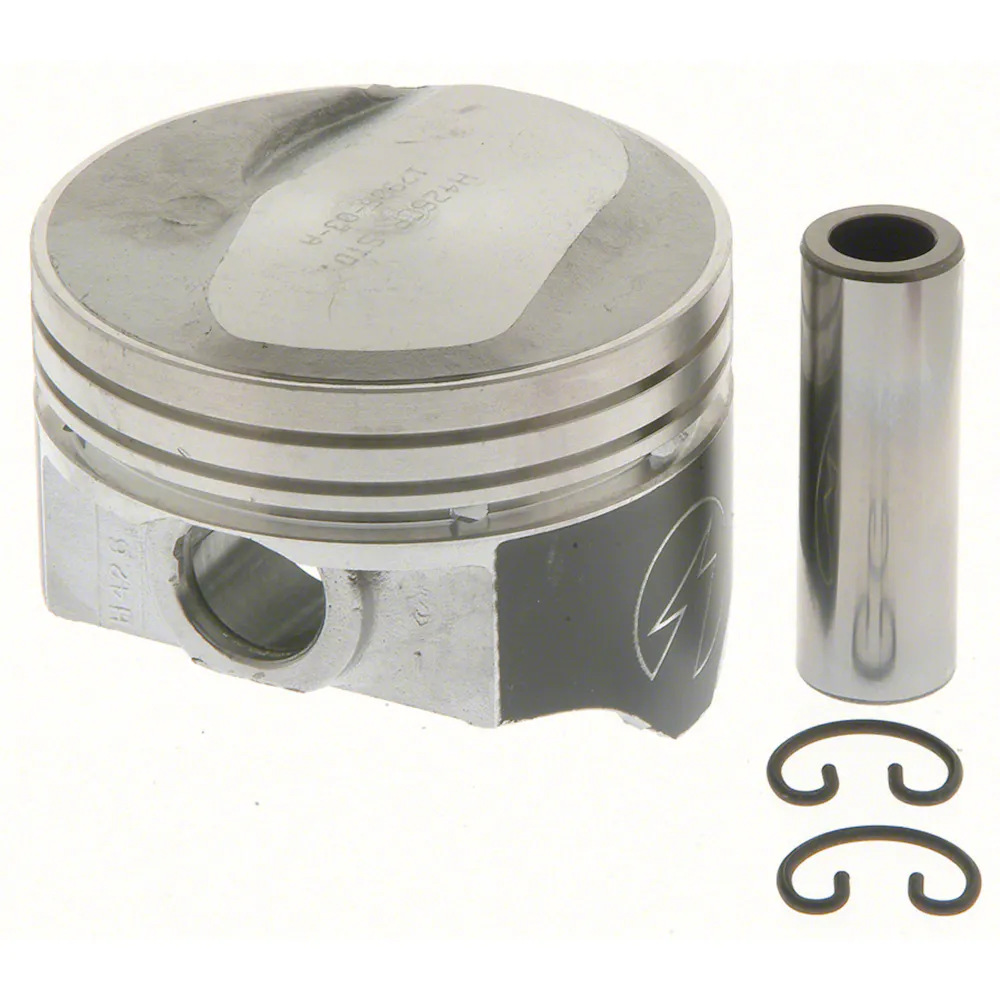

Speed Pro H144CP 30
