Speed Pro · H138CL 30
Part #: H138CL 30
UPC: 614046629851
Log in for inventory
Notify me when this item is in stock.

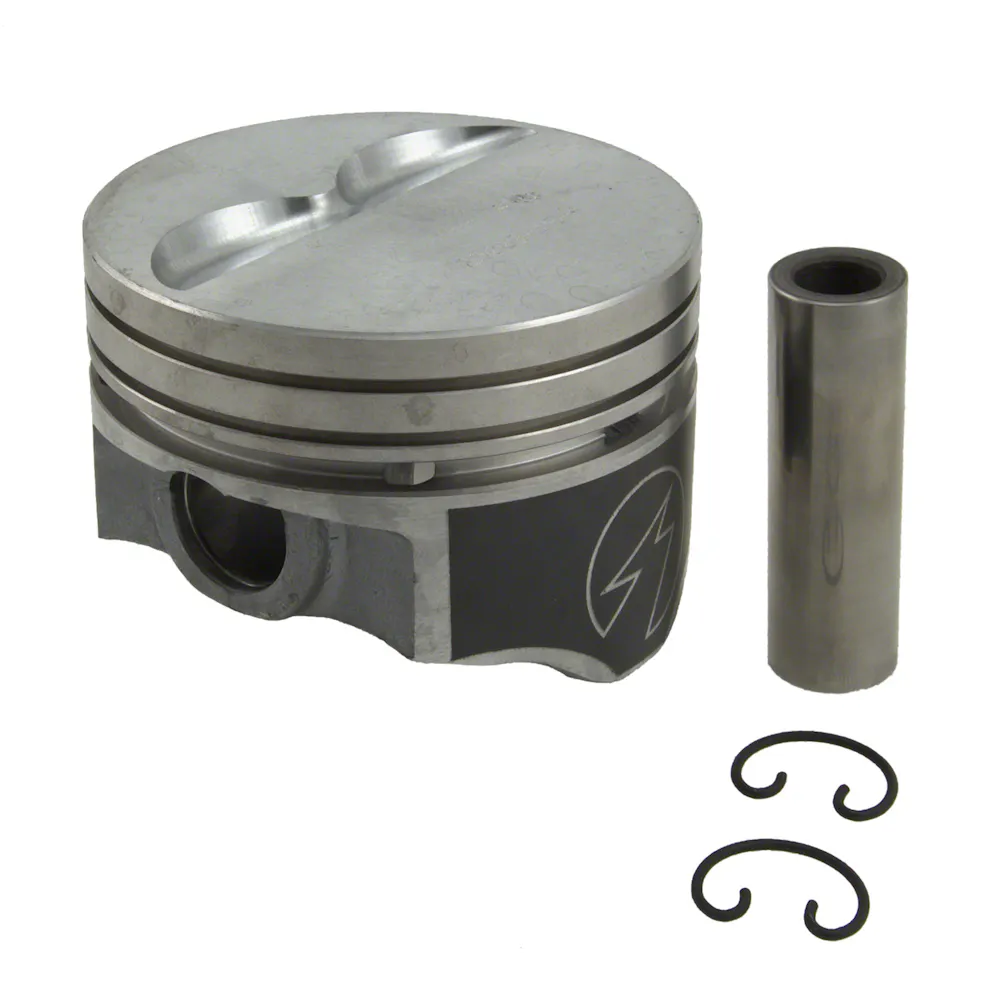

Description: Speed-Pro H138CL 30 Cast Piston (Carton of 8)
Description:
Description
Speed-Pro® delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro® to provide the best value in HP engine components.
Features & benefits
- Exclusive higher-strength FM-425 alloy with 16.5 percent silicon finely dispersed throughout the material
- Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
- Piston skirts protected by next-gen DUROSHIELD® coating.
- TAC™ ring groove geometry
- Weight matched to +/- 2 grams.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
Specifications
- GTIN
- 00614046629851
- Weight
- 9.41 lb
- Height
- 4.54 in
- Length
- 19.42 in
- Width
- 9.31 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Bore (Inch)
- 4.030
- Compression Distance
- 1.425
- Design Feature 1
- Light Weight
- Dome Volume CC
- -5.0
- Groove 1 Qty
- 2
- Groove 1 Width
- 1/16
- Groove 2 Qty
- 1
- Groove 2 Width
- 3/16
- Head Illustration
- 188
- Head Type

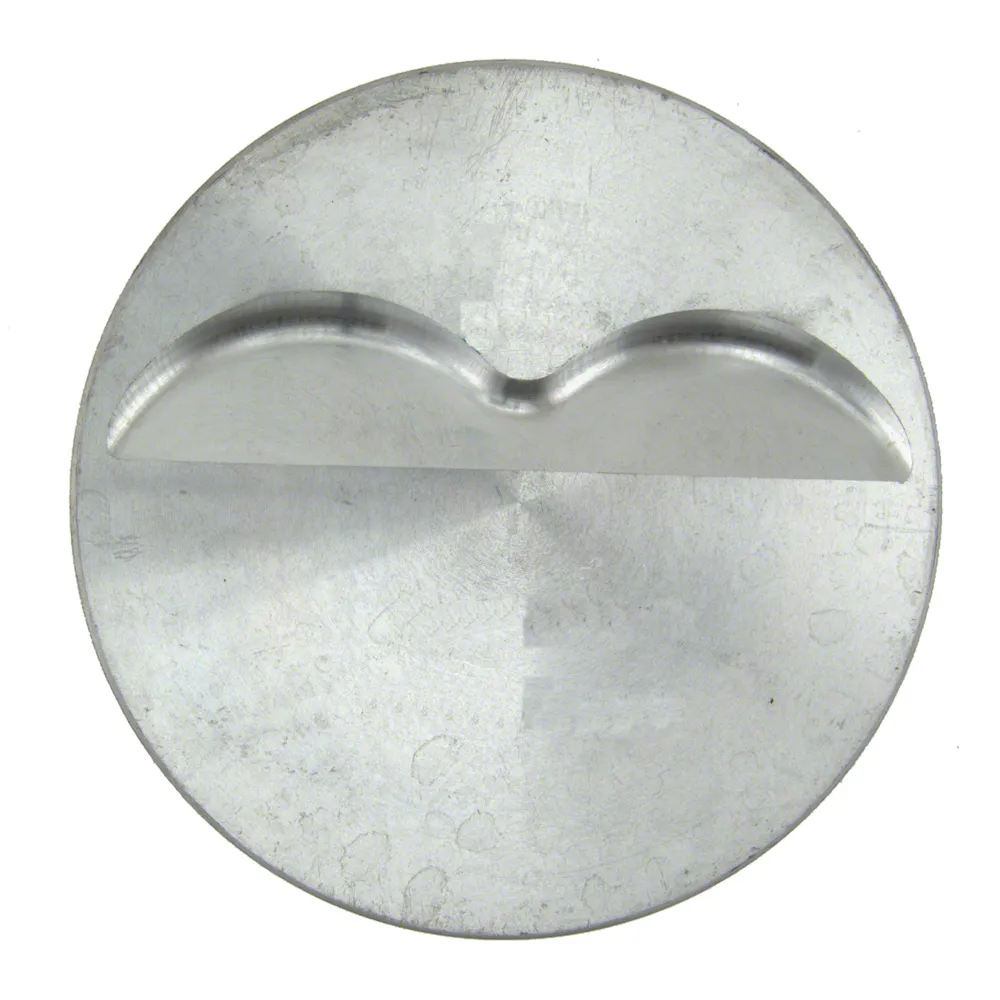

- Flat, 2 reliefs; Lightweight; Lightweight pin; CNC machined; DUROSHIELD skirt coated piston
- Lock Ring
- Included
- Minimum Clearance
- .0015
- Oversize Inch
- .030
- Part Material
- Hypereutectic
- Pin Diameter (Inch)
- 0.927
- Pin Type
- F
- Pin Weight Gram
- 133
- Weight W Pin Gram
- 667
- Weight w/o Pin Gram
- 534
Fitment status
This product is universal and will fit your application.
Application summary
Performance
