Speed Pro · H116CP 30
Part #: H116CP 30
UPC: 614046226623
Log in for inventory
Notify me when this item is in stock.
Description: Speed Pro H116CP 30 Engine Piston
Description:
Description
Speed-Pro(R) delivers the power you need and the value & quality that you deserve. Whether you are running at the track, chasing trophies on the strip, or just cruising down the road, count on Speed-Pro(R) to provide the best value in HP engine components.
Features & benefits
- Exclusive higher-strength FM-425 alloy with 16.5 percent silicon finely dispersed throughout the material
- Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
- Piston skirts protected by next-gen DUROSHIELD(R) coating.
- TAC? ring groove geometry
- Weight matched to +/- 2 grams.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
Specifications
- GTIN
- 00614046226623
- Weight
- 12.24 lb
- Height
- 4.54 in
- Length
- 19.42 in
- Width
- 9.31 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- SPP
- Warehouse brand code
- BHVW
- AAIA brand code
- BHVW
Attributes
- Assembly Lubricant Included
- No
- Bore (Inch)
- 4.030
- California Proposition 65
- No
- Compression Distance
- 1.660
- Cylinder Bore Diameter
- 4.030
- Dome Volume CC
- -5.0
- Grade Type
- Performance
- Groove 1 Qty
- 2
- Groove 1 Width
- 5/64
- Groove 2 Qty
- 1
- Groove 2 Width
- 3/16
- Head Illustration
- 64
- Head Type
- Flat, 2 reliefs; CNC machined; DUROSHIELD skirt coated piston
- Lock Ring
- Included
- Minimum Clearance
- .0015
- Oil Ring Thickness
- 0.1875
- Oversize Inch
- .030
- Oversized
- Yes
- Oversized Amount
- .030
- Part Description
- Engine Piston
- Part Material
- Hypereutectic
- Pin Diameter (Inch)
- 0.984
- Pin Type
- F
- Pin Weight Gram
- 154
- Piston Material
- Hypereutectic
- Second Compression Ring Thickness
- 0.0781
- Top Compression Ring Thickness
- 0.0781
- Weight W Pin Gram
- 736
- Weight w/o Pin Gram
- 582
Fitment status
This product is universal and will fit your application.
Application summary
Performance
Resources

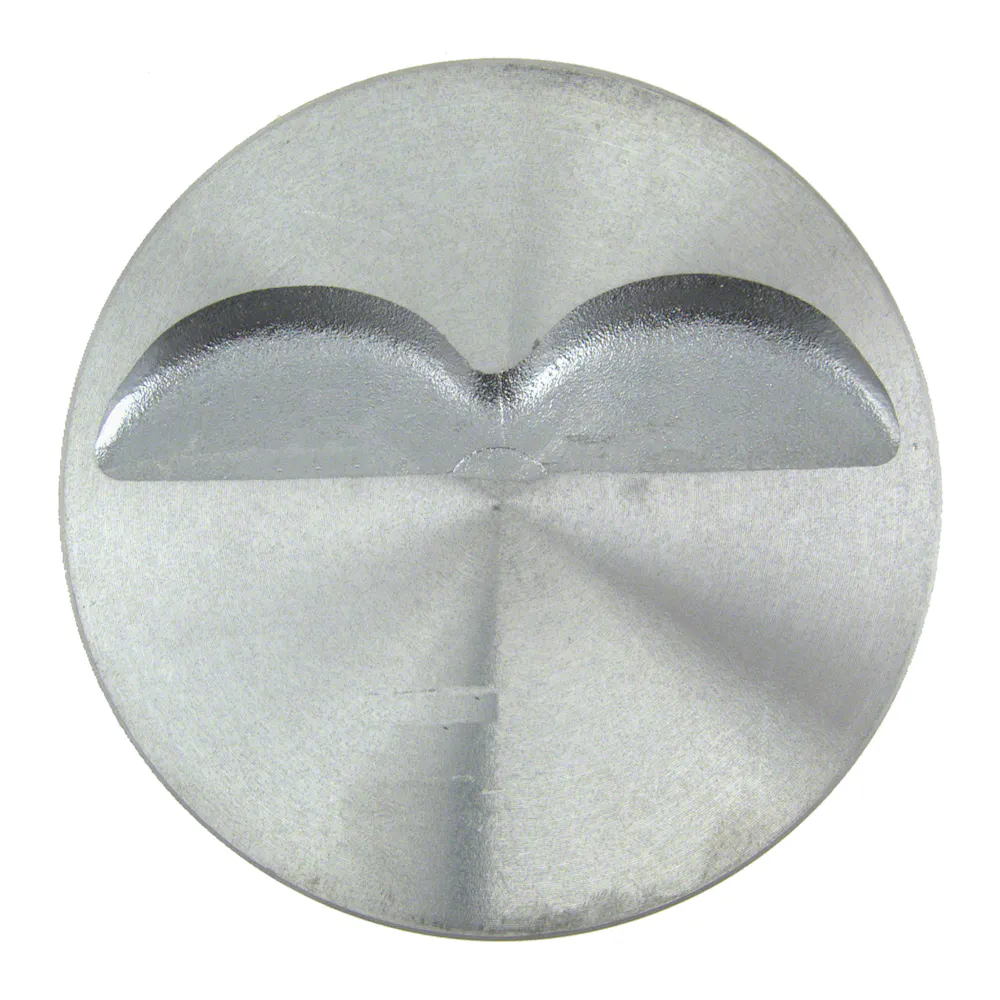

Speed Pro H116CP 30
