Raptor Series / 150208-435800

Part #: 150208-435800
UPC: 813443026304

Loading availability... Loading...
Notify me when this item is in stock.

Description: RSO Rear Lower Control Arms Forged Billet Aluminum Black Anodized 0-3.5in Lift; RSO Rear Lower Control Arms Forged Billet Aluminum 0-3.5in Lift Black Anodized - 03-24 Toyota 4Runner, 07-14 FJ Cruiser, 03-09 Lexus GX470, 10-23 GX460

Description:

This part number has been superseded by RSO - 150208-435800.

This item is a component of the following kits: K4R2330, K4R2340, K4R2350

Description

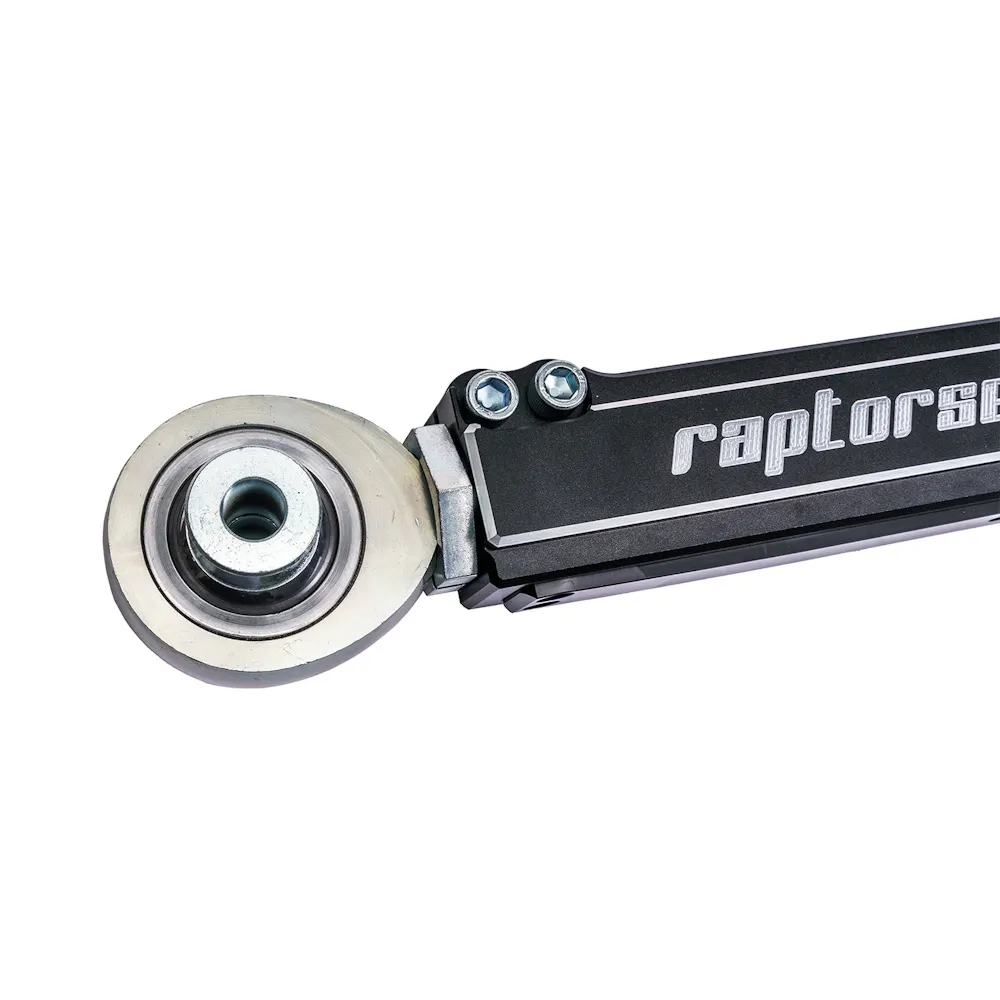

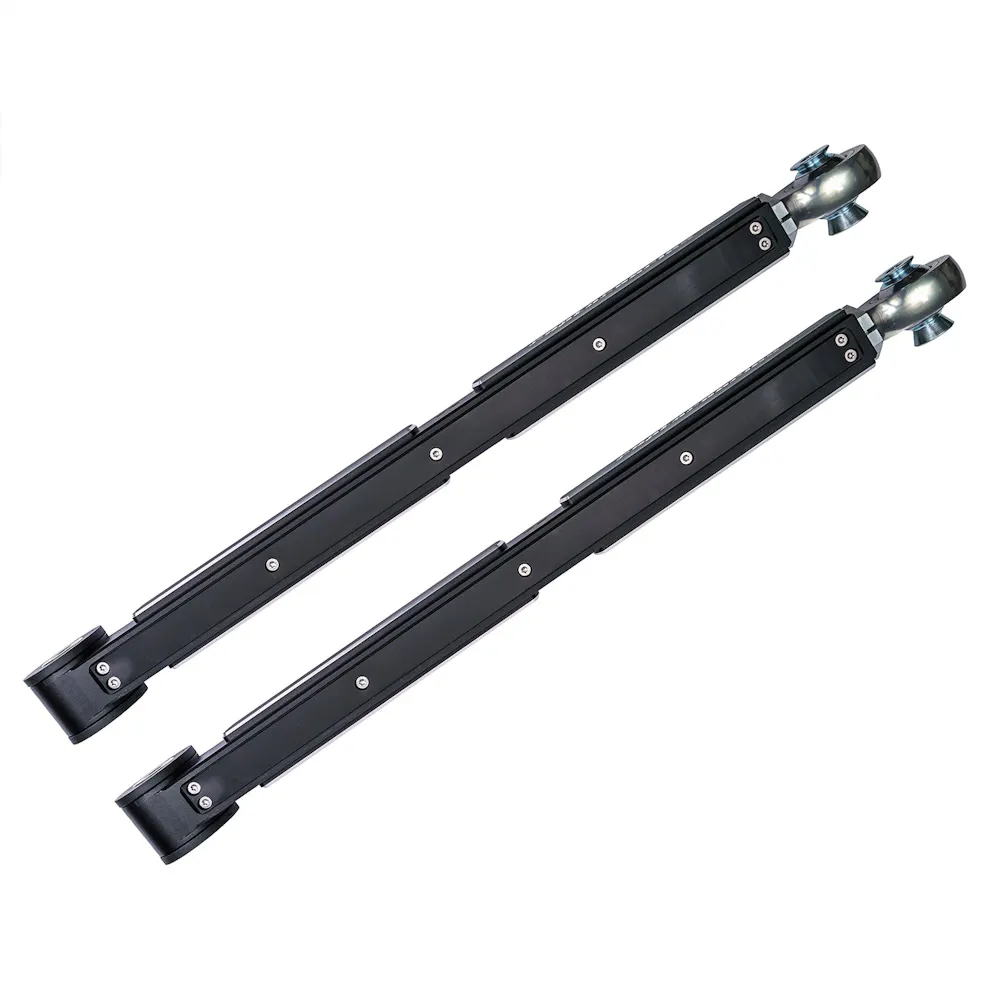

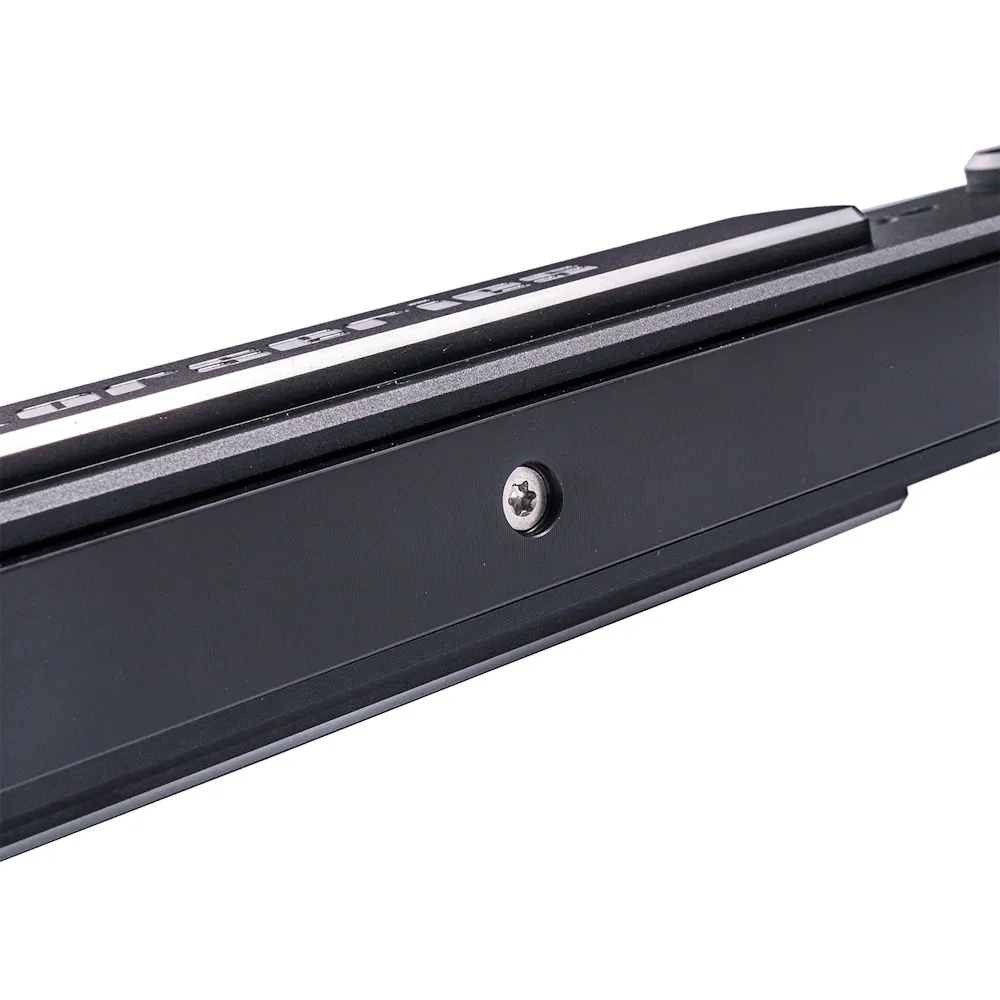

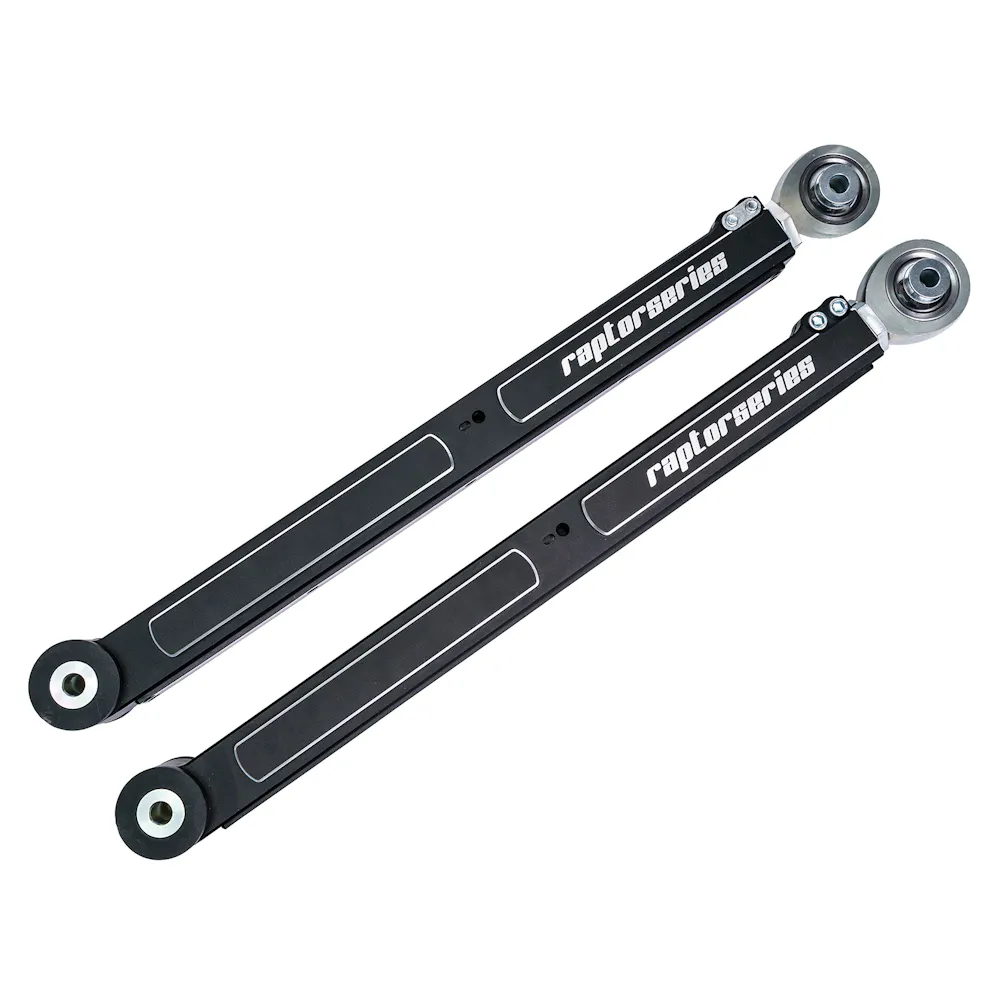

RSO Suspension Forged Billet Rear Lower Link Arms are the perfect replacement for the weak factory lower links. Forged Billet aluminum construction, black anodized coating and relief cuts machined into the finish for a stunning look with Nylon rock guard inserts for the ultimate protection. The arms are lighter and stronger than the original arms while also being fully adjustable to fit any stock height or lifted application. Large 2-inch steel rod ends and 2-inch greaseable polyurethane bushings withstand the harshest environments while eliminating side to side movement. Fully rebuildable using replaceable steel rod ends and polyurethane bushings for a lifetime of performance. The adjustable rod end allows a custom pinion angle while installed on the vehicle and the large jam nut ensures your settings are locked in. The included high misalignment spacers and rod ends increase suspension articulation while removing any binding. Direct bolt on design and all required hardware included ensures a quick and easy installation. With a limited lifetime manufacture warranty on the structure, 5-year warranty on components and 1 year warranty on finish and coating the RSO Suspension forged billet rear lower link arms are a great improvement for your offroad vehicle.

Features & benefits

  • Forged billet aluminum with black anodized coating and stainless-steel hardware are resistant to corrosion stand up to the most brutal elements for long trouble-free life
  • Increases wheel travel, removes deflection and binding allowing more articulation throughout the suspension travel

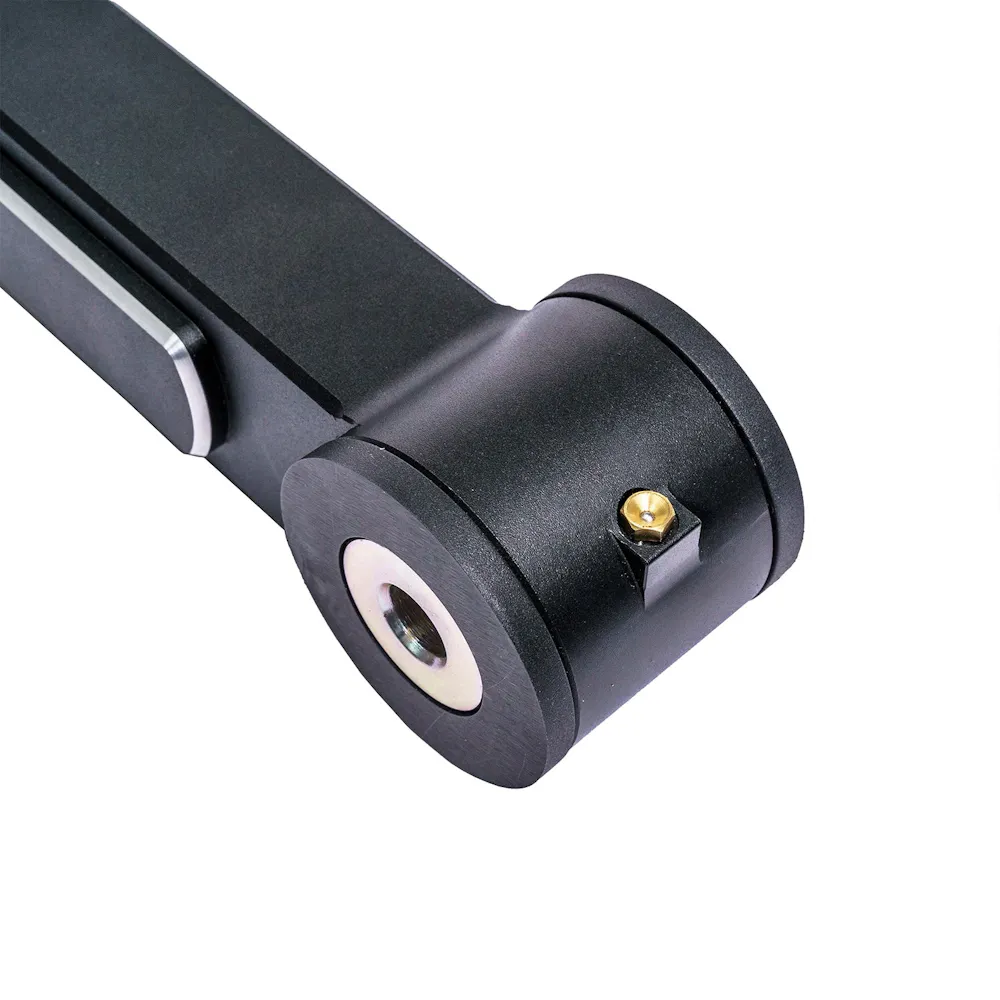

  • Large greaseable polyurethane bushings, steel rod ends with hardened steel high misalignment spacers and Nylon rock guards offer greater protection and wear resistance while being fully rebuildable
  • Direct bolt on application with vehicle specific design includes factory mounting location and all hardware required for quick installation
  • Limited Lifetime Manufacturer warranty on structure, 5 years on components and 1 year on finish and coating

Application summary

Year Make / model
2010-2023 Lexus GX460
2003-2009 Lexus GX470
2003-2024 Toyota 4Runner
2007-2014 Toyota FJ Cruiser
This item is a component of kit: Raptor Series K4R2330
Raptor Series K4R2330

Brand: Raptor Series

Part Number: K4R2330

Loading availability... Loading...
This item is a component of kit: Raptor Series K4R2340
Raptor Series K4R2340

Brand: Raptor Series

Part Number: K4R2340

Loading availability... Loading...
This item is a component of kit: Raptor Series K4R2350
Raptor Series K4R2350

Brand: Raptor Series

Part Number: K4R2350

Loading availability... Loading...

Specifications

GTIN
00813443026304
Weight
20 lb
Height
5 in
Length
32 in
Width
10 in
Life cycle
Available to Order
AAM brand code
RAP
Warehouse brand code
RAP
AAIA brand code
DTLV

Attributes

Adjustable
Yes
Bearing Type
Heim Joint
Bushing Inside Diameter
0.75
Bushing Material
Polyurethane
Bushings Included
Yes
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Color
Black
Construction
Casting/Forged
Control Arm Material
Aluminum
Finish
Powder Coated
Grade Type
Performance
Grease Fitting Included
No
Lift Height
0-3.5
Mounting Hardware Included
Yes
Pre-Greased
Yes
Product Video URL Link
https://youtu.be/lzsqZTeWHm0
ProductImage1 URL Link
https://www.cyc-engineering.com/cdn/shop/files/150208-435800_P1.jpg
ProductImage2 URL Link
https://www.cyc-engineering.com/cdn/shop/files/150208-435800_P2.jpg
ProductImage3 URL Link
https://www.cyc-engineering.com/cdn/shop/files/150208-435800_P3.jpg
ProductImage4 URL Link
https://www.cyc-engineering.com/cdn/shop/files/150208-435800_P4.jpg
ProductImage5 URL Link
https://www.cyc-engineering.com/cdn/shop/files/150208-435800_P5.jpg
Shape
A-Shape
Title
RSO Suspension - 150208-435800 - Rear Lower Control Arms Forged Billet Aluminum 0-3.5in Lift Black Anodized - 03-23 Toyota 4Runner, 07-14 FJ Cruiser, 03-09 Lexus GX470, 10-23 GX460

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2010-2023 Lexus GX460; 2003-2009 Lexus GX470; 2003-2024 Toyota 4Runner; 2007-2014 Toyota FJ Cruiser
