Raptor Series · 150107-452201
Part #: 150107-452201
UPC: 813443029237
Log in for inventory
Notify me when this item is in stock.
Description: RSO Rear 2.5 Adj Compression and Rebound Remote Reservoir Shocks 0-3in Lift; RSO Rear 2.5 Adjustable Compression and Rebound Remote Reservoir Shocks 0-3in Lift - 07-21 Toyota Tundra
Description:
This part number has been superseded by RSO - 150107-452201.
Description
RSO Suspension Adjustable Compression and Rebound (ACR) Shocks with remote reservoir provide improved suspension damping while increasing on and offroad driving comfort. They feature hand adjustable compression levels as well as adjustable rebound for the off-roader that is serious about their suspension tuning. These 2.5in smooth bore machined alloy bodies give maximum corrosion resistance. The 3/4in steel shafts and heat-treated steel spherical bearings offer strength and dependability and are protected by large high impact resistant ABS rock guards. Its external reservoir allows for increased oil and nitrogen capacity giving greater heat dissipation, increasing performance, and eliminating shock fade. Using large PTFE Lined Stainless steel braided tubing and hardened rubber UV coating hoses keeps the reservoir close to the frame away from any moving components. Experience for yourself the incredible performance and precise control that RSO Suspension’s new compression and rebound adjustable shocks deliver.
Features & benefits

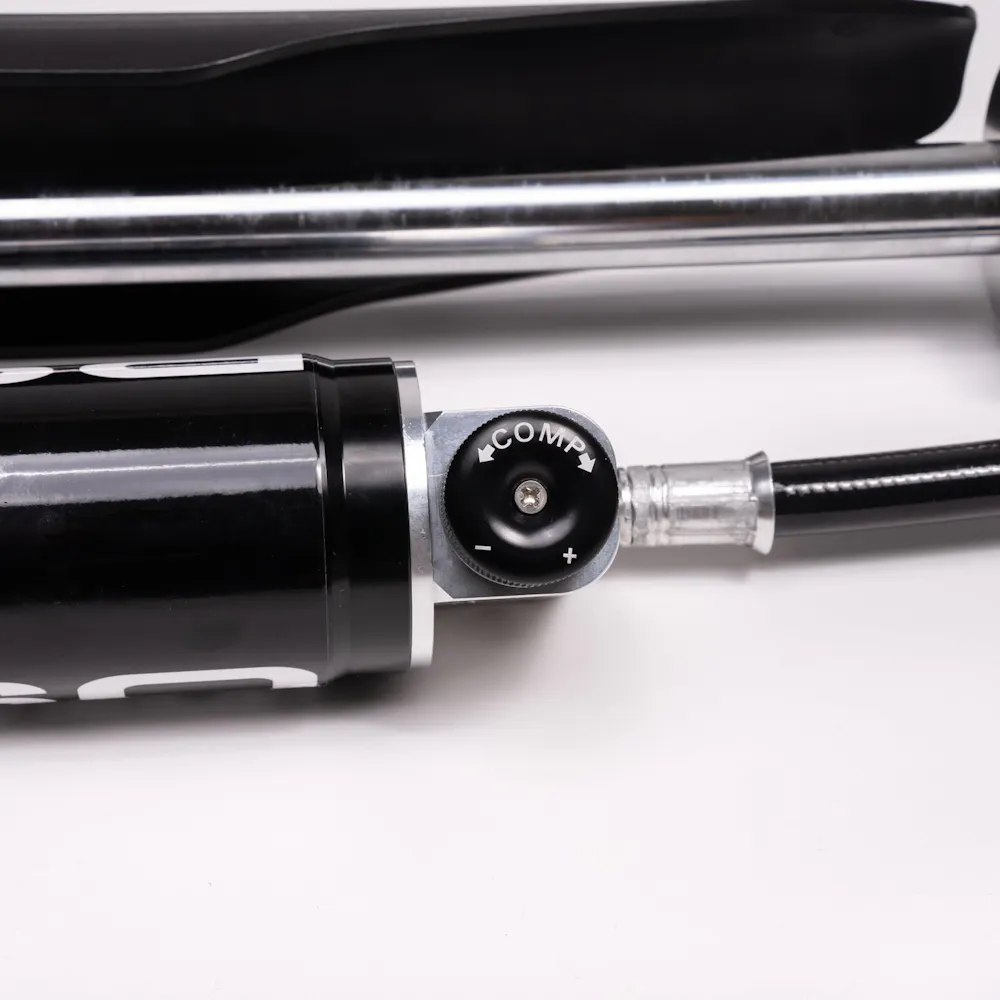

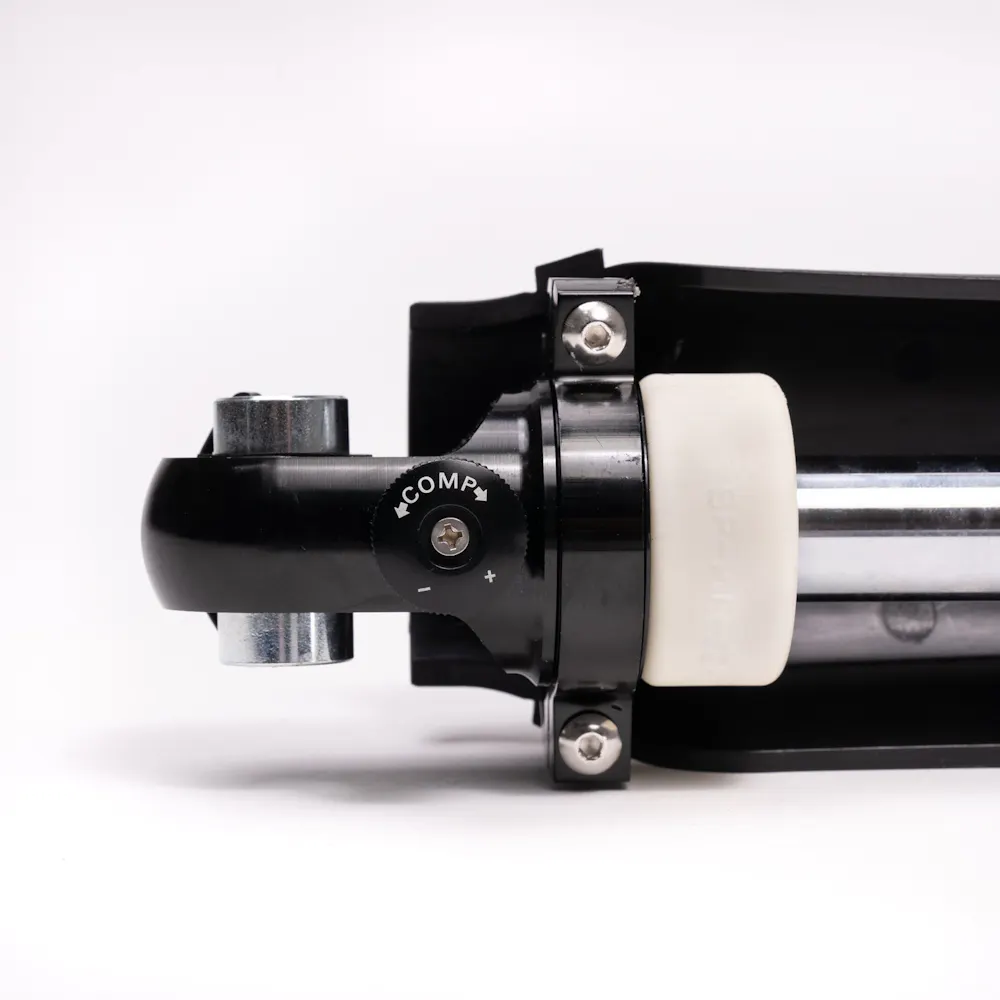

- ACR shocks provide hand adjustable compression levels (soft or firm) as well as rebound adjustability for ultimate suspension tuning
- Increased on and offroad comfort while increasing suspension travel and handling
- 2.5in steel body with Polished 3/4in steel shafts protected by the included high impact resistant ABS rock guards and heat-treated steel spherical bearings offer strength and durability

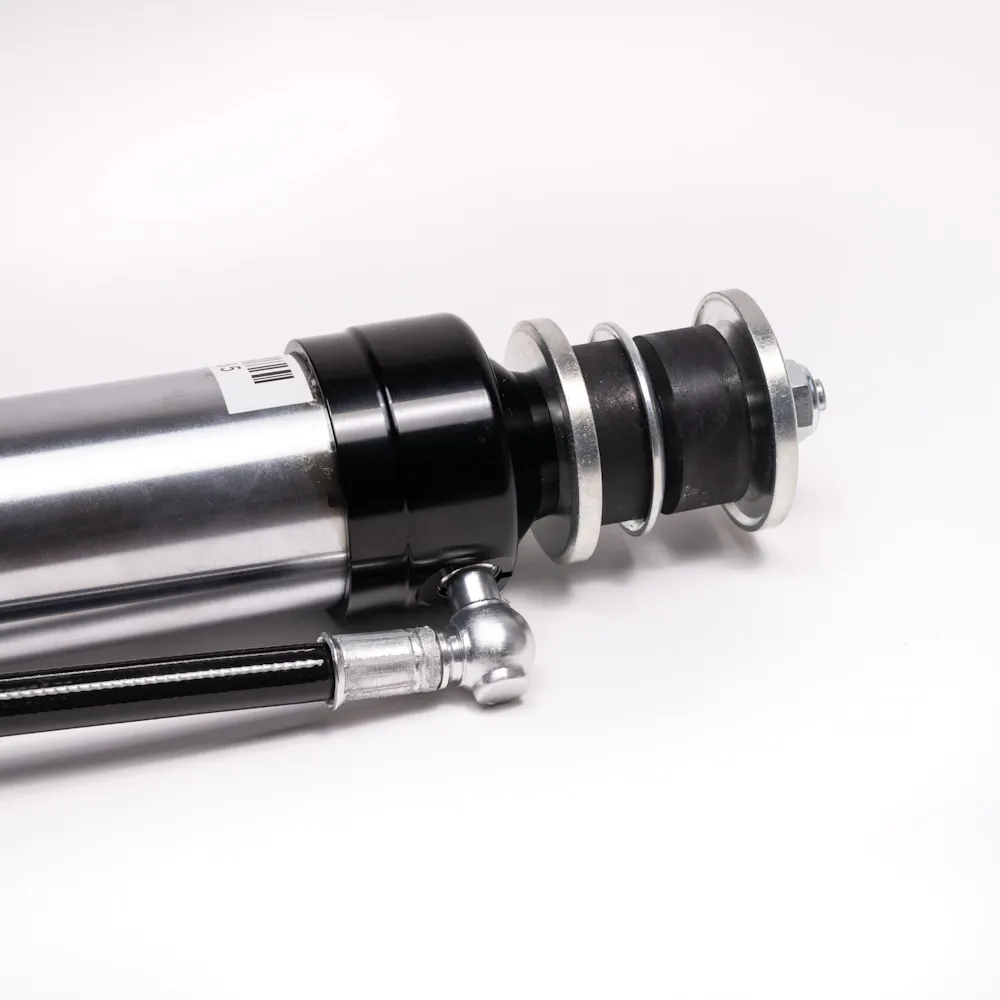

- External remote reservoir with PTFE Lined Stainless steel braided tubing and hardened rubber UV coating hose allows for increased oil and nitrogen capacity reducing heat and shock fade. Race-developed high flow piston design
- Direct replacement for stock and aftermarket lift kits. Vehicle specific fitment to ensure that the part is right for your vehicle including vehicle specific reservoir mounts. Backed by a Limited 1 Year Manufacturer warranty
Application summary
| Year | Make / model |
|---|---|
| 2007-2021 | Toyota Tundra |
Specifications
- GTIN
- 00813443029237
- Weight
- 30 lb
- Height
- 6 in
- Length
- 36 in
- Width
- 13 in
- Life cycle
- Available to Order
- AAM brand code
- RAP
- Warehouse brand code
- RAP
- AAIA brand code
- DTLV
Attributes
- Body Color
- Silver
- Body Diameter
- 2.5
- Body Material
- Steel
- Boot Included
- No
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- Silver
- Cylinder Color
- Silver
- Cylinder Material
- Steel
- Dust Shield Included
- Yes
- Extended Length
- 26.75
- Finish
- Powder Coated
- Gas Charged
- No
- Grade Type
- Performance
- Internal Construction Type
- Single Tube
- Lift Height
- 0-3
- Lower Mount Type
- Loop (Eyelet) Bushing and Sleeve
- Mounting Hardware Included
- Yes
- Position
- Rear
- Product Video URL Link
- https://youtu.be/XIz4eB4bBbA
- ProductImage1 URL Link
- https://www.cyc-engineering.com/cdn/shop/files/150107-452201_P1_0223.jpg
- ProductImage2 URL Link
- https://www.cyc-engineering.com/cdn/shop/files/150107-452201_P2.jpg
- ProductImage3 URL Link
- https://www.cyc-engineering.com/cdn/shop/files/150107-452201_P3.jpg
- ProductImage4 URL Link
- https://www.cyc-engineering.com/cdn/shop/files/150107-452201_P4.jpg
- Reservoir Mount Style
- Remote
- Rod Diameter
- 0.86
- Shaft Material
- Steel
- Shock Absorber Body End Measuring Point
- 12
- Shock Absorber Rod End Measuring Point
- 9.75
- Title
- RSO Suspension - 150107-452201 - Rear 2.5 Adjustable Compression and Rebound Remote Reservoir Shocks 0-3in Lift - 07-21 Toyota Tundra
- Type
- Telescopic
- Upper Mount Type
- Stem
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2007-2021 Toyota Tundra

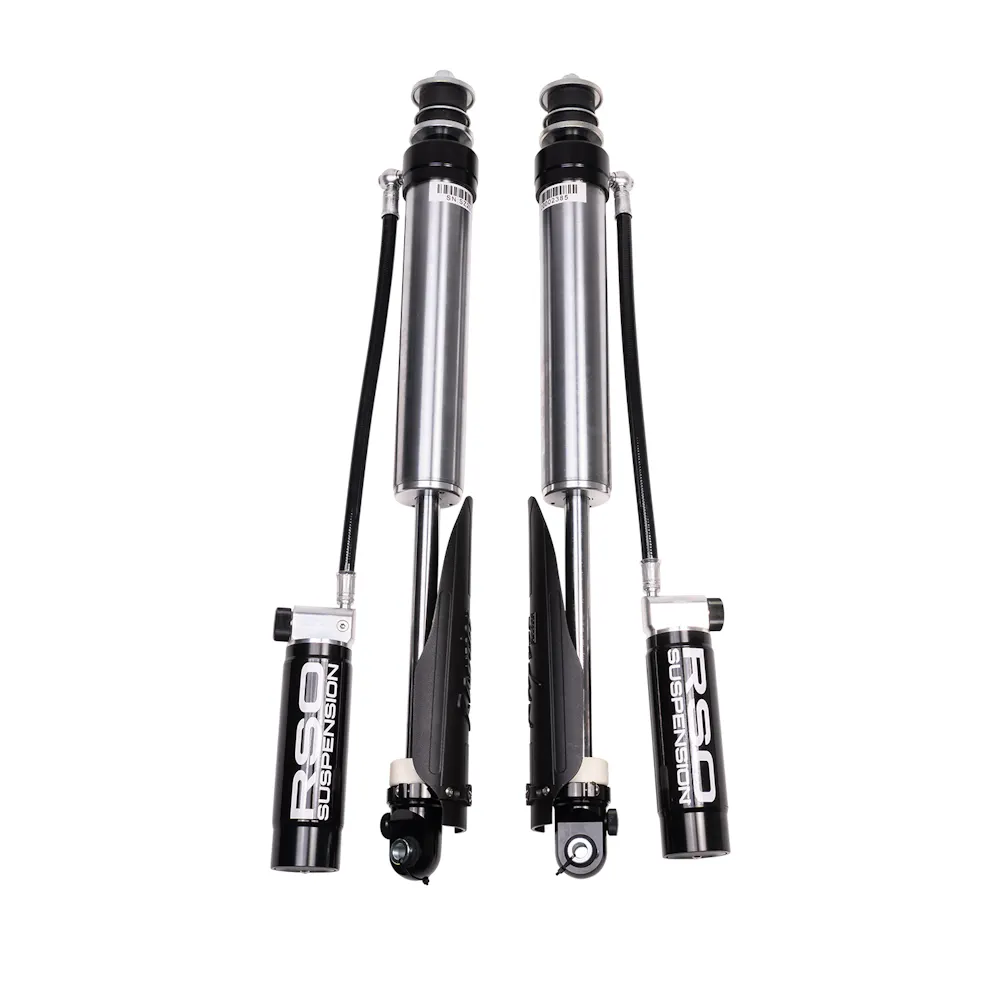

Raptor Series 150107-452201
