Rancho · RS999953
Part #: RS999953
UPC: 039703012942
Log in for inventory
Notify me when this item is in stock.

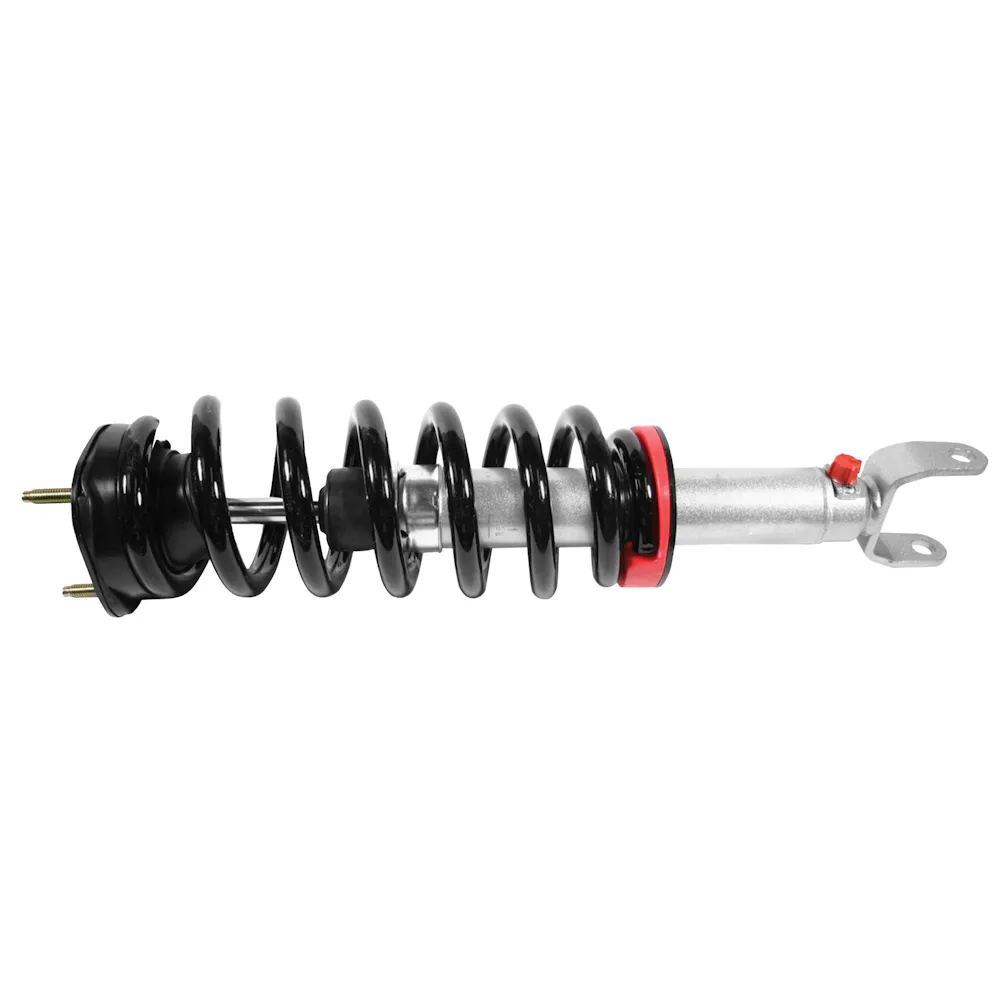

Description: QuickLIFT Suspension Strut and Coil Spring Assembly; Rancho QuickLIFT RS999953 Suspension Strut and Coil Spring Assembly for Ram 1500
Description:
This part number has been superseded by RS994953.
Description
An all-in-one solution, Rancho® quickLIFT™ loaded assemblies level and lift late model trucks and SUVs. This complete assembly simplifies installation, levels the front suspension and provides additional lift to accommodate larger wheels and tires.
Features & benefits
- COMPLETE SOLUTION -- Levels and lifts late model trucks and SUVs without the cost of complete suspension system
- EASY BOLT-ON INSTALLATION -- Complete assembly includes application-specific coil spring and upper mounting plate to simplify installation
- LEVELS FRONT SUSPENSION -- Removes factory rake for an aggressive stance
- INCREASED GROUND CLEARANCE -- Provides 2-in. of additional lift to accommodate up to 265x70x17 tires for a custom look and increased ground clearance (lift height varies depending upon application)
- NINE LEVELS OF PERFORMANCE -- Includes RS9000™XL strut with nine-position easy-to-adjust knob to allow customized damping control and firmness for on-road and off-road flexibility
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression and long-lasting premium liquid metallic finish and polyvinyl protective boot ensure long life
- REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Application summary
| Year | Make / model |
|---|---|
| 2019-2025 | Ram 1500 |
Specifications
- GTIN
- 00039703012942
- Weight
- 23.9 lb
- Height
- 29.4 in
- Length
- 7.75 in
- Width
- 6.75 in
- Life cycle
- Available to Order
- AAM brand code
- RAN
- Warehouse brand code
- RAN
- AAIA brand code
- BCKM
Attributes
- Adjustable Dampening
- Yes
- Body Diameter
- 2.13
- Body Type
- SS4
- California Proposition 65
- No
- Compressed Bumper Stop
- Yes
- Compressed Length
- 16.6
- Dust Shield
- Yes
- Dust Shield Included
- Yes
- Extended Bumper Stop
- Yes
- Extended Hydraulic Lockout
- No
- Extended Length
- 566.9
- Gas Charged
- Yes
- Grade Type
- Performance
- Hydraulic Lockout
- No
- Internal Rebound Bumper
- Yes
- Lower Mount Type
- Clevis Bracket Mount
- Parts Pack(s)
- P01141
- Reserve Tube Diameter
- 2.13
- Travel Length
- 5.72
- Upper Mount Type
- Stud Plate Mount
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2019-2025 Ram 1500
Resources
- Brand logo
- Installation Instructions
- Material Safety Data Sheet
- Material Safety Data Sheet
- Material Safety Data Sheet
- Material Safety Data Sheet
- Photo - Out of Package
- Photo - Primary
- RS9000 XL Adjustable Shock Absorber | Rancho Suspension
- Rancho | How to Replace Knob on RS9000XL Adjustable Shock
- RS9000 XL Shock Settings Explained | Rancho Suspension
- Rancho® Performance Suspension & Shocks | quickLIFT® Loaded Leveling System
- About Rancho®
- Your Adventure Starts with Off-Roading and Rancho
- Your Adventure Starts with Rancho
- Your Adventure Starts with Fishing and Rancho
- Your Adventure Starts with Paddleboarding and Rancho
- Your Adventure Starts with Mountain Biking and Rancho
- Your Adventure Starts with Hunting and Rancho
- Warranty

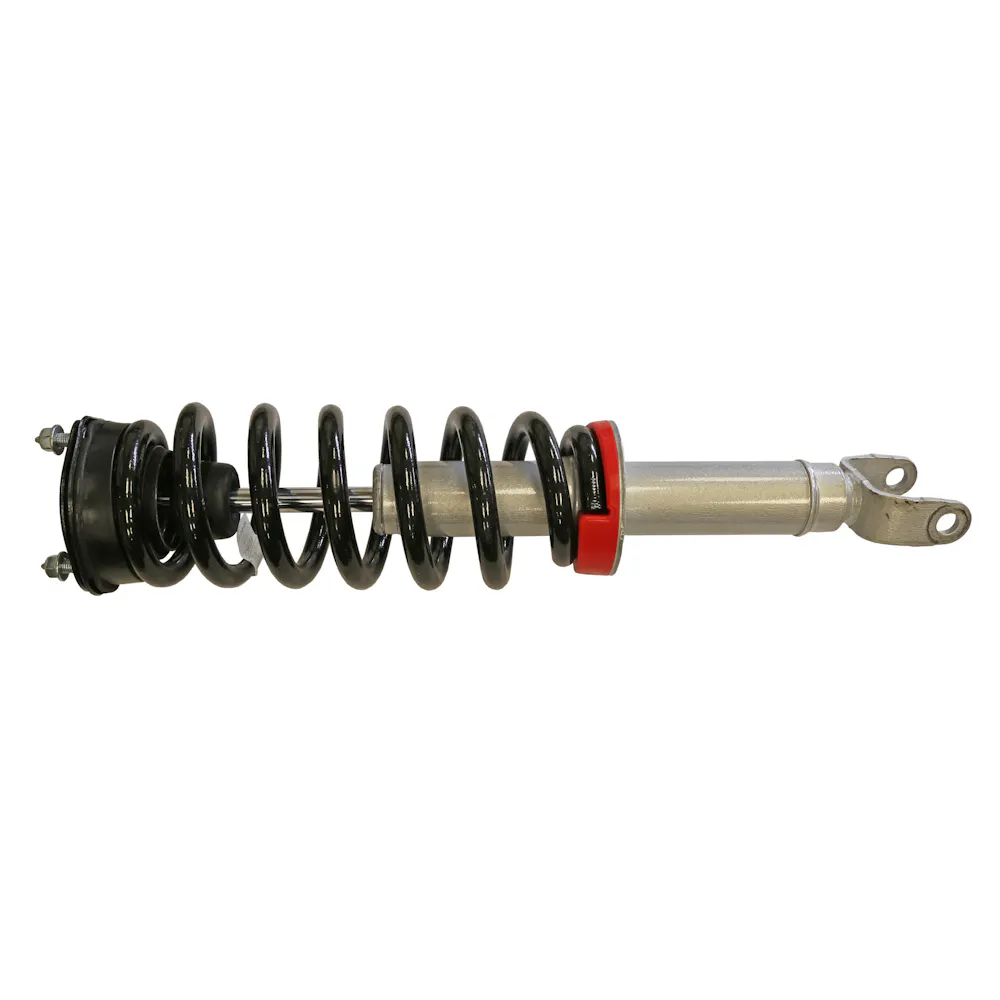

Rancho RS999953
