Rancho · RS999947

Part #: RS999947
UPC: 039703009942

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Rancho Series: QuickLIFT Loaded Struts

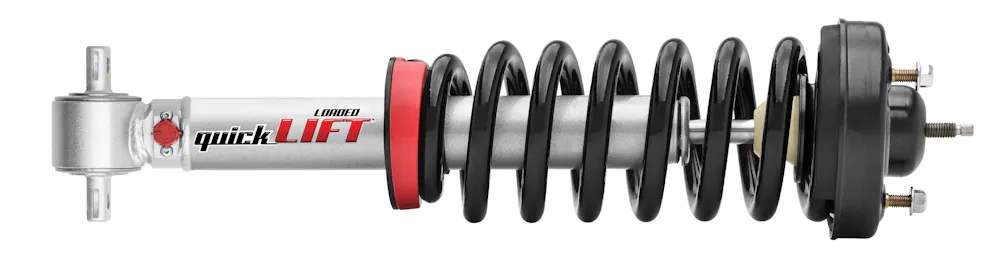

Description: QuickLIFT Suspension Strut and Coil Spring Assembly; Rancho QuickLIFT RS999947 Suspension Strut and Coil Spring Assembly for Ford F-150

This part number has been superseded by RS994947.

Description

An all-in-one solution, Rancho® quickLIFT™ loaded assemblies level and lift late model trucks and SUVs. This complete assembly simplifies installation, levels the front suspension and provides additional lift to accommodate larger wheels and tires.

Features & benefits

COMPLETE SOLUTION -- Levels and lifts late model trucks and SUVs without the cost of complete suspension system
EASY BOLT-ON INSTALLATION -- Complete assembly includes application-specific coil spring and upper mounting plate to simplify installation
LEVELS FRONT SUSPENSION -- Removes factory rake for an aggressive stance
INCREASED GROUND CLEARANCE -- Provides 2.25-in. of additional lift to accommodate up to 295x60x20 tires for a custom look and increased ground clearance (lift height varies depending upon application)
NINE LEVELS OF PERFORMANCE -- Includes RS9000™XL strut with nine-position easy-to-adjust knob to allow customized damping control and firmness for on-road and off-road flexibility
BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression and long-lasting premium liquid metallic finish and polyvinyl protective boot ensure long life
REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year	Make / model
2014-2020	Ford F-150

Specifications

GTIN: 00039703009942
Weight: 29.45 lb
Height: 29.38 in
Length: 7.75 in
Width: 6.75 in
Life cycle: Available to Order
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Body Diameter: 2.129
Body Length: 17.728
Body Type: SS7
California Proposition 65: No
Collapsed Length: 15.980 in.
Collapsed Length (in.): 15.980
Compressed Bumper Stop: No
Compressed Length: 15.98
Dust Shield: No
Dust Shield Included: No
Extended Bumper Stop: Yes
Extended Hydraulic Lockout: No
Extended Length: 21.1
Extended Length (in.): 21.100 in.
Grade Type: Performance
Hydraulic Lockout: No
Internal Rebound Bumper: Yes
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered: 2019
Min Year Covered: 2014
Most Popular Make/Model: Ford F-150
Most Popular Year: 2018
Parts Pack: P01141, P01726
Parts Pack(s): P01141, P01726
Product Grade: Premium
Reserve Tube Diameter: 2.129
Shock Stroke: 5.120 in.
Total Part VIO: 683878
Travel Length: 130
Upper Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
