Rancho · RS999946

Rancho RS999946

Part #: RS999946
UPC: 039703007337

Log in for inventory
Notify me when this item is in stock.

Brand: Rancho Series: QuickLIFT Loaded Struts
Log in to order

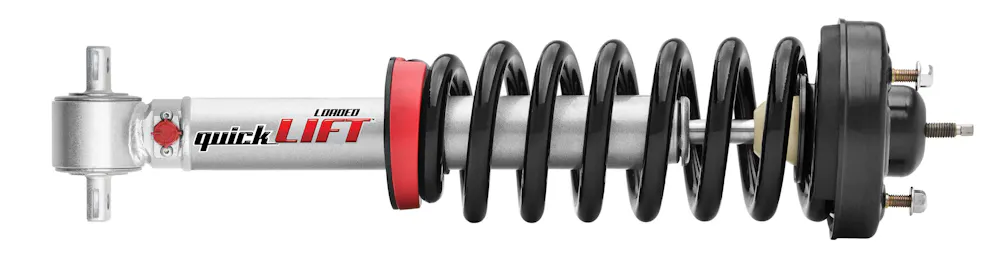

Description: QuickLIFT Suspension Strut and Coil Spring Assembly; Rancho QuickLIFT RS999946 Suspension Strut and Coil Spring Assembly for Ford F-150

Description:

This part number has been superseded by RS994946.

Description

An all-in-one solution, Rancho® quickLIFT™ loaded assemblies level and lift late model trucks and SUVs. This complete assembly simplifies installation, levels the front suspension and provides additional lift to accommodate larger wheels and tires.

Features & benefits

  • COMPLETE SOLUTION -- Levels and lifts late model trucks and SUVs without the cost of complete suspension system
  • EASY BOLT-ON INSTALLATION -- Complete assembly includes application-specific coil spring and upper mounting plate to simplify installation
  • LEVELS FRONT SUSPENSION -- Removes factory rake for an aggressive stance
  • INCREASED GROUND CLEARANCE -- Provides 2.5 to 2.75-in. of additional lift to accommodate up to 275x65x20 tires for a custom look and increased ground clearance (lift height varies depending upon application)
  • NINE LEVELS OF PERFORMANCE -- Includes RS9000™XL strut with nine-position easy-to-adjust knob to allow customized damping control and firmness for on-road and off-road flexibility
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression and long-lasting premium liquid metallic finish and polyvinyl protective boot ensure long life
  • REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year Make / model
2014-2020 Ford F-150

Specifications

GTIN
00039703007337
Weight
31.85 lb
Height
29.38 in
Length
7.75 in
Width
6.75 in
Life cycle
Available to Order
AAM brand code
RAN
Warehouse brand code
RAN
AAIA brand code
BCKM

Attributes

Body Length
16.43
Body Length (in.)
16.430
Body Type
SPEC
California Proposition 65
No
Collapsed Length
16.930 in.
Collapsed Length (in.)
16.930
Compressed Bumper Stop
No
Compressed Length
16.930
Dust Shield
No
Dust Shield Included
No
Extended Bumper Stop
Yes
Extended Hydraulic Lockout
No
Extended Length
564.9
Extended Length (in.)
22.240 in.
Grade Type
Performance
Hydraulic Lockout
No
Internal Rebound Bumper
Yes
Lower Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered
2019
Min Year Covered
2014
Most Popular Make / Model
Ford F-150
Most Popular Make/Model
Ford F-150
Most Popular Year
2018
Parts Pack
P01141,P01726
Parts Pack(s)
P01141,P01726
Product Grade
Premium
Shock Stroke
5.310 in.
Shock Stroke (in.)
5.310
Total Part VIO
2457878
Travel Length
5.310
Upper Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2014-2020 Ford F-150
