Rancho · RS999938

Part #: RS999938
UPC: 039703001755

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Rancho

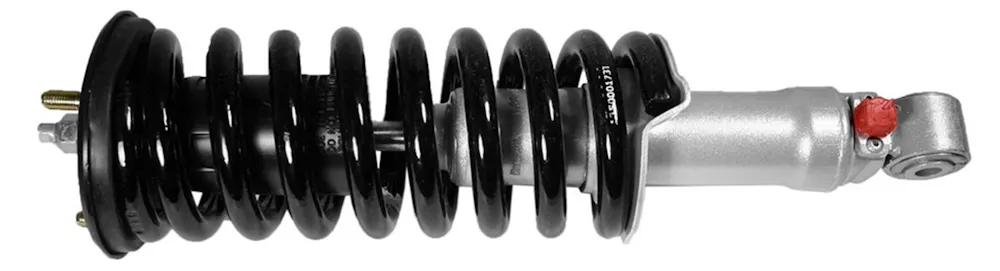

Description: Quick Lift Loaded; Rancho RS999938 Strut and Coil Spring Assembly

This part number has been superseded by RS999922.

Description

The new Rancho Loaded quickLIFT technology includes the application-matched of quickLIFT with the addition of coil spring and upper mounting plate and no extra cost. Rancho Loaded quickLIFT is finished in liquid metallic silver. This new product is very easy to install for shops and do-it-yourselfers because it is one full suspension unit and generally can put on the vehicle in twenty minutes per corner. Loaded quickLIFT provides 1 to 2.5 inches of additional lift, allowing for the use of larger wheel and tire packages up to 35 inches, which provides an aggressive vehicle stance. Rancho Loaded quickLIFT uses nine point tuning technology that easily adjust your ride quality and performance. It is also compatible with SEMA award winning Rancho MyRIDE Wireless Controller which allows you to control the units wirelessly from the cab. The Rancho Loaded quickLIFT is covered by a limited lifetime warranty and exclusive 90-day Performance and Ride Guarantee, an offer that lets enthusiasts try the Loaded quickLIFT product for 90 days. Consumers can return the product within 90 days for a full refund of its purchase price. Check our website to find the Loaded quickLIFT part numbers for your vehicle.

Features & benefits

Easy to install - Pre-assembled with coil spring and upper mount
Levels front suspension - Removes the factory rake
Clears up to 35-in. tires (select applications) - Creates a custom look, increases ground clearance
9-position tuning technology - Easily adjust ride quality and performance
Liquid metallic finish - Premium long lasting finish
Limited Lifetime Warranty (select applications) - Guarantees your investment

Information

Remove Factory Rake; Improve Ride; Allows For Larger Wheel/Tire

Application summary

Year	Make / model
2005-2019	Nissan Frontier
2005-2012	Nissan Pathfinder
2005-2015	Nissan Xterra

Specifications

GTIN: 00039703001755
Weight: 18.45 lb
Height: 6.75 in
Length: 24.38 in
Width: 5.75 in
EO: Legal US
Life cycle: Discontinued
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Body Length: 14.56
Body Length (in.): 14.560
Body Type: SS3
California Proposition 65: No
Collapsed Length: 11.050 in.
Collapsed Length (in.): 11.050
Compressed Bumper Stop: No
Compressed Length: 11.050
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 15.06
Extended Length (in.): 15.060 in.
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered: 2019
Min Year Covered: 2005
Most Popular Make / Model: Nissan Frontier
Most Popular Make/Model: Nissan Frontier
Most Popular Year: 2006
Parts Pack: P01101
Parts Pack(s): P01101
Product Grade: Premium
Reserve Tube Diameter: 2.000 in.
Shock Stroke: 4.010 in.
Shock Stroke (in.): 4.010
Total Part VIO: 1355968
Travel Length: 4.010
Upper Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
